Komutatorius Planet IGS-6325-16T4X, pagal užsakymą

Trumpai apie prekę

Prekė: Komutatorius Planet IGS-6325-16T4X, pagal užsakymą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: IGS-6325-16T4X

Planet IGS-6325-16T4X on request

Planet

10 Gbps fiber ports and multiple dual-speed ports for fast networking

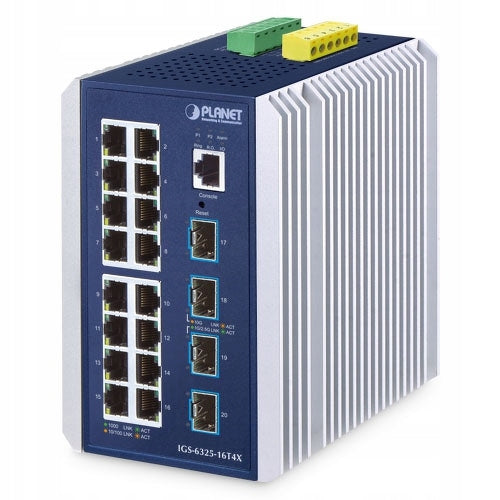

PLANET IGS-6325-16T4X is a powerhouse in industrial networks designed to optimize performance. This managed Layer 3 switch offers a combination of high-density copper and fiber optic interfaces for superior connectivity. With 16 10/100/1000BASE-T RJ45 ports and 4 10GBASE-SR/LR SFP+ ports, it is able to meet a variety of requirements. Placed in a durable IP30 metal housing with DIN rail compatibility, it is perfect for extreme environments from -40 to 75 degrees Celsius.

Equipped with a 10 Gbps uplink, the IGS-6325-16T4X seamlessly manages significant data workloads in a secure topology. Whether it's connecting to an industrial backbone network or high-capacity servers, its performance is unmatched. It operates flawlessly over a wide temperature range, guaranteeing a non-blocking switch structure, providing astonishing bandwidth up to 112 Gbps. This transformative capability simplifies the process of upgrading an industrial LAN, effectively meeting the growing bandwidth requirements.

From demanding conditions to intensive data streams, the IGS-6325-16T4X is becoming the best choice for increasing industrial network performance.

Flexible and extensible 10Gb Ethernet solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6325-16T4X supports triple speed and 10GBASE-SR/LR, 2500BASE-X or 1000BASE-SX/LX, providing wide bandwidth and powerful processing capability. With the capability of a 2-port 10G Ethernet connection, an administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or transmission speed required for efficient network expansion.

Intelligent SFP diagnostic mechanism

The IGS-6325-16T4X supports SFP-DDM (digital diagnostic monitor) function, which greatly helps the network administrator to easily monitor the parameters of SFP transceivers in real time, such as optical output power, optical input power, temperature, laser polarization current and transceiver supply voltage.

Redundant ring, fast recovery for critical network applications

The IGS-6325-16T4X supports redundant ring technology and has a strong, fast self-healing capability to prevent interruptions and external intrusions. It includes advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, spanning tree protocol (802.1s MSTP) and redundant power system in customer industrial automation network to increase system reliability and uptime in harsh factory conditions. In a simple Ring network, the data link restore time can be up to 10 ms.

Environmental resistant design

With an IP30-rated aluminum housing, the industrial managed switch provides a high level of resistance to electromagnetic interference and strong electrical surges that typically occur in production halls or curbside motion control cabinets. It also has an integrated power source with a wide voltage range for high-availability applications around the world that require dual or backup power inputs. With the ability to operate in the temperature range from -40 to 75 degrees C, the industrial managed switch can be placed in almost any harsh environment.

Cybersecurity network helps minimize security risks

The IGS-6325-16T4X is equipped with enhanced cybersecurity to counter cyberthreats and cyberattacks. It supports SSHv2 and TLS v1.2 protocols to provide strong protection against advanced threats. It serves as a key point for transmitting data over multiple long-distance fiber optic connections to critical customer equipment in the business network, the IGS-6325-16T4X cybersecurity feature protects switch management and increases mission-critical network security without the additional cost and effort associated with deployment.

Time Protocol 1588 for Industrial Computer Networks

The IGS-6325-16T4X is ideal for telecommunications and Ethernet operator applications, supporting MEF service delivery and time synchronization in packet solutions for IEEE 1588 and synchronous Ethernet.

Redundant power supply for continuous operation

The IGS-6325-16T4X features a dual 9~48V DC and 24V AC power supply used as a redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to meet the demands of high-tech facilities that require the highest power integrity.

Effective alarm for better protection

The IGS-6325-16T4X supports Fault Alarm, which can alert users when something is wrong with the switches. With this ideal feature, users won’t have to waste time finding where the problem occurs. This will help save time and human resources.

Digital input and output for external alarm

The IGS-6325-16T4X supports digital input and digital output on the front panel. This external alarm enables users to use the digital input to detect and record the status of an external device (such as a door intrusion sensor) and send event alerts to administrators. The digital output can be used to alert administrators if the IGS-6325-16T4X port shows a down connection, up connection, or power failure.

IPv6 Network Solution

With support for dual IPv6/IPv4 stack and multiple management features with easy and user-friendly interfaces, the industrial managed switch is the best choice for IP surveillance, VoIP and wireless service providers to deploy IPv6 networks. It also helps small and medium-sized businesses enter the IPv6 era with the lowest capital expenditures, but without having to replace network infrastructure, while ISPs build an IPv6 FTTx edge network.

IPv4 and IPv6 VLAN routing for secure and flexible management

To help customers stay on top of their business, the industrial managed switch not only provides very high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing functionality that allows you to cross-breed different VLANs and different IP addresses for highly secure, flexible management and a simpler network application.

Dual IPv6/IPv4 stack

Supporting both IPv6 and IPv4 protocols, the IGS-6325-16T4X helps data centers, campuses, telecommunications and more experience the IPv6 era with the lowest investment outlays, as its network devices do not need to be replaced or renovated if the IPv6 FTTx edge network is configured. ++

Support for Layer 3 routing

The IGS-6325-16T4X enables an administrator to conveniently increase network performance by manually configuring Layer 3 IPv4/IPv6 VLAN static routing and OSPFv2 (Open Shortest Path First) automatic IPv4 settings. OSPF is an internal dynamic routing protocol for a standalone system based on the state of the link. The protocol creates a database for the link state by exchanging link states between Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Solid Layer 2 features

IGS-6325-16T4X can be programmed for advanced Layer 2 switch management features such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. By aggregating the supporting ports, the IGS-6325-16T4X enables a high-speed trunk group to operate, which comes with multiple ports and also supports failover.

User-friendly management interfaces

For efficient management, the IGS-6325-16T4X is equipped with console, web and SNMP management interfaces.

• With its built-in Web-based management interface, the IGS-6325-16T4X offers easy-to-use, platform-agnostic management and configuration features.
• Text management can be accessed through Telnet and the console port.
• For standard monitoring and management software, it offers an SNMPv3 connection that encrypts packet contents during each session for secure remote management.

Powerful network security

The IGS-6325-16T4X offers a comprehensive list of access controls (ACLs) from Layer 2 to Layer 4 to enforce security at the network edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP ports, or defined common network applications. The protection mechanism also includes port-based and MAC-based authentication of 802.1X users and devices. With the private VLAN feature, you can prevent communication between edge ports to ensure user privacy.

Advanced IP network protection

The IGS-6325-16T4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. Network administrators can now build highly secure enterprise networks with much less time and effort than before.

Excellent motion control

The IGS-6325-16T4X is equipped with powerful traffic management and QoS capabilities to enhance telecommunications calling services and internet service providers. QoS features include high-speed Layer 4 traffic classifiers and bandwidth limit, which are particularly useful for multi-tenant entities, business units, Telco applications and network service providers. It also enables the industrial environment to take full advantage of limited network resources and guarantees the best performance for VoIP and video conferencing.

Modbus TCP provides flexible network connectivity for factory automation

With support for Modbus TCP/IP protocol, the industrial managed switch can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory halls. This enables administrators to remotely monitor industrial Ethernet switch operational information, port information and communication status, allowing for easy achievement of improved monitoring and maintenance of the entire factory.

Remote management solution

The universal PLANET network management system (UNI-NMS) and CloudViewerPro support IT staff by remotely managing all network devices and monitoring the operational status of PD devices. Therefore, they are designed for both enterprises and industries where PD device deployments can be as remote as possible, without having to go to the actual location when an error or fault is detected. With UNI-NMS or CloudViewerPro, all types of businesses can now be managed quickly and efficiently from a single platform.

• Quantity per package: 10 units
• Height: 15.2 cm (5.98 inches)
• Width: 9.6 cm (3.78 inches)
• Depth: 10.7 cm (4.21 inches)
• Weight: 1.503 kg (3.31 lbs)
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolandPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	16
Parametry	EAN (GTIN)	4711605287425
Parametry	Manufacturer code	IGS-6325-16T4X
