Komutatorius Planet GS-6320-8P2X

Trumpai apie prekę

Prekė: Komutatorius Planet GS-6320-8P2X. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-6320-8P2X

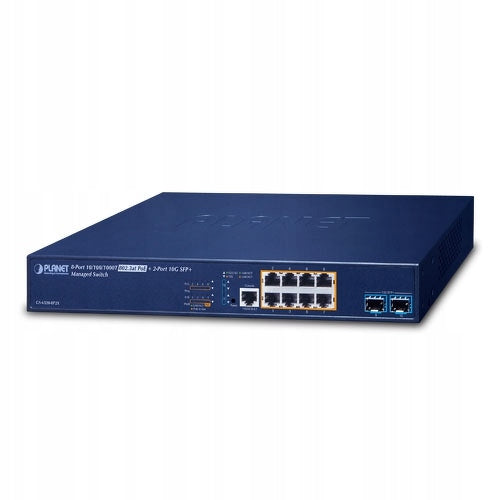

Planet GS-6320-8P2X Custom made

Planet

Excellent managed PoE+ switch with L3/L2 switching function and security

The PLANET GS-6320-8P2X Layer 3 Managed Gigabit Switch supports IPv4 and IPv6 protocols and dynamic and static routing of Layer 3 OSPFv2. It has 8 10/100/1000BASE-T ports with 802.3at PoE+ and 2 additional 1/2.5/10 Gigabit BASE-X SFP+ fiber ports. Each of the eight gigabit ports provides 36 watts of power, and the total power budget is up to 120 watts for different types of PoE applications. The device provides a fast, secure and cost-effective Power over Ethernet networking solution for IP security surveillance for small businesses and enterprises.

Redundant ring, fast recovery for critical network applications

The GS-6320-8P2X switch supports redundant ring technology and features a strong, fast self-healing capability to prevent interruptions and intrusions from outside. The device uses advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and a strapping tree protocol (802.1w RSTP) in the customer’s network to increase system reliability and uptime in harsh environments. In some simple ring networks, the restore time can be less than 10 ms, allowing you to quickly restore normal network operation.

Network solution to ensure cybersecurity and minimize security risks

The cybersecurity feature used to protect switch management in a mission-critical network requires virtually no effort or cost during installation. Both SSHv2 and TLSv1.2 protocols are used to provide strong protection against advanced threats. A network administrator can now build highly secure corporate networks with significantly less time and effort than before.

Flexible and extensible 10Gb Ethernet solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the GS-6320-8P2X supports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With the ability to support a 2-port 10G Ethernet connection, an administrator can flexibly select the appropriate SFP/SFP+ transceivers depending on the distance or transmission speed required for efficient network expansion. The GS-6320-8P2X provides wide bandwidth and high processing efficiency.

Built-in unique PoE features for monitoring management

The GS-6320-8P2X, as a managed PoE switch for monitoring networks, has the following intelligent PoE management functions:

• Checking out PD Alive
• Planned energy recycling
• SMTP/SNMP Trap event notification
• PoE Schedule
• Monitoring PoE usage
• PoE extension

Intelligent status checking of powered devices

The GS-6320-8P2X can be configured to monitor the status of a connected PD device in real time through a ping action. When the device stops working and receives no response, the GS-6320-8P2X will resume powering the PoE port and return the device to operation. This greatly increases network reliability by resetting the PD power source through the PoE port, which reduces the administrator load.

Scheduled power recycling

The GS-6320-8P2X allows each of the connected PD devices to restart at a specific time each week. This reduces the likelihood of PD failure caused by buffer overflow.

PoE Schedule for Energy Savings

In addition to its use in IP monitoring, the GS-6320-8P2X can be used to build any PoE network, including VoIP and wireless LAN. According to the global energy saving trend and contributing to the protection of the environment on Earth, GS-6320-8P2X can effectively control the power supply as well as provide high power. The "PoE scheduler" feature allows you to turn on or off the power supply for each PoE port at specific time intervals, and it is an effective feature to help small and medium-sized businesses save energy and budget.

PoE power supply and increasing Ethernet data transmission distance

In "Extend" mode, the GS-6320-8P2X operates in 10Mbps duplex mode for each port, but can provide 22-watt PoE power over a distance of up to 200 meters, overcoming the 100m limit for Ethernet UTP cable. With this new feature, the GS-6320-8P2X provides an additional solution for increasing the distance of 802.3at/af PoE, thus saving the cost of installing an Ethernet cable.

SMTP/SNMP Trap Event Alert

Although most NVR or camera management software offers an SMTP alarm function, the GS-6320-8P2X additionally provides an event alarm function that helps diagnose device malfunction due to network connection interruption, PoE power loss, or restart response to the PD Alive Check process.

Convenient and intelligent ONVIF devices with detection function

PLANET has developed a new, great feature - ONVIF Support - that has been designed specifically to work with IP video surveillance systems. With just one click in the GS-6320-8P2X user interface, you can search and view all ONVIF devices using the web application. In addition, you can upload floor images to the switch and remotely monitor what is happening on the production line. In addition, you can get real-time information about surveillance and online/offline status, as well as control the PoE restart using the graphical interface.

IPv6 Network Solution

With IPv6/IPv4 support and an easy and user-friendly management interface, the GS-6320-8P2X is the best choice for IP monitoring, VoIP and wireless service providers to connect to an IPv6 network. It also helps small and medium-sized enterprises enter the IPv6 era with the lowest investment and without the need to replace network devices, even if ISPs create an edge IPv6 FTTx network.

Support for Layer 3 routing

The GS-6320-8P2X enables an administrator to conveniently increase network performance by manually configuring IPv4/IPv6 VLAN Layer 3 static routing, automatic configuration of RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings. The RIP protocol can use the number of hops as a routing metric and prevent routing loops by limiting the number of hops allowed in the path from source to destination. OSPF is an internal dynamic routing protocol for autonomous systems based on the state of the link. This protocol creates a link state database by exchanging link states between Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.

Solid Layer 2 features

The GS-6320-8P2X can be programmed for advanced switch management such as dynamic port aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-6320-8P2X enables high-speed trunking that connects multiple ports. Supporting 5 trunk groups, it allows up to 2 ports per trunk and also supports connection failover.

Powerful security

The GS-6320-8P2X offers a comprehensive list of access controls (ACLs) from Layer 2 to Layer 4 to enforce security at the network edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP port numbers, or defined common network applications. The protection mechanism also includes port-based and MAC-based authentication of users and 802.1x devices. With the private VLAN feature, you can prevent communication between edge ports to ensure user privacy.

Increased safety and traffic control

The GS-6320-8P2X also features DHCP Snooping, IP Source Guard and Dynamic ARP Inspection, which protect against IP snooping attacks and reject ARP packets with an invalid MAC address. A network administrator can now build highly secure corporate networks with significantly less time and effort than before.

Efficient management

For efficient management, the GS-6320-8P2X is equipped with console, web and SNMP management interfaces.

• With its built-in Web-based management interface, the device offers easy-to-use, platform-agnostic management and configuration capabilities.
• Text management can be accessed through Telnet and the console port.
• For standard monitoring and management software, it offers an SNMPv3 connection that encrypts packet contents during each session to ensure secure remote management.

Intelligent SFP diagnostic mechanism

The GS-6320-8P2X supports SFP-DDM (Digital Diagnostic Monitor), which greatly facilitates the network administrator to monitor in real time the parameters of SFP transceivers such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

• Redundant Power Supply: No
• Management: Yes
• Main Port Type: RJ45
• Main Port Bandwidth: Gigabit Ethernet
• PoE Support: Yes
• PoE Power Budget: 120 W
• Number of PoE Ports: 8
• Quantity in Collective Package: 6 pcs
• Height: 4.45 cm
• Width: 33 cm
• Depth: 15 cm
• Weight: 1.6 kg
• Manufacturer Details: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Details: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	8
Parametry	EAN (GTIN)	4711605286220
Parametry	Manufacturer code	GS-6320-8P2X
