Komutatorius Planet GS-5220-24T4XVR, individualus užsakymas

Trumpai apie prekę

Prekė: Komutatorius Planet GS-5220-24T4XVR, individualus užsakymas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-5220-24T4XVR

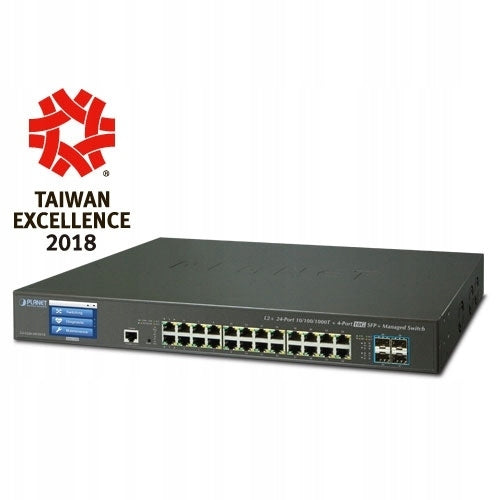

Planet GS-5220-24T4XVR Custom made

Planet

IPv6 routing and 10G Ethernet switching solutions for small and medium businesses

The PLANET GS-5220-24T4XV and GS-5220-24T4XVR Layer 2+ Managed Gigabit Switches with LCD Touchscreen support both IPv4 and IPv6 protocols and Layer 3 hardware static routing, and provide 24 Gigabit Ethernet 10/100/1000 Mbps ports and 4 10Gigabit SFP+ uplink slots. The GS-5220-24T4XV series can handle very large amounts of data in a secure topology connecting to the service provider's data center/framework network or high-capacity servers. They can work with a 10Gbps SFP+ server adapter to help small and medium-sized businesses build a 10Gbps Ethernet network that provides 10Gbps NAS (Network Attached Storage) or intensive transmission of video streaming services at an affordable price.

Cybersecurity networking solution to minimize security risks

The new generation of GS-5220-24T4XV switches has a cybersecurity feature that protects switch management and increases mission-critical network security without the additional cost and effort of deployment. The GS-5220-24T4XV expands memory and updates the SSH and SSL protocol kernel to provide strong protection against advanced threats. It includes a number of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port and Mac-based network access control, RADIUS and TACACS+ user account management, SNMPv3 authentication and so on to complement it as a complete security solution. A network administrator can now build highly secure enterprise networks with much less time and effort than before.

Intuitive LCD Display

The GS-5220-24T4XV and GS-5220-24T4XVR are equipped with an intuitive touch panel on the front panel, which greatly increases management efficiency in large networks such as enterprises, hotels, shopping malls, government buildings and other public areas. It also has the following special management and status functions:

• IP address, VLAN configuration and QoS
• Port management and status and SFP information
• Troubleshooting: Cable Diagnostics and Remote IP Ping
• Maintenance: Restart, factory reset, and save configuration

Redundant ring, fast recovery for critical network applications

The GS-5220-24T4XVR supports redundant ring technology and has a strong, fast self-healing capability to prevent interruptions and external intrusions. It includes advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, 802.1s Multiple Spanning Tree Protocol (MSTP) and dual power system in customer industrial automation network to increase system reliability and working time in harsh factory conditions. In some simple ring networks, the data link restore time can be as long as 20 ms.

Cost-effective Uplink 10 Gbps bandwidth

10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots in the GS-5220 series support dual speeds of 10GBASE-SR/LR or 1000BASE-SX/LX, which means that an administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or transmission speed required for efficient network expansion. They largely support small and medium-sized business networks in achieving a maximum performance of 10 Gbps in a cost-effective way, as a 10GbE interface can usually be available in a Layer 3 switch, but a Layer 3 switch can be too expensive for small and medium-sized businesses.

Redundant AC/DC power supply for continuity of operation

The GS-5220-24T4XVR is especially equipped with one 100~240V AC power supply and one 36~60V DC power supply to provide reliable and scalable redundant power supply. The continuous power system has been specially designed to meet the requirements of technologically advanced facilities requiring the highest power integrity. With 36~60V DC power supply, GS-5220-24T4XVR can act as a telecommunication device, which can be placed in the electronic room.

IPv6 Network Solution

With dual IPv6/IPv4 stack and other management features with user-friendly interfaces, the GS-5220 series is the best choice for IP surveillance, VoIP and wireless service providers to deploy IPv6 networks. More importantly, they help small and medium-sized businesses upgrade their network infrastructure to the IPv6 era without any financial investment.

IPv4/IPv6 VLAN routing for secure and flexible management

To help customers stay on top of their business, the GS-5220 switch series not only provides very high transmission performance and excellent Layer 2 technologies, but also offers an IPv4/IPv6 VLAN routing feature that allows them to cross different VLANs and different IP addresses for highly secure, flexible management and a simpler network application.

Solid Layer 2 features

The GS-5220 series can be programmed for advanced switch management features such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220 series allows you to handle high-speed trunking connecting multiple ports. It consists of up to 9 trunk groups with 2 ports for each group and also supports call failover.

Very good security

The GS-5220 series offers a comprehensive list of access controls (ACLs) from Layer 2 to Layer 4, enabling security enforcement at the network edge. It can be used to restrict network access by blocking packets based on source and destination IP addresses, TCP/UDP port numbers, or defined network applications. Its protection mechanism also includes user and device authentication based on the 802.1x port and based on MAC addresses. With the private VLAN feature, communication between ports at the network edge can be blocked to ensure user privacy.

Enhanced security and traffic control

The GS-5220 series also offers DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features to prevent IP snooping attacks and reject ARP packets with invalid MAC addresses. A network administrator can now build highly secure corporate networks much faster and easier than before.

Event notifications with SMTP/SNMP Trap

The GS-5220 series offers an event notification feature that helps diagnose device malfunctions due to loss of network connection or reboot response.

User-friendly security management

For efficient management, the GS-5220 series of managed switches are equipped with console, web and SNMP management interfaces. With a built-in web browser-based management interface, the GS-5220 series offers an easy-to-use and system platform-independent management and configuration interface. The GS-5220 series supports SNMP and can be managed using SNMP v1 or v2 compliant management software. In order to reduce product learning time, the GS-5220 series offers Cisco-style commands via Telnet or console port, so that the user does not have to learn new commands. In addition, the GS-5220 series offers remote security management through support for SSH, SSL and SNMP v3 connections, where package contents can be encrypted during each session.

Intelligent SFP/SFP+ diagnostic mechanism

The series supports SFP-DDM (Digital Diagnostic Monitor), which makes it much easier for the network administrator to monitor in real time the parameters of SFP and SFP+ modules, such as optical output power, optical input power, temperature, laser polarization current and transceiver supply voltage.

• Redundant Power Supply: Yes
• Managed: Yes
• Main Port Type: RJ45
• Main Port Bandwidth: Gigabit Ethernet
• PoE Support: No
• Quantity per Master Pack: 3 pcs
• Height: 4.4 cm
• Width: 44 cm
• Depth: 26 cm
• Weight: 3.5 kg
• Manufacturer Details: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Details: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711605283458
Parametry	Manufacturer code	GS-5220-24T4XVR
