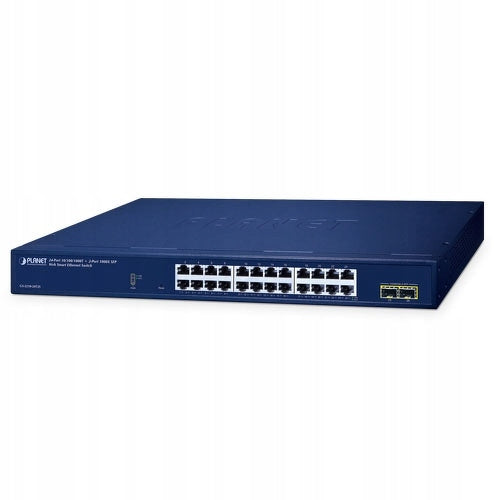

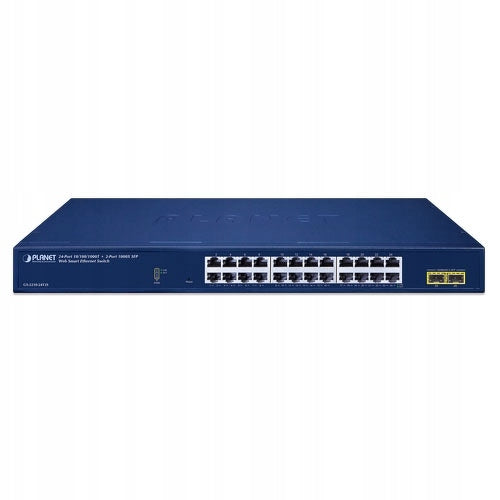

Komutatorius Planet GS-2210-24T2S

Trumpai apie prekę

Prekė: Komutatorius Planet GS-2210-24T2S. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-2210-24T2S

Planet GS-2210-24T2S Custom made

Planet

Integrated NMS increases network management efficiency

The PLANET GS-2210-24T2S Smart Ethernet Switch combined with the NMS makes network management easier and more efficient. In addition, it is easy to set up any application that the industry needs. It has link aggregation features, IGMP, QoS, CLI and many more that improve the availability of critical business applications.

The GS-2210-24T2S offers 24 10/100/1000BASE-T ports and 2 additional Gigabit SFP slots, providing a fast, secure and cost-effective Web Smart Ethernet Switch solution for small businesses and enterprises.

With NMS, administrators can centrally manage networks up to 102 400 nodes from a central office, which greatly improves network and energy management efficiency. Thanks to user authentication management, combined with NMS, the security of data transmission in modern industrial automation systems is increased.

UNI-NMS remote management solution

The GS-2210-24T2S supports the universal PLANET network management system (UNI-NMS), helping IT staff to remotely manage all network devices and monitor the operational status of PD devices. Consequently, they are intended for both enterprises and industries where PD device deployment can take place as remotely as possible without having to go to the actual location when an error or fault is detected. With UNI-NMS, all types of businesses can now be managed quickly and efficiently from a single platform.

Powerful NMSViewerPro solution that meets the changing challenges of network management

The GS-2210 Web Smart Switch series, known for features such as QoS, link aggregation, VLAN, IGMP, etc., offers an eye-catching feature called NMS developed by PLANET for easy and remote management and monitoring of network devices in an on-premises environment from within a mobile application. This feature not only enhances the user experience, but also gives users real-time control over their network infrastructure. This provides users with an unparalleled experience.

The intuitive interface of the local NMSViewerPro allows administrators to easily perform a variety of tasks, including motion monitoring, configuration settings, troubleshooting, and more. At the same time, the PLANET UNI-NMS app provides real-time alerts and notifications, allowing administrators to respond to any emergencies anytime, anywhere to ensure stable network operation.

The GS-2210-24T2S, integrated with NMSViewerPro, meets the needs of users by providing a comprehensive and efficient solution to meet the changing challenges of network management and provide users with more efficient and flexible management.

PLANET NMS and the NMSViewerPro application, which together with the free PLANET cloud service, enable users to quickly and easily detect, configure, deploy and remotely manage devices. Simply scan the QR code of the NMS agent (NMS-500/NMS-1000V) using the mobile app to easily monitor and control remote network devices via a private cloud.

Solid Layer 2 features

The GS-2210-24T2S can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, bandwidth control and IGMP snooping. The switch provides VLAN protocol functions with 802.1Q tags. With support for port aggregation, the GS-2210-24T2S enables high-speed trunking connected to multiple ports, and also supports failover. In addition, the included Layer 2 protocol helps detect basic information about adjacent devices in your local broadcast domain.

Flexibility and expandability over long distances

The two mini-GBIC slots built into the GS-2210-24T2S support automatic SFP detection and dual speed, as they are equipped with 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber optic transceivers for connecting to the backbone switch and long-distance monitoring center. The distance can be increased from 550 meters to 2 kilometers (multimode fiber) and to more than 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for use in enterprise data centers and distributions.

Convenient and intelligent ONVIF devices with detection function

PLANET recently developed an amazing feature - ONVIF Support - that has been specifically designed to work with IP video surveillance. From the graphical interface, the GS-2210-24T2S is just one click away to search for and display all ONVIF devices via a web application. In addition, you can open the camera website via an IP address link to get real-time monitoring information and online/offline status of the IP-based camera with the GS-2210-24T2S GUI.

ONVIF management functions:

• Support for PLANET ONVIF IP camera detection
• One GS-2210-24T2S switch can connect up to 24 PLANET ONVIF IP cameras.
• IP Camera MAC Address, IP Address, Port and Model Name
• Open the camera website with an IP hyperlink

• Weight: 2.1 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolandPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711605287777
Parametry	Manufacturer code	GS-2210-24T2S
