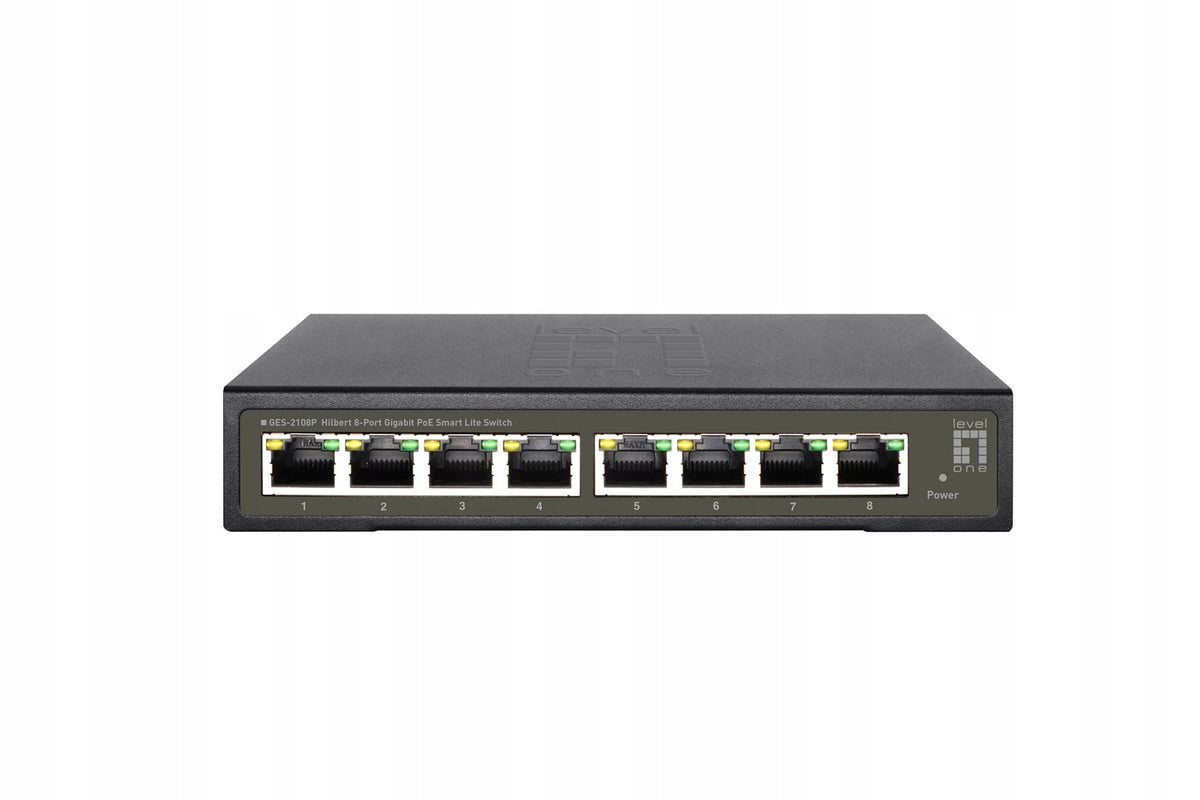

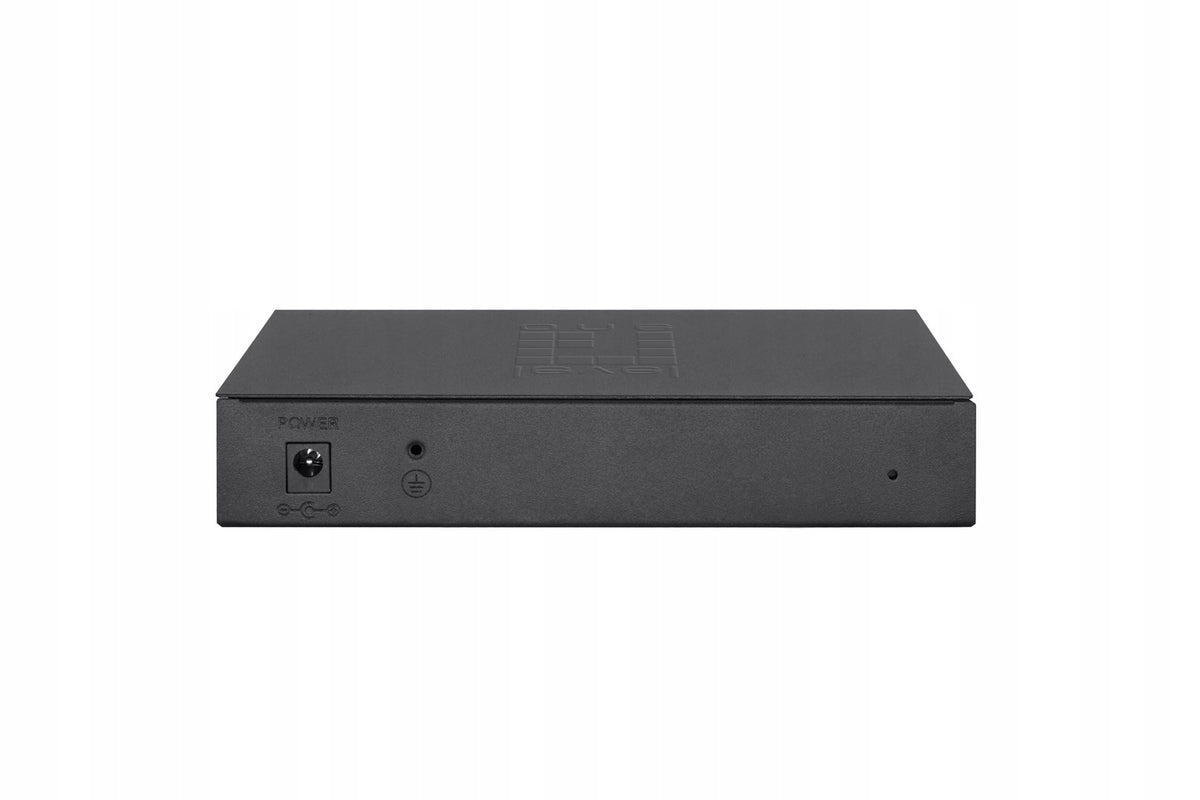

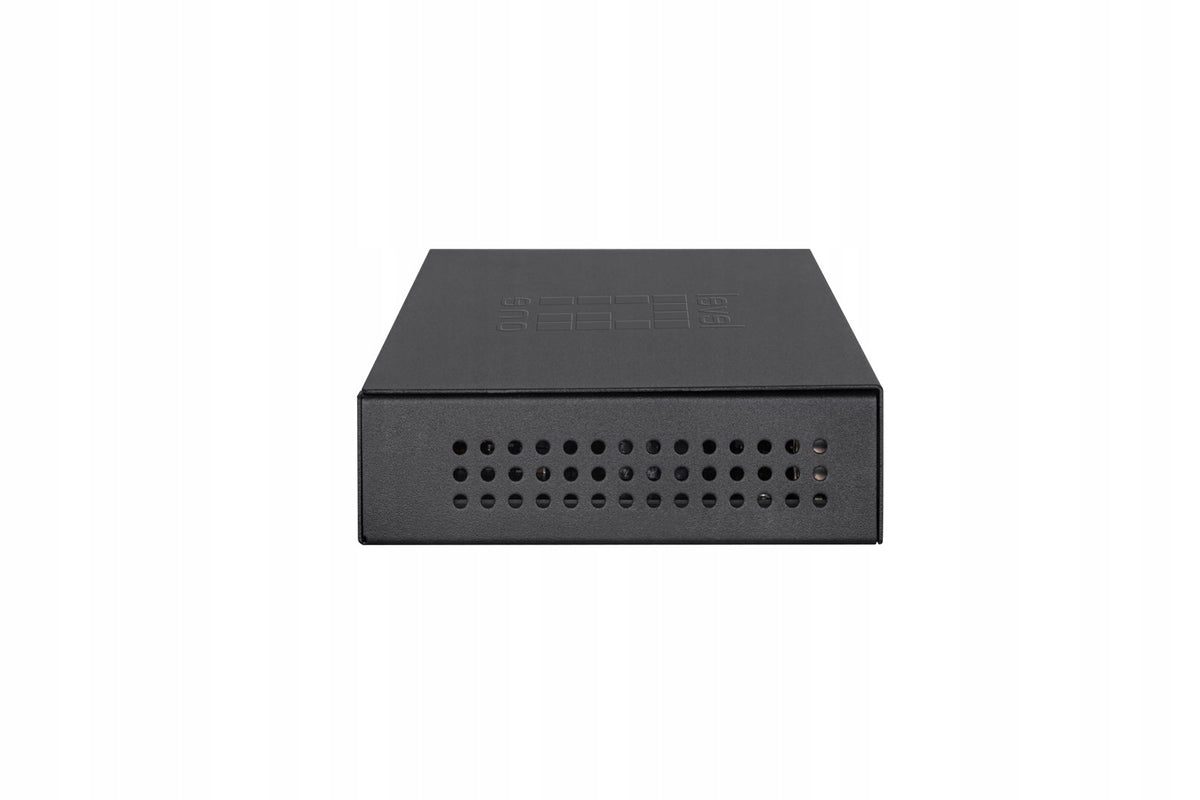

Komutatorius LevelOne Hilbert, 8 portų, Gigabit, PoE, Smart Lite, 802.3a

Trumpai apie prekę

Prekė: Komutatorius LevelOne Hilbert, 8 portų, Gigabit, PoE, Smart Lite, 802.3a. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: GES-2108P

Technical Details

• Pallet gross length: 80 cm
• Master cartons (outer) per pallet (air): 18 pc.
• Pallet gross width: 120 cm

Construction

• LED indicators: PoE, Link, Activity
• Rack mounting capabilities: No
• Product color: Black

Power

• Power consumption (max): 120 W
• Surge protection: 8 kV, Yes
• Input current: 2.2 A
• DC input voltage: 54 V
• Power source: DC/PoE
• Power adapter included: Yes

Weight & Dimensions

• Product width: 160 mm
• Product depth: 95 mm
• Product height: 29 mm
• Product weight: 400 g

Protection

• IGMP snooping: Yes

Management Features

• Switch type: Managed
• Quality of Service (QoS) support: Yes
• Switch layer: L2

Operating Conditions

• Storage temperature (max): 40 - 70 °C
• Operating temperature (max): 0 - 45 °C
• Relative humidity (max): 5 - 95%
• Relative humidity (min): 10 - 90%
• Heat emission: 27.3 BTU/h

Network

• Communication standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3af, IEEE 802.3x, IEEE 802.3u
• MAC address auto-aging support: Yes
• Port mirroring: Yes
• Number of VLANs: 32
• Link aggregation: Yes
• MAC address auto-learning support: Yes
• Virtual LAN features: Tagged VLAN
• VLAN support: Yes
• Half duplex: Yes
• Auto-negotiation: Yes
• Rate limiting: Yes
• Full duplex: Yes
• Flow control support: Yes
• Traffic control: Yes
• Auto MDI/MDI-X: Yes

Performance

• MTBF (Mean time between failures): 43800 h
• Flash memory: 2 MB
• Noise level: 0 dB
• Fanless: Yes

Package Details

• Gross weight (with packaging): 1.3 kg
• Package depth: 230 mm
• AC adapter: Yes
• Package type: Box

Package Contents

• Cables: AC

Certificates

• Compliance certificates: RoHS, CE
• Certifications: UKCA, FCC Class A

Ports & Interfaces

• Number of Gigabit Ethernet ports: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity: 8

Logistics Data

• Master carton width: 350 mm
• Master carton gross weight (outer): 13.6 kg
• Country of origin: China
• Products per master carton (outer): 10 pc.
• Master carton length (outer): 330 mm
• Net weight of bulk packaging: 600 g
• Master carton height (outer): 480 mm

Data Transfer

• MAC address table: 4000 entries
• Routing/switching capacity: 16 Gbit/s
• Jumbo Frames support: Yes
• Packet buffer memory: 1.5 MB
• Jumbo Frames extension: 9000
• Number of queues: 4

Power over Ethernet (PoE)

• Total Power over Ethernet (PoE) budget: 112.8 W
• Power per PoE port: 30 W
• Number of Power over Ethernet Plus (PoE+) ports: 8
• PoE support: Yes

Multicast Features

• Multicast support: Yes

Sustainability

• Sustainability compliance: Yes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	LevelOne
Parametry	Number of ports	8
Parametry	EAN (GTIN)	4015867229200
Parametry	Manufacturer code	GES-2108P
