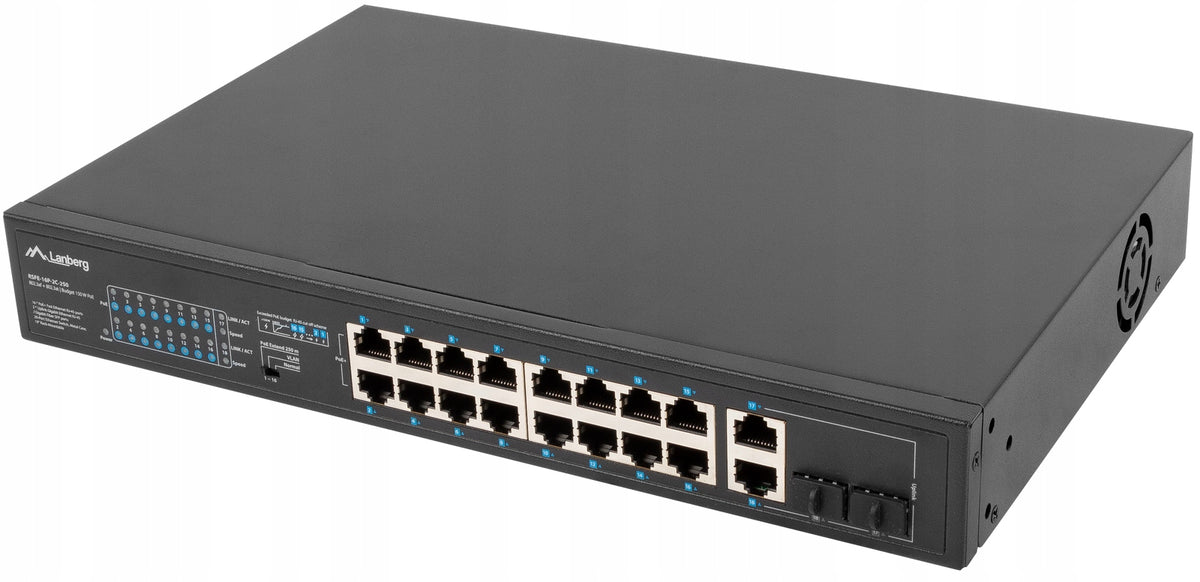

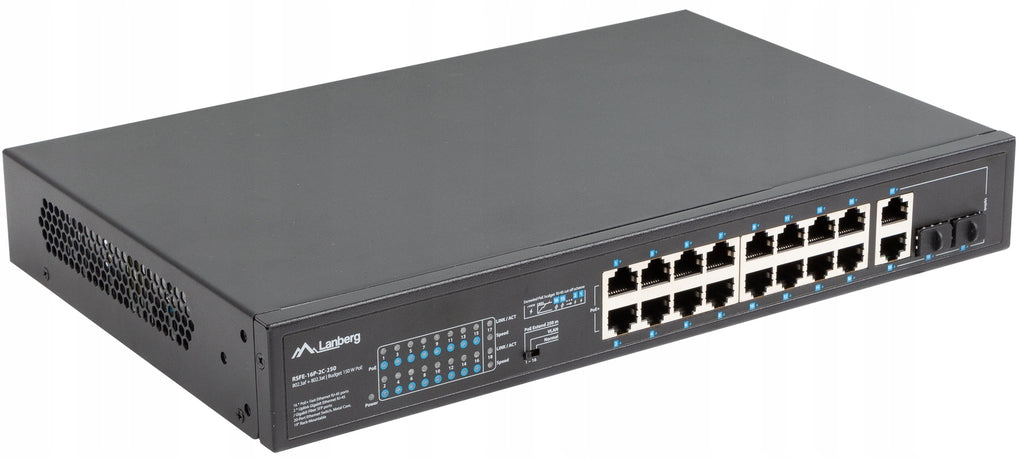

Komutatorius LANBERG, 16x 100Mb PoE+/2x Combo, 150W, be valdymo

Trumpai apie prekę

Prekė: Komutatorius LANBERG, 16x 100Mb PoE+/2x Combo, 150W, be valdymo. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Lanberg
• Modelis: RSFE-16P-2C-150

The PoE+ switch is an indispensable device active in any network structure, using power transmission through structured cabling. RSFE-16P-2C-150 is dedicated to all installations: home, company, low-current, monitoring, IP, VoIP, cable TV networks, and in particular will be used in alarm, fire and access control infrastructure.

EAN 5901969429299

Manufacturer code RSFE-16P-2C-150

In addition to the original switch function, i.e. support for Ethernet frame movement between ports, it additionally provides power to each device in the PoE/PoE+ standard – 802.3af and at. This allows power to be delivered to devices up to a total of 150 W. And all this together with simultaneous data transmission to them.

This saves resources, space and time that should be spent on the installation of a separate electrical and network installation. This is especially important if the network is distributed and its end devices do not have access to a power source, especially when mounted outdoors.

PRODUCT SPECIFICATION:

• Number of Ethernet Ports: 18
• Number of Fiber Optic Ports: 2
• Number of POE ports: 16
• Port specification: 16x 100BASE-T 802.3af / 802.3at PoE+, 2x RJ45 port (1Gb/s) or 2x SFP slot (1Gb/s) - Combo UpLink
• Maximum network link speed: 1000 Mbps Type of Ethernet network link, Fiber Optic
• Size: 19"
• PoE Support: Yes
• Supported standards: PoE 802.3at, 802.3af
• Power Type: PoE PoE, PoE+ Total PoE Budget 150W
• Maximum power per port: 30 W
• Bandwidth: 7,2 Gbps
• MAC Address Table: 16K
• Cooling: Active – fan Power Requirements 100~240V AC
• Power Consumption: 150 W
• Surge protection: 6 kV
• Operating Indicator: LED
• Wired standards: IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3af PoE, IEEE 802.3at PoE+
• Functions: Intelligent PoE Port Disconnection Function, Extend Mode, VLAN
• ICT height: 1 U
• Dimensions: 208 x 320 x 45 mm
• Weight: 1,9 kg
• Recommended ambient temperature: 5 to 55 °C
• Recommended ambient humidity: 0 to 80 %

SOLUTION WITHOUT COMPROMISE - REAL BUDGET POE: 150W

The switch is equipped with a total of 18 ports, including 16 PoE+ (Fast Ethernet) and 2 Uplink (Combo Gigabit) ports. Thoughtful design and attention to the quality of components provides the user with up to 150 W of total real power for end devices, which means the ability to connect simultaneously:

• 10 IEEE 802.3af devices (max. 15 W per port) or,
• 5 devices in IEEE 802.3at standard (max. 30 W per port),

The remaining 2 ports (Uplink) are dedicated to the exchange of data traffic between 16 PoE+ ports and external devices. In the case of monitoring/control systems, this is particularly useful because it allows the user to rip the recording from the cameras to the recorder while sharing the stream further (on the second port), e.g. on the local network or on the Internet.

INTELLIGENT POE PORT DISCONNECTION FUNCTION

It is not always clear how the switch will behave when the available PoE budget is exceeded. There are several options: a port that exceeds the budget or random or the latest connected will be disconnected. In the last case, what will be their order after the power outage and its restoration when they are all simultaneously plugged into the switch?

Lanberg in RS series switches has introduced innovative solutions that, through the simplicity of the principle of operation, eliminates any doubts as to the mechanics of port operation.

When the PoE budget is exceeded (e.g. through the device connected to port 1), the switch will start disconnecting PoE ports starting from the highest numbering until the sum of loads does not exceed the available budget; while keeping the operation of the remaining ports intact. Those that are disconnected will remain in this state until the PoE load decreases.

The function is primarily dedicated to demanding applications that emphasize safety and continuity of operation, where some devices must operate continuously regardless of the situation. In such cases, Lanberg switches will allow the user to secure critical devices by connecting them to the lowest port numbering.

EXTEND MODE UP TO 250 METERS WITH VLAN

Standard switches according to the standard provide the ability to operate devices at a distance of up to 100 m on one section of the cable. However, sometimes it turns out that due to the extensive backbone network and complex environment, a non-standard solution is required when developing cabling and networks that goes beyond the standard. In the case of monitoring solutions, this is a fairly common problem, most often resulting from too long distance between the distribution device and the end device.

Lanberg switches have a function that allows data transmission (max. 10 Mb/s) and PoE+ power supply up to 250 m on one section of cable with the function of separating PoE ports from each other (VLAN). Simply switch the button to the “PoE+ Extend 250 m” position on the housing to ensure operation over a longer distance and separation for 1~16 ports.

The solution was introduced for monitoring and IP systems as well as access control, especially if the end devices are located outside without the possibility of installing additional network distribution points.

6 kV SURGE PROTECTION

The switch itself, as well as the devices connected to it, are repeatedly exposed to various threats, including current discharges, which can flow through both power and network cables.

Bearing in mind the safety of devices and their users, Lanberg equipped the switch with an integrated anti-discharge protection system, guaranteeing 6 kV protection for all ports, effectively reducing their damage due to a sharp increase in voltage.

Under standard conditions, network operation will continue without interruptions, the switch will continue to work without any interruptions, and the user gains the security of the device and infrastructure.

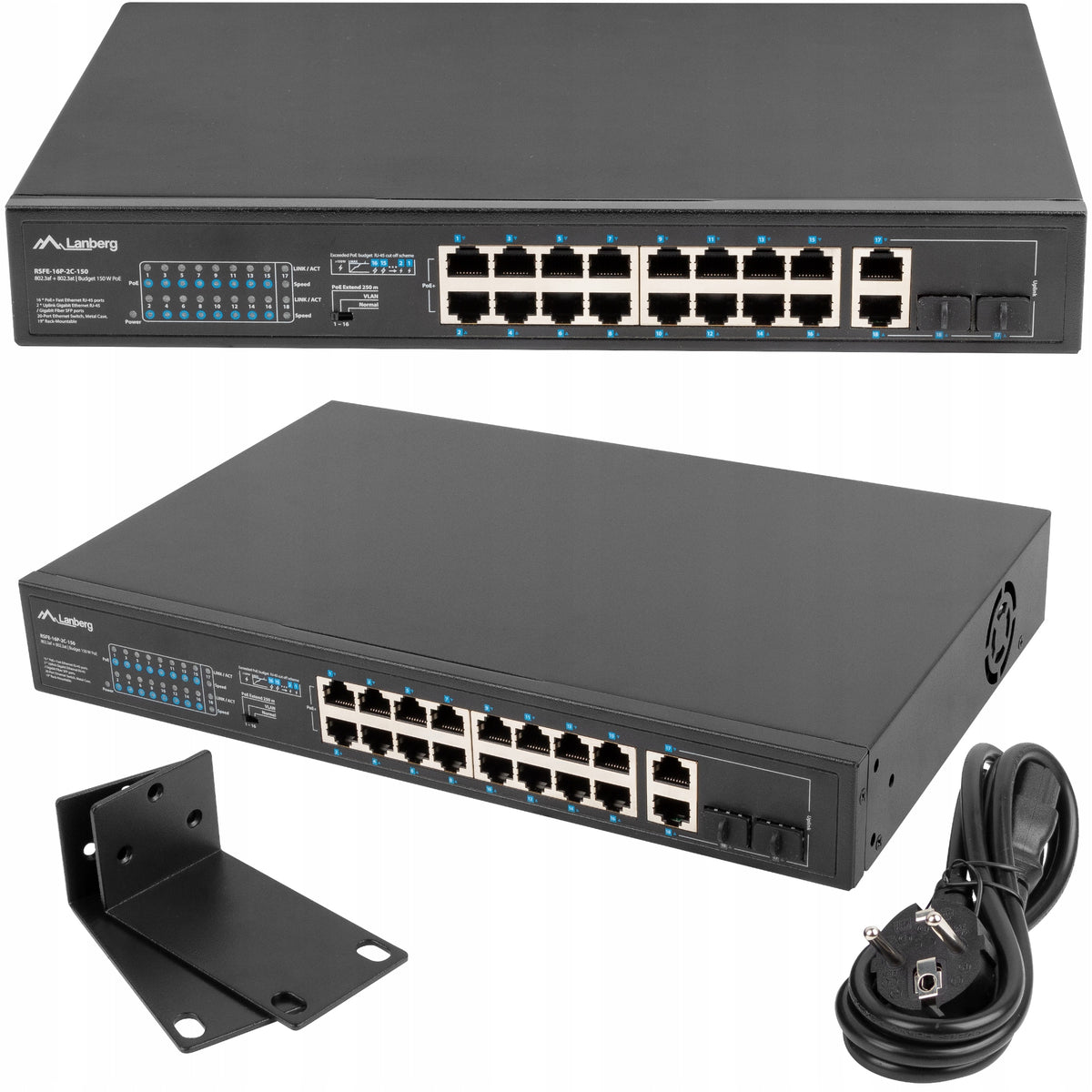

MOUNTING KIT INCLUDED – EARS UP TO 19”

The RS series of switches is characterized not only by the quality of workmanship, simplicity of use, functionality of the device, but also complementarity in terms of assembly and accessories supplied where possible.

Lanberg has introduced a set of accessories for the versatile installation of its switches. The RSFE-16P-2C-150 provides mounting ears for 19” cabinets and a set of mounting screws (except M6). This allows wider use and greater freedom of installation of RS series switches.
