Komutatorius Hikvision DS-XS06-P

Trumpai apie prekę

Prekė: Komutatorius Hikvision DS-XS06-P. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-XS06-P

69633

Product description:

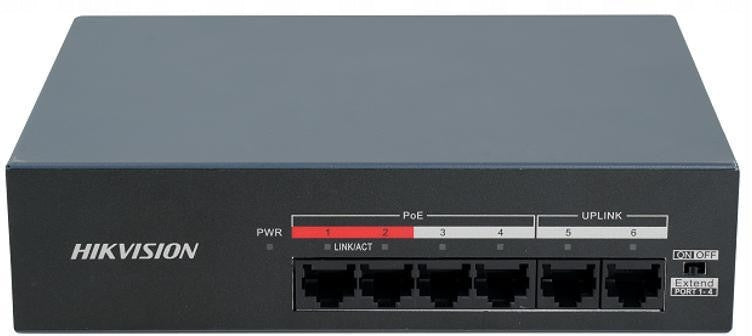

Hikvision DS-XS06-P Switch

Model: DS-XS06-P Key Features

• 4-port unmanaged PoE Fast Ethernet switch
• 4 x RJ45 10/100 Mbps PoE ports and 2 x RJ45 10/100 Mbps ports
• PoE power budget for the entire device: 35 W
• Long-distance transmission support
• High priority port support

Technical Specifications ModelDS-XS06-P Construction Material Metal Net Weight 0.54 kg (1.19 lb) Gross Weight 0.58 kg (1.28 lb) Dimensions (WxHxD) × height × depth )175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')Operating temperature0 °C to 40 °C (32 °F to 104 °F)Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating humidity5% to 95% (non-condensing)Network characteristicsPorts4 10/100Mbps PoE ports, 2 10/100Mbps RJ45 portsMAC address table2KSwitching capacity1.2 GbpsPacket forwarding rate0.89 MpipsInternal cache0.77 MbPoE powerPoE portPoE: Ports 1 to 4Max. Port Power 30 W PoE Power Budget 35 W Dial-in Function Long Distance Transmission Ports 1 to 4: Up to 300 m. Long distance performance may vary depending on camera model or cable condition. Approval EMC CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020) Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (2nd Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)Biochemical testCE-RoHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No. 1907/2018) Technical specifications Model DS-XS10-P Construction Material Metal Net weight 0.56 kg (1.23 lbs) Gross weight 0.64 kg (1.41 lbs) Dimensions (WxHxD) × height × depth )175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')Operating temperature0 °C to 40 °C (32 °F to 104 °F)Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating humidity5% to 95% (non-condensing)Relative humidity5% to 95% (non-condensing)Power supply220 VAC, 50 Hz, 1.5 AMax Power Consumption 60 W Standby Power Consumption 3.4 W Mounting Type Desktop, Wall-mount Surge Protection 2 kV Network Parameters Ports 8 x 10/100 Mbps PoE ports, 2 x 10/100 Mbps RJ45 ports MAC Address Table 2 K Switching Capacity 2 Gbps Packet Forwarding Rate 1.49 MOPs Internal Cache 0.77 Mb PoE Power PoE Port PoE: Ports 1 to 8 Max. Port Power 30WPoE Power Budget 60WDial FunctionLong Distance TransmissionLong Distance TransmissionPorts 1 to 8: Up to 300m. Long distance performance may vary depending on camera model or cable condition.ApprovalEMCCE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020)Without

Specifications
