Komutatorius CUDY GS1024

Trumpai apie prekę

Prekė: Komutatorius CUDY GS1024. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: GS1024

Efficient network without compromise

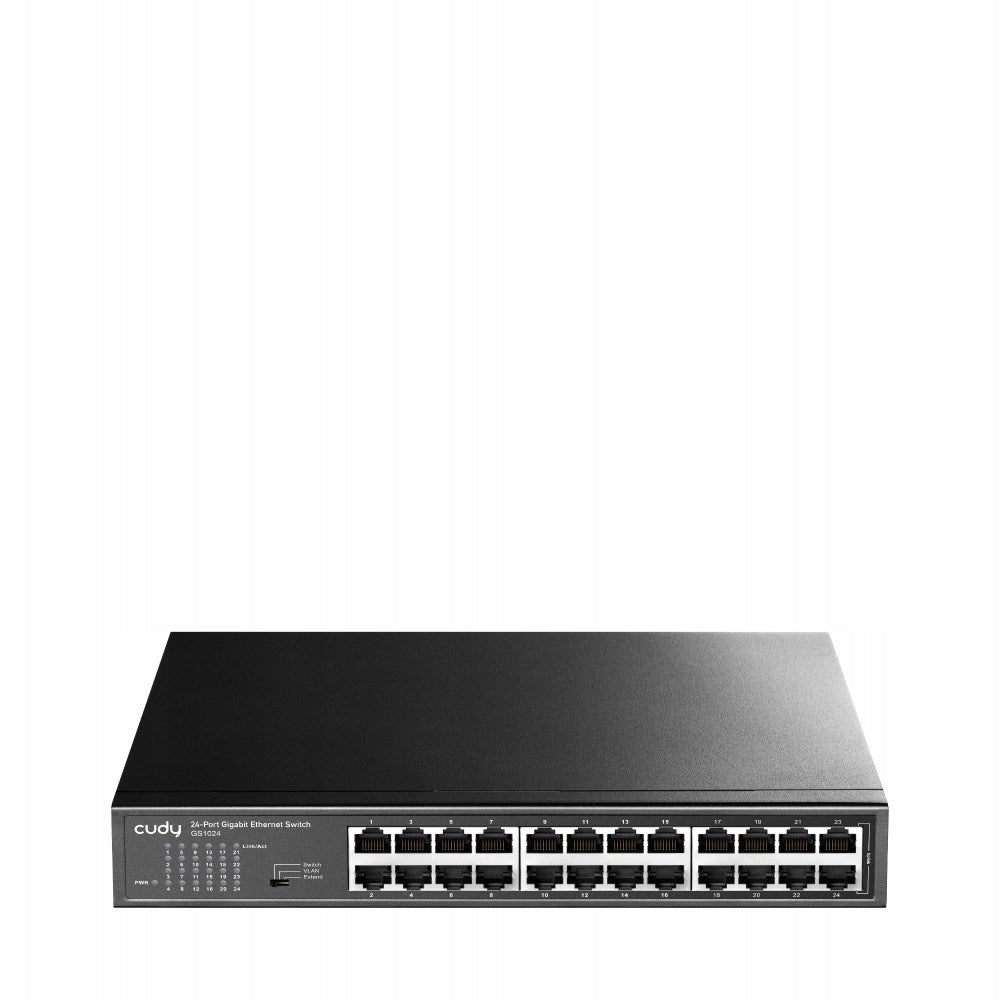

CUDY GS1024 is a modern 24-port switch, which was created for stable and fast data transmission in the corporate environment, office and demanding home network. Thanks to 24 Gigabit Ethernet 10/100/1000 Mb/s ports, the device allows you to conveniently expand your network infrastructure and connect multiple computers, printers, recorders, access points or NAS devices. The switching capacity of 48 Gbit/s ensures smooth traffic handling, which translates into smooth operation of the entire network even under intensive use.

Reliability and convenience of use

The GS1024 offers the automatic MDI/MDI-X function, which facilitates installation and eliminates the need to choose the right type of wiring. The use of the store-and-forward mechanism supports the correct transmission of packets and stable operation of the device, and compliance with the IEEE 802.3 standard guarantees wide compatibility with popular network devices. An additional advantage is the can be mounted in the rack, thanks to which the switch is perfect for both professional installations, as well as in orderly server rooms or technical facilities.

Compact design and ready to go

Switch CUDY GS1024 is enclosed in an elegant, black housing with dimensions 180 × 270 × 44 mm, which facilitates its integration with existing infrastructure. The device works with AC 100 – 240 V power supply, is characterized by power consumption 15 W and comes with a power supply and user manual, so it is ready to start immediately after unpacking. It is a practical solution for users who expect a combination of high performance, simple installation and reliable operation of 24 Gigabit ports in one device.

Product Features:

• Product height: 44 mm
• Product color: Black
• Power consumption: 15 W
• User's Manual: Yes
• Relative humidity range: 10 - 85%
• Temperature range (storage): -40 - 70 °C
• Product depth: 270 mm
• Automatic MDI/MDI-X: Yes
• Power source: AC
• Routing/switching throughput: 48 Gbit/s
• Cables: AC
• Communication standards: IEEE 802.3
• Temperature range (operation): 0 - 40 °C
• Frame mounting options: Yes
• Product width: 180 mm
• AC input voltage: 100 - 240 V
• Relative humidity allowed: 5 - 85%
• Warnings: The product is not suitable for disposing of in a regular dumpster. Hand over used electronic equipment to the disposal point in accordance with local regulations.
• Address table size: 8 inputs
• Package forwarding range (100 Mbps): 148,8 pps
• Number of Gigabit Ethernet ports: 24
• Basic RJ-45 switching Number of Ethernet ports: 24
• Package forwarding range (10 Mbps): 14,88 pps
• Power supply included: Yes
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Store-and-forward: Yes
• Transmission distance (maximum): 0,1 km
• Manufacturer: Cudy
• Number of ports: 24
• LAN port operating standard: 10/100/1000 Mbps
• Product weight with unit packaging: 1.69
