Komplektas RJ45 CAT 6A UTP lizdas, pilkas

Trumpai apie prekę

Prekė: Komplektas RJ45 CAT 6A UTP lizdas, pilkas. Kategorija: Tinklo plokštės.

• Gamintojas: Goobay
• Modelis: 4040849906930

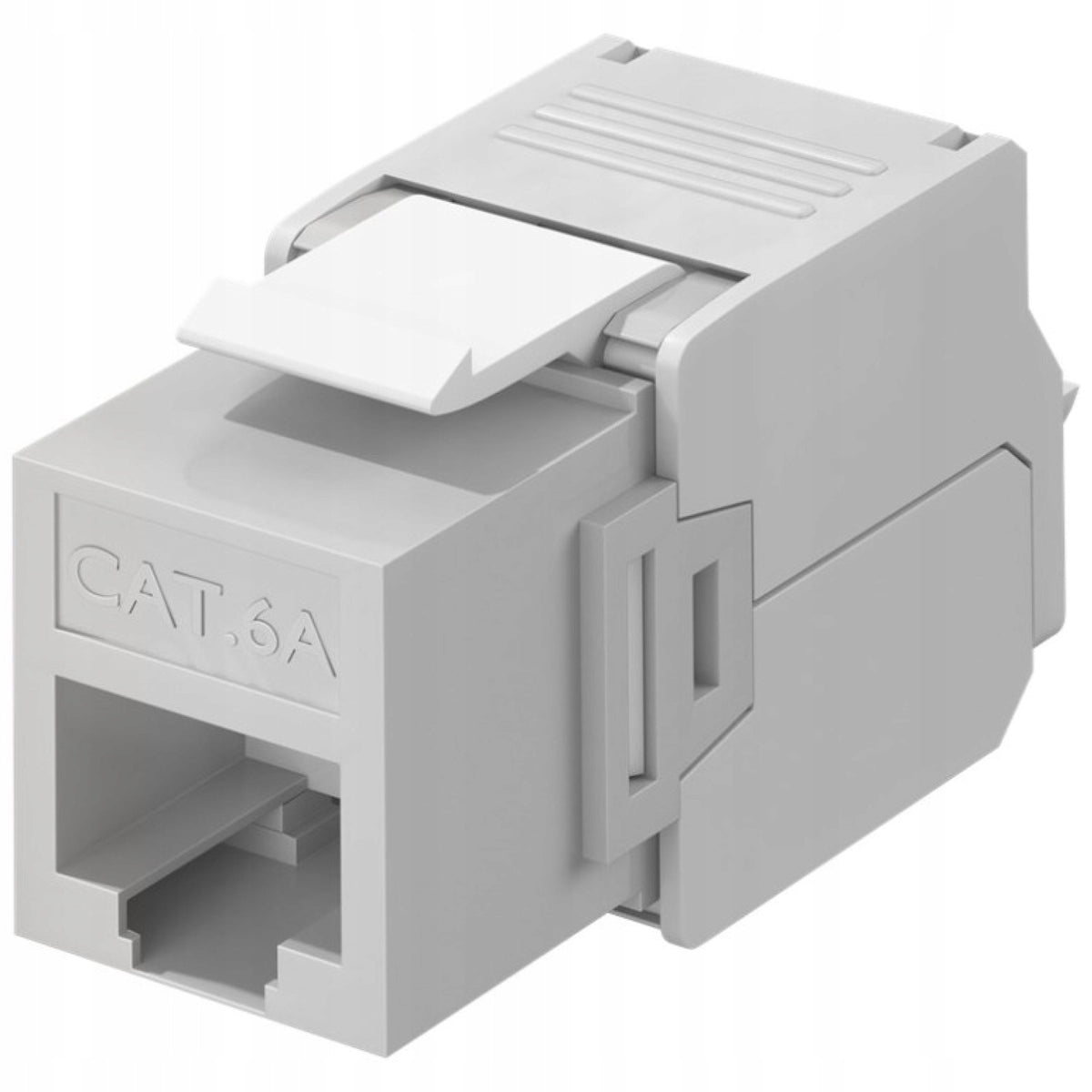

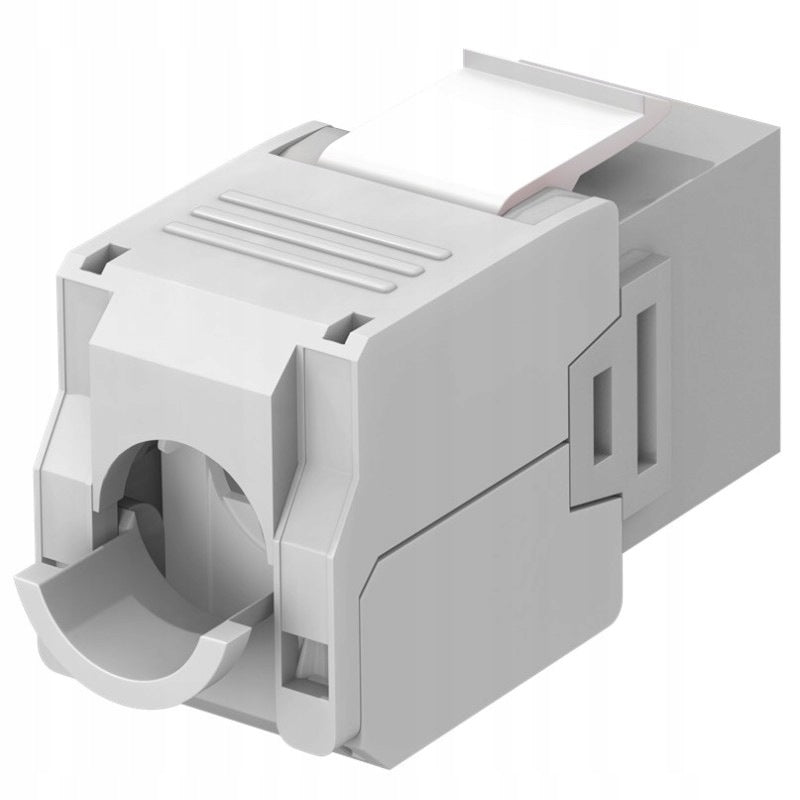

Keystone RJ45 CAT 6A, UTP module

(Product code: WNC90693)

There are no installation restrictions on Keystone. Use the modular connection system for standardized connectors and rectangular modular sockets (ports) with a spacing of 14,9 × 17,0 mm. The latching system allows the use of many different connection techniques, e.g. Coaxial sockets for IEC or F connectors, RJ45 sockets (CAT 5, CAT 6, CAT 6A), speaker connectors (RCA sockets, screw and terminal connectors), as well as USB, fiber optic and HDMI sockets. The individual Keystone modules are universal and interchangeable.

The most important features

• RJ45 female connector in a durable plastic housing for excellent transmission of electrical or optical signals
• CAT 6A plug socket for network cables with external diameter 5,0 - 9,0 mm
• Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
• RJ45 socket for installation in Keystone patch panels, power sockets and enclosures
• Used, for example, in laboratories and workshops, in home entertainment and in network installations
• RJ45 socket with field mounting capability, for rigid cables from 0,48 to 0,65 mm in diameter (AWG 22-26)
• RJ45 connections are color-coded TIA 568A/B.

Product Features

• AWG: 22 - 26
• Construction form: 180° type of crocodile
• Instructions for use: de, en
• Unit: 1 unit in a plastic bag
• Category: CAT 6A
• Screening class: UTP
• Color: light grey
• Max. throughput: 500 MHz
• Width: 16.5 mm
• Cable type: for solid wire
• Connection 1, type: RJ45 socket (8P8C)

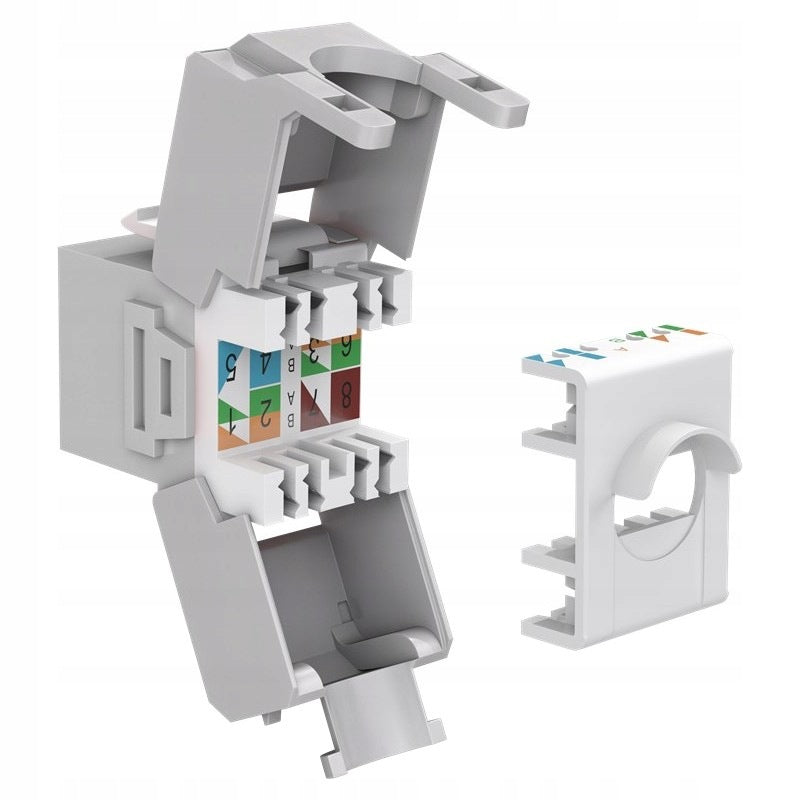

• Connection 2, type: terminal block for mounting IDC cables (without tools)
