Keturių kolonų parkavimo keltuvas 400V 4,2t REDATS L-750

Trumpai apie prekę

Prekė: Keturių kolonų parkavimo keltuvas 400V 4,2t REDATS L-750. Kategorija: Kolonų keltuvai.

• Gamintojas: Redats
• Modelis: 15-02-46

Brand: REDATS

Symbol: 15-02-46

Maximum lifting capacity: 4,2 tons

Type: four-column parking

Length of inruns: 1000 mm

Engine power: 2,2 kW

Lifting height: 1880 mm

Lifting time: 70 s

Ramp width: 473 mm

Ramp height at rest: 125 mm

Ramp length (without ramps): 4150 mm

Security:

• protection against breaking the rope
• Vehicle roll-over protection locks
• ratchet-based security system
• hydraulic overload valve
• 24V safe voltage control

Power Supply: 400V 50Hz

Oil tank capacity: 10 l

Noise level: < 75 dB

Dimensions (L x W x H): 5444 x 4885 x 2260 mm

Ambient operating temperature: 5 - 40 ℃

Width between columns: 4400 mm

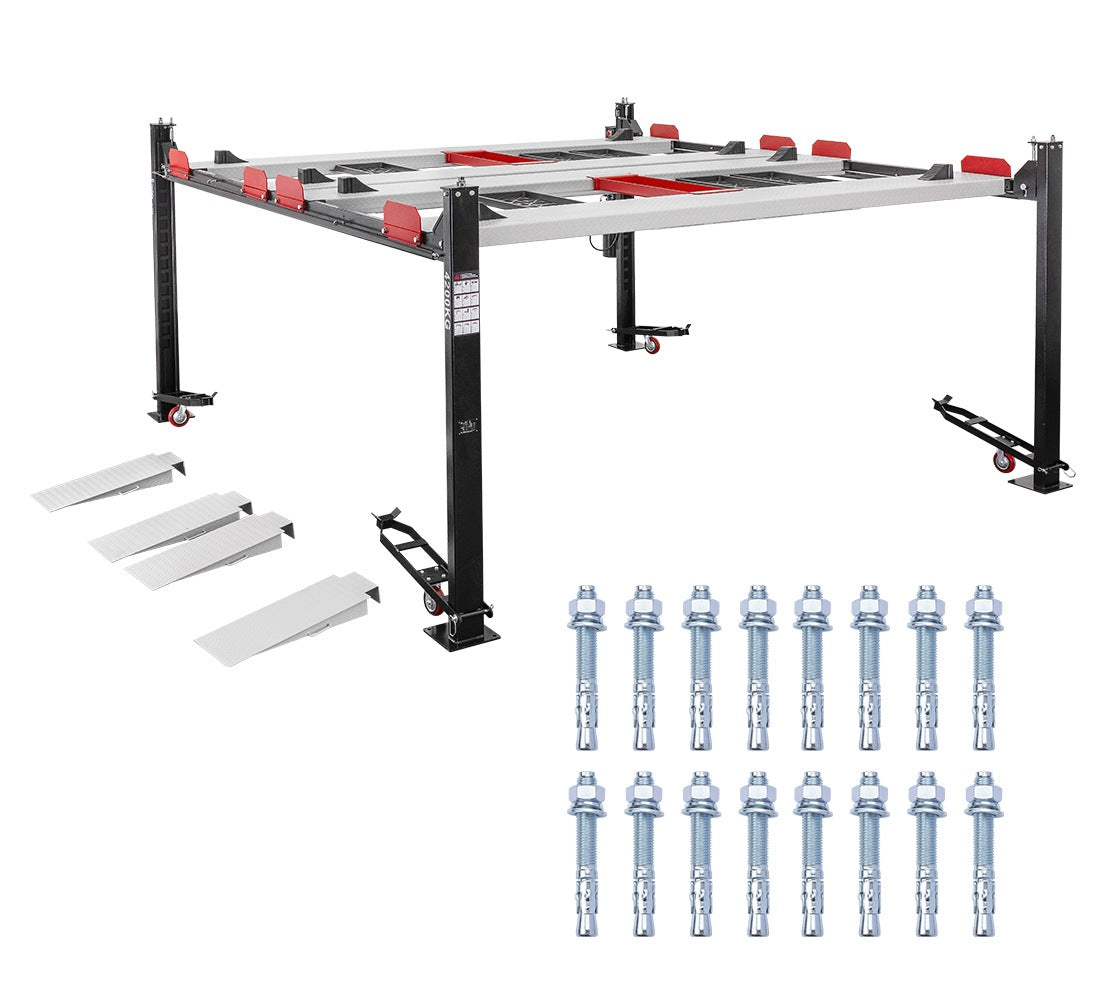

Included: tool shelf x2, drip tray x6, front and rear lock x8, tire locking bracket x8, transport handle x4

Meets the requirements for UDT certification: YES

Weight: 1275 kg

Additional features: mobility before attachment to the ground

REDATS L-750 - key facts:

• Maximum lifting capacity: 4,2 t
• Length of overruns: 1000 mm
• Lifting height: 1880 mm
• Lifting time: 70 s
• Power supply: 400 V 50 Hz
• Ramp width: 473 mm
• Height of ramp at rest: 125 mm
• Length of ramps (without ramps): 4150 mm

Destination

A four-column parking lift will be great where you need to park more cars, but you do not have enough space for it. Ramps with a length of 4150 mm guarantee convenient parking of both passenger cars and vans. The lifting height is 1880 mm, so you do not have to worry that the taller cars will not fit under the lift.

Occupational safety

The device has locks to prevent the vehicle from rolling, which eliminates the risk of the car sliding off the ramps and its damage. In turn, the rope breaking protection system ensures that the platform remains stable and does not fall uncontrollably during operation.

Instant work

The lifting time of the platform is only 70 seconds, which saves valuable time in the workshop. You don’t waste time on downtime, so you can work more efficiently and serve more customers.

Mobility

The lift is equipped with a practical set of transport wheels that allow it to be moved efficiently from place to place. This solution ensures comfortable transport during the first assembly.

Reliability Guarantee

With the REDATS L-750 lift, your workshop is running at full capacity all year round. High quality of workmanship guarantees reliability and safety of work with the lift.

Additional equipment

Along with the lift, you get 2 tool shelves that make it easy to organize your work and allow you to have the most important tools always at hand. The set also includes 6 drip trays that effectively protect the floor and the vehicle parked below from accidental leaks of oil or operating fluids.

UDT - to report or not?

You often ask whether you need to report the lift to the UDT (Office of Technical Inspection). According to Polish law, this must be done. Few sellers talk about it, but in light of the regulations, it does not matter whether you use the lift for your business or privately. Whether you work alone or hire people - the lift is worth registering in UDT.
