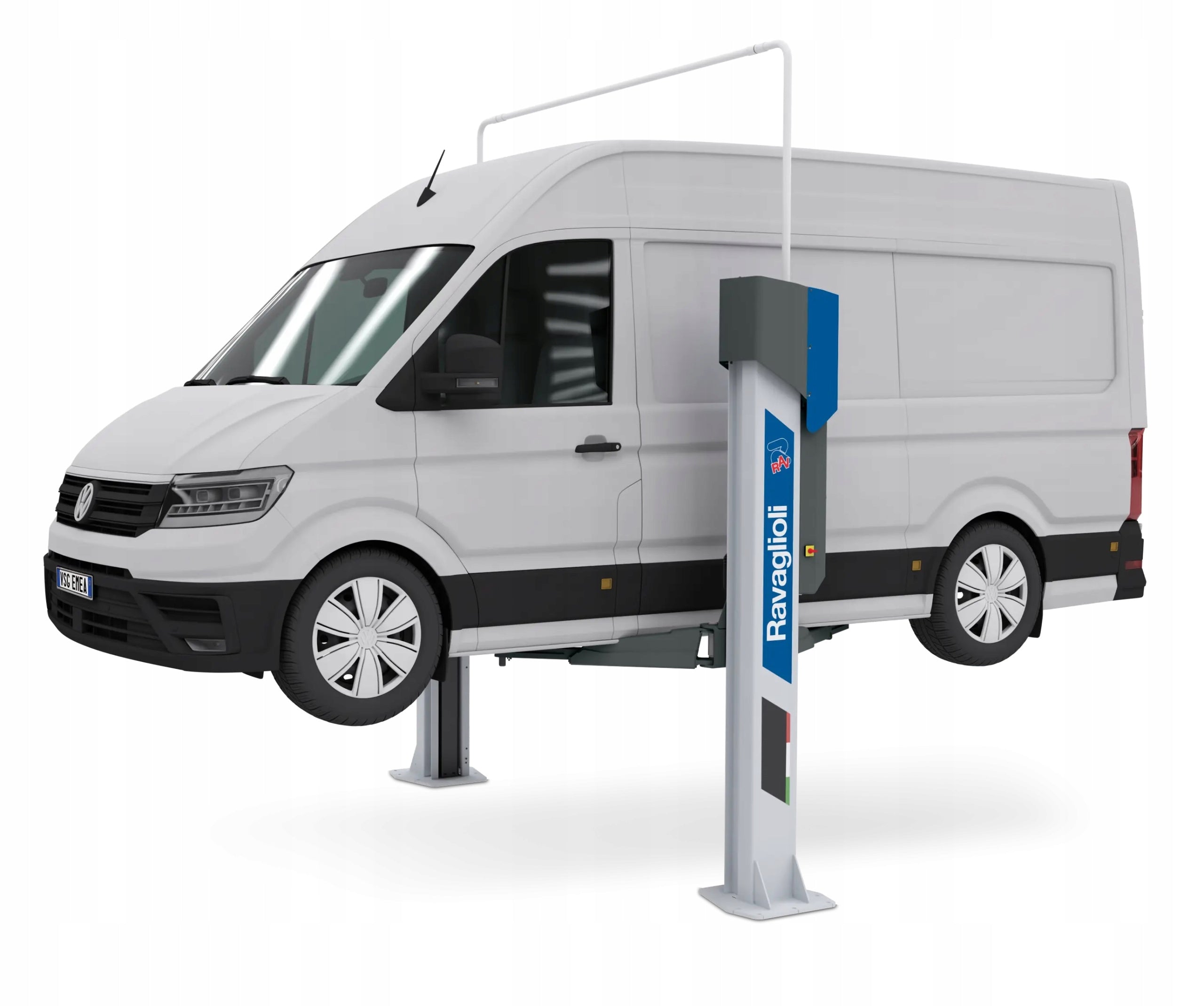

Keltuvas RAVAGLIOLI KPX42, 2 kolonų, 4,2 t, su reguliuojama viršutine dalimi

Trumpai apie prekę

Prekė: Keltuvas RAVAGLIOLI KPX42, 2 kolonų, 4,2 t, su reguliuojama viršutine dalimi. Kategorija: Kolonų keltuvai.

• Gamintojas: Ravaglioli
• Modelis: RAV.KPX42.198303

The company RAVAGLIOLI SpA was established in 1958 in Italy as a manufacturer of equipment for car workshops, both for passenger cars and commercial vehicles.Since 2015, it has been one of the world’s leading companies in the workshop equipment industry.leading European manufacturer of lifts and one of the main manufacturers of tire testing equipment.The company has a distribution network covering more than 150 countries around the world,including branches in the United States, United Kingdom,Germany , France , Belgium and Spain . The equipment is characterized primarily by high quality and niezawodność.Jej the main products are currently car lifts, wheel balancers, tire fitters.

Ravaglioli RAV.KPX42 Screw lifter 4,2T busy

RAV.KPX42.198259

Two-column screw lifter, lifting capacity 4.2 T, wide (2700 – 2800 mm), 400 V, top passage, free passage, two motors, mechanical synchronization, solid construction, universal, for passenger cars and vans. Italian product.

Two-column screw lifter, FOR LARGE BUSES, WIDE version (2700 – 2800mm, two-motor, upper passage, free passage, self-lubrication of the screw, solid brass nuts, 4.2 tons. Power supply 400 V. Smooth up-down operation. Protection with an additional nut. Very solid construction. Safety and reliability. Reinforced load-bearing elements. Simple operation. Designed for passenger cars and vans. Lift from the renowned manufacturer Ravaglioli. Made in Italy.

The solid construction allowed the use of longer 3-part front and rear paws, which increased stability when lifting vans with a long wheelbase.

Standard height 400 mm

• Lifting capacity: 4200kg
• Width between columns: 2700 – 2800mm
• Front arms: 3-piece (525-981mm)
• Rear arms: 3-piece (922-1460mm)
• Lifting height: 2010mm
• Minimum paw height: 117mm
• Lifting time: 58s
• Power Supply: 400V
• Engine power: 2x3.5kW
• Noise level: < 70dB
• Foundation dimensions (length x width x height): 4500x1500x300mm
• Concrete Required: B25
• Safety standard: EN1493:2010

TECHNICAL DOCUMENTATION:

• User manual in Polish.
• (DTR)Certificate of conformity with the Machinery Directive 2006/42/EC.
• Declaration of conformity with the Machinery Directive 2006/42/EC.
• Translation of certificate and declaration.
