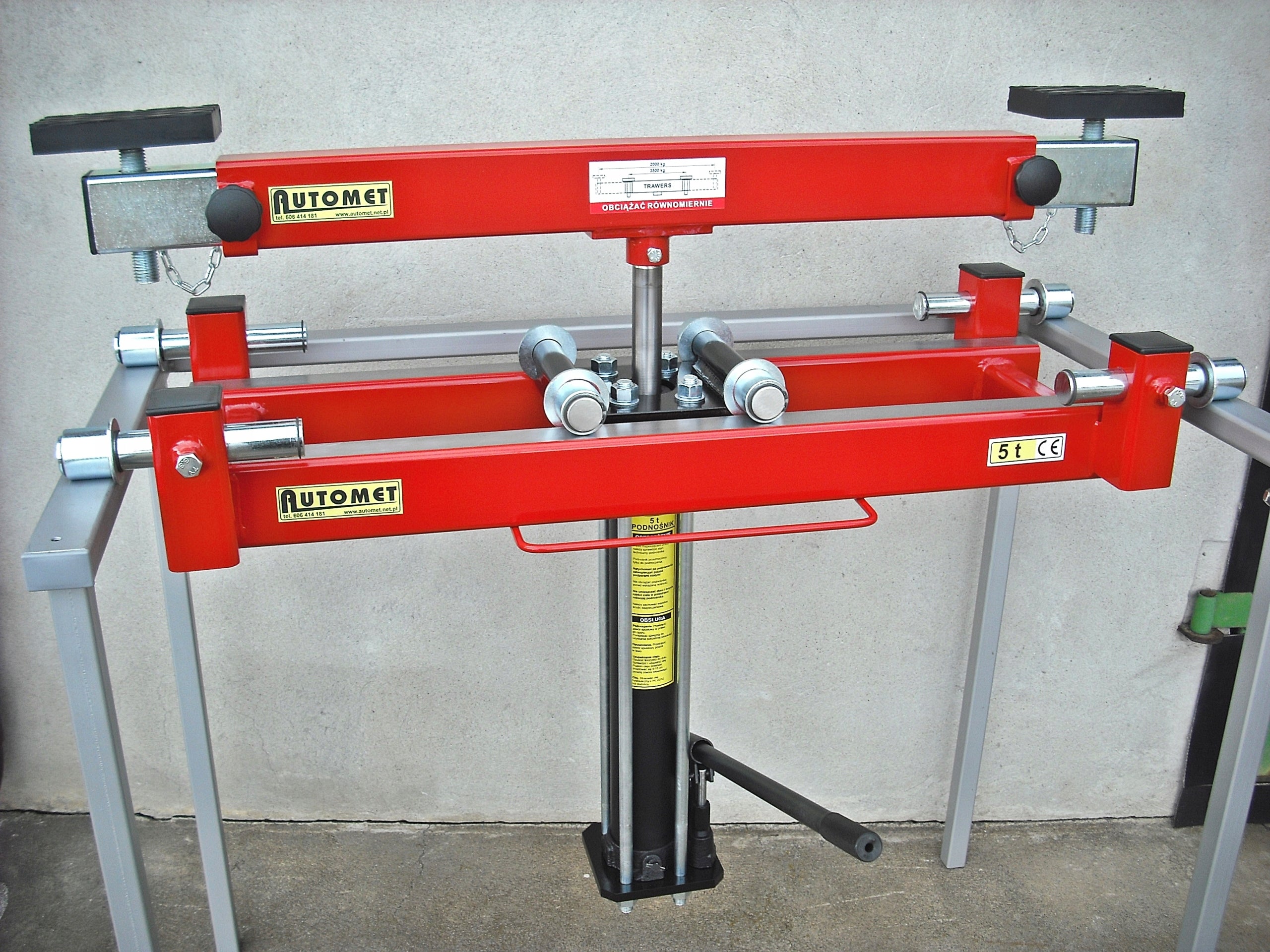

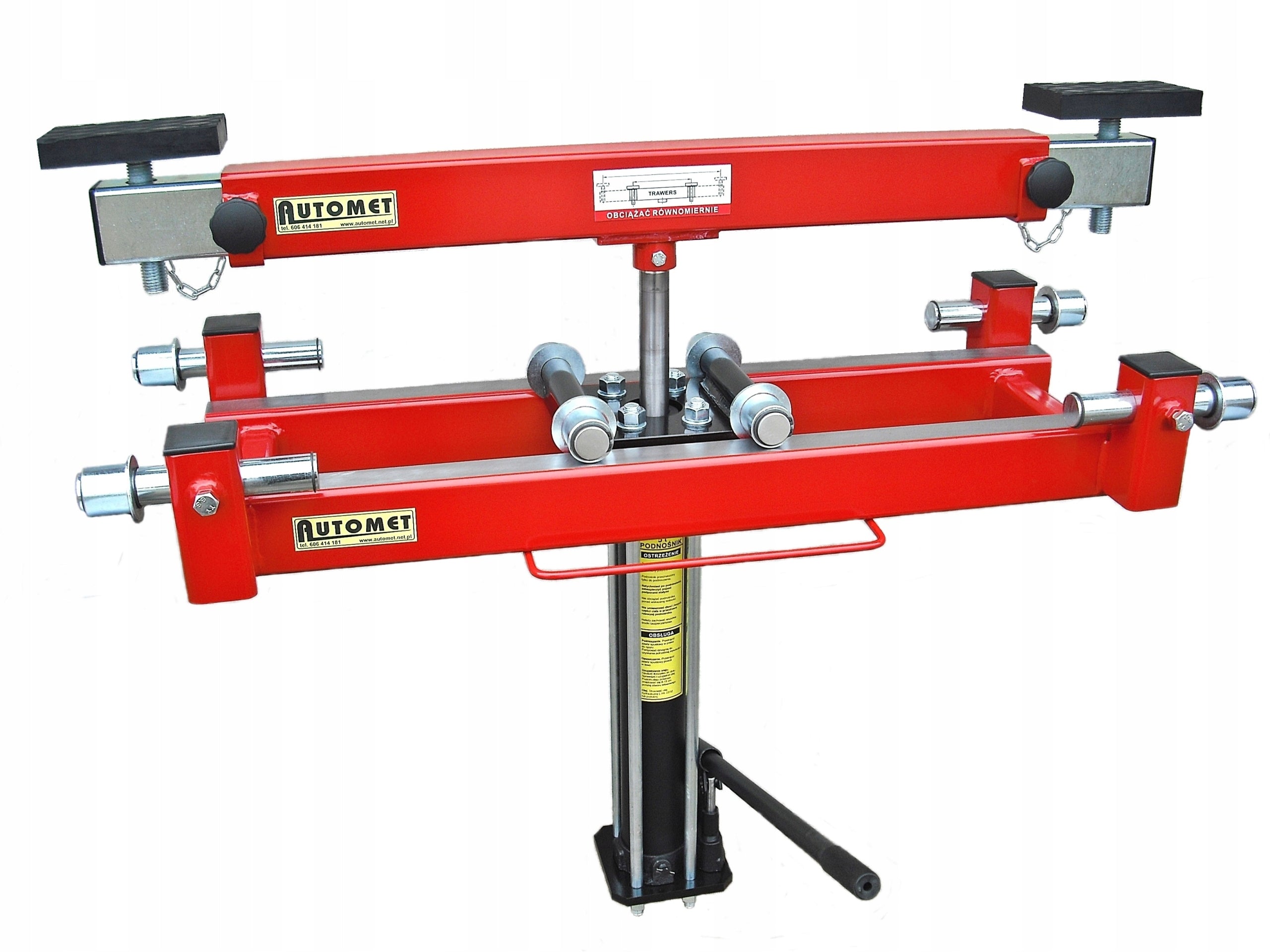

Keltuvas CHANNEL LIFT 5 t su traverse AUTOMET

Trumpai apie prekę

Prekė: Keltuvas CHANNEL LIFT 5 t su traverse AUTOMET. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: AUTOMET
• Modelis: PK-50,Tr.

The PK-50 channel lift is designed for partially lifting vehicles and removing transmissions in a workshop pit for inspection and repair work.

.

Features:

• Cylindrical Rollers

• Maximum Load Capacity - 5 tons

• Lifting Height (Piston Stroke) - 500 mm (+-10)

• Two-piston manual hydraulic pump (fast)

• The lift is adjustable for any channel width

.

Each lift features stepless adjustment for precise fitting to the specific channel.

The cylinder is installed in a lowered position – flush with the floor. Upon request, it can be installed in a standard position – protruding about 50 mm (for a typical channel edge).

The user can change the cylinder height themselves – simply unscrew 4 M16 nuts, flip the small carriage, and re-tighten the nuts (see photos).

The axle brackets (in the 4 corners) protrude about 10 - 20 mm above the floor.

Each cylinder is tested on a press for power, pressure holding, and leaks.

.

The lift includes:

• Safety and Health Instruction (for wall mounting)

• Declaration of Conformity for CE marking

• Warranty card

• User manual

***

Additional Equipment (included in this set):

When placed on the cylinder, it allows for two-point support of the vehicle – front or rear.

It has extendable arms and adjustable rubber pads.

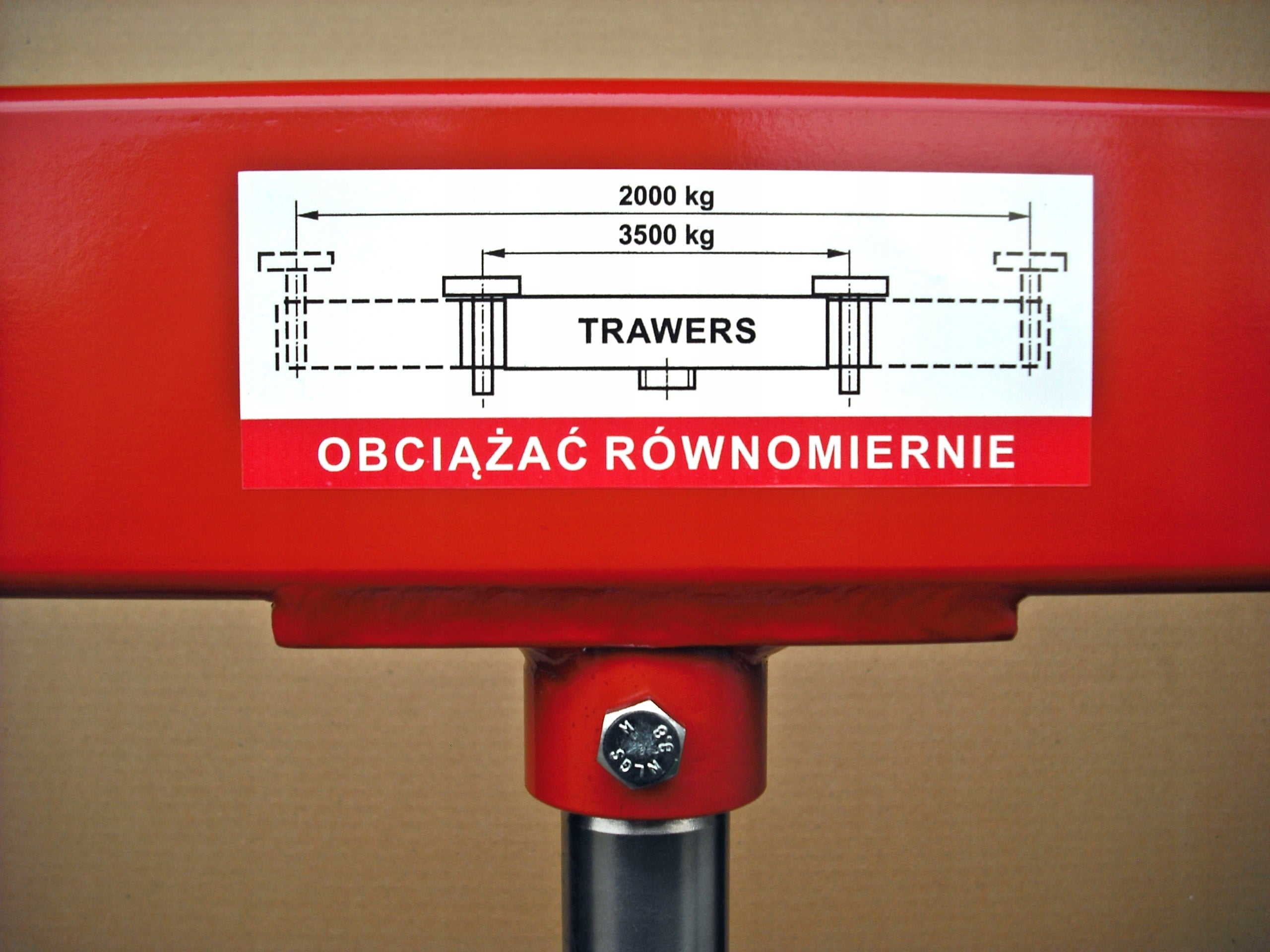

• Maximum Load Capacity                 3.5 - 2 tons (arms retracted – extended)

• Arm Span                                      820 – 1200 mm

• Removable rubber pads     0 – 50 mm

• Total pad height     150 mm

.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

The lift is painted red or blue (the cylinder is black).

If no color is specified, the lift will be sent in a random color.

Vehicle Inspection Stations are among the users of these lifts.

.

Manufacturer:

AUTOMET

__________________________________________________________________________________________________

WHEN ORDERING, PLEASE PROVIDE (see drawing):

Channel dimensions (without play):

• L1 - width at the edge (channel cover)

• L - width below the edge (between walls)

• S - inner width of the angle iron (where the lift travels)

• H - inner height of the angle iron

• Color: red or blue.

If your channel edge is different from angle iron, please inform us so we can select the appropriate rollers and their adjustment for the lift's travel path (a sketch of the channel may be required).

***

PRECISE VALVE CONTROL

Specifications
