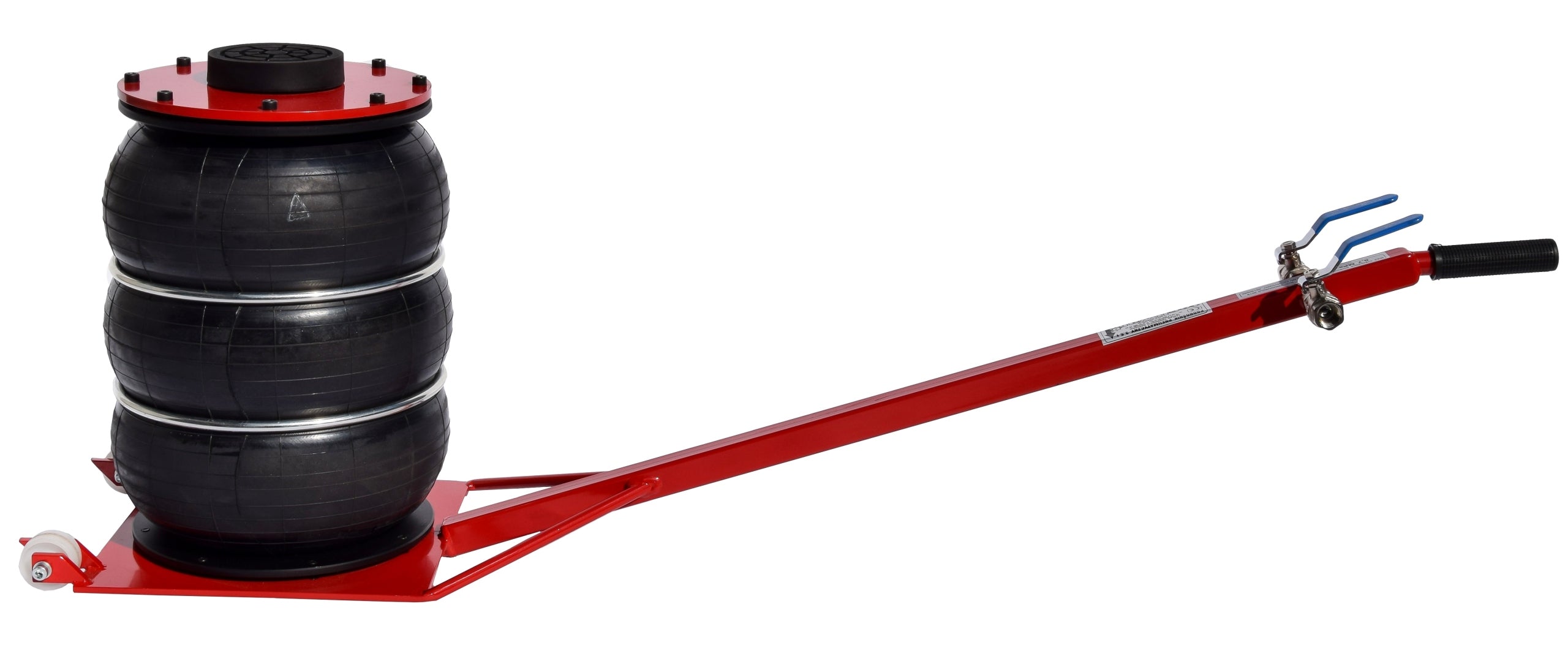

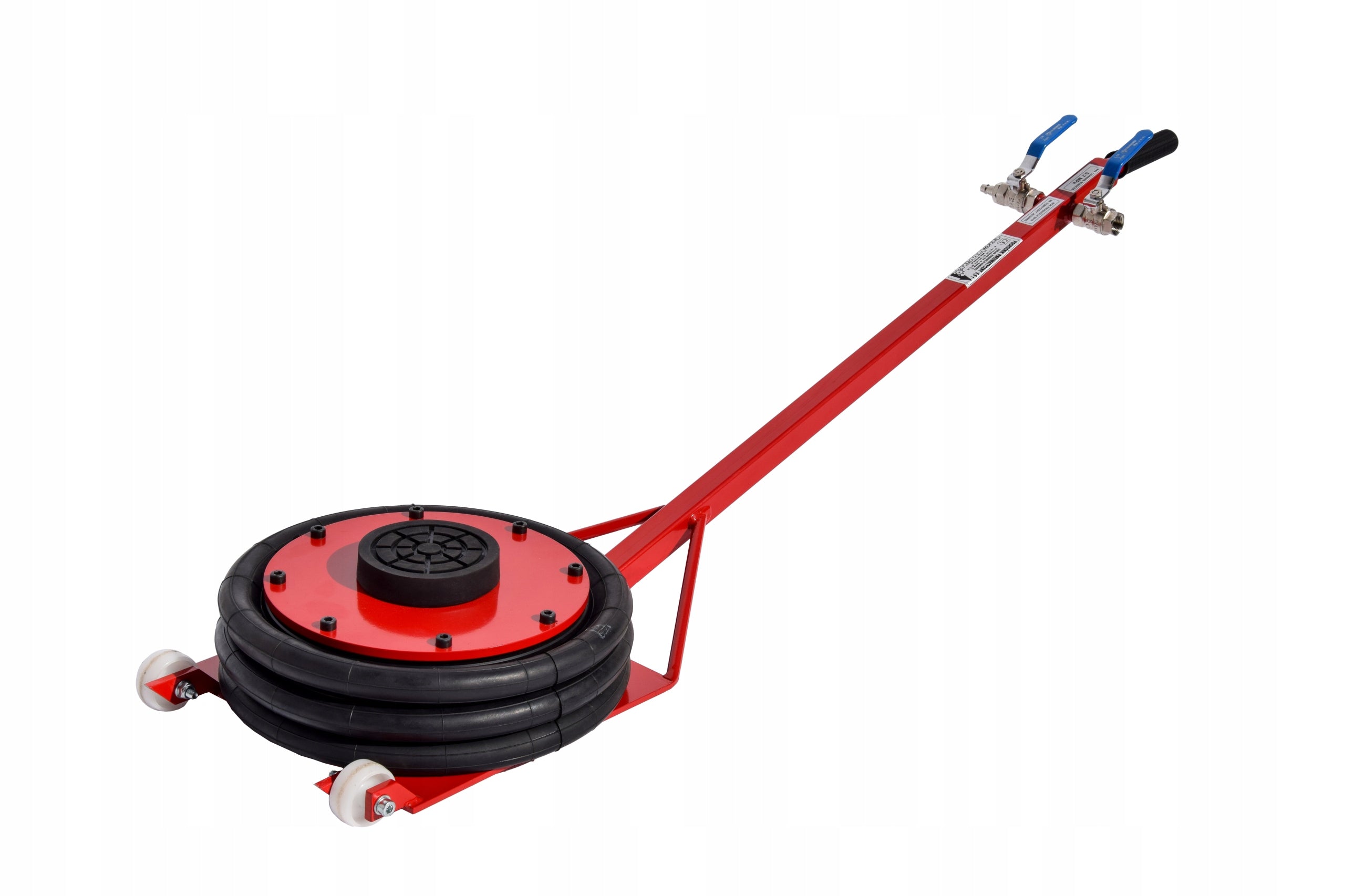

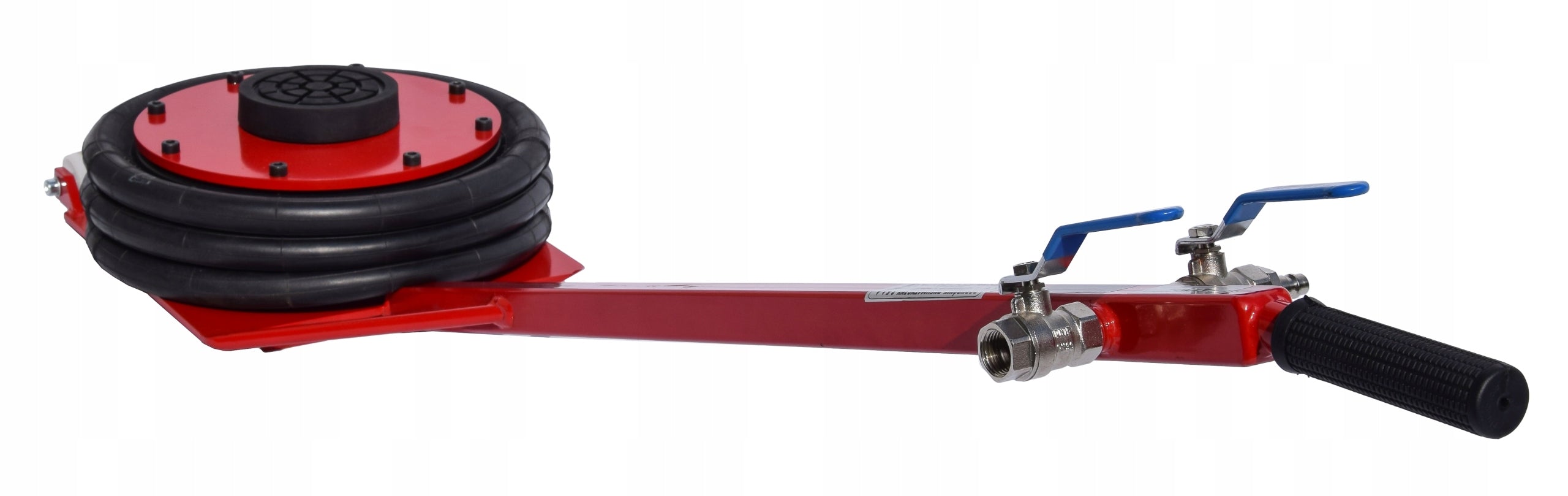

Kėlimo pagalvė 3,5 t su priverstiniu nuleidimu

Trumpai apie prekę

Prekė: Kėlimo pagalvė 3,5 t su priverstiniu nuleidimu. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Techwar
• Modelis: TP0035

3,5T PNEUMATIC CUSHION LIFT WITH FORCED LOWERING

TP0035

LIFTING CAPACITY 3500KG

PRODUCT Polish

MANUFACTURER TECHWAR

NOVELTY!!! The TP0035 pneumatic cushion lifter is the only FORCED LOWERING cushion on the market, thanks to the use of a vacuum generator that extracts air from the bellows to the lowest position. Solid welded construction. The lift is designed for point lifting of passenger and commercial vehicles. The load capacity of the lift is 3500 kg and allows you to lift one or two wheels depending on the choice of vehicle support point.

The lift is equipped with a 7-element steel stabilizing telescope, thanks to which we obtained the best parameters on the market (min 135mm - max 470mm). At any height, the cushion is perfectly rigid, ensuring stable lifting and maximum operational safety. In addition, the lift has a special base that allows it to be positioned vertically, so that the unused device takes up less space in the workshop.

The precise execution of all components ensures reliable use of the lift for many years. The use of a solid rubber bellows, used in the production of TIR truck semi-trailers, guarantees the highest level of safety. The bellows can withstand a pressure of 10T and a maximum pressure of 17 bar.

The TP0035 cushion lift is equipped with a metal guide sleeve inside the bellows, which stabilizes the lift during operation. Powder coated product.

TECHNICAL DATA:

• Model: TP0035
• Maximum lifting capacity: 3500 kg
• Maximum lifting height: 470 mm
• Height at rest: 135 mm
• Diameter of bellows: 340 mm
• Total length: 1280 mm
• Working pressure: 0,8 Mpa (8 bar)
• Stiffening: 7 piece metal telescope
• Painting: Powder
• Color to choose from: Red, blue or graphite
• EC/CE declaration of conformity

The pillow has the best parameters on the market

Service

We have all the parts for our lifts, consumables, mechanical and pneumatic components.

Minimum height

The advantage of the presented device is a very low minimum height. Thanks to the innovative internal stabilizer solution, at rest the minimum lift height is only 135 mm. With the TP0035 pneumatic lift, you can easily lift vehicles with less ground clearance.

Lifting height

Another valued parameter of our product is the lifting height. The maximum raised bellows stops at a height of up to 470 mm. Thanks to such a high maximum height, the lift is often placed in the middle of the vehicle under the axle so that the wheels of the front or rear of the vehicle can be lifted and dismantled at the same time.

Specifications
