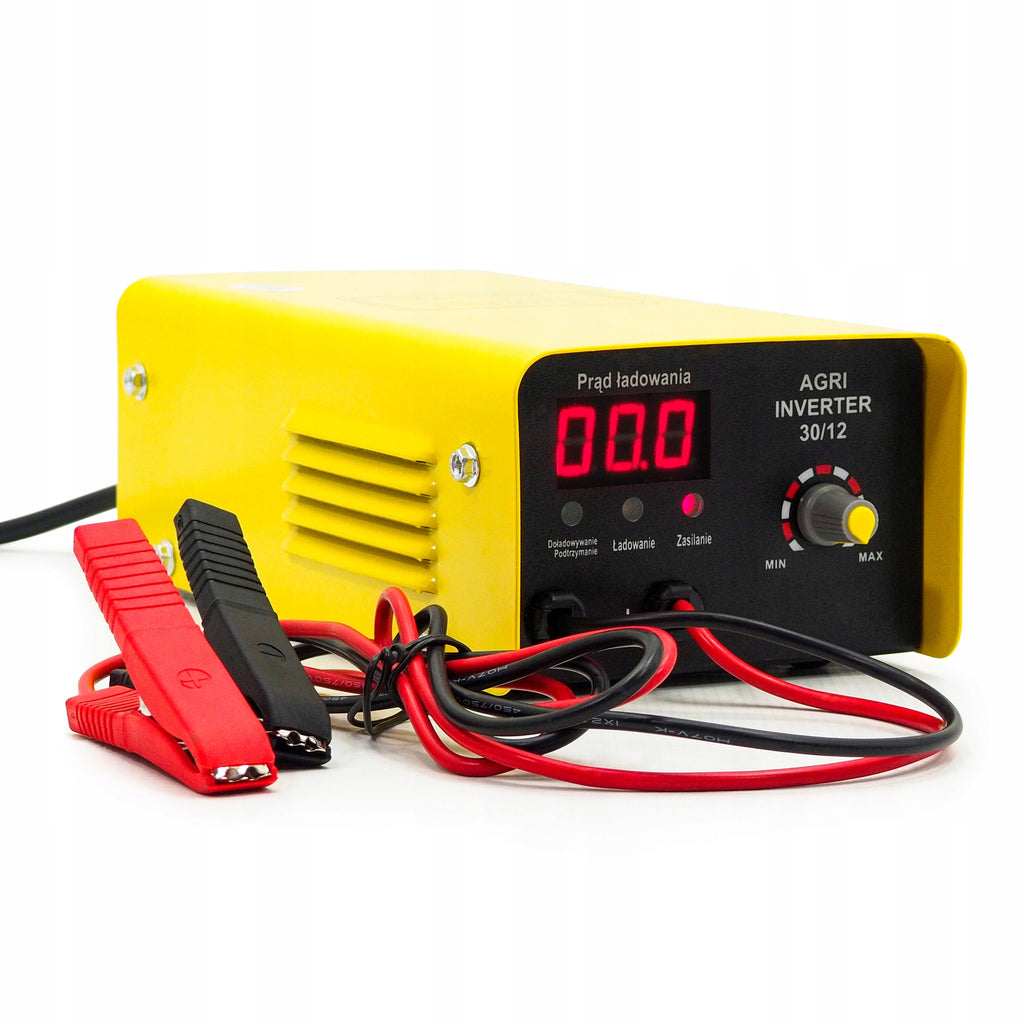

Keitiklis MAGNUM AGRI 30, 12V, 300 Ah

Trumpai apie prekę

Prekė: Keitiklis MAGNUM AGRI 30, 12V, 300 Ah. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Magnum
• Modelis: Agri Inverter 30/12

Battery voltage: 12 V | Battery capacity: 50 - 300Ah | Charging current: 5 - 20 A | Power supply: 230V

The AGRI 30/12V rectifier from the well-known MAGNUM brand is an inverter rectifier for charging 12 V lead-acid batteries of the open or closed type (e.g. WET batteries - with electrolyte in liquid form, GEL - with electrolyte in gel form, or AGM - with electrolyte absorbing mat. )

The device is equipped with a digital meter charging current with display. Stepless adjustment of the charging current allows even more accurate positioning of the rectifier.

The set includes:

• Rectifier MAGNUM AGRI INVERTER 30/12
• Wires with terminals
• Cardboard packaging
• User manual in Polish

The AGRI 30/12 V rectifier operates in a four-stage mode. This is particularly important in the case of batteries significantly unloaded, or unused for a long time:

1. Pre-charging - low current charging for safe restoration of battery parameters and preparation for primary charging
2. DC charging
3. Constant voltage charging with a drop in intensity
4. Support charging - (blue LED) battery charged, ready to use. In this mode, the rectifier will keep the battery fully charged and recharge as needed.

If the battery after a moment of charging has already reached 16V and causes the rectifier to go into the state of charging / maintaining 14V, it means that the battery is fully charged or damaged (sulfurized, poor electrolyte density, mechanical damage to the plates).

Indications of signaling diodes:

• Green - rectifier connected to power supply
• Red - basic charging is in progress
• Blue - secondary charging / voltage maintenance is in progress)

The rectifier meets the requirements of European standards for safety and electromagnetic compatibility. The manufacturing process corresponds to the ISO 9001 Quality System standard.

The rectifier is equipped with a number of protections:

• Protection against battery overcharging
• Protection against charging damaged/deeply discharged batteries
• Protection against reverse connection of poles
• Protection against turn of poles
• Protection against overheating

The above protections in the rectifier allow you to charge the battery without removing it from the car, even when trying to start the engine.

• Power supply voltage: 230V / 50Hz
• Battery voltage: 12 V
• Battery capacity: 50 - 300 Ah
• Charging voltage: 14,5 - 14,8 V
• Support voltage: 13,8 V
• Charging current: 5 - 20 A
• - Subwoofer Power consumption: 266 W
• Dimensions: 15 x 30 x 10 cm
• Weight: 1,7 kg
