Kėbulo remonto MIGOMAT SPOTTER komplektas

Trumpai apie prekę

Prekė: Kėbulo remonto MIGOMAT SPOTTER komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Bester
• Modelis: 1801

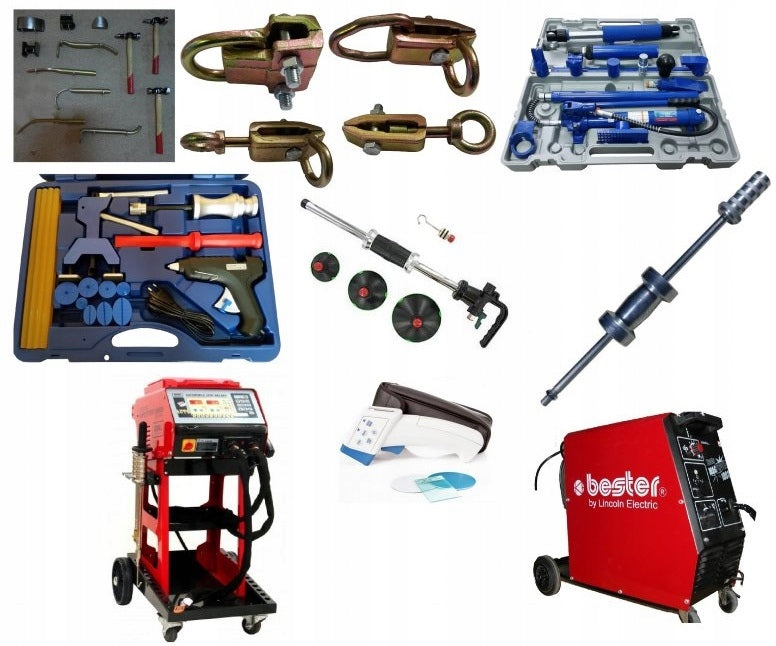

blahcharski set:

• spoons, hammers, plantains on the board
• 4 pcs flashing buckles
• spreaders with 20T hook
• set for removing dents from the body
• paint meter
• inertial hammer
• spotter for body repair
• migomat Bester 1801
• pneumatic punch for bodywork

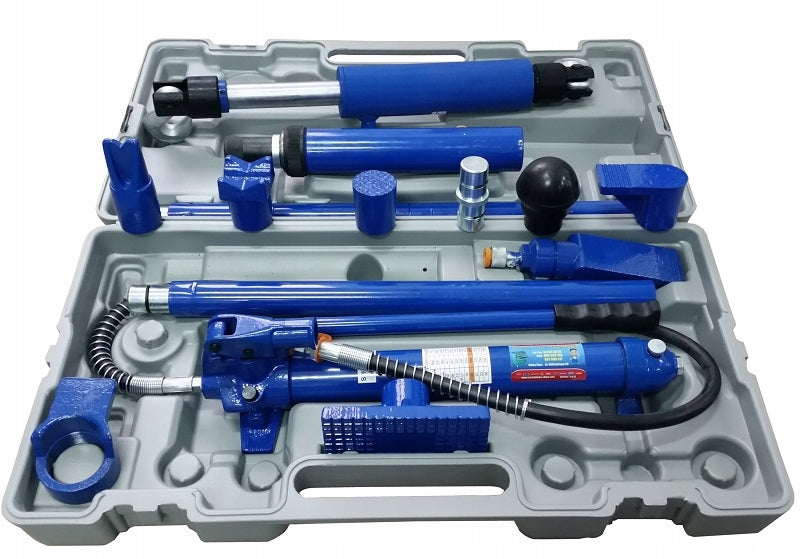

SPREADER 20T FLASHING PRESS + HOOK 20

The most powerful set of spreaders available on the market - 20T. Professional set designed for passenger cars, vans and trucks. Ideal for both amateur and professional use.

Spreaders are made of the highest quality elements. The set includes a single-stage pump with a handle. Expansion cylinder equipped with a special vertical-level-tilt valve. We add a compression puller with two forged hooks (forgings) to the press case. The actuator is equipped with a check valve. The suitcase also includes: extensions, connectors, reductions, spacers, rubber apple and hydraulic expansion jaw with valve. Presses are flooded with hydraulic oil - the whole set is ready to work. High-end equipment - for professionals.

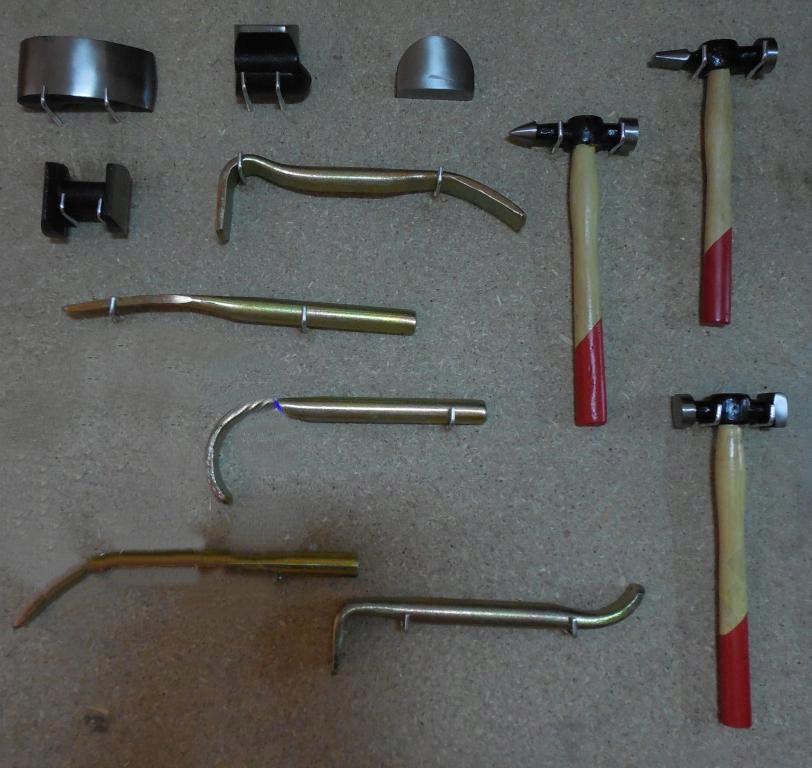

SET OF SPOON PLANTAIN HAMMERS ON THE BOARD

Practical and effective in operation sheet metal set, for shaping steel sheets and non-ferrous metals. The set consists of three hammers with characteristic working planes and 4 anvil with different shapes. Precisely matched working planes of hammers and anvil allow to obtain a variety of planes, shaped sheet metal. The hammers have durable handles, made of hickory wood, while the metal parts are forged from high-quality carbon steel and Kpl. small flashing spoons 5 pcs. Overall length from 280mm to 320mm.

PAINT THICKNESS TESTER

The CHY113 meter is used to measure the thickness of non-metallic coatings (e.g. lacquer) only on ferromagnetic alloy substrates (e.g. steel sheet). The meter is designed to provide easy operation in one hand.

Automatic selection of measuring ranges

Switchable measurement unit µm/mil

Automatic stop of the indication on the LCD display

Two-stage calibration of the instrument

Indication of battery depletion

Auto-switching the meter after 15 seconds of inactivity

TECHNICAL DATA:

• Measuring range: 0÷1000 µm (0÷40,0 miles)
• Accuracy: 0÷199 µm: ±7c, 0÷7,8 miles: ±4c , 200÷1000 µm (7,9÷40,0 miles): ±(3%+4c
• Resolution: 1µm (0,1 miles)
• Display: LCD (1999 max) with backlight
• Sampling: 1 time/s
• Response time: 1s
• Temperature coefficient: ±0,1% x (accuracy given) / °C
• Operating environment: 0°C÷50°C; RH< 75%
• Storage environment: -20°C÷60°C; RH< 80%
• Power supply : 9V battery (NEDA 1604, IEC 6F22, JIS 006P)
• Battery life: 9 hours continuous operation with LCD backlight
• Dimensions: 148x105x42 mm
• Weight :157 g (incl. battery)

ADDITIONAL

• Soft case,
• calibration kit: ferromagnetic alloy plate and thickness standard (foil),
• battery,
• instruction manual in Polish

SEMI-AUTOMATIC SAWING MACHINE BESTER 1801

Technical data:

• Rated supply voltage 230/400 V, 3~PE, 50 Hz
• Rated max supply current 31A/18A
• Rated power consumption from 7,0 kVA network
• Power factor at load 0.92
• Welding current for 10% operation PJ10 160 A
• Welding current for operation 60% PJ60 80 A
• Welding Current for Operation 100% PJ100 60 A
• Welding Current Adjustment Range 40-160A / 80-160A
• Output voltage without load 19-36V / 24-36V
• Number of switchable welding voltage stages 4
• Wire feed speed adjustment range 1-17 m/min
• Degree of protection of housing IP 21
• Insulation class of transformers H
• Weight (without spool with wire) 50 kg
• Operating temperature -10 to 400 C
• Dimensions (width/height/depth) 427 x 635 x 815 mm
• Diameter of steel electrode wire 0,6 – 0,8 mm
• Return cable with tick clamp 2,5 m
• Mains power cable 220 and 400V 2,5 m
• Gas cable 2,5 m

CAR BODY REPAIR SPOT WELDER / PULLER

This microprocessor-controlled device is designed for pulling, single-sided welding, patching, and carbon electrode heating of metal sheets. It's specifically intended for car body repairs. All welder settings are accessible via the control panel. After selecting the tool type, the device automatically adjusts the welding current and optimal duty cycles. Manual adjustment of welding time and current is also possible.

It uses a two-phase power supply and features overload, overvoltage, and undervoltage protection.

The included tool set allows for:

Spot welding of nails, washers, and rivets

Metal shrinking

Metal pulling

Welding two metal sheets together

The device price includes: a trolley, a working cable with a gun, a ground cable with a mounting bracket, an accessory box (M10 and M12 washers, wavy wire, electrode for wavy wire, welding electrode, triangular washers, electrodes for cupping), a puller with a hook for M8-M12 washers, a puller with a holder for triangular washers, a rubber suction cup for shallow dents, and a 6-pin handle for pulling wavy wire.

Specifications:

• Rated supply voltage: 400 V; 50Hz
• Power: 19kW
• Regulation stages: Stepless
• Output voltage: 1-13V
• Maximum welding current: 5400A
• Maximum sheet thickness for single-sided welding: 0.8+1.0mm
• Device / set weight: 49kg / 80 kg
• Input current: 50A
• Welding time regulation: 0-99ms
• Overall dimensions (L x W x H): 570x370x890mm

INERTIAL PULLER 6KG

for CDI engines

winch firmly embedded injectors with short, intense strokes

does not cause damage to the cylinder head

hammer weighing 6 kg

SET FOR REMOVING DENTS FROM THE BODY

For repairing soft damage to the sheet metal

hail

no need to re-coat repaired surfaces

does not cause color differences

significantly reduces the time and cost of repair

The set includes:

• 9 blocks of different shapes and sizes
• special adhesives with very good performance
• Inertial hammer for pulling out dents
• surface preparation apparatus
• Plastic scraper for gentle sticker removal

PNEUMATIC INERTIAL PULLER BODY

Inertial puller with suction cup is an indispensable helper when leveling large body irregularities. The constant grip of the suction cup is ensured by compressed air 6 – 8 bar, producing a vacuum with the help of a built-in ejector. The set includes 3 pieces. Suction cups Ø 60,120, 155 mm. Puller with very strong flashing parameters.

Thanks to the combination of inertial puller and pneumatic power supply, the suction power of the puller is significantly increased,

very helpful in bodywork.

Parameters:

• connection: 1/4",
• Hammer weight: 4,7 kg
• weight of inertial hammer: 1,22 kg
• material: steel + plastic
• handle with hammer
• 3 suction heads: 75, 100, 125 mm,

CLAMP JAW DOUBLE-SIDED FLASHING CLAMP

For pulling the body in two directions at once.

Self-clamping jaws, made of high quality steel.

Application:

-for tensioning thresholds and stringers.

FORGED, POLISH PRODUCT

CLAMP JAW DOUBLE-SIDED FLASHING CLAMP

For pulling the body in two directions at once.

Self-clamping jaws, made of high quality steel.

Application:

-for tensioning thresholds and stringers.

FORGED, POLISH PRODUCT

CLAMP JAW FRONT CLAMP DOUBLE

It has universal application.

All made of the best materials hardened jaws.

FORGED, POLISH PRODUCT

CLAMP JAW SELF-CLAMPING FLASHING CLAMP

It has universal and multi-purpose applications.

The whole is made of the best materials - thermally hardened jaws.

FORGED, POLISH PRODUCT
