Kėbulo lyginimo staklės su hidrauline pompa, 16 įrankių, 8 ratukai

Trumpai apie prekę

Prekė: Kėbulo lyginimo staklės su hidrauline pompa, 16 įrankių, 8 ratukai. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand

• We focus on quality, professionalism and comprehensive service of the public sector.

Dimensions:

Height: 225

Width: 190

Length: 250

Why choose our product?

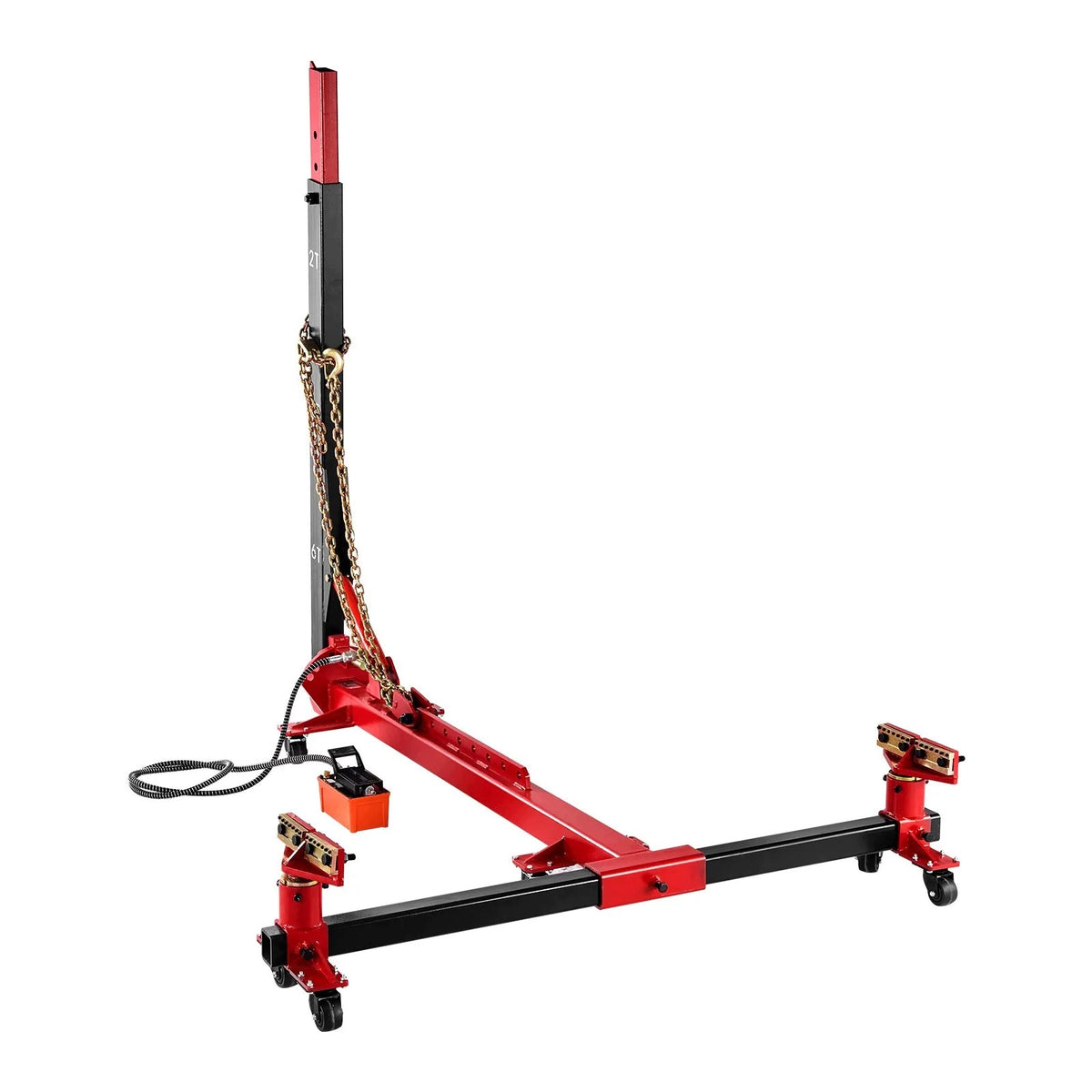

Professional body repair requires not only the right strength, but also the ability to precisely set the point of action. The device for straightening and removing body frames with a pulling force of up to 6 tons was created for car workshops dealing with the repair of vehicles after collisions and accidents.

The combination of hydraulic-pneumatic foot pump, adjustable post and chain with a length of 3 m allows you to adjust the way of work to a specific deformation. Thanks to this, the operator can control the position of the hydraulic cylinder and choose the direction of action to the requirements of the repaired vehicle.

The maximum pulling force is 6 tons, and the 3-ton hook with breaking protection and reinforced chain provide the right elements for performing work related to straightening and removing frames.

The adjustable post rotates -60° to +60° and can be tilted to 35°. The eight-bolt design allows you to change the setting from different angles, which helps to adjust the position of the device to a specific repair location.

Key benefits and technologies

• Drawing force up to 6 tons – high force allows you to perform work related to straightening dents and deformations of the body of vehicles damaged as a result of a collision.
• Reinforced chain 3 m / 118 inches – the length of the chain gives the possibility of using it in various configurations when working with the body frame.
• Hook with a lifting capacity of 3 tons with breaking protection – an element designed for a strong connection during straightening work.
• Post adjustment from -60° to +60° – a wide range of rotation makes it easy to set the direction of action according to the geometry of the vehicle being repaired.
• Tilt up to 35° – additional adjustment range allows you to adjust the position of the post more accurately.
• 8-bolt design – allows stable adjustment of the post position in many positions.
• Hydraulic-pneumatic pump with foot pedal – allows you to control the position of the hydraulic cylinder without the need to operate the pump with your hand.
• Required air pressure 0,6 to 1 MPa – a parameter that allows you to properly prepare the pneumatic system for the operation of the device.
• 16-piece straightening tool set – includes flashing clamps and tools designed for various body repair jobs.
• Two-head clamp – provides a strong and stable grip during straightening.
• 8 wheels – facilitates the movement of the device and its positioning in the workshop.
• Design for different types of vehicles – the device is designed for use with sedans, SUVs, trucks and other vehicles.

Technical specification

• Device type: body frame straightening and stripping device
• Drawing force: 6 tonnes
• Pressure: 6000 PSI
• Air pressure required: 0,6–1 MPa
• Post rotation range: -60° to +60°
• Maximum angle of tilt of the post: 35°
• Post design: 8-bolt
• Chain length: 3 m / 118 inches
• Hook lift: 3 tons
• Number of straightening tools: 16 pcs.
• Number of wheels: 8
• Article model number: JT-20
• Net weight: 595,2 lbs / 270 kg (including all accessories)
• Product dimensions: 98,4 x 74,8 x 88,6 inches / 2500 x 1900 x 2250 mm

Application in practice

• ⭐Shellwork – for straightening frames and removing deformations caused during collisions and accidents.
• ⭐Passenger car repair – adjustable post allows you to adjust the direction of action to a specific place of repair.
• ⭐Services for SUVs and trucks – the design has been designed for use with different types of vehicles.
• ⭐Professional repair stations – 16-piece tool set and mobility thanks to 8 wheels help prepare the device for a variety of jobs.

Contents of the set

The set includes a device for straightening and removing body frames with a hydraulic-pneumatic pump, a reinforced chain with a length of 3 m, a hook with a lifting capacity of 3 tons and a 16-piece set of straightening tools, including flashing clamps.

Summary – choose a professional solution

When repair requires controlled force and proper setting of the operating point, what counts is the design that allows you to work in many configurations. The pull force of 6 tons, adjustable post, hydraulic-pneumatic pump and 16 straightening tools create a complete solution for professional work on frames and bodies.

Bet on high manpower, wide adjustment range and mobile design. Choose equipment that allows the workshop to effectively carry out work related to the straightening and repair of damaged bodies.

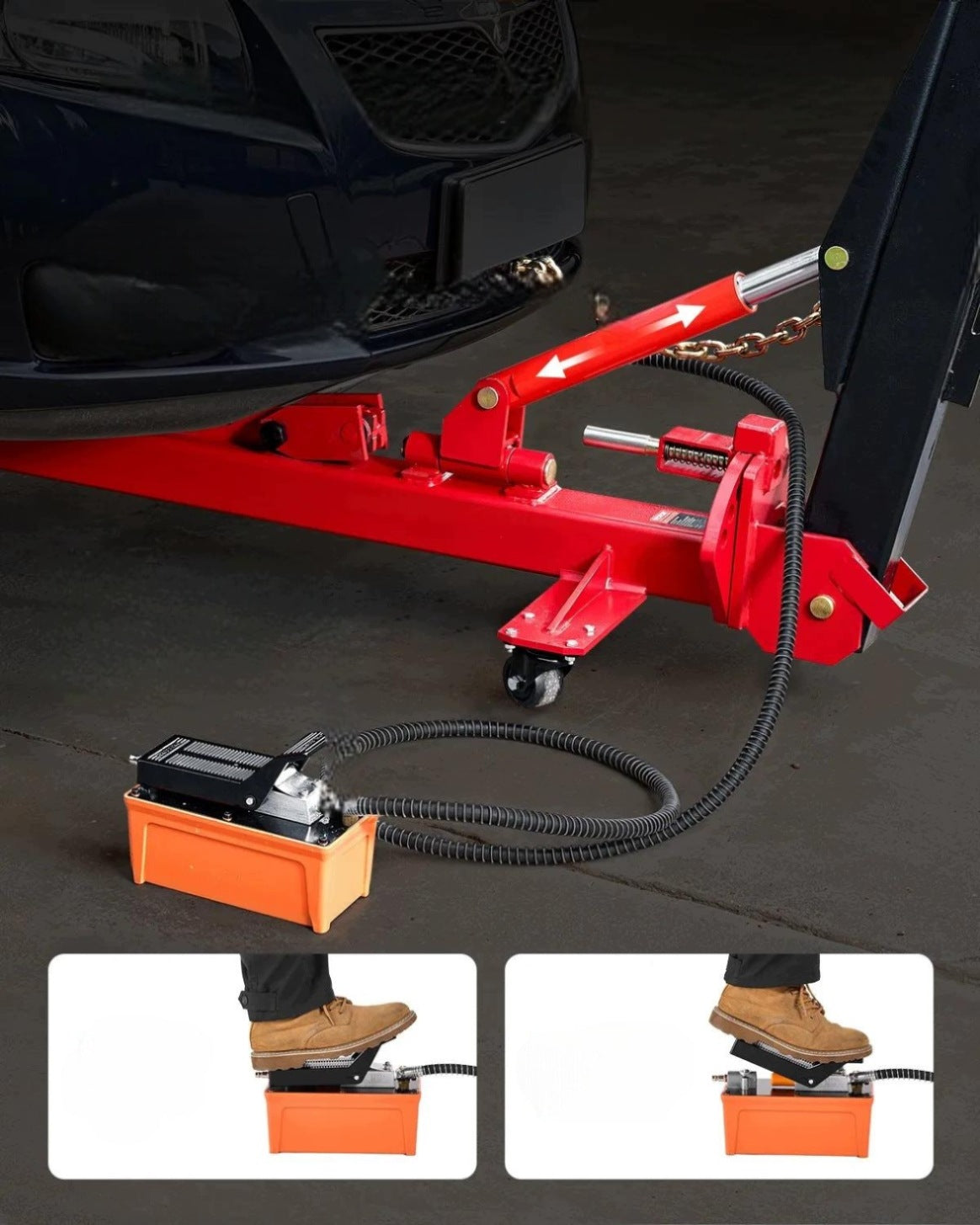

Efficient pneumatic-hydraulic pump

The device is equipped with a high-pressure hydraulic pump with parameters up to 6000 PSI, requiring compressed air supply of 0,6 to 1 MPa. It has a standard G3/8 hydraulic output, and convenient operation with pedals allows precise pressing and efficient oil release.

A rich set of bodywork accessories

This 16-piece set for professional body repair includes robust, heat-treated sheet metal clamps, which are characterized by high clamping force, high strength and corrosion resistance.

Mobile and stable design

The straightener guarantees reliable and effective operation thanks to the universal 360° rotary wheels with increased strength. The whole is complemented by a solid non-slip hook with a lifting capacity of 3 tons and strong body clamps for stability during operation.

Versatile frame straightener

The powerful 6 ton body frame straightener is perfect for repairing various types of vehicles, such as sedans, SUVs, MPVs, and larger pickup trucks.

Precise adjustment of working angles

The advanced base allows for wide adjustment in multiple planes, allowing for a perfect fit in different areas of vehicle damage. It offers a tilt angle of 120° (from -60° to 60°) and a maximum tilt angle of 35°.

We offer you a team of experienced experts, ready to provide comprehensive assistance and advice at every step of cooperation.

Trust our experience – welcome to buy!

• Sales with FV 23%
• Handling of in Poland

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	Maximum amperage	0 A
Parametry	EAN (GTIN)	5907021482011
