Trumpai apie prekę

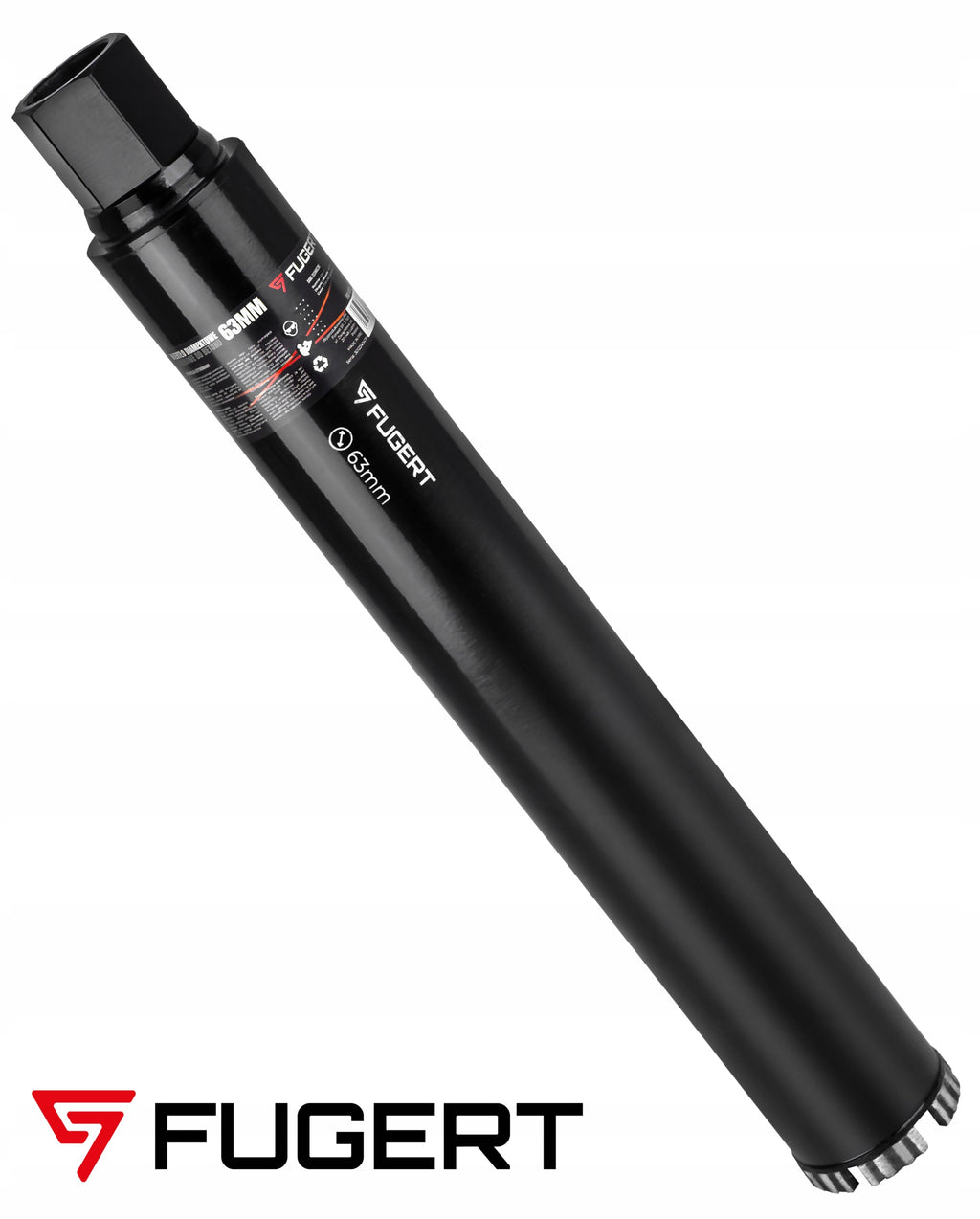

Prekė: Karūninė deimantinė 63 mm grąžto anga betonui, tinka gręžimo įrangai. Kategorija: Grąžtai skylėms pjauti.
- Gamintojas: FUGERT
- Modelis: FUG-0207B
- Skersmuo: 63 mm
☑ 6 SEGMENTS each: 25x10mm: Sharp diamond crystals embedded in a metallic die for durability and efficiency when drilling
☑ HIGH EFFICIENCY: Professional design for precise and fast drilling
☑ DURABILITY: Reinforced overheat resistant diamond segments
☑ STABILITY: Balanced design to minimize vibration
Working with a drill requires knowledge and application of health and safety rules. The manufacturer is not liable for damages and injuries resulting from improper use or non-compliance with the instruction manual.
⭐ Technical data
- Brand: Fugert
- Model: FUG-0207
- Size: 63mm
- Overall length: 470mm
- Wall thickness: 4mm
- Number of segments: 6
- Segment Size: 25x10mm

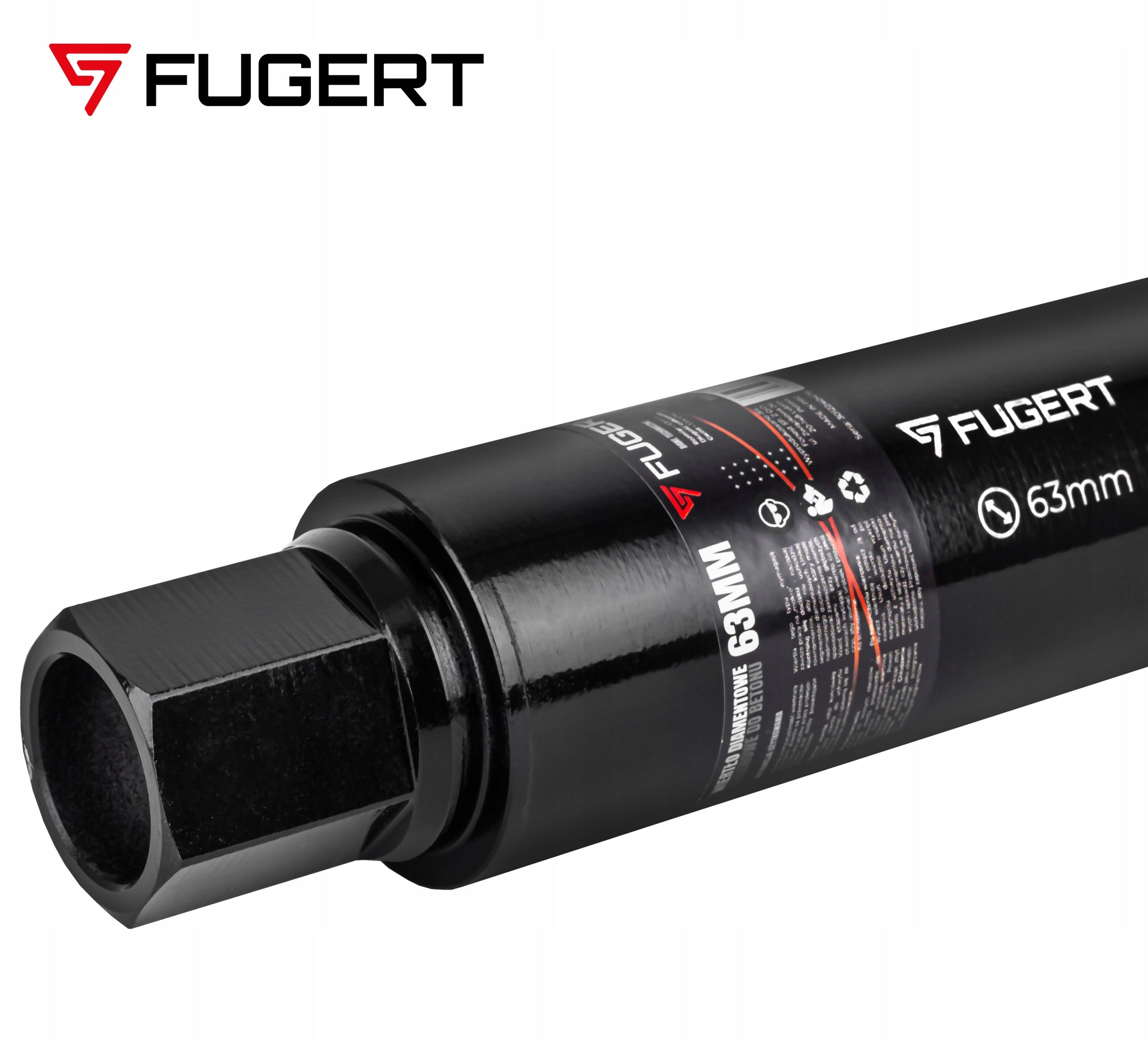

- Thread: 1.1/4 UNC (for drilling rig)
- Diamond embankment on segments: yes
⭐ Innovative Core Drill Bit with 6 Premium Segments 25x10mm

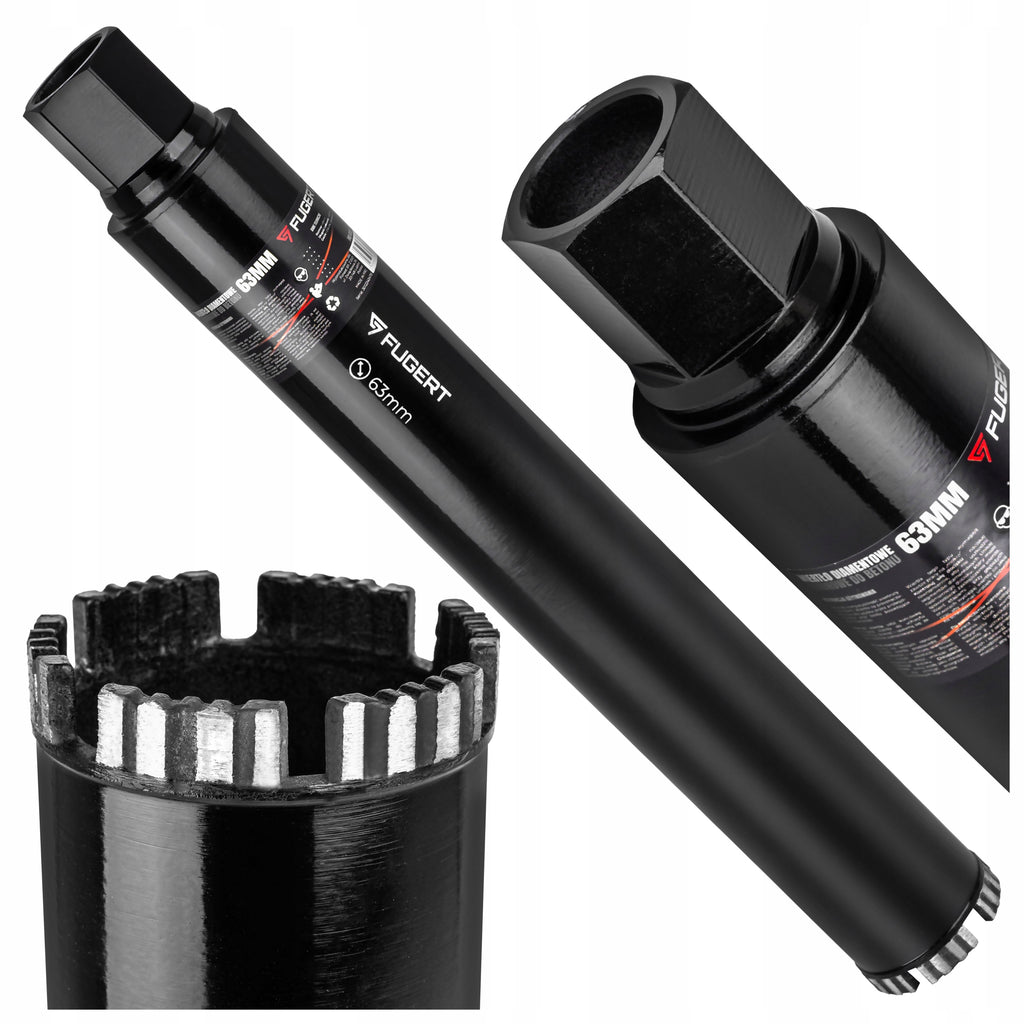

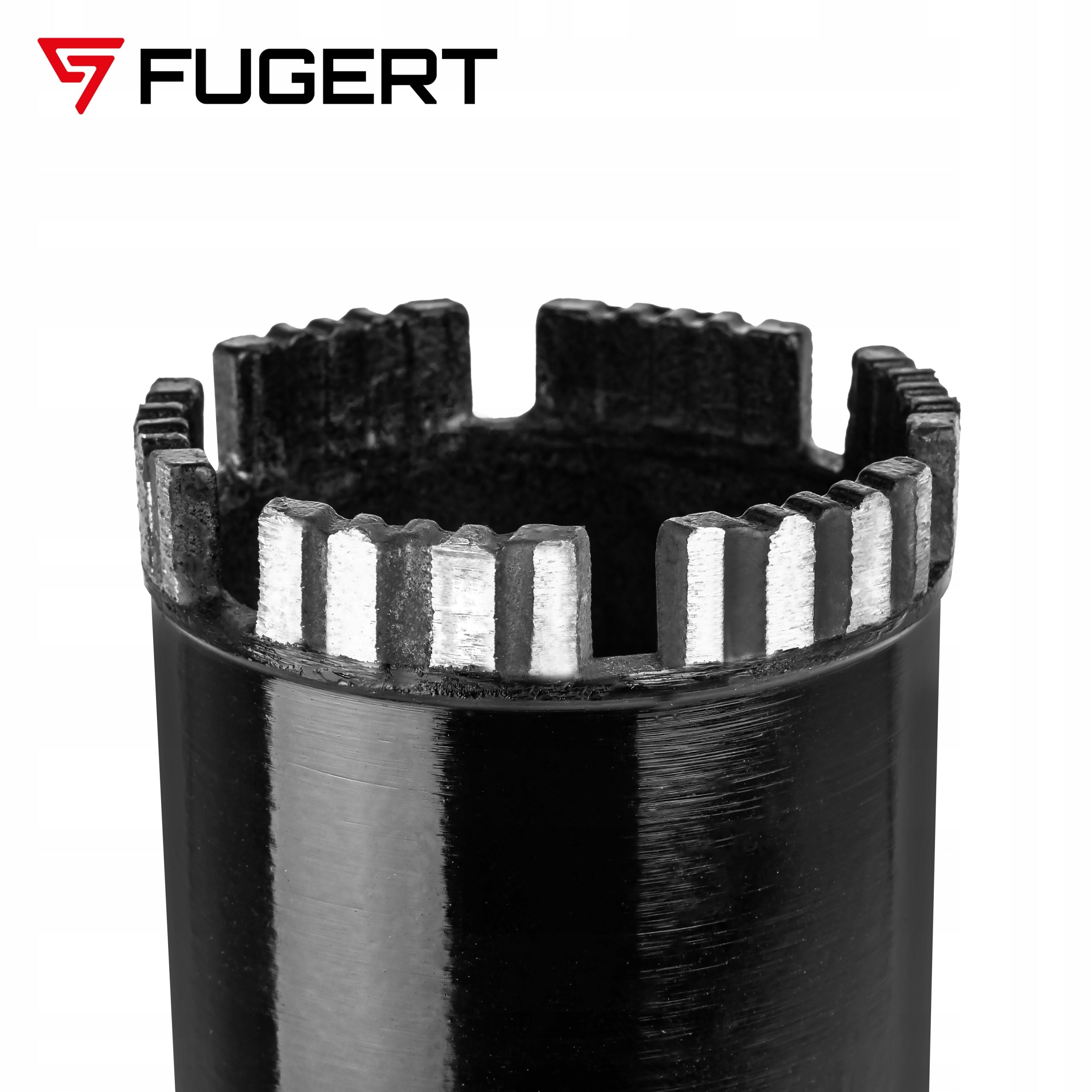

This 63mm drill bit features a high-quality core drill consisting of 6 diamond segments with dimensions of 25x10mm.
Wall Thickness: 4mm - significantly improves stability during operation.
Each segment contains a precisely selected diamond grit in a special metal matrix, ensuring a perfect balance between cutting speed and tool life.
⭐ Diamond Grit

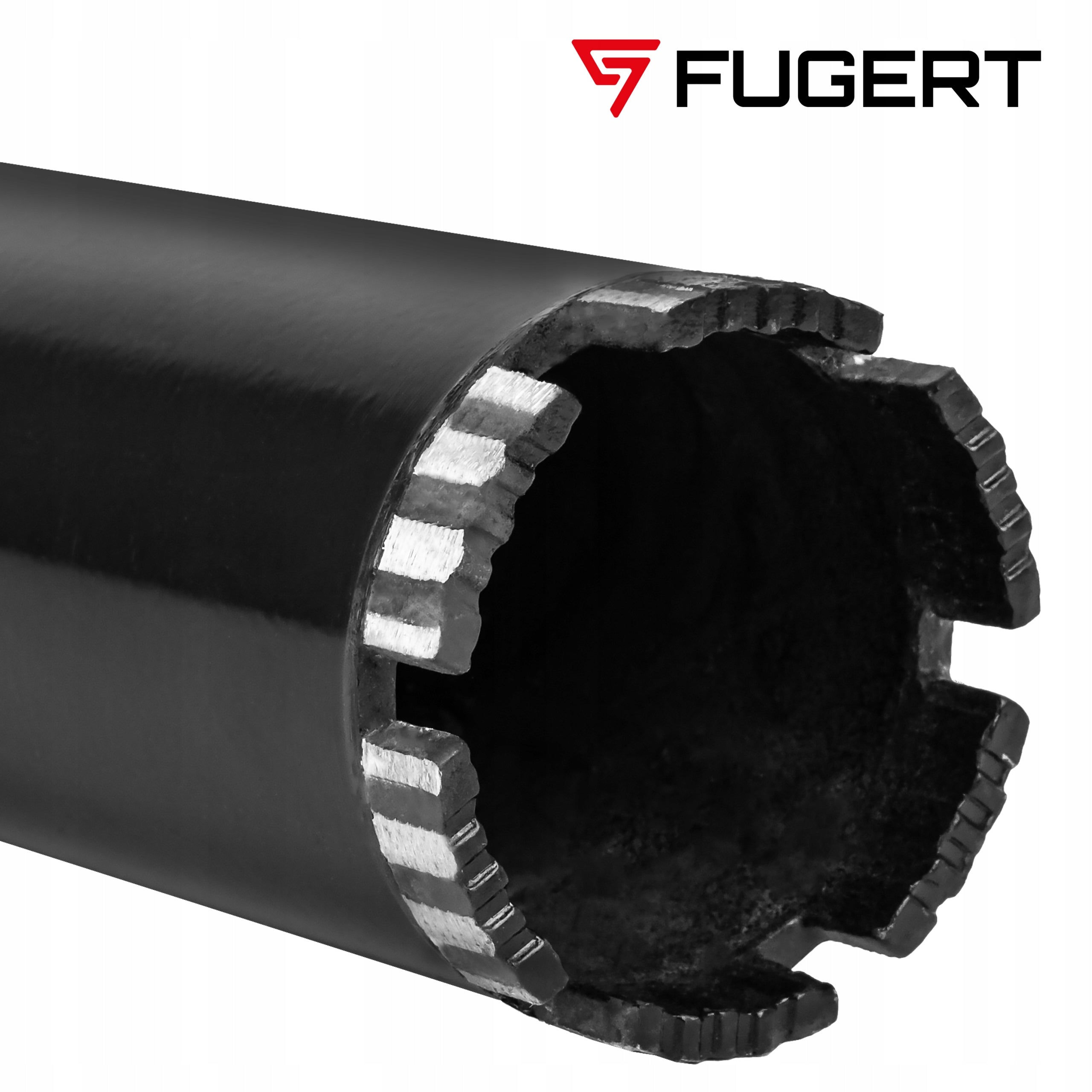

The diamond segments contain sharp diamond crystals embedded in a metallic matrix, ensuring durability and effectiveness when drilling hard materials such as concrete.
⭐ Optimal water cooling for maximum lifespan
For providing maximum service life and efficiency of the crown drill, it is strongly recommended to use the wet drilling method.
Continuous water cooling during operation significantly extends the durability of diamond segments, preventing overheating and premature wear.
In addition, this method significantly reduces harmful dust, improving comfort and work safety.
⭐ Application
- Making holes for electrical cans
- Sanitary and heating installations
- Cable and pipe passes
- Installation of ventilation systems
- Renovation and construction works
⭐ Use in a variety of building materials
- Plain concrete - precise holes without chipping
- Reinforced concrete - effective overcoming of steel rebar
- Gelbet - efficient drilling even in the toughest constructions
- Full brick and hole - clean holes without the risk of cracks
- Ceramic and concrete blocks - precise work without structural damage
- Clinker - accurate holes without chipping
- Natural stone (granite, marble, sandstone) - smooth edges without nicks
- Ceramic tiles and stoneware - perfect holes without cracks
- Cement and cement-lime plaster - clean edges
- Paving stones - even holes without damage
- Cellular concrete - precise drilling without crushing the material
- Silikat - accurate holes without the risk of cracks
❗It is crucial to adjust the rotational speed and pressure to a specific material and to use appropriate water cooling. For very hard materials or brittle materials, it is recommended to start with a test on an unnecessary fragment or consult a professional.
⭐ Recommended rotational speeds for FUGERT 63mm crown drill bit
Hard materials:
- Reinforced concrete: 300-500 rpm /min
- Hard concrete: 350-550 rpm /min
- Granite/Basalt: 250-450 rpm /min
Medium hard materials:
- Plain concrete: 400-600 rpm /min
- Full brick: 450-650 rpm /min
- Natural stone: 400-550 rpm /min
Soft materials:
- Hollows: 500-700 rpm /min
- Hole brick: 500-650 rpm /min
- Sandstone: 450-650 rpm /min
Important tips:
- General rule: The larger the diameter of the crown, the lower the rotation speed should be.
- Start drilling: Always start at about 30% lower than the target speed, increasing it gradually after the drill has stabilized.
- Wet drilling: When drilling with water cooling, slightly higher revolutions can be used (upper range of given values).
- Dry drilling: When working without water cooling, lower revolutions (lower range of given values) and periodic breaks for cooling the drill are recommended.
- Rebar: When encountering a rebar, the speed should be reduced by 20-30% until it is cut.
Remember that more important than high speed is its stability and proper pressure. Too high revolutions can lead to overheating of diamond segments and a significant shortening of the life of the drill.
⭐ User Manual
Check the compatibility of the drill with the drill. Drill bits are designed only for use by professionals and people with experience.
Assembly of drill: insert the drill attachment tip into the drill holder. Tighten and make sure it is firmly fixed.
Drilling process: Start with slow rotations - apply the drill perpendicular to the surface and start the drill at low speed. Slowly increase the speed, avoiding too fast downforce. Drill Cooling - use water as coolant to avoid overheating of diamond segments.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | FUGERT |
| Parametry | Series | Wiertło diamentowe do betonu |
| Parametry | Diameter | 63 mm |
| Parametry | Product weight with unit packaging | 1.7 kg |
| Parametry | Manufacturer code | FUG-0207B |
| Parametry | EAN (GTIN) | 5906688630780 |
| Parametry | Customs tariff code | 82075010 |
| Parametry | Purpose | concrete,aerated concrete,bricks,stone,cement slabs |
