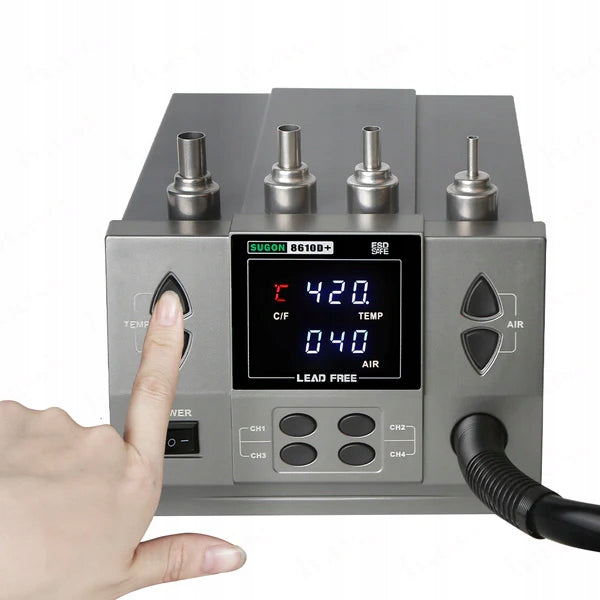

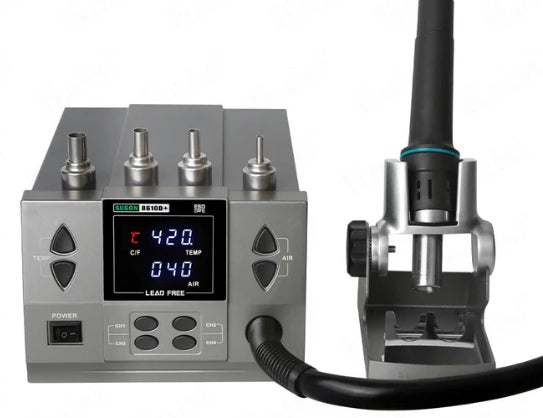

Karštų orų litavimo stotis SUGON 8610D+, 1000 W, BGA SMD

Trumpai apie prekę

Prekė: Karštų orų litavimo stotis SUGON 8610D+, 1000 W, BGA SMD. Kategorija: Lituokliai.

• Gamintojas: SUGON
• Modelis: 8610D+
• Galia: 1000 W

Professional hot-air Sugon 8610D+ station – ideal for electronics repairs, disassembly / assembly of BGA/SMD, reballing, working with PCBs, plastics and many other tasks. The device is characterized by high power, precise temperature and air control, making it suitable for both service and home workshop. The station is fully functional, ESD-safe and ready to work immediately after connecting.

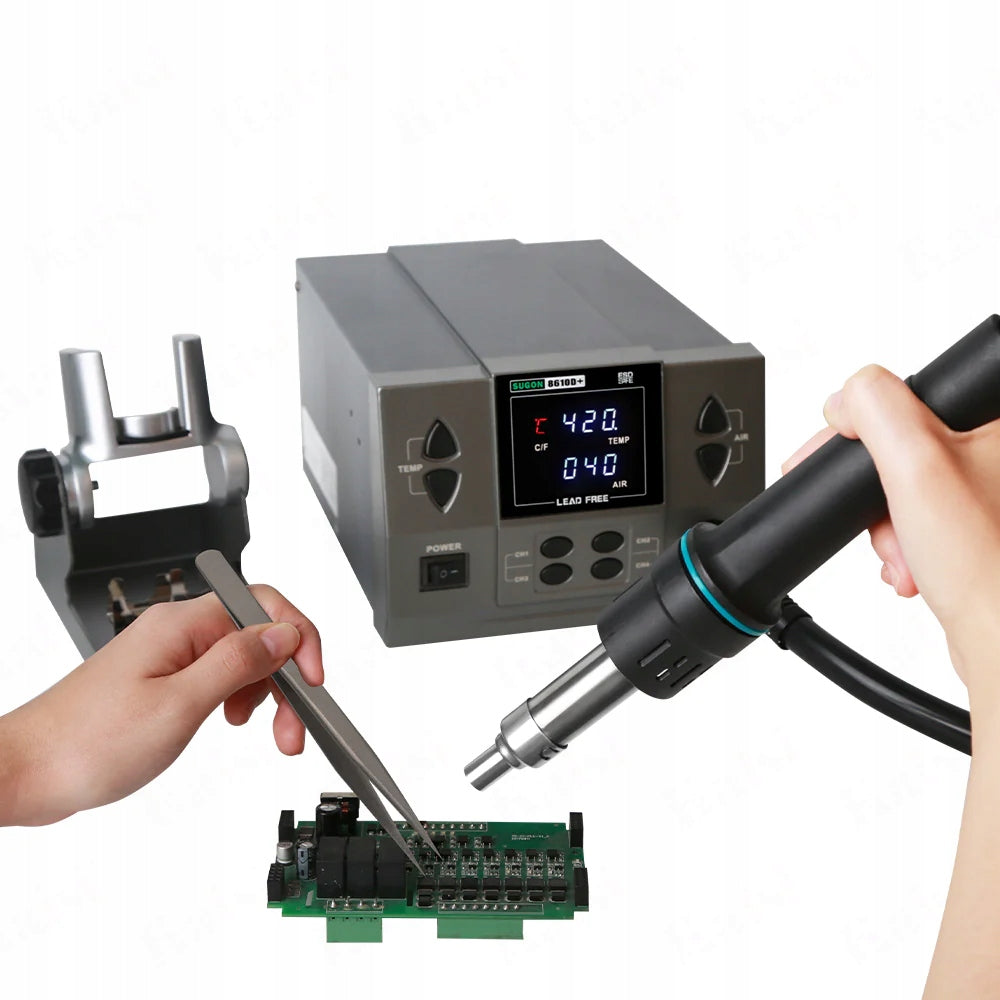

The device is suitable for:

• soldering/desoldering of SMD, BGA, QFP, QFN, PLCC, SOIC components, etc.
• repair of motherboards of phones, laptops, electronics – assembly / disassembly of integrated circuits, memory, chips
• work with plastics, shrinking thermoshrinks, drying, removing glue/lacquer, etc.

The station has the function of recording up to 4 work profiles, which greatly facilitates repetitive activities – you do not have to enter settings every time. A beautiful, easy-to-read LED / digital display shows the current and set temperature, and the air flow control and automatic “hibernation” function (the flask goes into a state of rest after putting it down) increases safety and comfort of work.

The station is a proven tool for electronics – power, precision, convenience.

Technical specification

Model: Sugon 8610D

Rated Power: 1000 W

Supply voltage: 220 V AC, 50 Hz (European version)

Temperature range: 100 °C – 500 °C (adjustable every 1 °C)

Air flow regulation: Scale 1 to 120 (adjustable flow)

Control / channels of operation: 4 programmable channels (possibility to save 4 different settings: temperature + flow)

Heater type / heating element: Ceramics, plug-in (easy to replace)

Cooling / fan: Brushless fan + automatic cooling after operation

Additional functions

ESD-safe, LED display, automatic stock hibernation (magnetic sensor), temperature calibration, selectable °C/°F, sound switch (buzzer), heater protection.

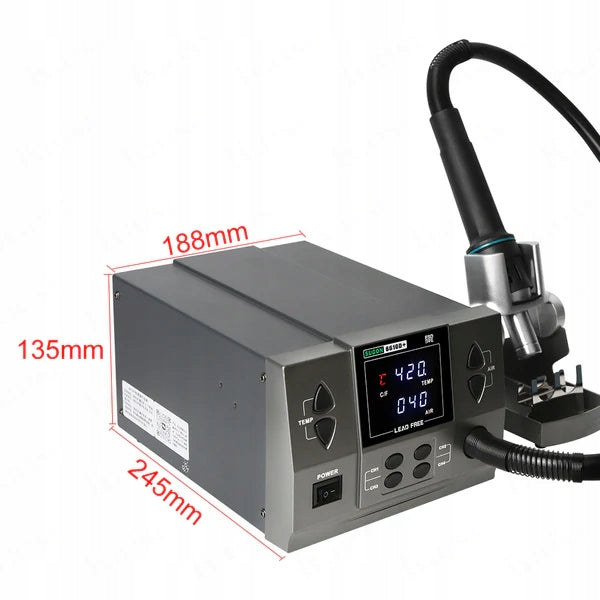

Station dimensions (housing): approx. 188 × 245 × 135 mm

Weight (without accessories): ~ 3,5 kg

Advantages / Why it is worth

• High power and large temperature range – allows you to work with difficult BGA and large components.
• Four programmable channels – save time with frequent repetitions of the same settings.
• Accurate temperature + airflow control and stability – better control with delicate components.
• Brushless fan and automatic cooling/hibernation — longer life of the device.
• ESD-safe and “lead-free” compatibility – suitable for electronics services.
• Comes with a set of nozzles and flask; ready to use as soon as connected.

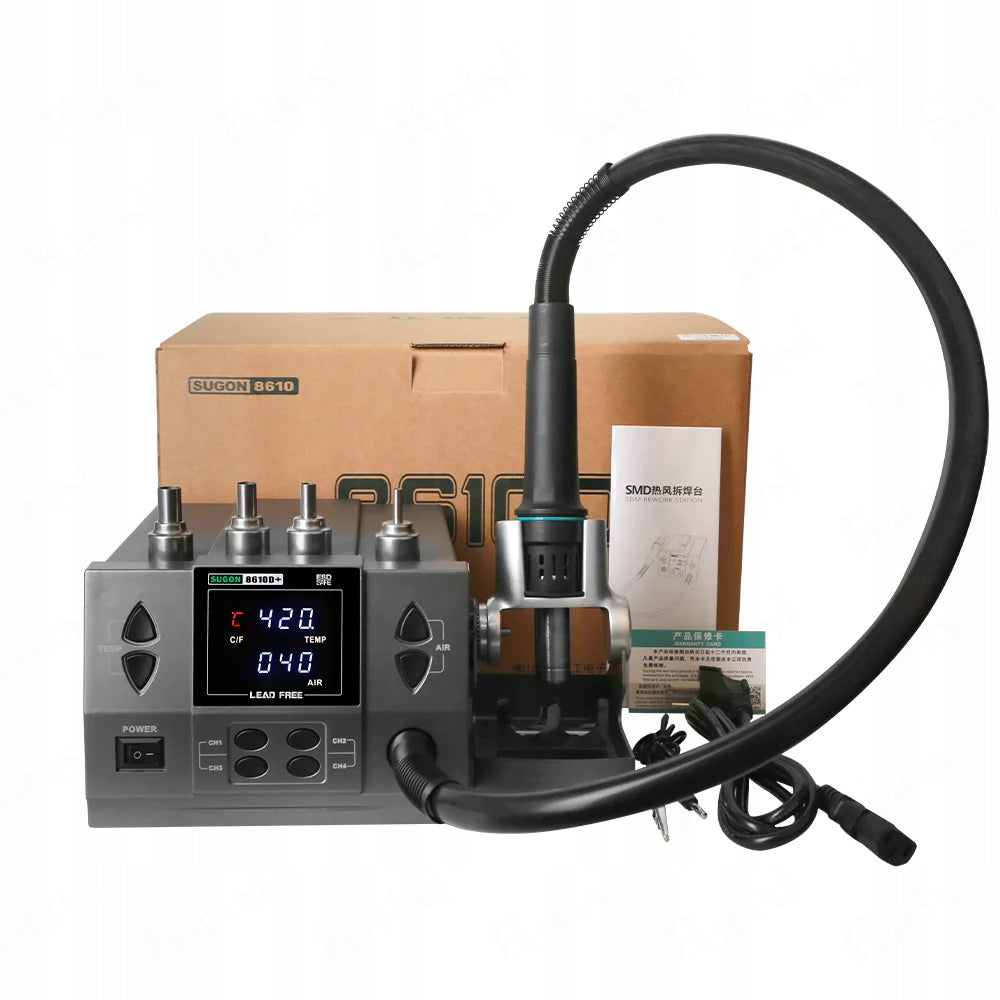

Set / what is included in:

• main unit of the station
• hot air flask
• handle / stock base
• set of nozzles (e.g. 5 mm, 8 mm, 10 mm, 12 mm)
• power cable
• ground cable
