Kampinis pjūklas su lazeriu MITER SAW, 2000W, 255 mm, GMM-MS255

Trumpai apie prekę

Prekė: Kampinis pjūklas su lazeriu MITER SAW, 2000W, 255 mm, GMM-MS255. Kategorija: Kampiniai pjūklai.

• Gamintojas: GoodMajster
• Modelis: GMM-MS255

Technical data

• ⏩Model: GMM-MS255
• ⏩Engine power: 1800W S1 / 2000W S6
• ⏩ Power Supply: 220-240V | 50Hz
• ⏩Laser pointer: yes
• ⏩Rotary speed without load: 5000rpm
• ⏩Dimensions of the cutting disc: 255mm x 25,4mm
• ⏩Disc tilt: 0-45 degrees
• ⏩Complex oblique cut at an angle of 45/45st: 210x35mm
• ⏩Slanted cut at an angle of 45/0st: 305x35mm
• ⏩Bevel cutting at an angle of 0/45st: 210x75mm
• ⏩Simple cut at 0/0st: 305x75mm
• ⏩Lpa sound pressure level: 94,3dB(A) / (KpA 3dB(A) )
• ⏩LWA volume level: 104,3dB(A) / (KWA 3dB(A) )
• ⏩Weight: 14kg net / 17,5kg gross

Set Composition:

• ✅Slash saw - GoodMajster Machinery GMM-MS255
• ✅Cutting disc GoodMajster Machinery 40-tooth / Mounted on saw
• ✅2x Side supports
• ✅1x Clamp vise
• ✅1x Shield Cover
• ✅ Dust bag
• ✅Instruction manual in Polish

The GoodMajster Machinery GMM-MS255 bevel saw is a slash with feed and laser.

The GoodMajster Machinery GMM-MS255 slash saw is ✅ the most popular bevel saw with feed✅ by GoodMajster Machinery, equipped with a ⭐laser designed for cutting wood, metal and aluminum (after using a special cutting disc).

It allows you to make precise cuts for even wide elements thanks to ⏩feed application.

High power ⏩⏩2000W and disc ⏩⏩255mm allow you to cut materials with a width of up to ⏩305mm and a thickness of up to ⏩75mm. The slash is fitted with a ✅disc brake✅, which is designed to brake the disc within 10 seconds of turning off the machine!

The slash saw has an inclined dial, so it can cut at an angle of up to 45 degrees.

Its stable construction is ⏩durable, a extendable supports allowing you to cut even long elements.

The GoodMajster Machinery brand has been using the company's experience since ⭐ 1999 ⭐ and is a ⭐ Polish Brand ⭐ , guaranteeing professional advice, fast service, and the highest quality of its products, which is why ✔ The GMM-MS255 miter saw is delivered to the customer after TESTING EACH ITEM , in order to check its correct operation. ✔

The motor has a fully copper winding - ⏩COOPER ⏩WIRED ⏩TECHNOLOGY, which is much more efficient, resistant to overheating, and damage!

GoodMajster Machinery is a brand whose company has existed since ⭐1999, which is why it has extensive experience in the subject of construction machinery. GoodMajster Machinery is not compared to cheap machine models, and its main goal is to offer machines:

⏩failure-free

⏩of high quality

⏩with high durability

⏩with superior performance

⏩on the best components of recognized manufacturers.

The machine is addressed to ✅demanding customers, carpentry companies, furniture companies and fitters✅, which is why each piece undergoes a detailed quality control at every stage of production: from checking the quality of castings, through checking the efficiency of the engine, ending with checking the operation of the finished equipment. Therefore, each copy has a ⭐unique serial number⭐, confirming the test and passing the procedure ✅QUALITY CONTROL✅.

Bevel with horizontal guide for the highest precision.

GoodMajster Machinery uses proven solutions, which is why ⏩⏩the bevel has been equipped with guides in a ⏩horizontal system. This is the most popular solution among bevels with a 255mm dial. The GMM-MS255 guarantees the highest precision, which is why the guides are made of the best materials and guarantee:

• ✅reliability during many years of use
• ✅ provide light feed
• ✅ guarantee high precision cutting
• ✅have a stable travel lock
• ✅CUTTING HEIGHT ADJUSTMENT

High cutting range

Thanks to its innovative design, the ⭐wood cutter with laser⭐ has a large cutting range:

⏩Simple cutting at an angle of 0 ° / 0 ° : 305x75mm

⏩Miter cutting at an angle of 0 ° / 45 ° : 210x35mm

⏩Slant cutting at an angle of 45° / 0 ° : 305x35mm

⏩Angle-folded oblique cutting at an angle of 45° / 45° : 210x35mm

The high cutting range allows the use of a slash:

• ✅on construction (when cutting formwork boards)
• ✅ in carpentry (for cutting patches, rafters, purlins, roof structures)
• ✅ in carpentry (for cutting boards and furniture boards)
• ✅u fitters (cutting floor panels, drywall)
• ✅in the workshop (for cutting metal after using a special disc)

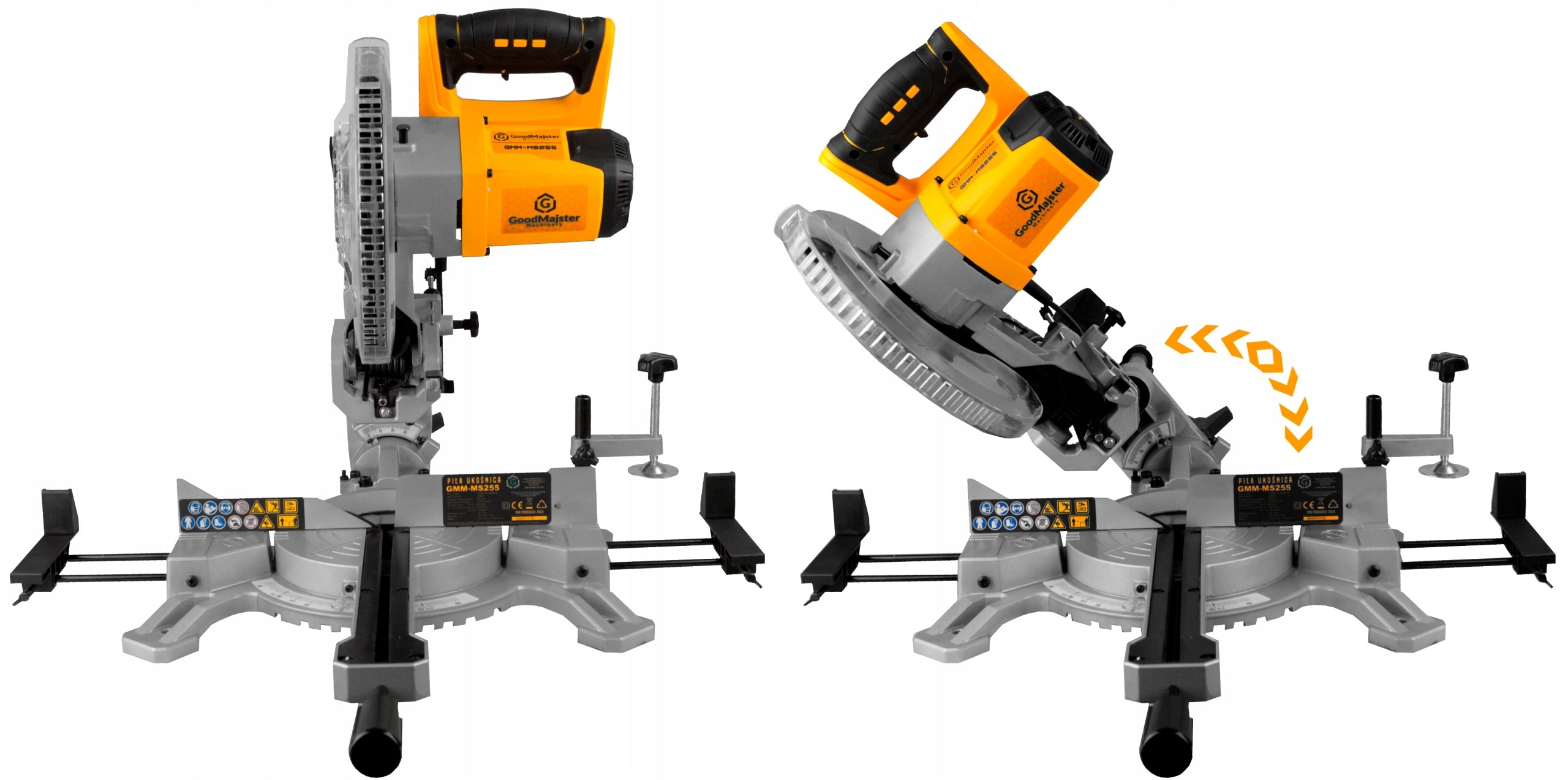

The incline of the 0-45-degree disc allows you to cut materials diagonally.

GoodMajster Machinery GMM-MS255 has a ⭐disc incline ⭐ in the range of 0-45 degrees.

This allows you to cut materials diagonally, depending on your needs in the range of ⭐0-45 degrees⭐. The slope is stable and has a lock and a clear scale.

The incline scale has a ✅readable indicator, so you do not have to measure the angle every time you make a cut and change the incline of the disc.

The incline is equipped with a pressure screw, which guarantees precision after setting the kata, and prevents spontaneous deregulation of the cutting angle, which is very important during precise cuts in the furniture industry.

The rotating work table extends the capabilities of the slash.

The machine is equipped with a ✅rotating working table✅, which allows ⭐cutting both in ⭐left and ⭐right diagonally.

Rotating the table is quick and can be done in 3 simple steps:

1. ⏩Loose down the pressure
2. ⏩Press the button at the pressure
3. ⏩We set the set angle by "turning" the slash to the left or right.

As a bevel saw with feed for construction, it has been equipped with a clear ✅ graduation with an angle of 31,6 degrees✅ marked, which is very important when trimming the skirting board so that it fits into a corner with an angle of 90 degrees.

When trimming MDF skirting boards to fit a 90 degree corner and form an outer corner, we set an angle of 31,6 degree, and then make a cut. Once folded, the slats fit perfectly into the corner without causing gaps!

Longitudinal, transverse cutting, and full disc adjustment!

The bevel has a tilting disc, thanks to which it can cut at an angle in the range of ⭐0-45st⭐ This is especially important during carpentry work, because the table saw can perform the processing of boards and furniture boards, and cut edges at a given angle. With its tilting blade, the saw can be used to:

✅preparing boards for furniture

✅machining of furniture boards

✅cuts of OSB and MDF

✅furniture production

✅performing carpentry machining

✅production and processing of roof truss

✅and many other carpentry, carpentry and roofing works.

The height of the disc is ⭐smoothly adjustable⭐, which makes the cuts accurate.

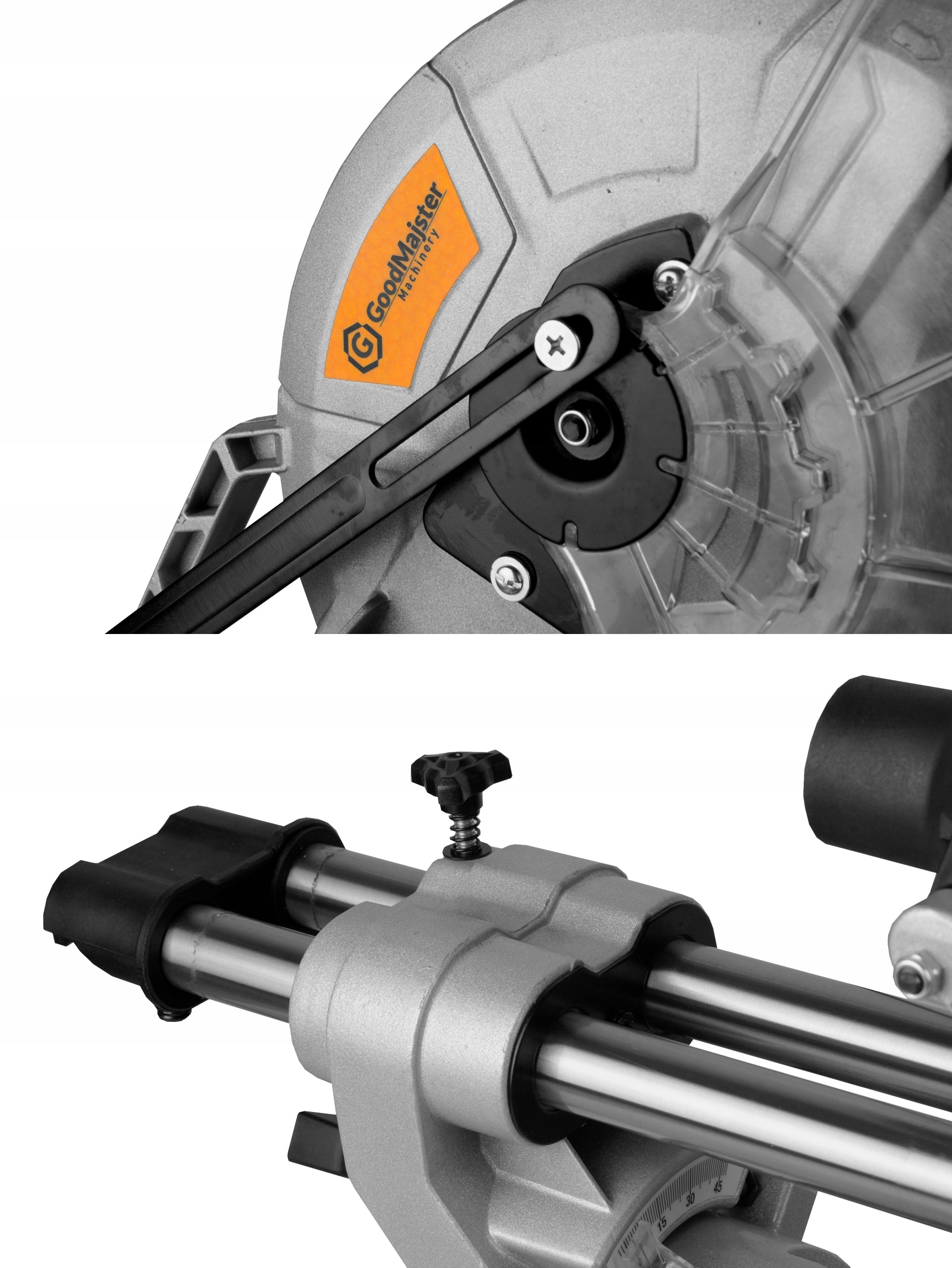

Bearing feed in the slash.

The entire mechanism responsible for feed was made in the technology of ⏩⏩⏩horizontal guides, as in the most popular bevel saws designed for assembly and carpentry work.

The entire✅ feed mechanism is bearing✅, and the guides are made of ✅stainless steel to guarantee a light feed, without the need for force, which significantly and positively affects the comfort of use.

The highest quality of materials used.

The main frame material is ⭐specially developed aluminum alloy. Most of the components of the main frame are cast and then machined on laser-controlled machines to ensure the highest accuracy.

The construction of the main table top was also ⭐made of aluminum alloy, to ensure resistance to mechanical damage.

Reinforced guide plates.

As a product designed for professional applications, it has ✅reinforced guide plates✅.

This is a huge advantage because it guarantees a stable lateral hold with long elements, provides stability and increased resistance to damage during uncontrolled impact / reflection of a piece of wood.

The vice socket is located with ✅TWO SIDES✅, which allows you to adjust the hold to your needs.

SLIDING SIDE SUPPORTS

GoodMajster Machinery GMM-MS255 is a slash whose stable construction is ⏩durable, and extendable supports allow you to cut even long elements.

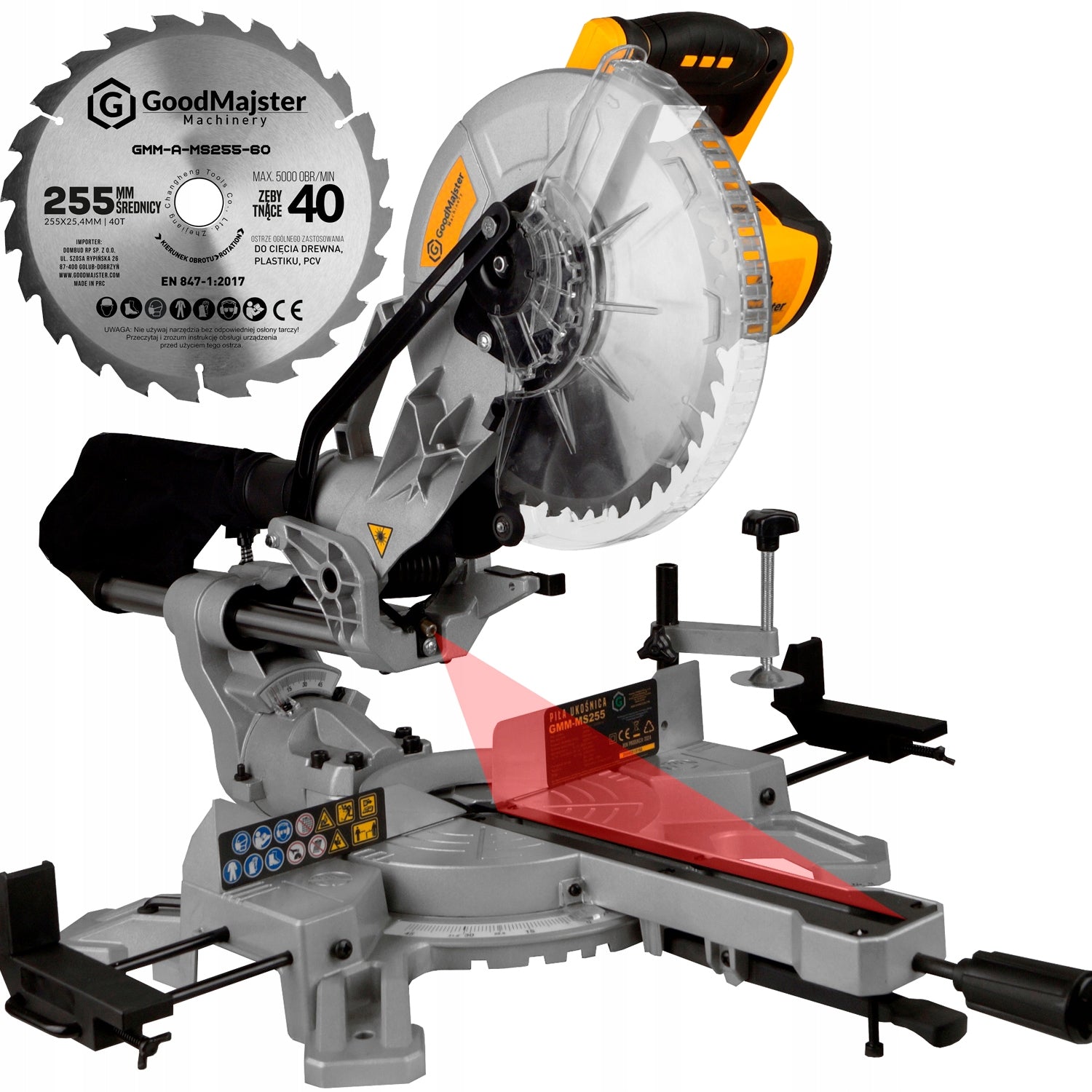

LASER POINTER ensures accurate slash cutting.

High-quality, well-positioned ⏩⏩LASER INDICATOR⏩⏩⏩, color ✅red guarantees accurate cutting in the set place.

The use of a laser pointer has many advantages:

• ⭐Saves time on pencil marking the cutting point
• ⭐Allows you to control the setting during operation - the indicator is visible during cutting
• ⭐Gives you the ability to adjust the setting during operation
• ⭐Does not require pencil/marker marking of a given cutting line.

The highest performance = the best components!

The GoodMajster Machinery has a modern ✅1800W motor in class S1 (continuous operation). / Not to be confused with class S6, which determines instantaneous power.

The motor has a fully copper winding - COOPER WIRED TECHNOLOGY, which is much more efficient, resistant to overheating, and damage!

Thanks to the use of ✅REAL CONTINOUS POWER✅ slash can easily cope even with hard wood such as:

• ⭐OAK
• ⭐BUK
• ⭐ASH
• ⭐BOND
• ⭐NUT
• ⭐PEAR
• ⭐APPLE TREE
• ⭐GRAB

and with all soft types of coniferous wood: pine, spruce, etc.

And after using a special cutting disc:

• ⭐STEEL
• ⭐ALUMINIUM
• ⭐Plastic
• ⭐PVC

Don't be fooled! Others give the power of the engine in class S6, i.e. when operating with idle breaks up to 40%.

Specially designed modern engine housing with Engine Air Conditioning technology prevents overheating. Heat is dissipated through the lower outlet. The engine ventilation duct is designed to dissipate heat but not facilitate dust access to the engine.

Safety and ergonomics of GoodMajster Machinery.

Table saw slash ✅GoodMajster Machinery GMM-MS255✅ has a certified switch with overload protection and a socket for connecting the power cord.

The handle is equipped with a ⭐rubber overlay - SOFT GRIP, providing⭐: ⏩a secure grip, ⏩ anti-slip, ⏩comfort during operation!

Thanks to the involvement of Polish engineers in the design, the machine has a large number of warning pictograms to remind the user about the correct operation and health and safety rules. The cutting disc cover is also made of high-quality plastic to effectively protect the operator from debris and chips.

The cutting disc used in the saw is the original product of GoodMajster Machinery. It is ✅hardened and ✅has a widie to ensure the cutting of soft and hard wood.

✅Convenient and ergonomic transport system✅ allows you to quickly change the working place of the machine. ⭐Rączka⭐ guarantees safe movement of the machine.

This is a huge advantage especially during assembly works, where the team changes their workplace every few days.

PREMIUM brand advantages

GoodMajster Machinery as a brand ⭐PREMIUM⭐ uses many modern solutions in slashes and circular saws. Therefore, the ✅slant with feed GMM-MS255✅ is equipped with:

• ⏩Vice for crimping the workpiece
• ⏩Sliding side supports
• ⏩Integrated key holder for the dial so that it is always at hand
• ⏩Holes for permanent mounting of the slash in the working table
• ⏩SAFFLOWER EXTRACTION connector (fits GoodMajster Machinery GMM-WTDC1000 extraction)
• ⏩Pot for dust and sawdust

Highest quality machines GoodMajster Machinery!

What distinguishes the GoodMajster Machinery brand? High quality at an affordable price.

The GoodMajster Machinery table saw comes in an original and safe cardboard packaging.

GoodMajster Machinery as a fully polish brand ⭐takes care of safety that is why,GMM-MS255 has LASER ENGRAVED INSTRUCTIONS ⭐warning,instruction manual fully in Polish,Developed by Polish engineers to be understandable and clarify most of the doubts.

The table saw was produced for the ⭐⭐ Polish⭐⭐ market, which is why it has an instruction manual in Polish, a cardboard box with inscriptions in Polish, and service and spare parts are located in Poland!

The user manual is also available for download in the downloads tab in case of loss.

Set Composition:

• ✅Slash saw - GoodMajster Machinery GMM-MS255
• ✅Cutting disc GoodMajster Machinery 40-tooth / Mounted on saw
• ✅2x Side supports
• ✅1x Clamp vise
• ✅1x Shield Cover
• ✅ Dust bag
• ✅Instruction manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	GoodMajster
Parametry	Manufacturer code	GMM-MS255
Parametry	EAN (GTIN)	5906660939610
Parametry	Series	GMM PRO
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
