Kampinis pjūklas medžiui 2000W su lazeriu ir 255mm 60T disku

Trumpai apie prekę

Prekė: Kampinis pjūklas medžiui 2000W su lazeriu ir 255mm 60T disku. Kategorija: Kampiniai pjūklai.

• Gamintojas: Wuber
• Modelis: W33741 PIŁA UKOSOWA Z POSUWEM UKOŚNICA 2000W

► POWERFUL 2000W POWER | ► GIANT FEED 340MM | ► LASER POINTER | ► LARGE DISC 255MM 60T INCLUDED | ► CUTTING DEPTH UP TO 90MM

⚙ TECHNICAL SPECIFICATION:

• Manufacturer: WUBER
• Model: W33741
• Rated power: 2000 W
• Power supply voltage: 220-240V / 50Hz
• Idle speed: 4500 rpm /min
• Engine Type: Brush
• Diameter of the disc: 255 mm
• Disc opening: 30 mm
• Disc tooth width: 3 mm
• Thickness of kerf: 2,8 mm
• Number of teeth: 60T
• Max. cut 0°x0°: 340mm x 90mm
• Max. cut 0°x45°: 240mm x 90mm
• Head tilt range: 0°-45° to the left
• Working table rotation range: 0°-45° round-trip
• Constant angles of rotation of the working table: 0°/15°/22.5°/30°/45° in both directions
• Weight of the device: 14,3 kg
• Protection class: II
• Degree of protection: IP20
• Isolation class: E

✅ ONE DEVICE THAT CHANGES THE RULES OF THE GAME

Versatile next generation bevel for the most demanding finishing, carpentry and construction works. The W33741 is the evolution of the proven design, offering even greater possibilities.

• ✔ Advanced Finishing Work ► thanks to the 60T disc ideal for panels, parquet floors, MDF slats – cutting without chipping.

• ✔ Heavy Joinery and Structures ► 255mm disc and 2000W power allow for trouble-free cutting of thick squares, poles and beams.

• ✔ Wide Elements ► impressive feed allows you to cut terrace boards and shelves up to 340mm wide.

⭐ WHY IS OUR MODEL THE BEST CHOICE?

✅ Power 2000W ► work uncompromisingly with a huge power reserve, which guarantees stable rotation even in hard oak or beech.

✅ Optimized Rotation 4500 rpm ► Engineered speed for the 255mm blade ensures high cutting speed (approx. 60 m/s) while protecting wood from burning.

✅ Laser Cutting Indicator ► cut precisely to the millimeter, saving time on tedious fitting.

The machine "sits" securely on the countertop, eliminating micro-vibrations.

✅ Large Cutting Disc 255x30x2,8 mm ► take it to the next level with a disc that allows you to cut elements up to 90mm thick!

✅ Number of Shield Teeth 60T ► get perfectly smooth edges. Dense teeth eliminate the need for grinding after cutting.

✅ Two Carbon Brushes In Free ► ensure peace of mind for years to come.

✅ Feed function ► freely cut wide floor panels or wide stair treads in one pass.

⚡ MAXIMUM CUTTING PARAMETERS – A NEW DIMENSION OF POSSIBILITIES

With the 255mm disc, our model offers ranges unattainable for smaller saws:

📏 340 x 90 mm – Setting 0° x 0°: The largest range. You cut 9x9cm squares and wide shelves.

📐 240 x 90 mm – Setting 0° x 45°: Cut thick beams at an angle without losing cutting depth.

📏 340 x 45 mm – Setting 45° x 0°: Wide plinth strips and facade boards.

📐 240 x 45 mm – Setting 45° x 45°: Intricate truss and ceiling trims.

⭐ SOLID MACHINE FOR YOUR WORKSHOP

✅ Brush Motor ► rely on a proven design resistant to harsh workshop conditions

✅ Power supply 230V/50Hz ► full power 2000W available at any time.

✅ Disc tooth width 3 mm ► precise kerf, which does not overload the engine, and ensures the rigidity of the disc.

✅ Table rotation range from 0° to 45° in both directions ► full freedom of maneuvering angles.

✅ Permanent table rotation angles (detents) ► instant setting of popular angles (0°, 15°, 22.5°, 30°, 45°).

✅ Safety (Class II, IP20) ► double electrical insulation for your safety.

✅ Heat insulation class E ► motor resistant to high temperatures (up to 120°C).

✅ Smooth-running tilting shield cover ► keep the highest safety when lowering the head.

✅ Cable length 2 m ► freely position the machine on the workbench without the need for an extension cord

⭐ WHY SHOULD YOU CHOOSE OUR EQUIPMENT?

✔ Our bevel saws are made of the highest quality materials and using proven technological solutions,

This makes them the most advantageous in their price range

► High quality

► Attention to the smallest details technical and visual

► Brand equipment with established market position

► Full access to spare parts and fast service

► Door to door - we will do everything for you

⭐ BET ON PROVEN EQUIPMENT FROM THE RENOWNED BRAND WUBER ⭐

✅ REPLACEMENT CARBON BRUSH SET – 2 PIECES INCLUDED

Each of our angle grinders is equipped with carbon brushes responsible for transmitting electrical energy.

• ✔️ Includes 2 extra carbon brushes ► have spare parts on hand, so you don't have to worry about replacements when they need to be changed.

• ✔️ Easy Installation ► replacing the brushes does not require any special skills or tools

• ✔️ Protects the motor from wear ► regular replacement of brushes extends the life of the entire drive system

With spare brushes, you'll maintain your device's maximum performance for years!

⭐ 255 MM 60T SPECTRAL DISC – NEW QUALITY STANDARD

In this model, we have abandoned compromises. Instead of the basic disc, you get an advanced cutting tool:

✔ 60 Cutting Teeth ► dense teeth guarantee a clean edge even in brittle materials like laminate.

✔ Greater diameter 255mm ► increased peripheral speed (approx. 60 m/s) translates into cutting efficiency.

✔ Disc stability ► thickness of 2,8mm provides rigidity, eliminating "mouse" of the disc in deep kerfs.

⚡ POWERFUL AND RELIABLE 2000W MOTOR

The 2000W power unit is designed to operate under heavy loads.

Lower turnover (4500 rpm /min) combined with higher power generate powerful torque.

What does this mean for you?

• ✔ No "choking" saw when cutting thick 90mm beams.

• ✔ Longer life of transmission and motor.

✔ FEATURES THAT MAKE US A LEADER IN THIS PRICE SEGMENT – CHECK BELOW ✔

✅ HEAD TILT

The saw head can be tilted smoothly in the range of 0° to 45° to the left.

• This allows to make vertical oblique cuts (e.g. jamming baseboards to the contact).

✔ Angle lock is carried out using a convenient, large screw on the back of the device, which guarantees rigidity of the setting.

⚡ LASER POINTER

The integrated laser system displays a clear red line on the material.

• The switch placed ergonomically at the handle allows for quick control of the cutting line before leaving the disc.

✔ This is no more aiming "by eye" – you cut exactly where you want, saving material and time.

⭐ ROTARY TABLE WITH LOCK

The solid cast work table has a rotation function in both directions (left/right).

• Equipped with ratchet system for the most popular angles: 0°, 15°, 22.5°, 30°, 45°.

✔ Changing the angle is intuitive: you loosen the knob, press the lever under the table and turn to a characteristic click.

✅ DUST EXTRACTION SYSTEM

The cleanliness of the air in the workshop is the protection of your lungs. The saw is equipped with a dust extraction port and a chip bag (included).

• This system effectively collects chips and dust generated during cutting.

✔ It is also possible to connect an industrial vacuum cleaner for even better suction efficiency.

⭐ VICE / CLAMP

✔ The set includes a vertical screw clamp (vise), which can be mounted on the left or right side of the table.

• It is used to stable immobilization of the workpiece, preventing it from moving, conquering or vibration during contact with the disc.

⚡ DEPTH LIMITER

The saw has an adjustable stop screw cutting depth.

• ✔ This allows you to make cuts of grooves, frames or spigots, without cutting the material through.

Necessary for tcreation of joinery and serial work.

✅ EXPANDING THE SPACE

To work with long elements (e.g. terrace boards, patches), the device is equipped with retractable metal side brackets.

• ✔ They increase the support surface, preventing the ends of long boards from falling, which translates into safety and angular precision of cutting.

⚡ TRAVEL LOCK

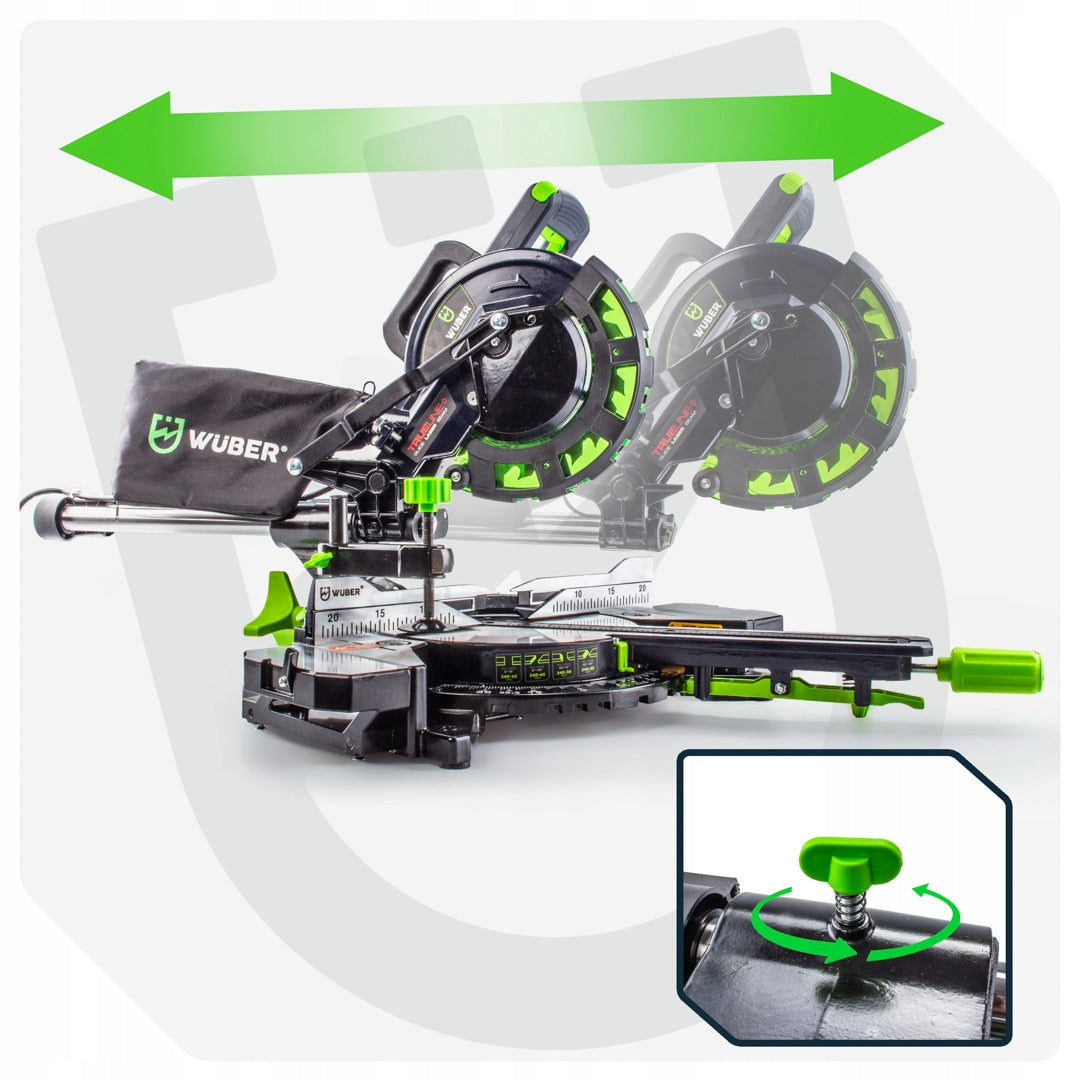

Linear guides can be locked with a dedicated knob.

• ✔ This allows you to work in cabbage mode (up-down movement only) to cut narrow elements, or release the lock to work with feed for wide materials.

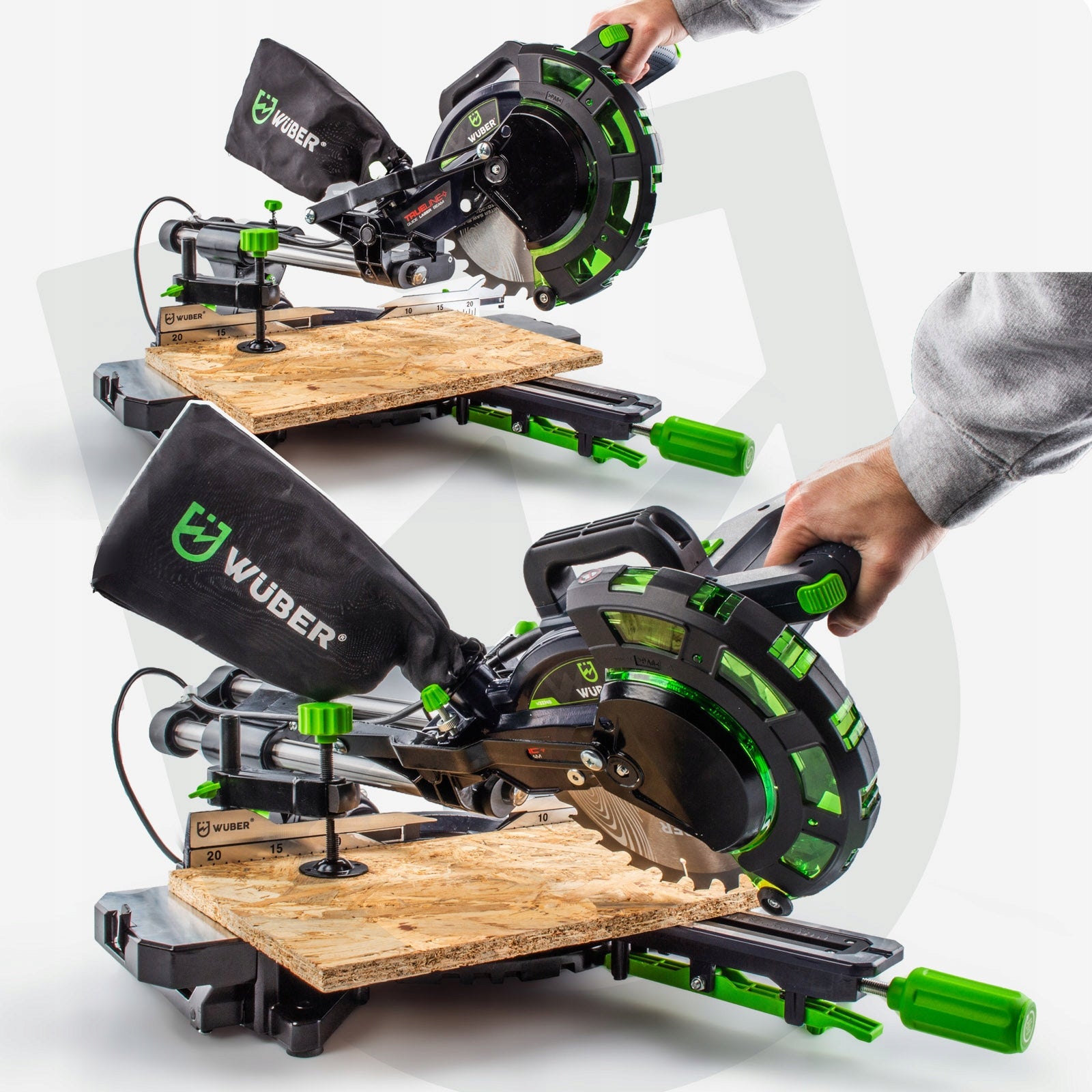

⭐ SLIDING AND PRECIPITATION CUTTING

✔ Two operating modes in one tool.

• Precipitation cutting: for narrow slats ► vertical movement

• Sliding cutting: for wide panels ► you pull the head to yourself, lower and move it deep into the material.

✅PROTECTION AGAINST TILTING

On the back of the base there is a special, adjustable safety rail.

• ✔ Its task is to support the saw so that it does not tip back during the maximum extension of the head or sudden release of the handle.

⚡ SIMPLE DISC REPLACEMENT

The spindle lock system makes replacement of the disc simple and safe.

• ✔ Just loose two screws, tilt the shield cover and lock the shaft with the button .

Then all that remains is to unscrew the spindle of the disc and remove it.

⭐ TRANSPORT AND STORAGE

The cutting head can be locked in the lower position using the precipitation lock pin.

• ✔ This turns the saw into a compact body, easy to carry by the top transport handle and safe to store.

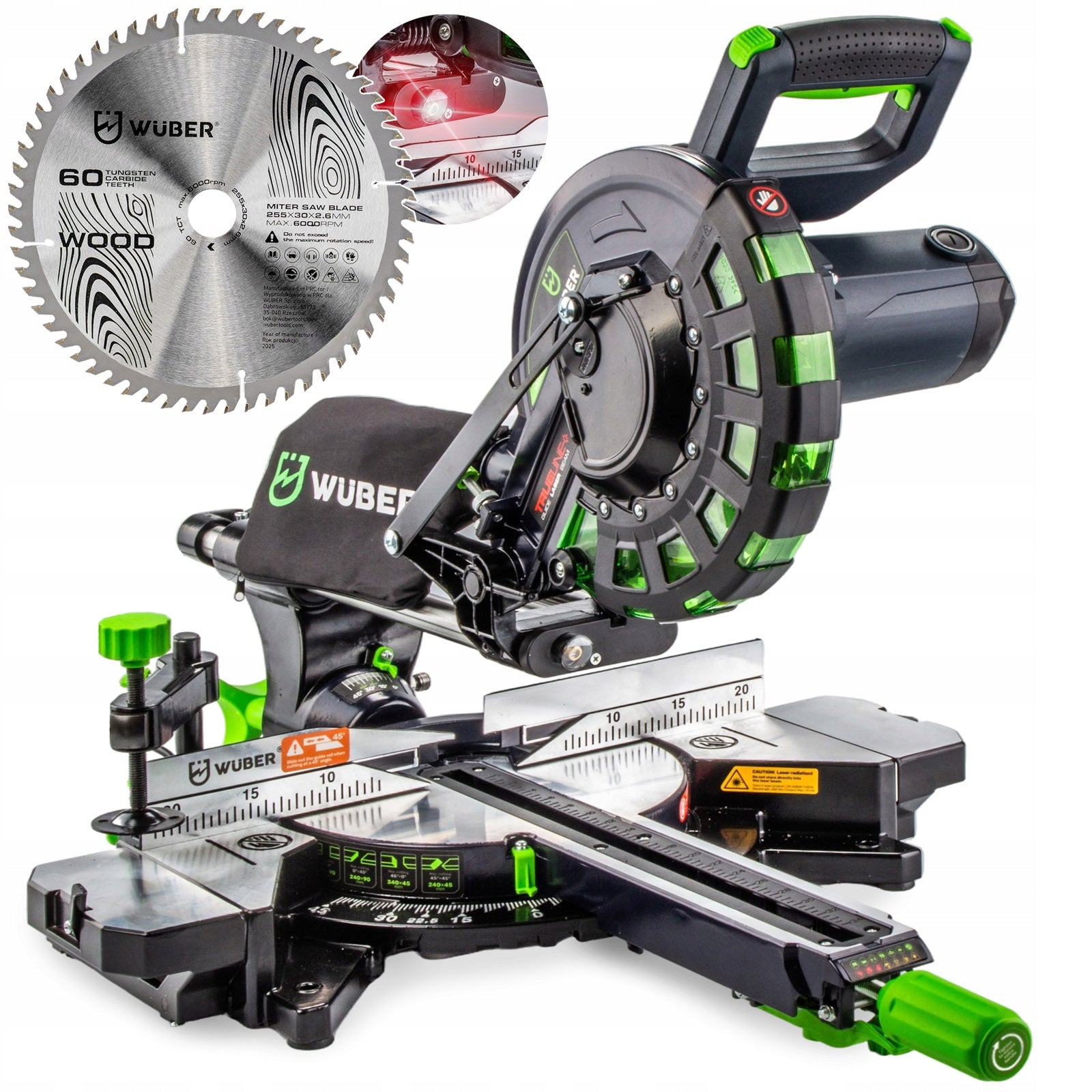

✔ SET INCLUDES:

• Bevel Saw WUBER W33741

• Widal wood shield 255x30mm 60T

• Dust bag

• Pressure vise

• 2x Table extensions

• Allen key

• Additional 2 carbon brushes

• Readable instruction in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Manufacturer code	W33741 PIŁA UKOSOWA Z POSUWEM UKOŚNICA 2000W
Parametry	EAN (GTIN)	5905873307223
Parametry	Series	W33741 PIŁA UKOSOWA Z POSUWEM UKOŚNICA
Parametry	Batteries included	no
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Maximum power	2000 W
Parametry	Power supply	mains
Parametry	Rotational speed	4500 rpm
Parametry	Saw bore diameter	30 mm
Parametry	Additional features	laser pointer for cutting line,feed
Parametry	Disc diameter	255 mm
Parametry	Cutting depth at 45 degrees	45 mm
Parametry	Cutting depth at 90 degrees	90 mm
Parametry	Cutting width at 90 degrees	340 mm
Parametry	Cutting width at 45 degrees	240 mm
Parametry	Device weight	14.3 kg
Parametry	Product weight with unit packaging	17.5 kg
