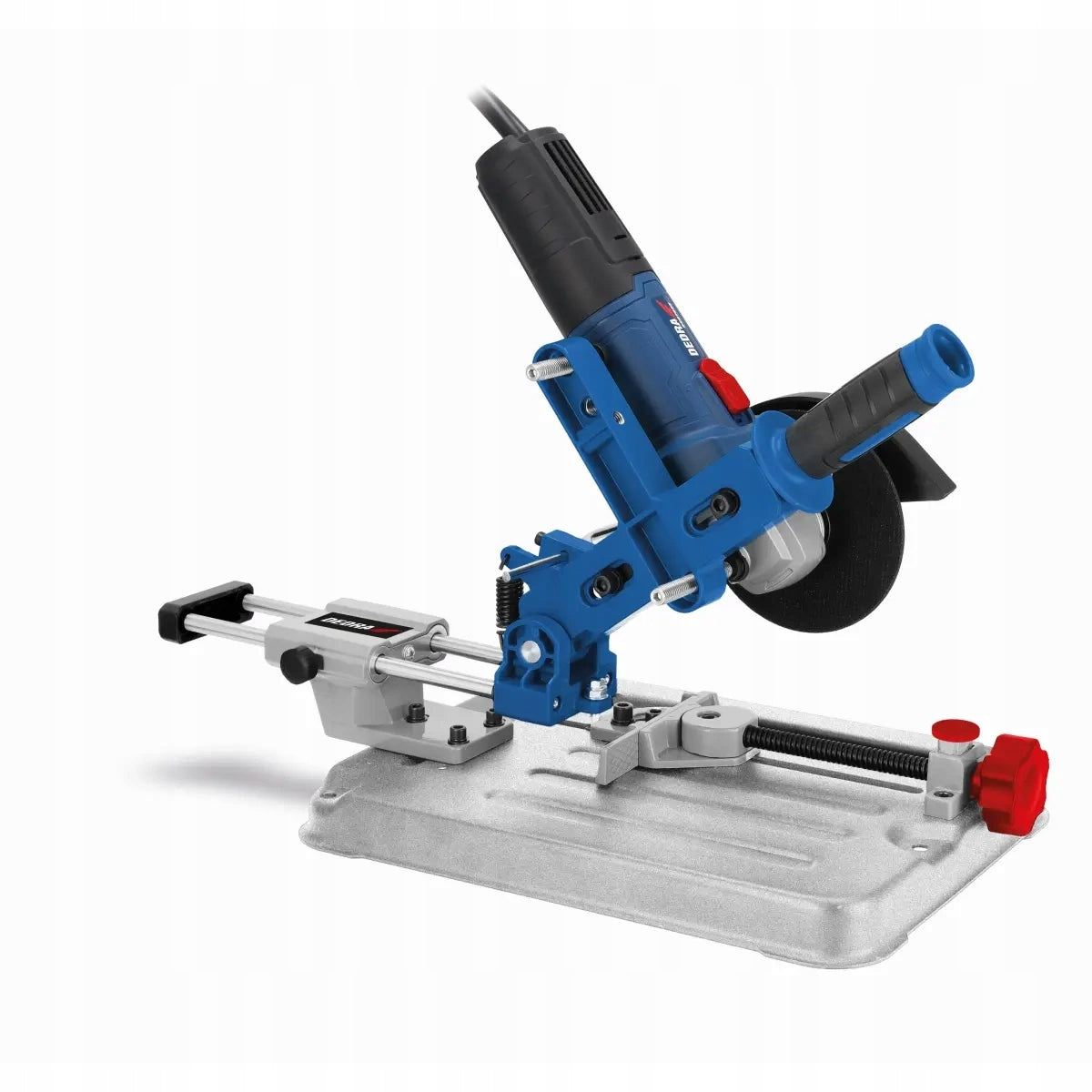

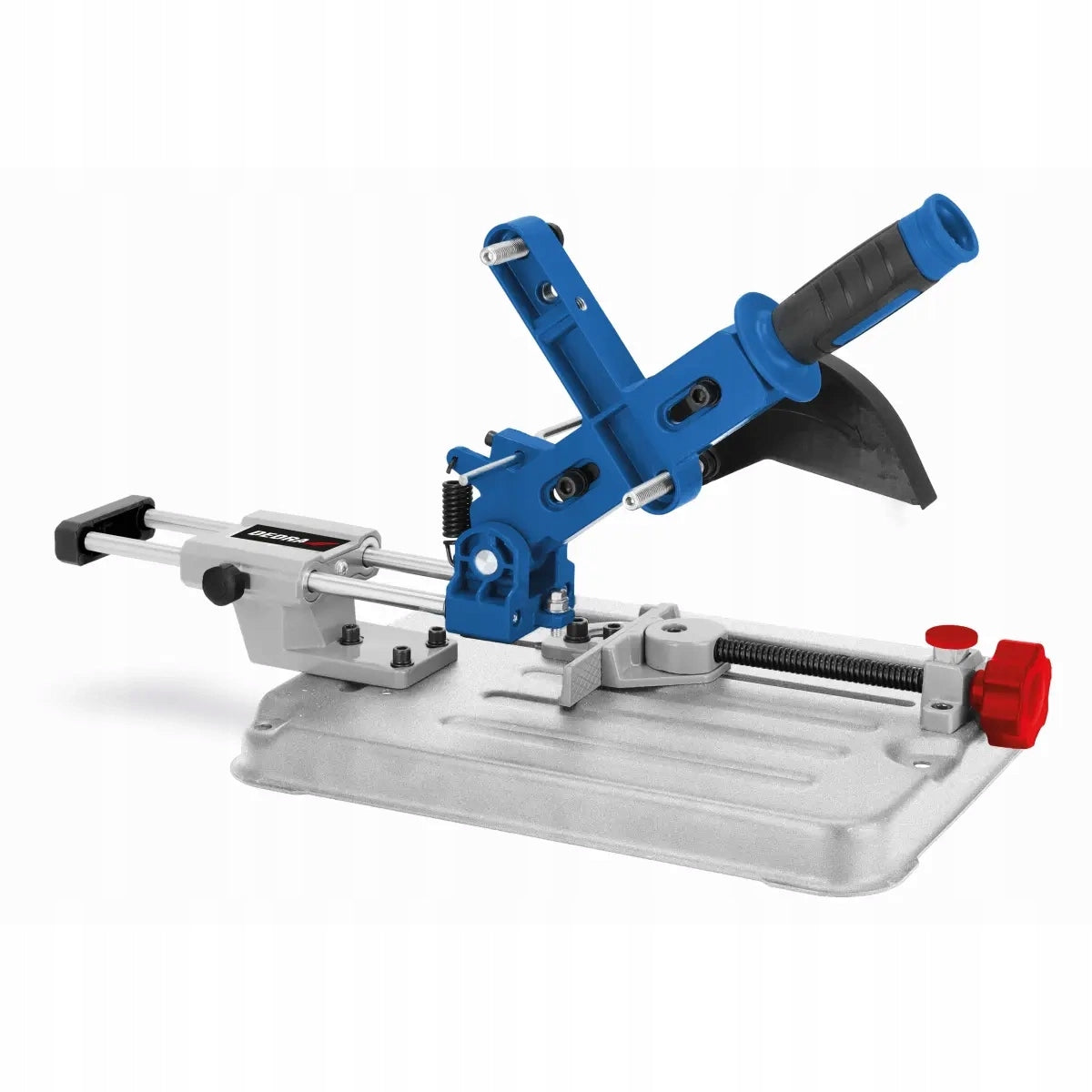

Kampinio šlifuoklio stovas su padavimu 115-125 mm DEDRA YKS039

Trumpai apie prekę

Prekė: Kampinio šlifuoklio stovas su padavimu 115-125 mm DEDRA YKS039. Kategorija: Kampiniai šlifuokliai.

• Gamintojas: Dedra
• Modelis: YKS039

It enables stable attachment of the tool and precise cutting while maintaining repetitive settings. The use of the tripod increases the accuracy and safety of work, especially when cutting at an angle or to a given depth.

The tripod body is made of lightweight yet durable aluminum. Steel base provides stability during operation. Compact dimensions and a tailored spacing of mounting elements make the tripod suitable for both workshop and field.

The tripod is equipped with a feed locking mechanism, which allows you to immobilize the guide in a specific position. Thanks to this, the user can exactly position the grinder over the material before cutting, which increases precision and eliminates the risk of accidental tool shift. This lock is particularly useful for serial cuts, where repeatability of setting is important.

Another important element is the cutting depth limiter . It allows you to set the maximum immersion of the disc in the material, which protects against too deep cutting of the working element. The grinder guide moves along two rods using plain bearings. This solution ensures smooth, linear movement without jams and slacks.

The integrated spring mounted in the guide mechanism is responsible for the automatic return of the grinder to the starting position after cutting. When the user completes the work and releases the pressure, the spring lifts the guide upwards, which eliminates the need to manually retract the tool.

Features of the tripod for angle grinder with feed DEDRA YKS039:

• Feed lock
• Cutting depth lock
• Spring for self-return of the grinder to the initial position
• Guide plain bearings
• Adjustable shield guard
• Rotary screw movement release button for quick material attachment
• Guide plain bearings

Technical data of tripod for angle grinder with feed DEDRA YKS039:

• Material:

  body: aluminium

  bases: steel

• Base dimension: 34,5 x 25,8 x 3 cm
• Scope:

  disc diameter: 115-125 mm

  guide feed: 145 mm

• Cutting parameters:

  length (at 90°): 145 mm

  depth (at 90°): 30 mm

  angle: 0-45°

• Guide Rod Diameter: 150 mm
• Mounting terminal spacing material: 150 mm
• Compatibility: angle grinders (115/125mm)
• Weight: 3,9 kg

picking:

• Tripod for angle grinder with feed [1 pc]

Recommended for :DED7050, DED7051, DED7151, DED7046, DED7950, DED7951, DED7952, DED7954, DED7936, DED7938
