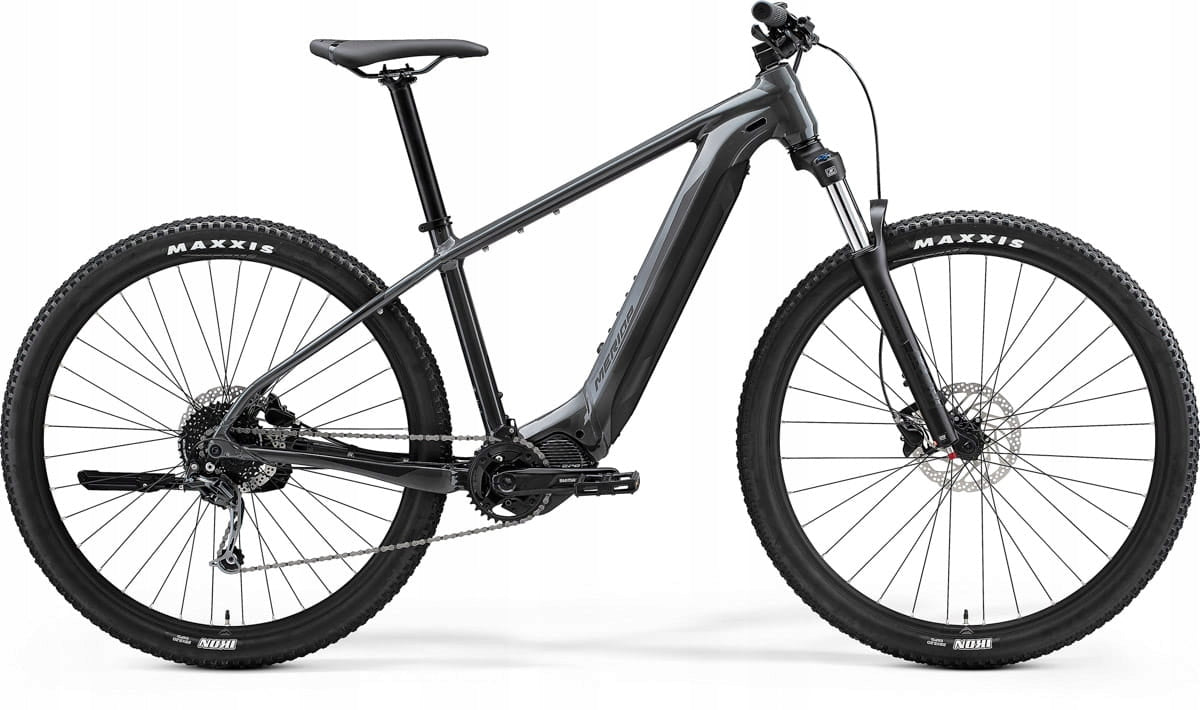

Kalnų dviratis MERIDA eBIG.NINE 400 XL 53 cm, pilkai juodas

Trumpai apie prekę

Prekė: Kalnų dviratis MERIDA eBIG.NINE 400 XL 53 cm, pilkai juodas. Kategorija: Elektriniai kalnų dviračiai.

• Gamintojas: Merida
• Modelis: ebig.nine 400
• Spalva: gray

4710949837297

ELECTRIC BICYCLE

MERIDA

EBIG.NINE 400

FRAME SIZE XL 53 CM

COLOUR COOL GREY(MATT BLACK)

The Merida eBig.Nine is a versatile electric mountain bike that also has something of a trekking bike in it. It is as sporty as possible and as comfortable as it needs to be. In the morning you commute by bike to work, and after it you like to enter the field? This bike is made for that. It is a powerful e-bike that will work in the mountains and many everyday applications. Merida eBig.Nine 400 has a strong and rigid Lite III aluminum frame with internals. guiding wires for their protection against dirt and moisture and a conical frame head for precise guidance. The bike has a lightweight and powerful Shimano EP8 engine (85 Nm) and an integrated Shimano 8036 battery with a capacity. 630 Wh. You will also appreciate the Energy Guard battery cover, which protects it perfectly and gives quick access to it. The right gear range will provide you with Shimano Deore gear, and the right shock absorption front shock absorber SR Suntour XCM34 LOR DS. With Maxxis Ikon tires, you can count on low rolling resistance and high grip. You will also appreciate the Merida Comp CC wheels with Boost hubs, which increase lateral rigidity and strengthen the wheel, Tektro M275 hydraulic disc brakes and Merida components. The eBig.Nine frame will allow you to attach a rack, fenders and foot to it. It also gives you the ability to attach a water bottle basket, bicycle clasp or pump. MTB routes, delightful trips into the unknown or everyday support – with this electric hardtail every ride will be exciting. Beat the routine with him!

FRAME

FRAME - eBIG.NINE LITE III aluminium

FRAME SIZE - XL 53 CM

COLOR - COOL GRAY (MATT BLACK)

FORK- SR Suntour XCM34-Boost LOR DS 100 mm

DRIVE

BATTERY - Shimano E8036 630 Wh

BATTERY HOLDER - Shimano BM-E8030

BATTERY LOCK - Abus closure

DRIVE UNIT - Shimano EP8 85 Nm

DISPLAY - Shimano SC-E5003A

RUDDERS - MERIDA-8157

ELECTRICAL CABLES - Shimano EW SD300

REAR DERAILLEUR - Shimano Deore M5120 SGS

T SHIFTER - Shimano Deore M4100

CRANK - Shimano CRE70-B 34

CASSETTE - Shimano M4100 11-46 10S

CHAIN - KMC e10s

WHEELS

WHEEL SIZE - 29"

HUB P/T-

Shimano MT400-B; 110x15 32H Centerlock/

Shimano MT400-B 148x12 36H Centerlock

RIMS - MERIDA COMP CC 20 IWR

TYRE P/T - Maxxis Ikon 29x2,2" rolled

INNER TUBES - Ultralite-29er

COMPONENTS

PEDALS - VP VPE-537

P/T BRAKE - Tektro M275

STEERING WHEEL- MERIDA EXPERT eTR 760mm

BRIDGE- MERIDA EXPERT eTRII 35mm

SADDLE- MERIDA COMP SL V-mount

SEAT POST- MERIDA EXPERT CC 34,9mm

REAR LIGHT - CG-404RG-BLK

FRONT LIGHT - CG-119PG-BLACK(1)

FOOT - CL-KA98, 29"

MAX. PERMISSIBLE WEIGHT (BICYCLE + CYCLIST + LUGGAGE) 140 kg

GEOMETRY

FRAME SIZE M L XL TYRE SIZE 29" 29" 29" FRAME SIZE [CM] 43 48 53 ST -SEAT TUBE [MM] 430 480 530 TT - FRAME LENGTH [MM] 590 610 630 CS -LOWER TUBES OF THE REAR TRIANGLE [MM] 458 458 458 HTA - ANGLE OF THE HEAD OF THE FRAME [DEGREES] 69.5 69.5 69.5 STA -SEAT TUBE ANGLE [°] 73.5 73.5 73.5 BD - POSITION OF THE CENTRE OF SUPPORT [MM] 65 65 65 HT -FRAME HEAD HEIGHT [MM] 115 125 135 FL - FORK LENGTH [MM] 511 511 511 R -REACH - REACH [MM] 402 420 437 S - STACK - FRAME HEIGHT [MM] 634 643 652 WB -WHEEL BASE [MM] 1123 1143 1164 SH - HEIGHT OF THE UPPER TUBE FROM THE GROUND -CROSSING [MM] 733 777 819

TECHNOLOGY

Highest quality 6066 aluminum alloy with triple shaded walls. It is extremely light and durable, provides an optimal stiffness-to-weight ratio and allows you to produce frames with a very complex shape. The amount of material is always adapted to the loads to which a specific part of the frame is subjected, so that no unnecessary gram is added.

Production of three-dimensionally bent pipes using a complex process of “hydroforming”. The combination of hot oil and water pushes out the shape of the frame under high pressure (from inside to outside), allowing the creation of advanced pipe profiles. Thanks to MERIDA’s vast experience, its aluminium processing technologies are at the highest level.

The expanding steerer tube with 1 1/8” bearing at the top and 1 1/2” or 1 1/4” at the bottom allows you to stiffen the frame head, which increases control precision and driving confidence. In addition, thanks to this solution, the bike responds better to extreme overloads in corners.

Smoothing welds with appropriate welding techniques – improved appearance without deteriorating the weld structure. This solution allows you to maintain the proper rigidity of the frame and get its attractive finish. Thanks to MERIDA’s vast experience, its aluminium processing technologies are at the highest level.

Leading wires inside the frame pipes. This solution not only improves the appearance of the bike, but also protects the cables from dirt and moisture.

Internal cable routing brought to perfection. Our system allows you to lock them under the right voltage. Thanks to this, you do not have to worry about any disturbing sounds when the route becomes bumpy. Since the cable inlets are completely interchangeable in this system, it is adapted to many solutions: Di2, hydraulic or mechanical hoses.

A solution that allows you to mount Shimano's Di2 electronic derailleur system. It is characterized by high reliability and efficient, trouble-free operation. ‘Di2 Ready’ means frames which are optimally prepared for the use of this technology, including the possibility of mounting the battery in the seat post or inside the steering tube.

Advanced shapes possible to achieve thanks to casting technology. It provides a consistent look, as well as a strong connection between the frame and motor on the electric bike. This technology also gives better performance and stable construction.

F-MOUNT

Adaptation to quickly and easily attach fenders thanks to appropriate attachment points.

K-MOUNT

Fixing on the bottom tube of the rear triangle, which allows you to screw the support with two screws. The integrated design ensures optimal rigidity during braking.

C-MOUNT

Adaptation to quickly and easily put on the trunk thanks to the appropriate attachment points.

ENERGY GUARD TWIST

The rotating safety mechanism located at the top end of the Energy Guard inner battery cover ensures easy closing and opening of the cover.
