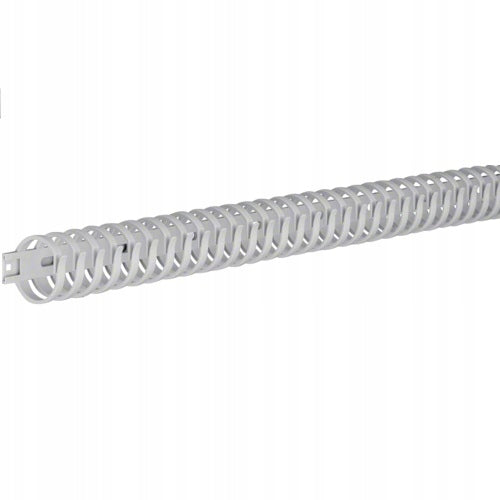

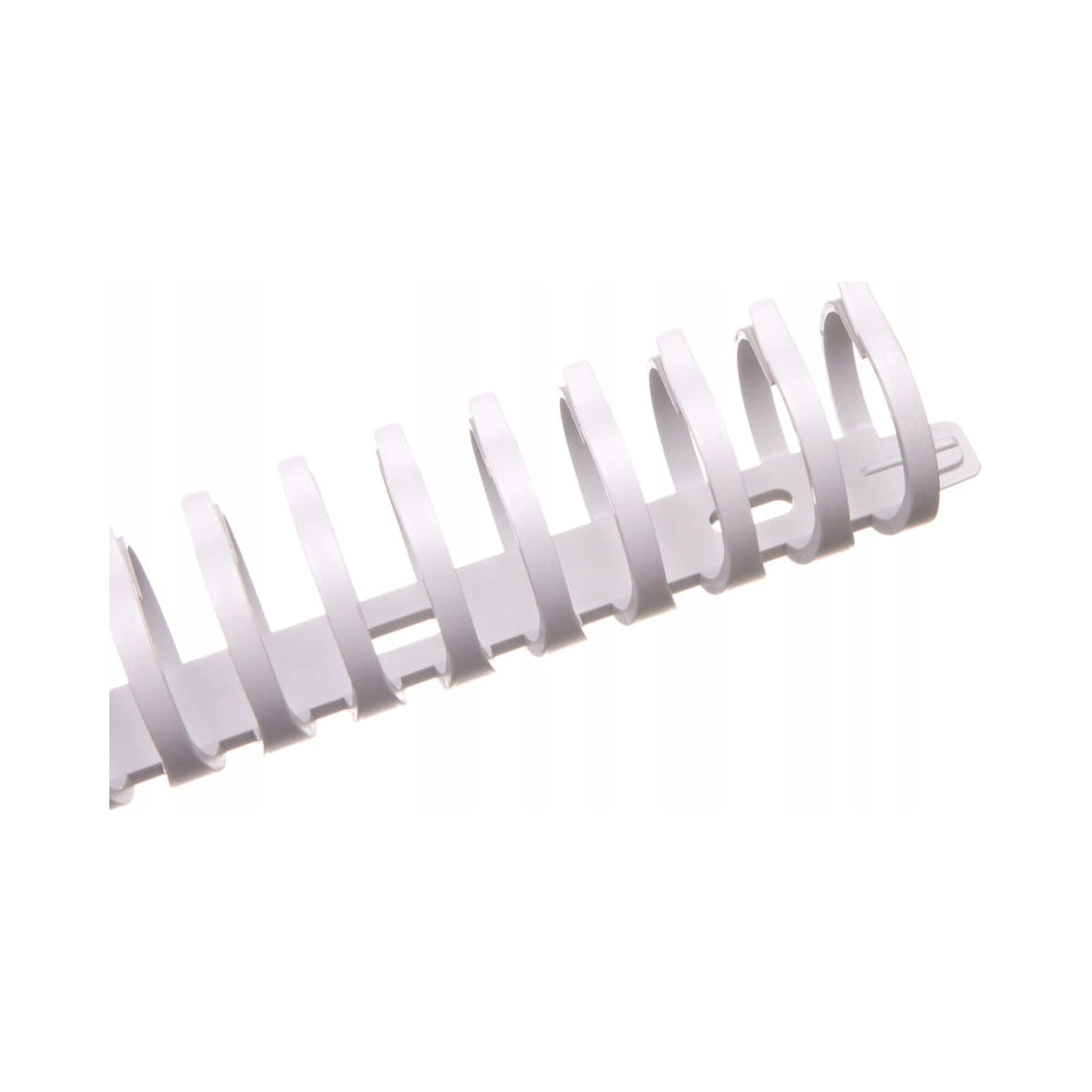

Kabelių tvarkyklė tehalitVK flex 30 Comb Channel 31x33 pilka M5692 0,5 m

Trumpai apie prekę

Prekė: Kabelių tvarkyklė tehalitVK flex 30 Comb Channel 31x33 pilka M5692 0,5 m. Kategorija: Laidų tvarkyklės.

• Gamintojas: Hager Polo
• Modelis: M5692
• Spalva: gray

The comb trough is used for laying cables in control cabinets or switchgears. Cable organizers are characterized by simplicity in use, they are mounted by screwing or sticking, the cover is removable which ensures quick arrangement of cables inside, and then their protection. The trough can be cut according to customer requirements. Cables are removed from the croquet through gaps between the ribs or by bending the rib itself.

Most important features:

• The size of the trough (width/height): check what width the cables will be laid in the trough, bearing in mind that the cables are measured with insulation, and the dimensions of the trough are external dimensions.
• The trough can be cut according to customer demand.

Technical data:

• Color: Light Grey
• Material: Plastic
• Quantity per pack: 1
• Height [mm]: 30
• Width [mm]: 30
• Length [mm]: 500
• With cover: Not applicable
• Slot width [mm]: 8
• With adhesive tape: Yes
• Minimum installation temperature[°C]: -25
• Maximum mounting temperature[°C]: +90

Hager is an international company that serves thousands of customers in over 95 countries. Simple installation, ease of use, intuitive interface, modular structure and durability are the values that guarantee the highest quality of Hager systems. Components and solutions are manufactured in 23 production plants around the world.

The Hager Group includes brands such as Berker, Daitem, Diagral, Efen and Elcom, and since the merger of Bocchiotti Group also Iboco, Inset and Steel Line. This allows you to combine all the necessary skills and experience necessary to develop innovative products.
