Jutiklinis valdymo pultas CUE touchCUE-12 kambarių rezervavimo sistemai

Trumpai apie prekę

Prekė: Jutiklinis valdymo pultas CUE touchCUE-12 kambarių rezervavimo sistemai. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0466

Product code: CS0466

• IP control port
• Edge-to-edge front glass
• Slim aluminum unibody housing
• Integrated table stand
• 12,1 inch TFT LCD touchscreen display with wide viewing angle
• 1 280 x 800 pixels resolution
• 32-bit display colors (True Color)
• Expected capacitive touch pad
• Video preview
• Ethernet connection with a single cable
• PoE+ power supply
• Built-in microphone, speakers, light and proximity sensors

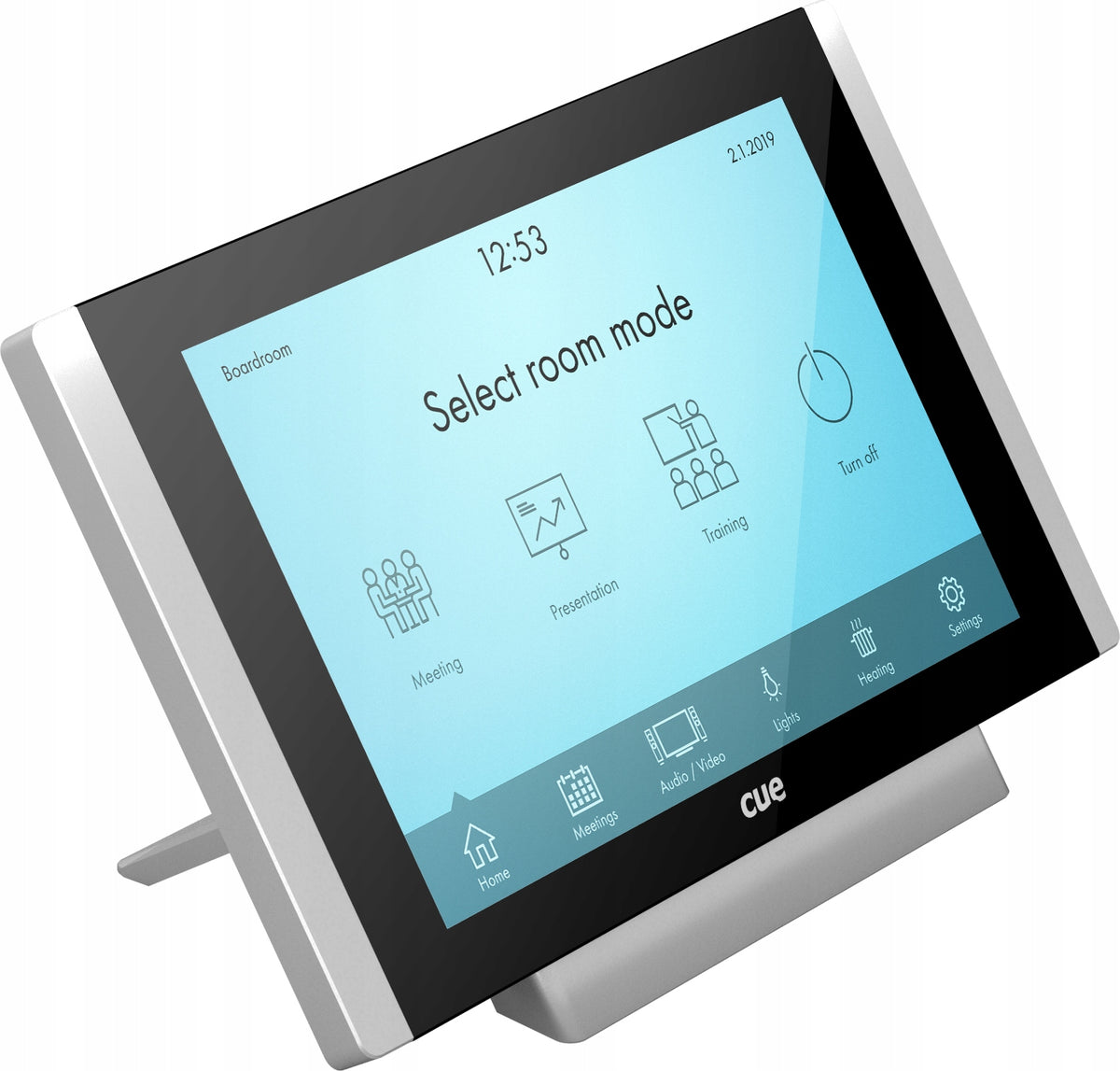

touchCUE-12 is a wired, table-top touch panel offering a clean, modern look with edge-to-edge windshield and a sleek aluminum housing with a table base. This is the perfect front-end for any table use. Fully compatible with CUE controllers and interfaces, this touch panel provides the best one-touch solution for conference rooms, conference rooms, conference rooms and high-tech homes.

The 12,1 inch color touch screen offers a resolution of 1280 x 800 pixels and displays stunning images in true colors. The touch panel has a capacitive touch overlay displayed. Single-cable Ethernet connection provides easy integration into your network. The touch panel is equipped with Power over Ethernet Plus (PoE+) technology, which allows data and power to be transmitted via an Ethernet network cable.

Use of touch panel with controller .

In this case, the touch panel only acts as a graphical user interface.

IP control port

This configuration allows you to create an economic, distributed control solution, in which the touch panel acts as a controller and a graphical user interface in one device. In Cue Visual Composer, touch panels and controllers are programmed in the same way, allowing touch panels to be used as fully functional controllers.

Technical data

Control ports

• IP control port

Touch-screen display

• Color a-Si TFT LCD with LED backlight
• Size 12.1” / 307.3 mm diagonal, wide screen
• Resolution 1,280 x 800 pixels
• Display colors 32-bit (True Color)
• Transparency 8-bit Alpha blending
• White luminance 400 cd/m2
• Response time 15 ms
• Contrast ratio 1000 : 1
• Pixel pitch 0.204 x 0.204 mm
• Pixel density 125 ppi
• Viewing angle ±80° horizontal, ±80° vertical
• Projected capacitive touch overlay
• Edge-to-edge front glass

Built-in sensors

• Light sensor for automatic backlight dimming
• Proximity sensor for automatic backlight switching on

Buttons

• System Default

memories

• 2GB RAM
• 16GB NAND Flash (EMMC)

Software

• XPL2 runtime for the application created in Cue Visual Composer
• Admin Web for setup

video

• Streaming video preview
• Codecs: H.263, H.264, H.265, MJPEG, MPEG-2, VP8, VP9

Audio

• Built-in microphone
• Built-in speakers

Network

• 10/100/1000 BaseT LAN, RJ-45 connector
• 802.1X authentication mechanism supported
• Proxy Server support

Power supply

• Power over Ethernet Plus (PoE+), IEEE 802.3at / Class 4 compatible
• Power consumption
• 1.8 W - screen saver mode
• 8.3 W - default brightness 70%
• 12.4 W - brightness 100%

Physical

• Sleek aluminum body, edge-to-edge front glass

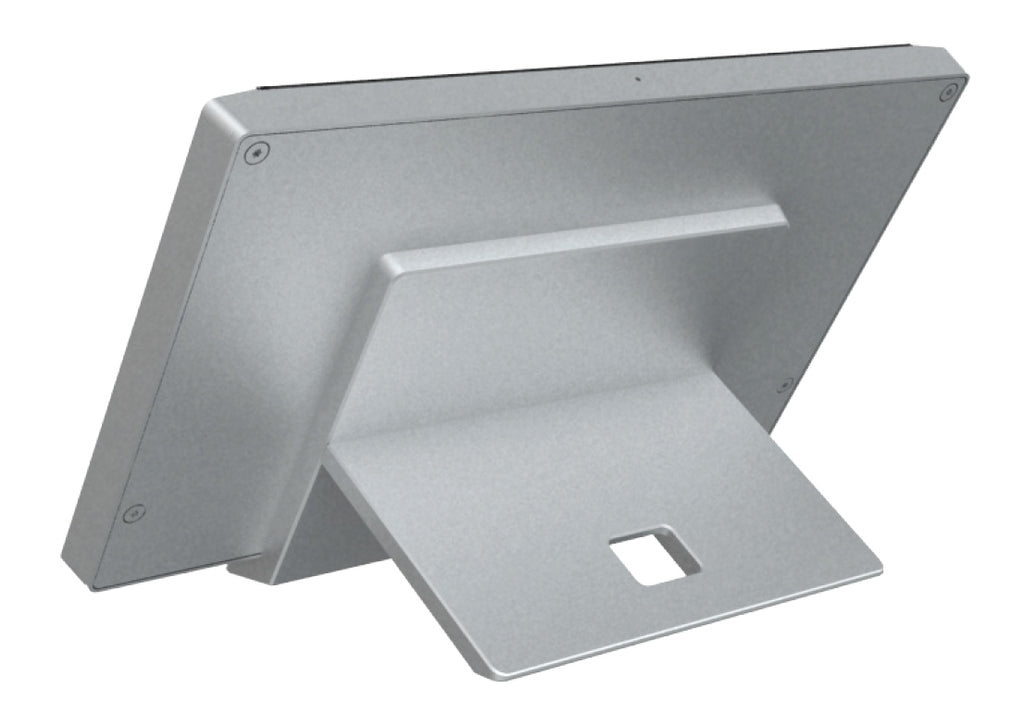

• Integrated tabletop stand, fixed angle 58°
• Protection IP30
• Dimensions 320 x 192 x 153 mm / 12.6” x 7.6” x 6.0”
• Weight 2.4 kg / 5.3 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Touch panel touchCUE-12
• Flat Ethernet cable
• Cleaning tissue
• QuickStart
