Jutiklinis ekranas B, 7" talpinis LCD TFT

Trumpai apie prekę

Prekė: Jutiklinis ekranas B, 7" talpinis LCD TFT. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 10829

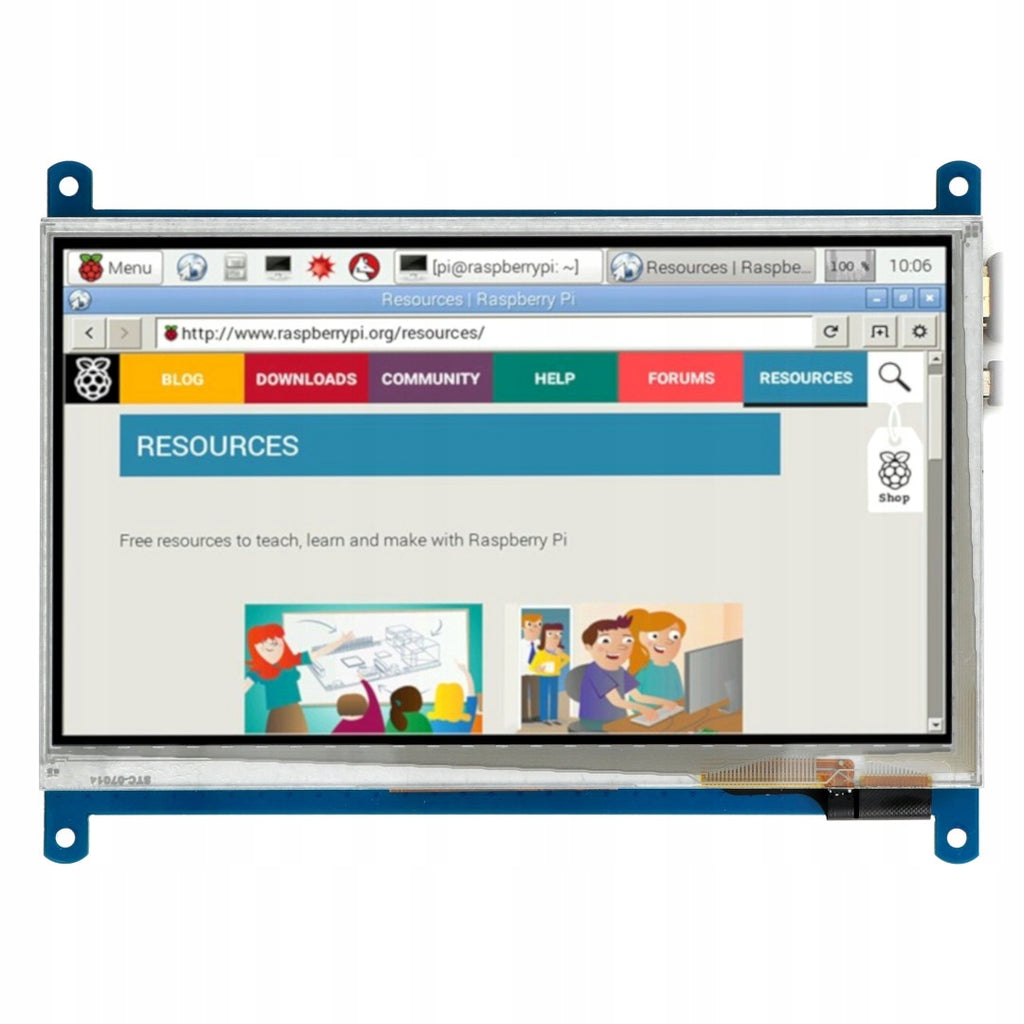

Waveshare touch screen, capacitive 7" for Raspberry Pi with a resolution of 800 x 480 px. Works with Raspberry Pi version 4B, 3B+, 3B+ 2B, 1B+, 1B, 1A and Zero W via HDMI and USB cable. The subject of sale is version 4.1, which has improved software.

Index: WSR-05865

Specification

• Type: touch screen, capacitive
• Diagonal: 7 "
• Resolution: 800 x 480 px
• Brightness: 140cd/m2
• Works with:
• Rasbperry Pi version 4B, 3B+, 3B 2B and B+ Zero (works directly with the system from the manufacturer)
• Beagle Bone Black
• Banana Pi / Banana Pro
• The display also works with a PC running Windows 7/8/8.1/10 without the need to install drivers
• It also works with all other HDMI devices (touch function is not available then)
• 4 mounting holes (screws are included)
• Screen dimensions: 165 x 107 mm

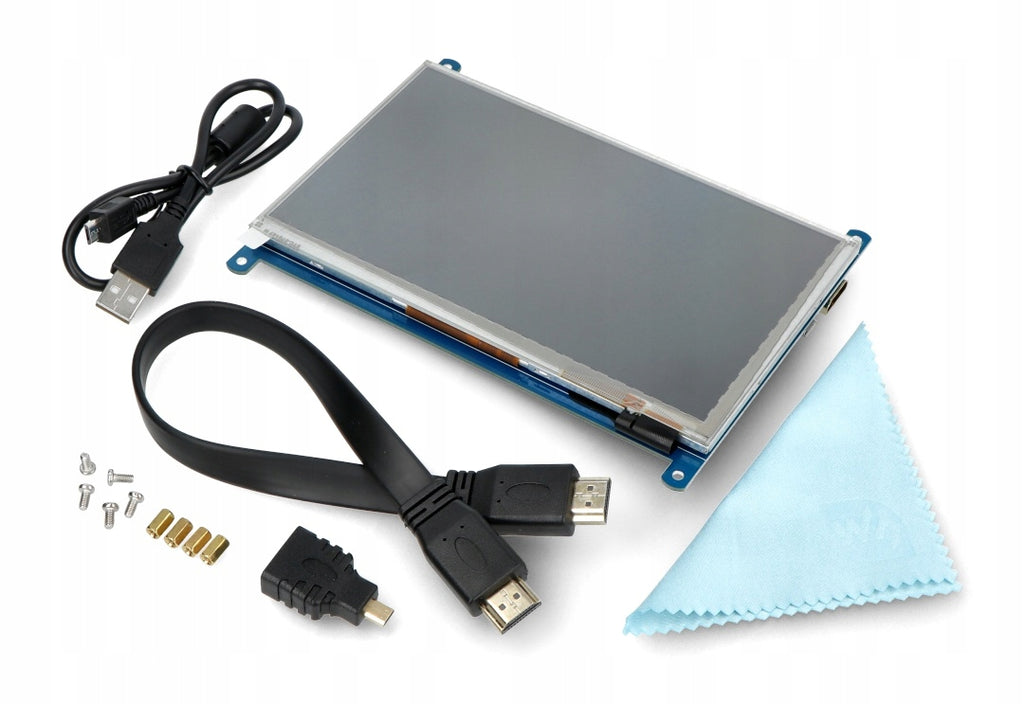

The set includes

• 7" touch screen, capacitive
• HDMI cable
• Mounting Screws
• USB cable - microUSB for touch interface
• Cloth for electronics
• Protective film for display
• HDMI Adapter - microHDMI
