Jutiklinis 7" (800x480) Raspberry Pi ekranas

Trumpai apie prekę

Prekė: Jutiklinis 7" (800x480) Raspberry Pi ekranas. Kategorija: Priedai.

• Gamintojas: Raspberry pi
• Modelis: RASPBERRY PI DISPLAY REVISION 4

RPI Raspberry Pi Display - touchscreen display 7" (800x480) for Raspberry

Description

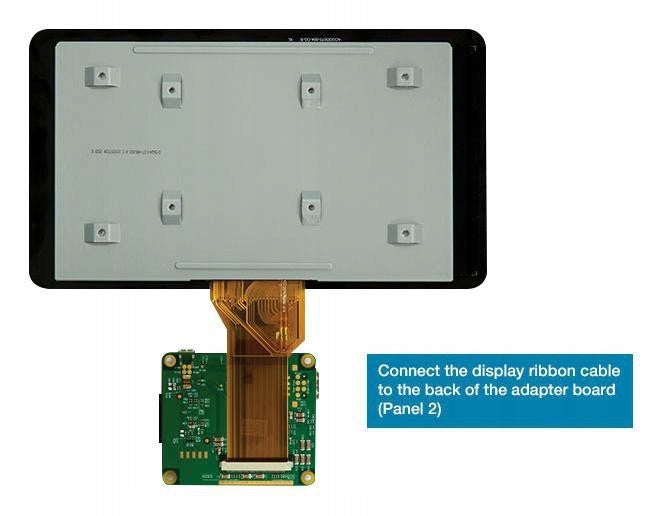

Seven-inch touch screen for computers: Raspberry Pi 4 model B, Raspberry Pi 3 model B+, Raspberry Pi 3 model B and Raspberry Pi 2 model B gives you the opportunity to create an integrated design, such as a tablet or control panel. The display with a resolution of 800 x 480 is attached to the Raspberry via an adapter that provides power and converts signals. In addition to joining the DSI connector, only the display power supply is required (from the GPIO port of the RPi computer).

Properties

• 7" touchscreen display
• Screen Resolution: 800 x 480 pixels
• Touch panel with 10 fingers touch support
• Attached to the DSI connector in the Raspberry PI using a connection ribbon
• The latest version of the Raspbian system is required for full functionality
• Active surface dimensions: 155 x 86 mm
• Screen dimensions: 194 x 110 x 20 mm

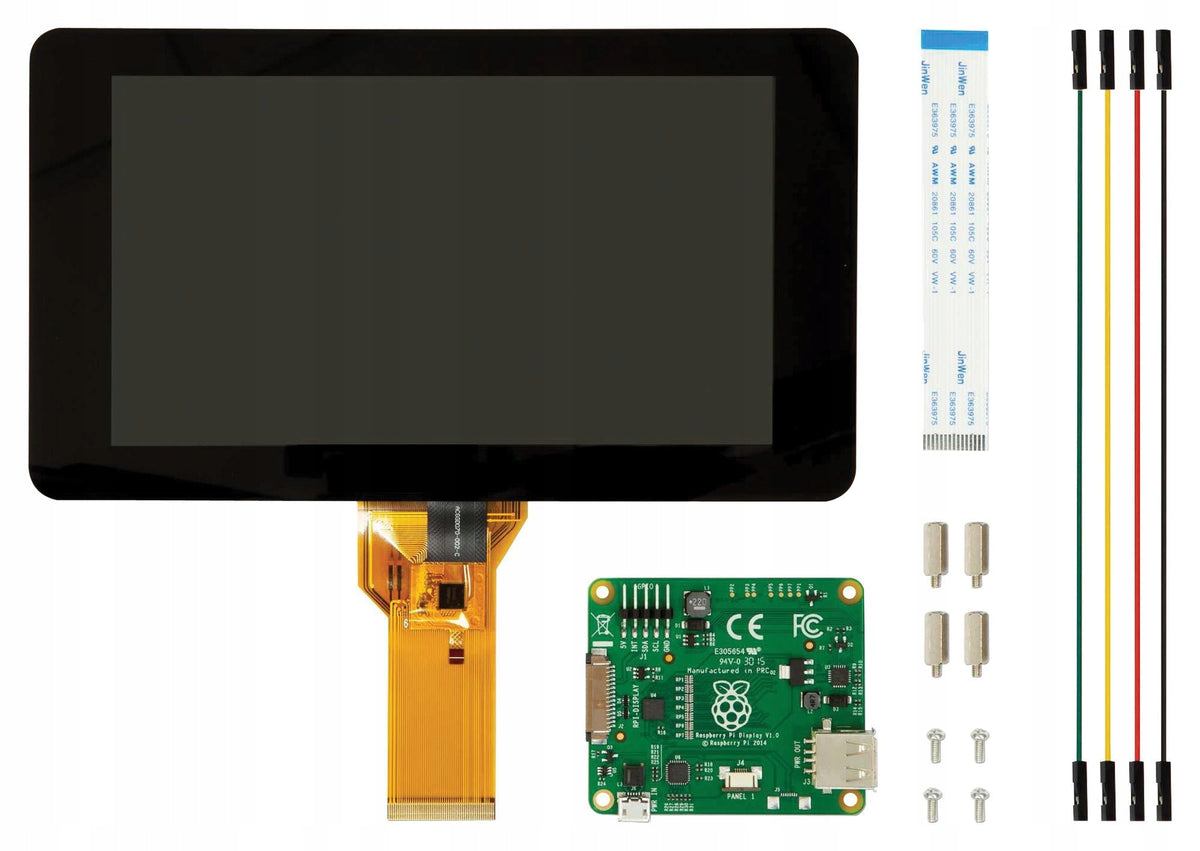

Comes with

• 7" touchscreen display
• Adapter Board
• 4 x Mounting Sleeves
• Cable (tape) to attach adapter to Raspberry PI
• 4 x Single Connection Cable (Female-Female)

Specifications
