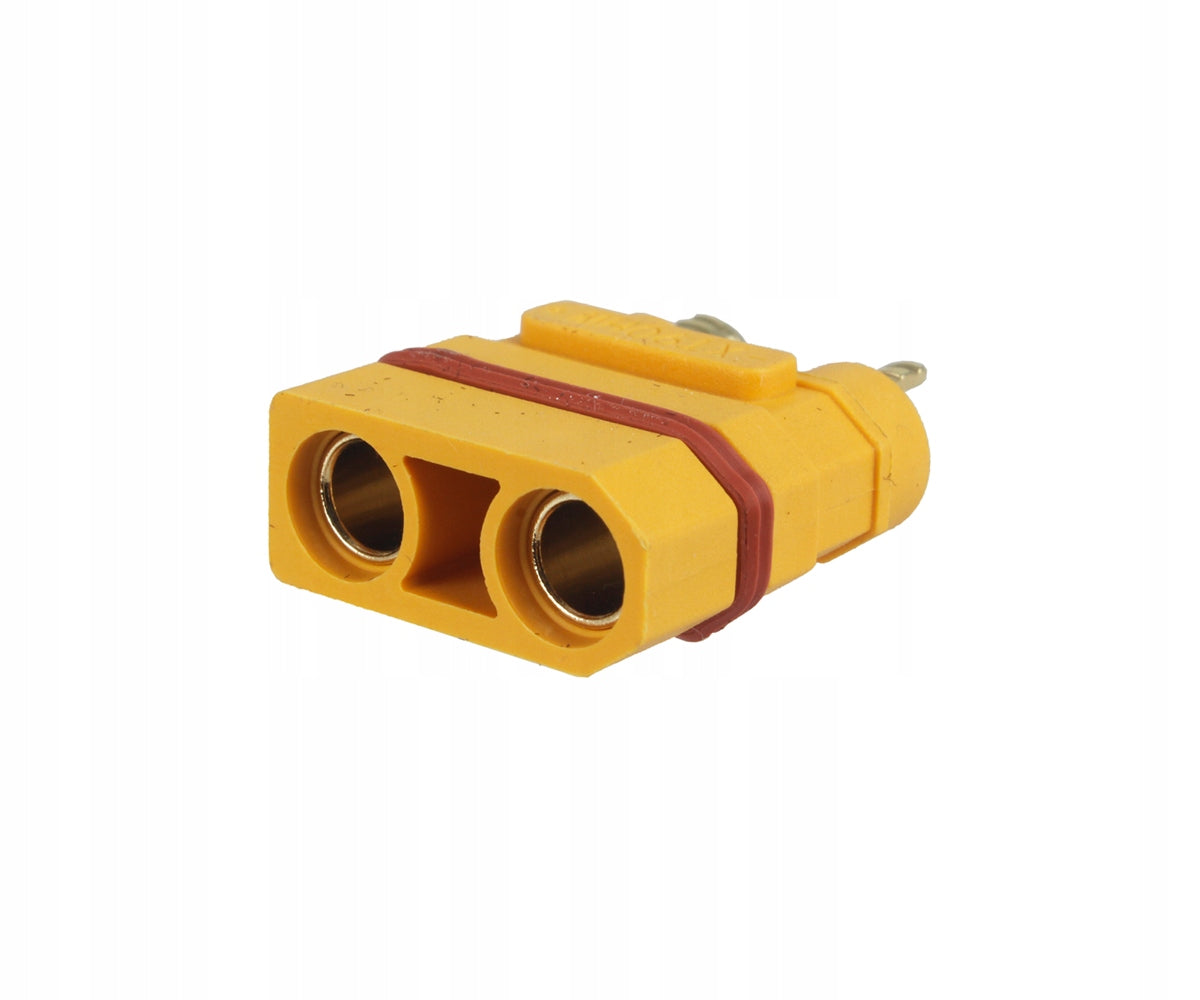

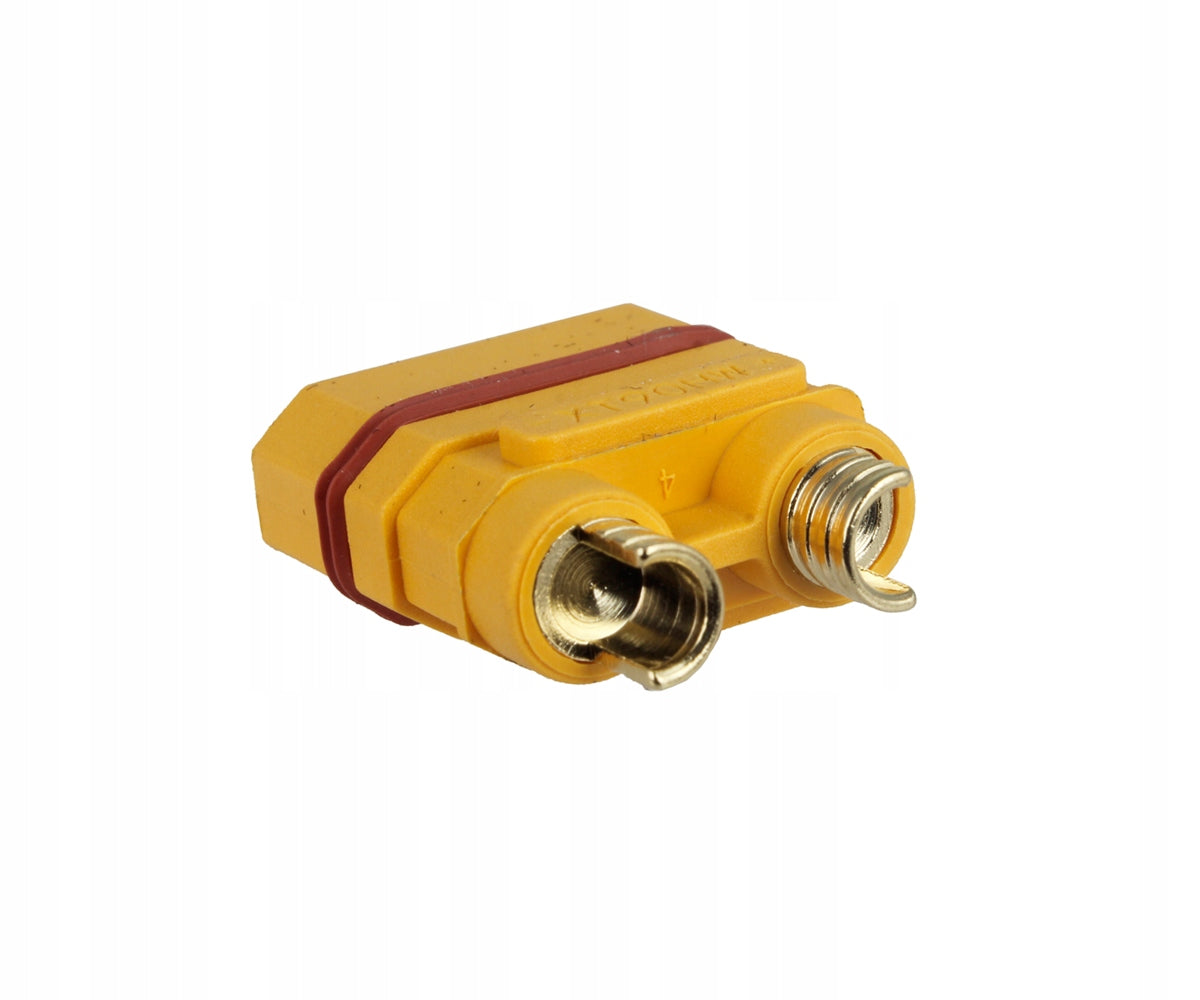

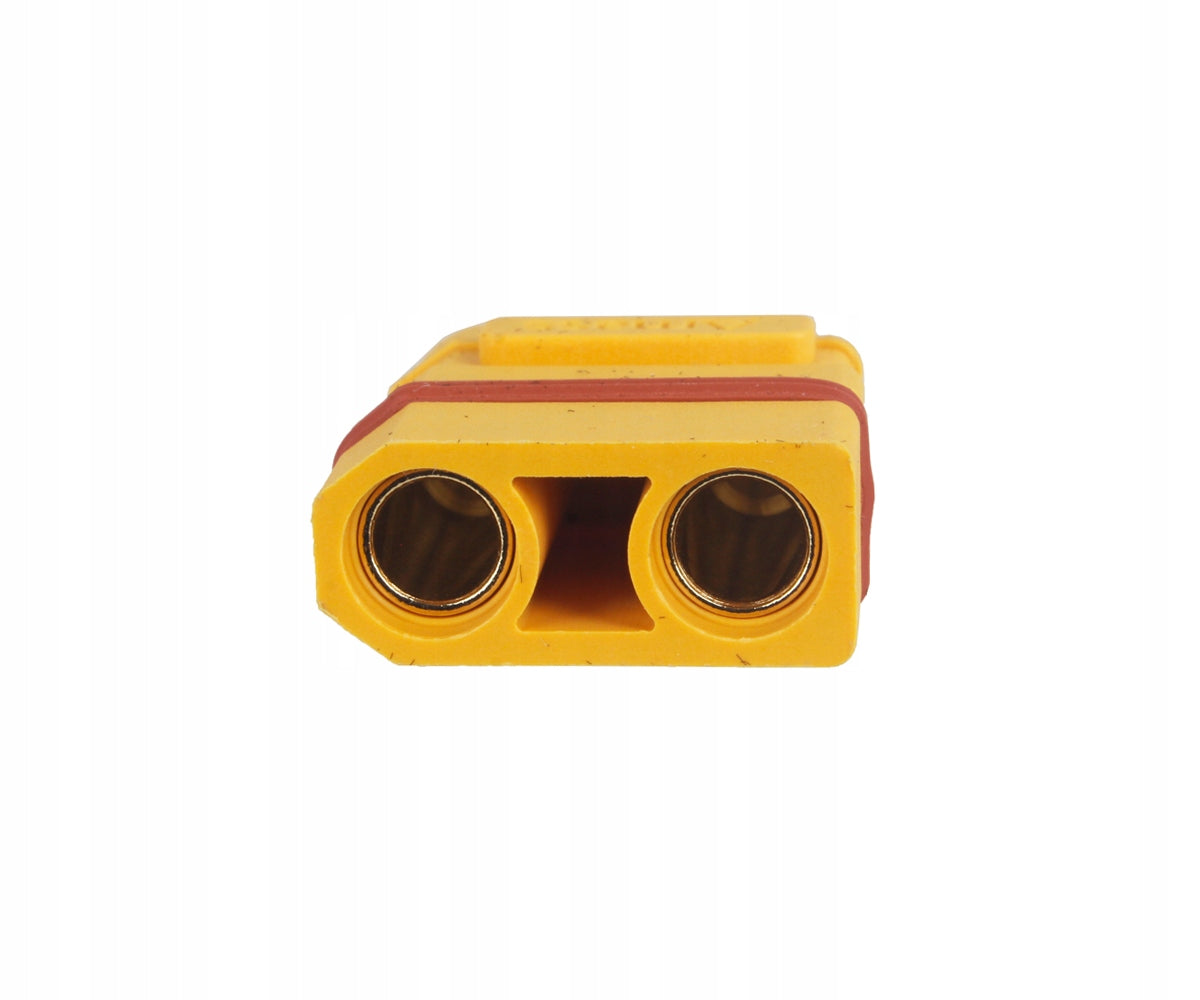

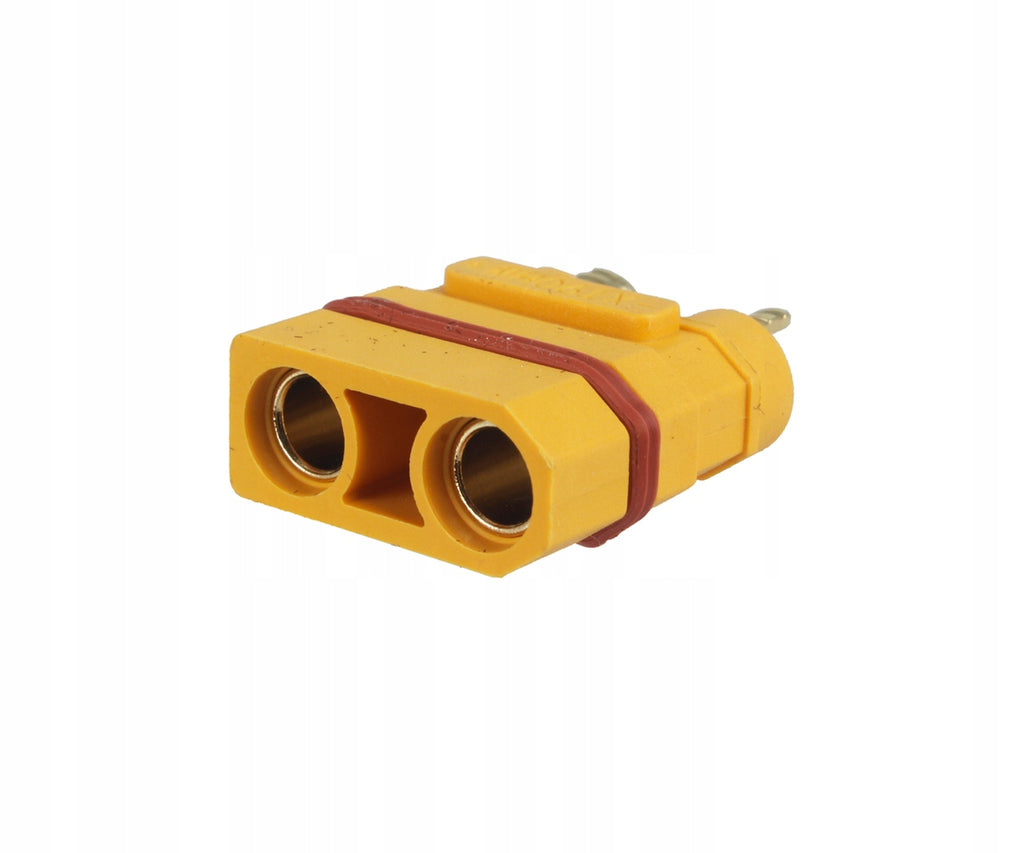

Jungtis Amass XT90HW-F moteriška 45/90A

Trumpai apie prekę

Prekė: Jungtis Amass XT90HW-F moteriška 45/90A. Kategorija: Dronai ir multikopteriai.

• Gamintojas: Amass
• Modelis: XT90HW-F

Amass XT90HW-F connector for cable, female 45/90A

The new high current AMASS XT90HW-F connector allows for a reliable and durable contact connection and is designed for cable mounting. Provides good insulation and short circuit protection. The design of the contacts allows good contact and prevents disconnection. AMASS connectors are used for current connections, to power electric motors of E-Bike bikes, battery chargers, universal meters, laboratory power supplies, etc. They are characterized by low resistance and a certain combination. Soldering is required for proper connection. AMASS connectors are becoming a popular connector for hobbyists and are used in connecting power to RC models.

• AMASS connectors are a popular way to connect a power source to a current receiver
• They provide the highest quality - always reliable connection and durable contact
• They are characterized by increased operating current and ease of fastening and unfastening
• Contacts with very low resistance and large link area
• Material of contacts - silver-plated copper
• Built-in silicone seal

Technical data:

• Producer: AMASS
• Model: XT90HW-F
• Connector Type: Female
• Contact Current: 45A - 90A
• Number of connections/disconnections: 1000 times
• Internal resistance: ≤ 1mΩ
• Rated Voltage: 500V DC
• Recommended Cable: 10 - 12AWG
• Mechanical assembly: soldering
• Connector Mounting: Per Wire
• Fire resistance: UL94 V0
• Operating temperature: -40°C to 120°C
• Recommended use: regulators, meters, power supplies, electric motors, RC modeling

Specifications
