Trumpai apie prekę
Prekė: Jungtis Amass XT30ULW-F su 15/30A korpusais. Kategorija: Dronai ir multikopteriai.
- Gamintojas: Amass
- Modelis: XT30ULW-F

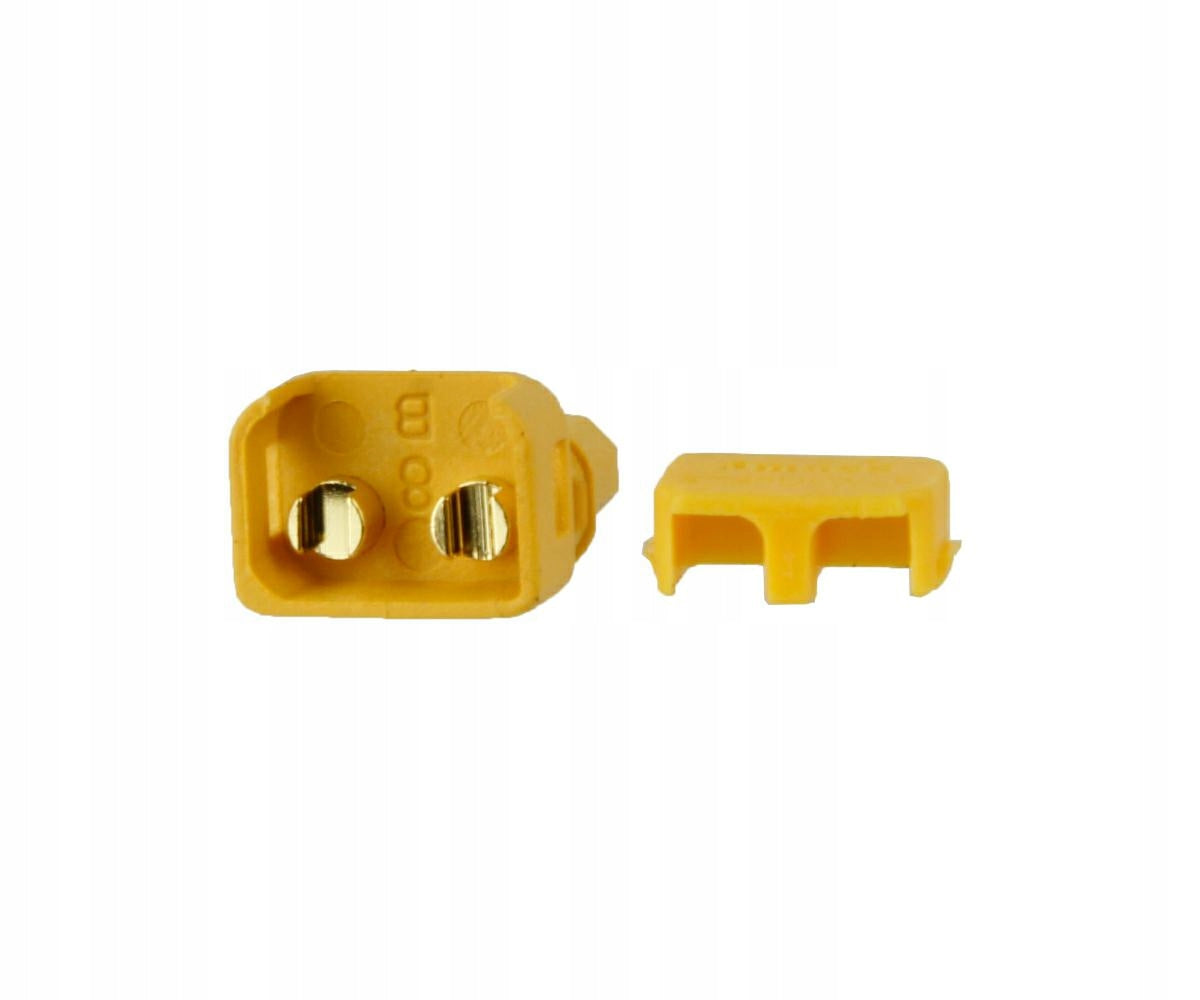

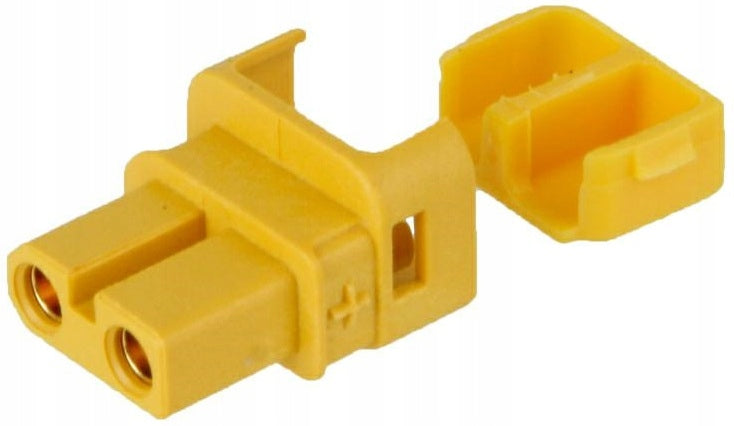

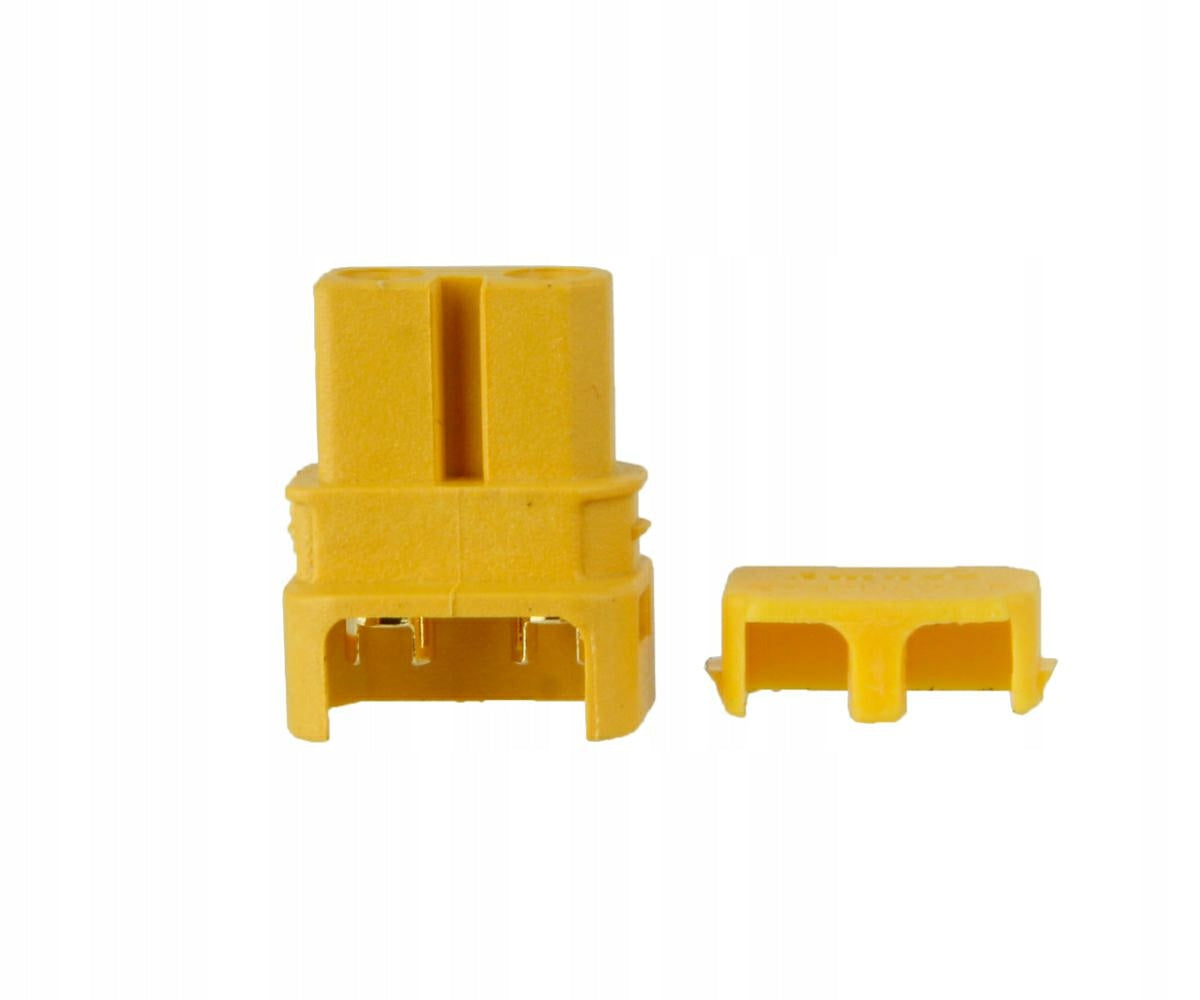

Female connector 15/30A Amass XT30ULW-F with casings
The highest quality connection socket from AMASS with cable covers. Thanks to the casings used, it provides good insulation and short-circuit protection of soldering tips. Used for high current, RC modeling connections. It is used as a connection terminal in electric bicycles. It is characterized by low resistance and a secure connection. It is becoming a popular connector for hobbyists. Soldering is required for proper connection.
- AMASS connectors are a popular way to connect a battery to a current receiver
- Top quality - always reliable connection and durable contact
- They are characterized by increased operating current and ease of fastening and unfastening
- Protective sleeve protects against short circuit of soldered connection
- Contacts with very low resistance and large link area
- Contacts covered with gold-plated brass
Technical data:
- Producer: AMASS
- Model: XT30ULW-F
- Connector Type: Female
- Continuous Current: 15A
- Pulse Current: 30A
- Number of connections/disconnections: 1000 times
- Internal resistance: 0.65mΩ
- Rated Voltage: 500V DC
- Insulation Degree: UL94 V0
- Wire Mounting: Soldered
- Socket Mounting: for 18AWG wire
- Certificate: RoHS
- Recommended use: regulators / chargers / meters / packages
- Contact Material: Gold Plated Brass
- Operating temperature: -20ºC to 120ºC
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Amass |
| Parametry | Model | XT30ULW-F |
| Parametry | EAN (GTIN) | 5902448501390 |
| Parametry | Manufacturer code | XT30ULW-F |
