Izoliacijos nuėmimo replės KNIPEX 13 96 200, 1000V, 6in1

Trumpai apie prekę

Prekė: Izoliacijos nuėmimo replės KNIPEX 13 96 200, 1000V, 6in1. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 13 96 200
• Ilgis: 200 mm

1396200

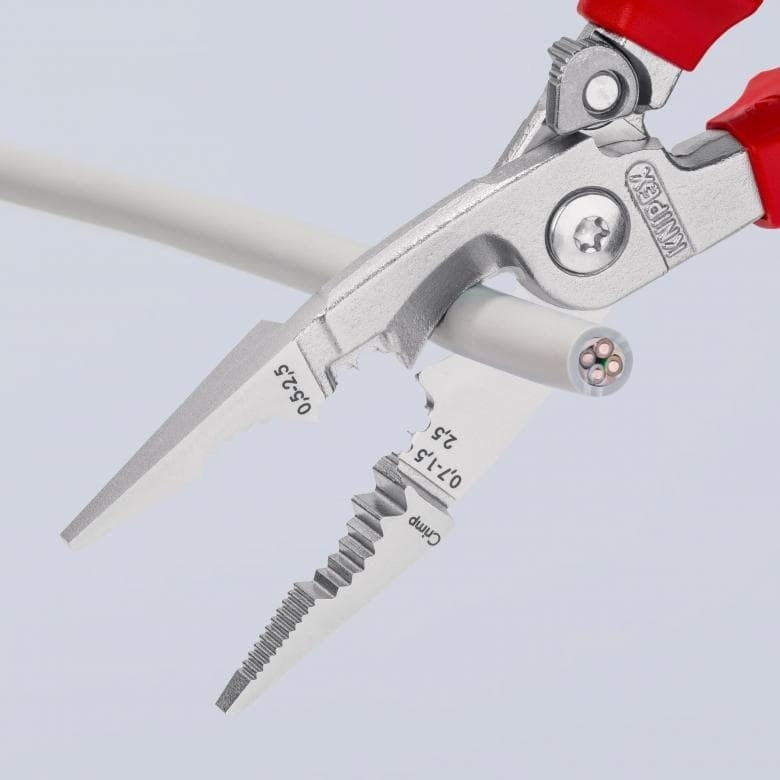

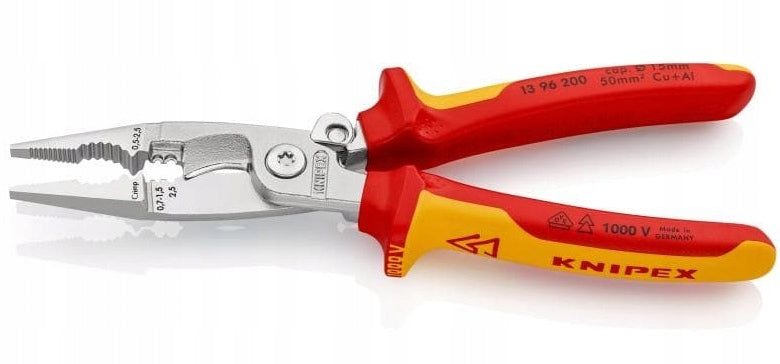

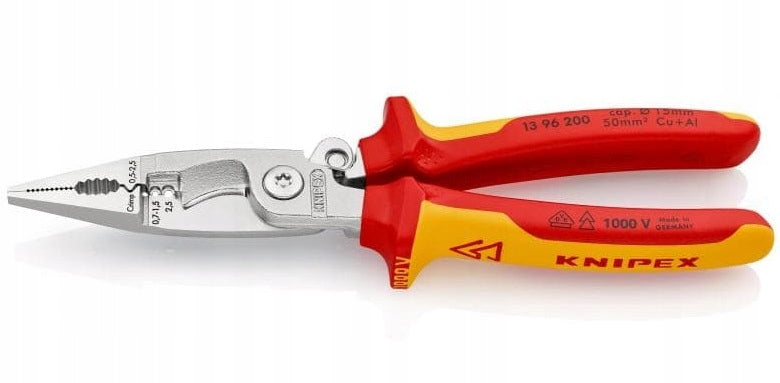

• 6 functions in one tool
• Multifunction pliers for electrical installation work; allow gripping of flat and round cross-section materials, bending, deburring, cutting and isolating wires and crimping cable sleeves
• In models with an opening spring in the connector, the opening lock holds the blades in a closed position, allowing the use of other functions during this time
• Intelligent holding mechanism allows you to grip without having to completely open the pliers. The blade remains closed and secured.
• Smooth gripping surfaces allow for secure gripping of individual conductors; profiled gripping surfaces and shape gripping surface allow gripping of flat and round cross-section materials
• The outer edge of the jaw allows the treatment of flush-mounted cans and deburring in pass-through holes

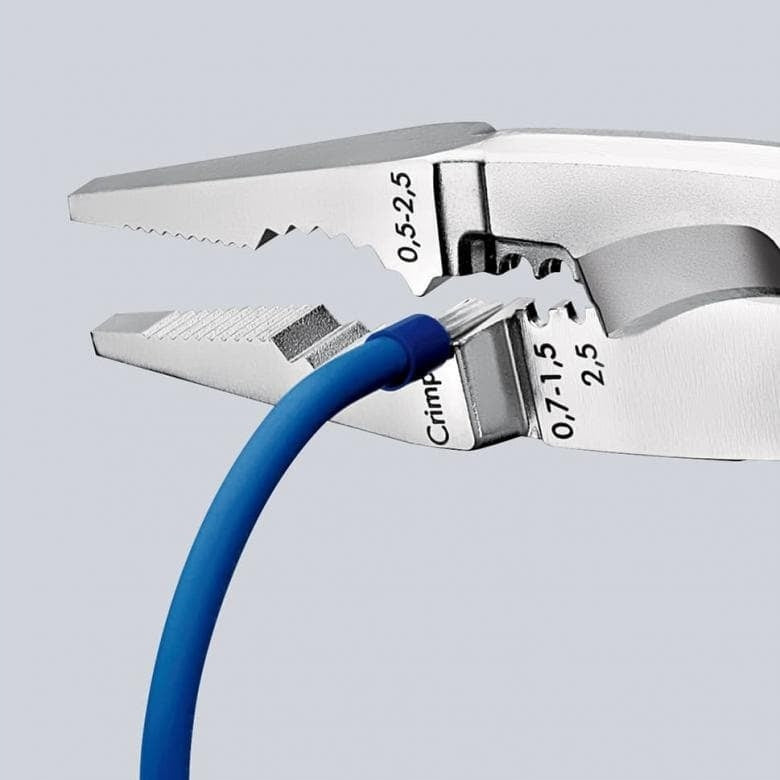

• Profiles for stripping insulation from wires with cross section 0,75 - 1,5 mm² and 2,5 mm²
• Crimping socket for cable bushings 0,5 - 2,5 mm²
• Cable shears with precision blades separately inductively hardened for cutting copper and aluminum cables up to 5 x 2,5 mm² / Ø 15 mm in diameter
• Compact design makes it easy to work in hard-to-reach areas
• Twisted connector ensures precise movement of pliers without slack
• Special high quality tool steel, forged, multi-stage oil-hardened

Technical data 1396200 Knipex:

• Pliers: chrome plated
• Head: chrome plated
• Handles: with multi-component caps, insulated according to VDE
• Weight: 280 g
• Dimensions: 200 x 85 x 20 mm
• Standard: DIN EN 60900 IEC 60900
• Cutting range of copper cable, multicore: Ø 15 mm
• Cutting range of copper cable, multicore: 50 mm²
• Single conductor operating range: 0,75 — 1,5 mm² / 2,5 mm²
• Working range in mm2: 0,5 — 2,5 mm²
• AWG: 1 / 0
• Isolated according to VDE: yes
