Išmanusis akumuliatoriaus įkroviklis Smart IP43 12V 30A, 120/240V

Trumpai apie prekę

Prekė: Išmanusis akumuliatoriaus įkroviklis Smart IP43 12V 30A, 120/240V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: PSC123053095

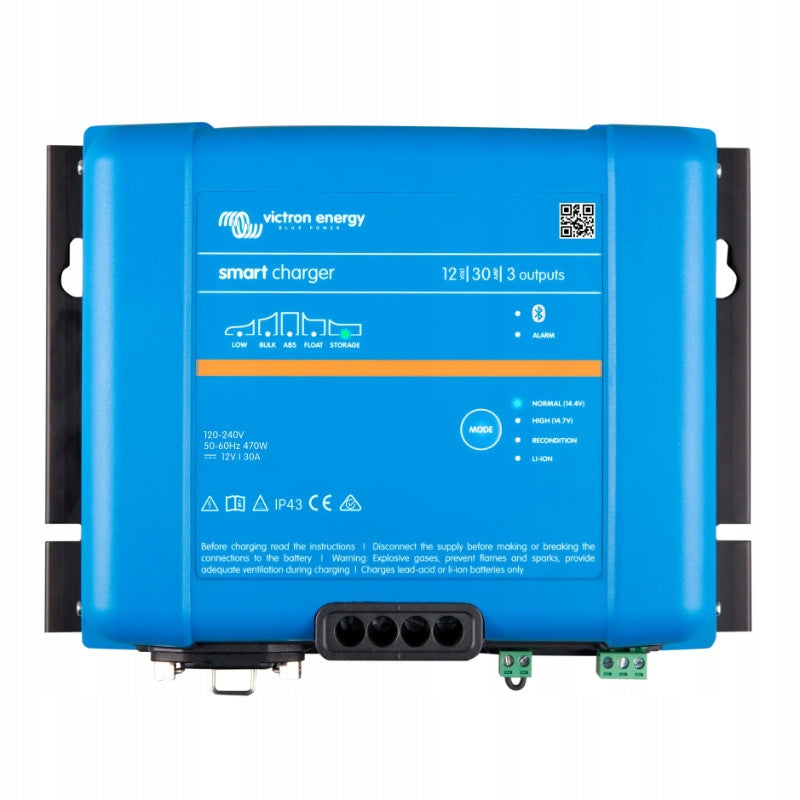

Charger Victron Energy Smart IP43 12V 30A (3) Bluetooth Smart

Any smartphone, tablet or other Bluetooth-enabled device can be used as a monitor to change settings and update the charger as soon as new software features appear.

Charging 3 batteries

Three full current outputs for charging three battery banks. Each of them can provide a full rated current, however, the total sum cannot exceed 30 A.

Automatic voltage equalization

The charger compensates for voltage drops in DC installations, gently increasing the output voltage when the current rises.

Main features:

• 3 outputs of 30 A – charging three sets of batteries at the same time.
• Recondition and Storage functions – battery regeneration and long storage mode.
• Bluetooth Smart – configuring and monitoring with VictronConnect.
• Adaptive 5-step algorithm: Bulk → Absorption → Recondition → Float → Storage.
• Compatibility with LiFePO₄ – dedicated charging mode for lithium batteries.
• Wide input voltage range: 120 – 240 V AC (50/60 Hz).
• Temperature compensation – automatic adjustment of charging voltage.
• IP43 protection class – resistant to dust and water splashes.
• VE.Smart Networking – wireless connectivity with other Victron devices.
• Suitable for harsh environments - The charger housing meets the IP43 standard, providing resistance to dust and water from up to 60°. Ideal for working in motorhomes, workshops, garages and technical rooms.



Technical specification:

• Parameters / Model: IP43 120 – 240 V 12/30 (3)
• Input voltage: 85 to 250 VAC (full power from 100 VAC, start from 90 VAC)
• Input voltage range DC: 90 – 375 VDC
• Frequency: 45 to 65 Hz
• Power factor: 1
• Reverse current drainage: < 1 mA
• Power consumption without load: 1 W
• Efficiency: 95%
• Charging voltage – Absorption / Maintenance / Storage:
• Normal: 14,4V / 13,8V / 13,2V
• High: 14,7V / 13,8V / 13,2V
• Lithium-ion: 14,2 V / N/D / 13,5 V
• Fully programmable: Yes, with Bluetooth and/or VE.Direct
• Maximum input current setting: 3 to 10 A
• Number of battery connections: 3
• On-board battery charging current: 30 A
• Low current mode: 15 A
• Temperature compensation – default value: -32 mV/°C
• Charging algorithm: 6-stage adaptive (3-stage for Li-ion)
• Protection: reverse polarity (fuse), short-circuit output, overheating
• Can be used as a power source: Yes – voltage setting via Bluetooth / VE.Direct
• Working temperature range: -20 to 60 °C (full power up to 40 °C, limitation at 60 °C)
• Moisture (non-condensing): max. 95%
• Remote on/off: Yes (2-pole connector)
• Programmable relay: 5 A to 28 VDC
• Bluetooth: power -4 dBm, range 2402 – 2480 MHz
• Material and colour: Aluminium, RAL 5012 (blue)
• Battery connection: Screw terminals mm² (AWG6)
• AC current connection: IEC 320 C14 inlet (cable ordered separately)
• Protection rating: IP43 (electronics), IP22 (connection zone)
• Weight: 2,7 kg
• Dimensions (H × W × D. ): 180 × 249 × 116 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	PSC123053095
Parametry	Brand	Victron energy
Parametry	Maximum amperage	30 A
Parametry	Product weight with unit packaging	3.5 kg
Parametry	EAN (GTIN)	8719076053491
Parametry	Batteries included	no
