Įrankių komplektas Festool ZS-OF 1010 M frezavimo staklei OF 578046

Trumpai apie prekę

Prekė: Įrankių komplektas Festool ZS-OF 1010 M frezavimo staklei OF 578046. Kategorija: Frezavimo staklės.

• Gamintojas: Festool
• Modelis: 4014549437476

In the practical Systainer³ you will find many useful elements for your applications: adapters for guide rails, copy rings, feet and much more. Everything is stored in an orderly manner and always within reach. Also, the cutters are well protected with additional slots.

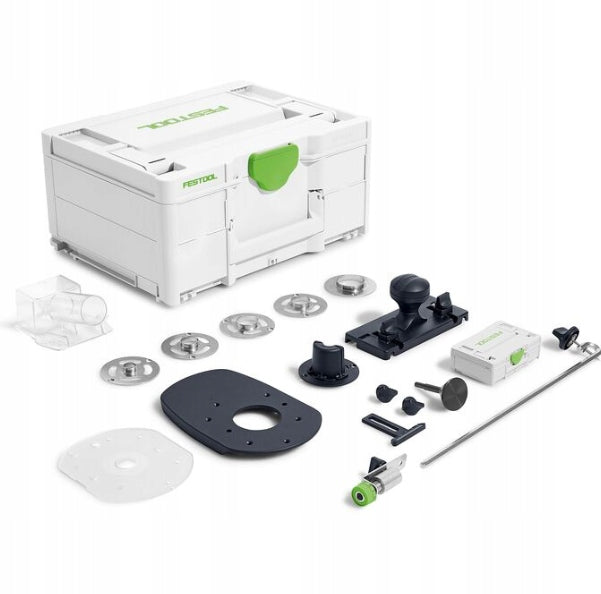

Scope of delivery Equipment set ZS-OF 1010 M

• adapter for the use of milling machine with guide rails
• FE-FS/OF 1000 precision adjustment mechanism
• bracket
• centring spigot
• copy ring D17
• copy ring D24
• D27 copy ring
• copy ring D30
• copy ring D40
• LAS-OF 1010 R foot
• AFB-OF 1010 R No 578058
• SZ-OF 1000 bar compass
• suction cover for side guide OF 1010 R
• chip catcher
• Systainer SYS3 XXS 33
• Systainer SYS3 M 187

Slots for cutters

Also the most important cutters will find their place thanks to practical slots in Systainer (without cutters)

Adapter for the use of milling machine with guide rails

Milling in a straight line along the guide rail is possible thanks to the adapter to the guide rail. The support foot prevents tilting at the same time.

Bar circle

Circles up to 760 mm in diameter can be milled with a bar compass.

• Transparent foot

  Transparent foot combined with ring-shaped lighting ensures optimal visibility of the workpiece. The small opening allows you to safely drive the spindle milling machine even in corners without the risk of tilting.

Adapter for use with guide rails

Milling in a straight line along the guide rail is possible thanks to the adapter to the guide rail. The support foot prevents tilting at the same time.

Stable overlay in the edge area.

In the case of milling in the edge area, only half of the spindle milling machine adheres to the workpiece. The slip insert allows safe and stable support of the spindle milling machine.

Different copy rings

When milling along the template, various copy rings ensure safe handling of the spindle milling machine. Thanks to the different diameters, the user is prepared for any type of template.

Centering spigot 492187 - In order to achieve an even milling result, the copying rings are precisely centered in the base plate of the spindle milling machine using a centering spigot.

Chip catcher No. 493180 - enables optimal suction during edge milling. Together with the suction cover and the Festool vacuum cleaner, excellent suction power is achieved when milling edges. With the ability to rotate 360°, the chip catcher can be used in virtually any conditions.

The suction cover allows you to connect the hose below the side guide - provides an excellent suction result when working with the side guide.

The smallest Systainer SYS3 XXS 205398 is the optimal storage compartment for small items for storing small materials and screws. Nothing gets lost (without content).

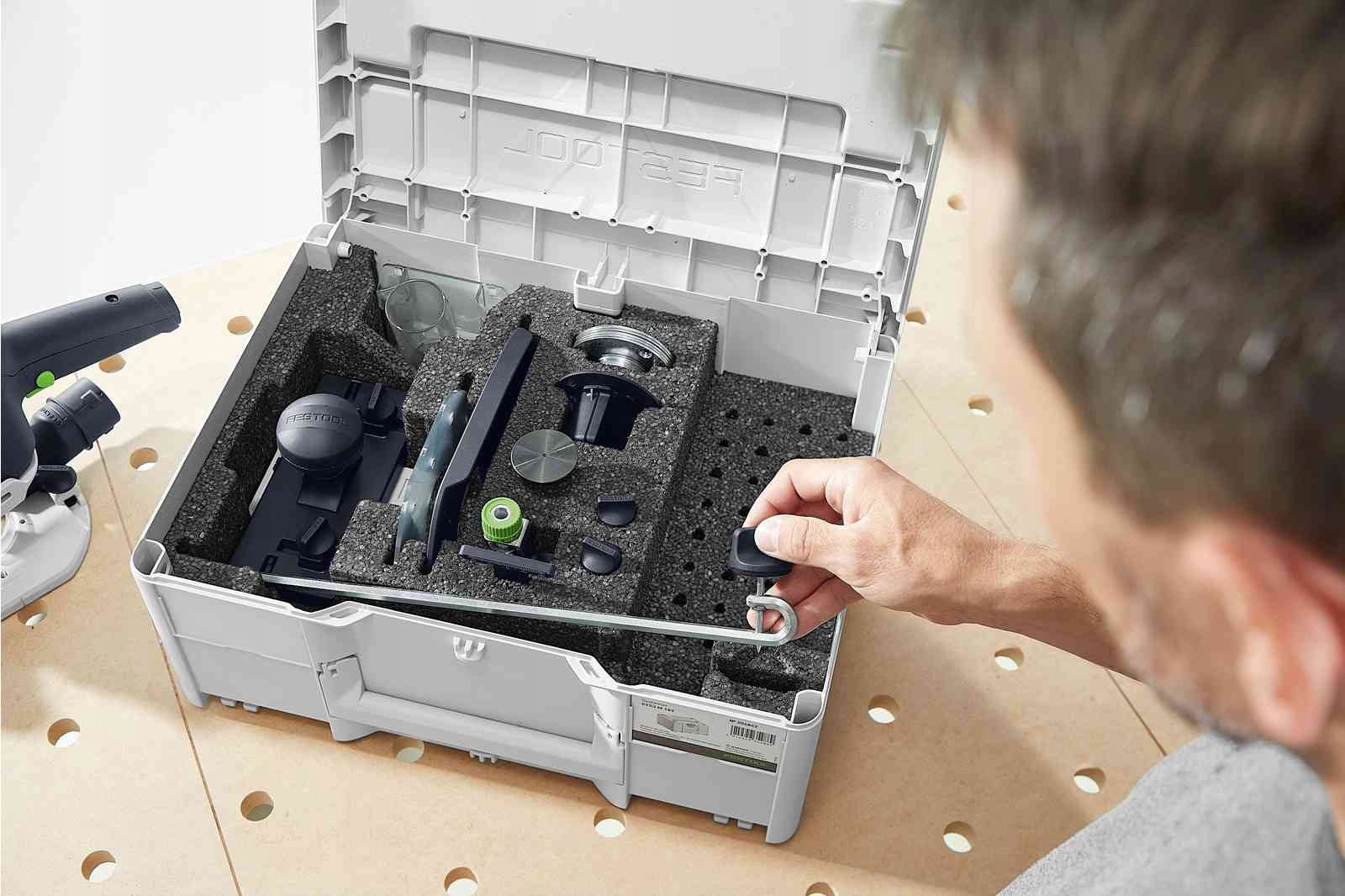

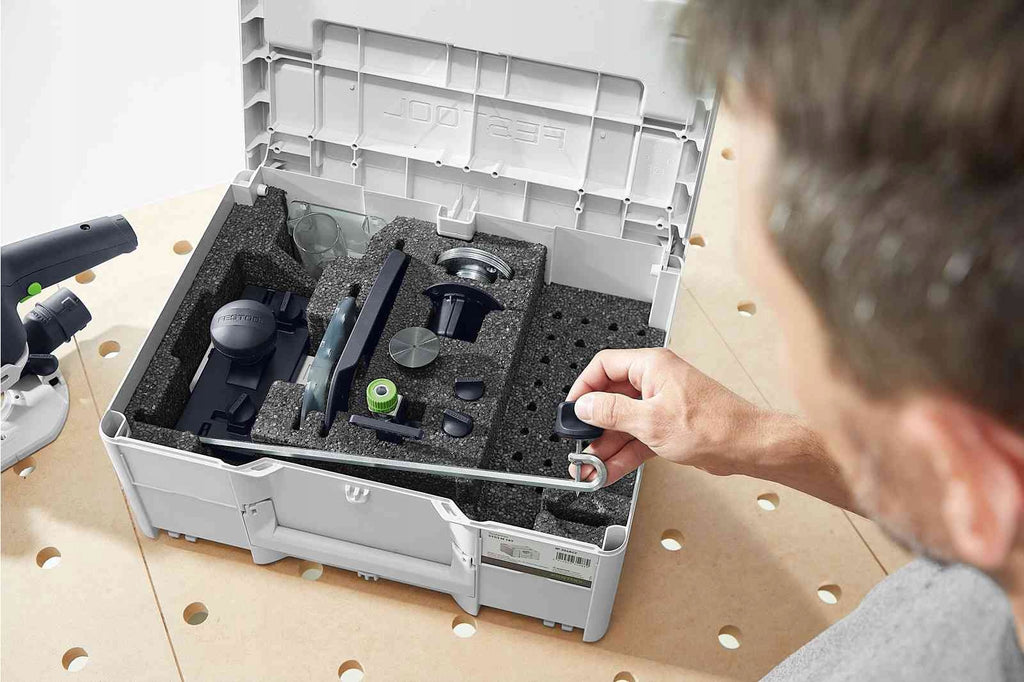

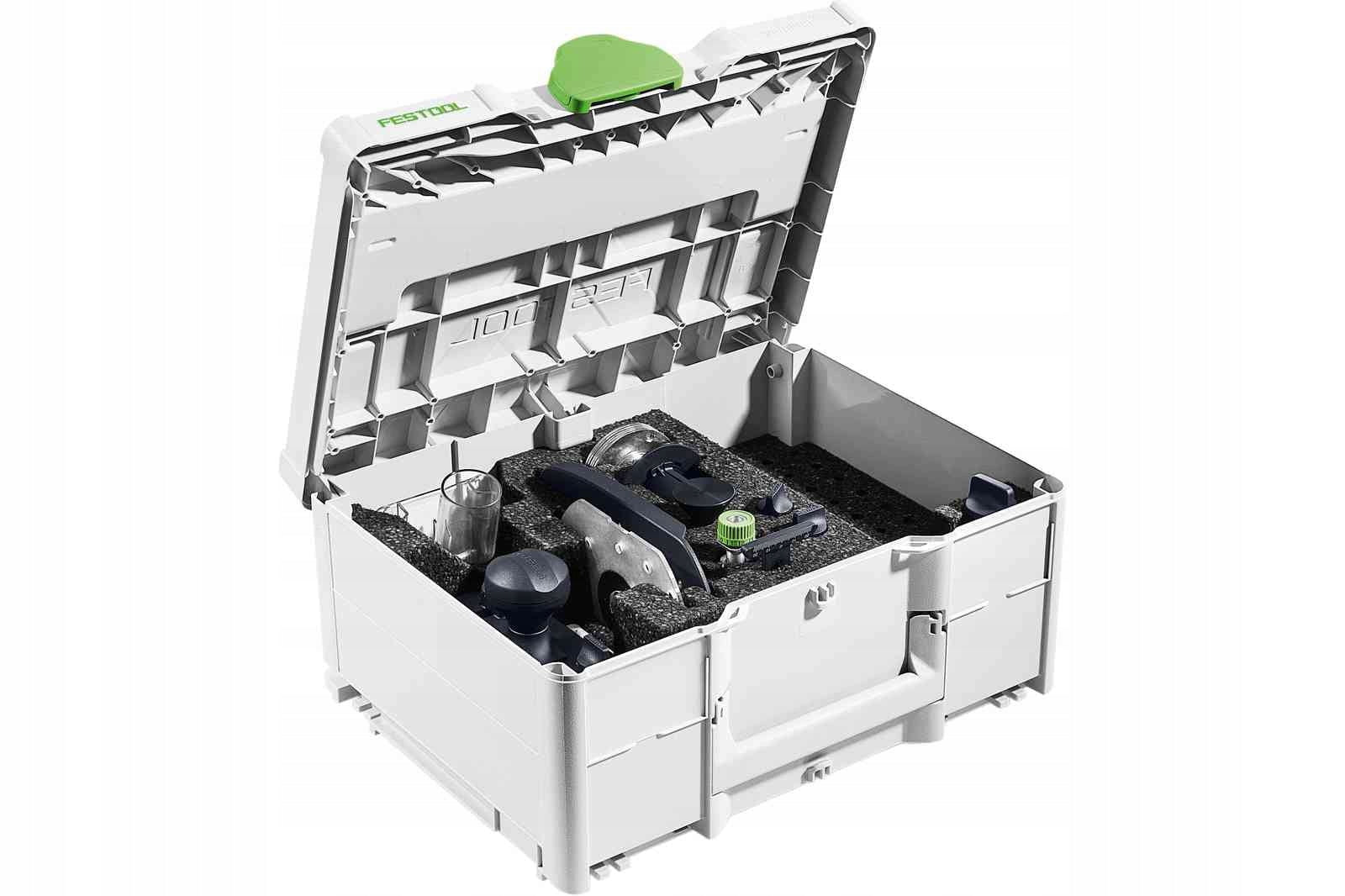

Systainer - All practical equipment for the spindle milling machine is intelligently and compactly packed in Systainer³. In combination with the Systainer of the spindle milling machine, you can always have them at hand.

The most important features of the product

• A comprehensive set of guide rail adapters, copy rings, feet and many other practical elements provide useful support for numerous applications.
• Everything in its place.
• In the practical Systainer³, all equipment is stored in an orderly manner and always within reach. With a reliable, durable, and high-quality insert for your Systainer.
• Safe storage of cutters.
• In addition to a wide range of equipment, Systainer³ also offers additional slots for cutters. Thanks to this, they are properly secured and immediately ready for use.

One Systainer Many possibilities.

• Versatility: Flexible equipment for multiple applications
• Straight line: thanks to the guide rail adapter and support foot, the spindle milling machine can be guided on the guide rail safely, accurately and simply
• Round shapes: with a bar compass you can mill circles up to 760 mm in diameter
• Precision: thanks to precise adjustment, the guide rail adapter and bar compass can be set very precisely
• Transparency: excellent workpiece visibility and no risk of tilting thanks to the transparent foot with small hole
• Stability: foot with wide overlay allows safe and stable handling of the spindle milling machine on the edge
• Copy milling: a variety of copy rings ensure safe handling of the spindle milling machine when milling using a template
• Accuracy: thanks to the use of a centering spigot, the copy rings are centered in the base plate of the spindle milling machine. This allows for an even milling result
• Purity: unique chip catcher allows optimal suction during edge milling
• No dust: suction cover to ensure clean operation using side guide
• Storage of small parts: smallest Systainer³ SYS3 XXS for small materials and screws
• Practical solution: storage capability thanks to cutter slots
• It is better to work with the system: compact and intelligent placement in Systainer³
• The most important pieces of equipment OF 1010 arranged in a transparent way and placed within easy reach in one Systainer
