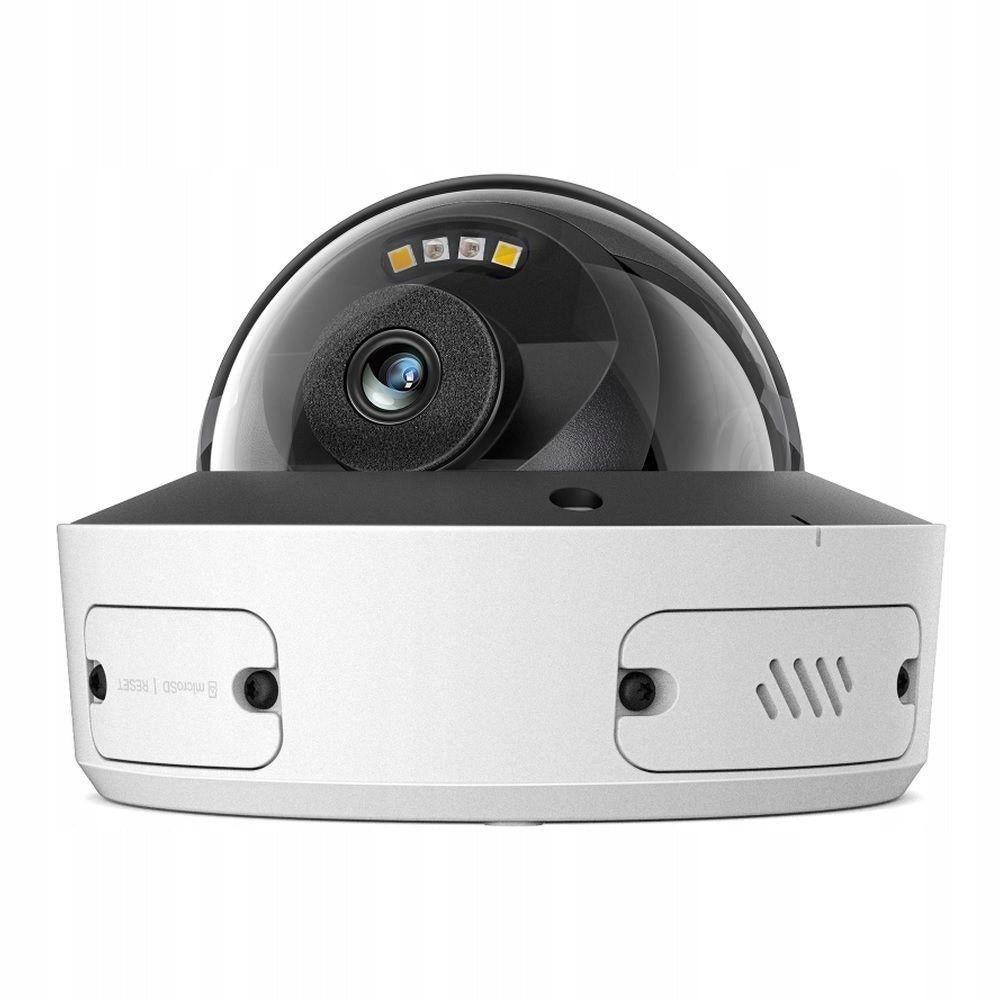

IP vaizdo stebėjimo kamera TP-Link VIGI InSight S245 4MP 2.8 mm

Trumpai apie prekę

Prekė: IP vaizdo stebėjimo kamera TP-Link VIGI InSight S245 4MP 2.8 mm. Kategorija: IP kameros.

• Gamintojas: Tp-Link
• Modelis: INSIGHT S245(2.8MM)

• IP camera TP-Link VIGI InSight S245(2.8mm) 4Mpx

Other parameters

• Native resolution: 2688 x 1520 pixels
• Effective number of pixels [MPix]: 4
• Horizontal viewing angle (H): 110.00 degrees
• Vertical viewing angle (V): 58.10 degrees
• Diagonal viewing angle (D): 133.50 degrees
• Communication interface: Fast Ethernet (RJ45)
• Audio Output: Yes
• Supported protocols / Compliance with standards: TCP/IP
• Supported protocols / Compliance with standards: UDP
• Supported protocols / Compliance with standards: ICMP (Internet Control Message Protocol)
• Supported protocols / Compliance with standards: HTTP
• Supported protocols / Compliance with standards: HTTPS
• Supported protocols / Compliance with standards: DHCP (Dynamic Host Configuration Protocol)
• Supported protocols / Compliance with standards: Domain Name System (DNS)
• Supported protocols / Compliance: RTSP (Real Time Streaming Protocol)
• Supported protocols / Compliance with standards: NTP (Network Time Protocol)
• Supported protocols / Compliance with standards: UPnP
• Supported protocols / Compliance with standards: UDP
• Supported protocols / Compliance with standards: SSL/TLS
• Supported protocols / Compliance with standards: FTP/SFTP
• Supported protocols / Compliance with standards: RTP
• Supported protocols / Compliance with standards: IPv4
• Supported protocols / Compliance with standards: IPv6
• Supported protocols / Compliance with standards: ARP
• Housing color: White (White)
• Built-in microphone: Yes
• Microphone Input: Yes
• Dimensions [G x S x W] (mm): 122 × 122 × 89
• Additional equipment: Quick installation instructions
• Additional equipment: Cable sealing elements
• Additional equipment: Mounting accessories
• Night mode: Infrared
• Infrared range / backlight: 30 m
• Camera use: outdoor/indoor
• Power type: PoE or 12V power supply
• Compression format: H.265+
• Compression format: H.265
• Compression format: H.264+
• Compression format: H.264
• Compatibility with Onvif: yes
• Includes battery/battery: No
• Additional information: Image sensor: 1/2.7” Progressive Scan CMOS
• Additional information: The camera is available in two versions: 2,8 mm or 4 mm
• Additional information: Viewing angle 4mm: Horizontal: 88°, Vertical: 46°, Diagonal: 105,4°
• Additional information: Day/Night switch: Unified/Schedule/Auto
• Additional information: Aperture: F1.6
• Additional information: Distance DORI:
• Additional information: - detection: 64-80 m
• Additional information: - observation: 27-33 m
• Additional information: - recognition: 13-16 m
• Additional information: - identification: 6-8 m
• Additional information: Range:
• Additional information: - rotation: 0° ~ 360°
• Additional information: - tilt: 0° ~ 90°
• Additional information: - rotation: 0° to 355°
• Additional information: Lighting control: Auto/Schedule/Always on/Always off
• Additional information: Main stream:
• Additional information: - frame rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps;
• Additional information: 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Additional information: - resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
• Additional information: If the image rotation is set to 90° or 270°, then the number supported
• Additional information: frames are up to 20fps
• Additional information: Bitrate control: CBR, VBR
• Additional information: Bitrate video
• Additional information: - main stream: 256 Kbps to 6 Mb/s
• Additional information: - side stream: 64 Kbps to 512 Kbps
• Additional information: Image settings: mirror image, brightness, contrast, saturation,
• Additional information: focus, exposure, WDR, white balance, HLC,
• Additional information: prevention of infrared light overexposure
• Additional information: Wide dynamic range (WDR): 120 dB
• Additional information: Privacy mask: max. 4
• Additional information: Two-way audio transmission
• Additional information: Simultaneous live view: 3 main streams, 3 side streams
• Additional information: Client: VIGI application, Web interface, VIGI VMS, Tool
• Additional information: MicroSD card support up to 512 GB
• Additional information: Power supply:
• Additional information: - 12V DC ± 5%, Max. 10,54 W, 5,5 mm Coaxial Power Plug 5.5mm
• Additional information: - PoE: 802.3af/at, class 0, Max. 12,52 IN
• Additional information: Protection: IP67, Mechanical strength class IK10
• Additional information: Permissible operating temperature: -30 to 60 °C
• Additional information: Storage temperature: -40 to 60 °C
• Additional information: Permissible air humidity: 95% or less (non-condensing)
• Additional information: Net weight: 0,62 kg
• Additional information: Certificates: CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
