IP vaizdo kamera Hikvision DS-2CD1T67G3-LIUF/SL (2.8 mm)

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD1T67G3-LIUF/SL (2.8 mm). Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD1T67G3-LIUF/SL

580,16

73410

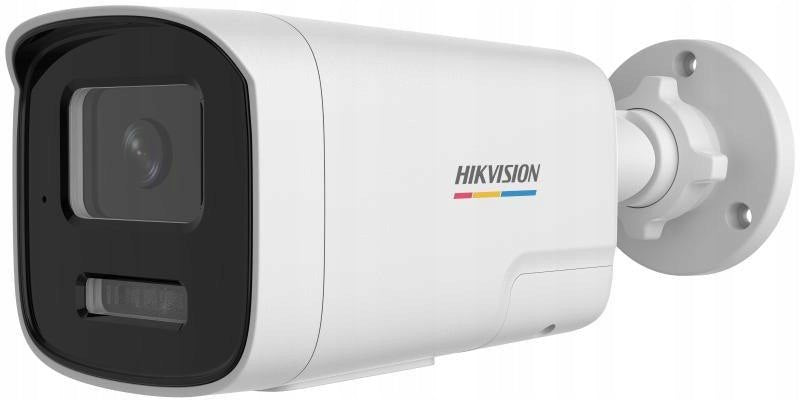

IP camera Hikvision DS-2CD1T67G3-LIUF/SL(2.8mm)

Model: DS-2CD1T67G3-LIUF/SL(2.8mm)

Purpose

• 6 MP ColorVu 3.0 horn network camera (fixed focal length lens)
• HikAI-ISP - advanced image processing for effective noise reduction
• Very clear, 24/7 colour images thanks to ColorVu 3.0 technology
• Motion detection 3.0 - increased accuracy of classification of people and vehicles
• Smart Hybrid Light - IR and white light integration, 3 lighting modes
• /SL/SRB - ongoing safety boost thanks to built-in two-way audio and light alarm (stroboscope)
• -F - support local memory up to 512 GB (SD card slot) (optional)
• Water and dust resistance (IP67)

Hikvision Active deterrence — use of private house / property

Equally well, cameras with active deterrence work well in protecting home property:

• may discourage the burglar already when trying to enter the area,
• audible alarm + flashing light is a signal to the intruder that the object is monitored, which significantly increases the level of deterrence,
• Human/vehicle detection avoids false alarms (e.g. animal, letters in the wind),
• A smartphone notification allows the owner to immediately check what is happening – even when he is away from home,
• The possibility of two-way audio communication (microphone + speaker) allows you to react or alert the intruder.

It’s ideal for homes, gardens, driveways, garages, small properties – where quick response and deterrence are a priority. .

Technical specification

Model

DS-2CD1T67G3-LIU/SL(2.8mm)

Image transducer

1/2.4" Progressive Scan CMOS

Max. Resolution

3200 × 1800

Min. lighting

Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with lighting

Shutter speed

1 s to 1/100,000 s

Day and night

IR cut-off filter

Angle setting

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Lens type

Fixed focal length lens, 2.8 mm

Focal length and field of view

2.8 mm

horizontal field of view 109°, vertical field of view 60°, diagonal field of view 130°

Lens mount

M12

Type of shutter

Fixed

Aperture

F1.0

Depth of field

2.8 mm

1.9 m to ∞

DORI

2.8 mm

D: 68 m, O: 27 m, R: 13 m, I: 6 m

Illuminator

Type of booster light

IR, white light

Assistive light range

Up to 50 m

Smart Supplement Light

Yes

IR wavelength

850 nm

Video

Main stream

50 Hz

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Auxiliary stream

50 Hz

20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz

20 fps (1280 × 720, 640 × 480, 640 × 360)

Video compression

Main stream: H.265+/H.265/H.264+/H.264, Auxiliary stream: H.265/H.264/MJPEG

Bitrate video

32 Kbps to 16 Mbps

Type H.264

Basic profile, main profile, high profile

Type H.265

Main profile

Bitrate control

CBR, VBR

Scalable video encoding (SVC)

H.264 and H.265 encoding

Region of interest (ROI)

1 fixed region for main and secondary streams

Audio

Audio type

Mono sound

Audio compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Bitrate audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio sampling rate

8 kHz/16 kHz

Environmental noise filtering

Yes

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP

Simultaneous live view

Up to 6 channels

API

ONVIF (S profile, G profile, T profile), ISAPI, SDK

User/host

Up to 32 users; 3 user levels: administrator, operator, user

Safeguards

Password protection, complex password, watermark, basic and hash authentication for HTTP, WSSE and hash authentication for ONVIF, security audit log, host authentication (MAC address)

Client

iVMS-4200, Hik-Connect

Web browser

Required Plug-in for Live Viewing: IE 10, IE 11; Local Services: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Settings

Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustment by software or browser

Day/night switch

Day, night, automatic, schedule

WDR

120 dB

SNR

≥ 52 dB

Improving image quality

BC, HLC, 3D DNR

Mask of privacy

4 programmable masks

Interface

Ethernet interface

1 RJ45 10/100 M, self-adaptation port

Memory

Built-in microSD/microSDHC/microSDXC card slot up to 512 GB (depending on version)

Built-in microphone

Yes

Speaker

yes

Reset button

yes

Events

Basic events

Motion detection (human/vehicle), sabotage, exception

Relationships

FTP, memory card, recording, notifications, email, snapshot

General

Power supply

12 VDC ± 25%, IEEE 802.3af PoE (different variants depending on model)

Material

Front: metal, housing: plastic, handle: metal

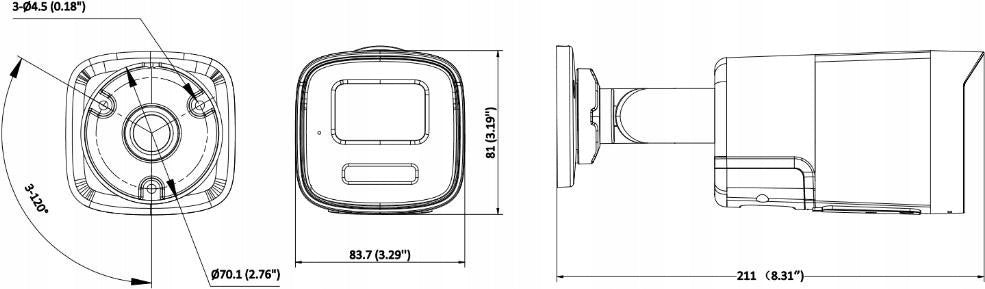

Dimensions

81 mm × 83.7 mm × 211 mm

Package Dimensions

260 mm × 125 mm × 125 mm

Weight

OK. 440 g - 520 g (depending on version)

Weight with packaging

OK. 580 g - 650 g

Working conditions

-30 °C to 60 °C, humidity up to 95%

Language

English, Ukrainian

General functions

Heartbeat, mirror, email password reset, password protection, anti-ba
