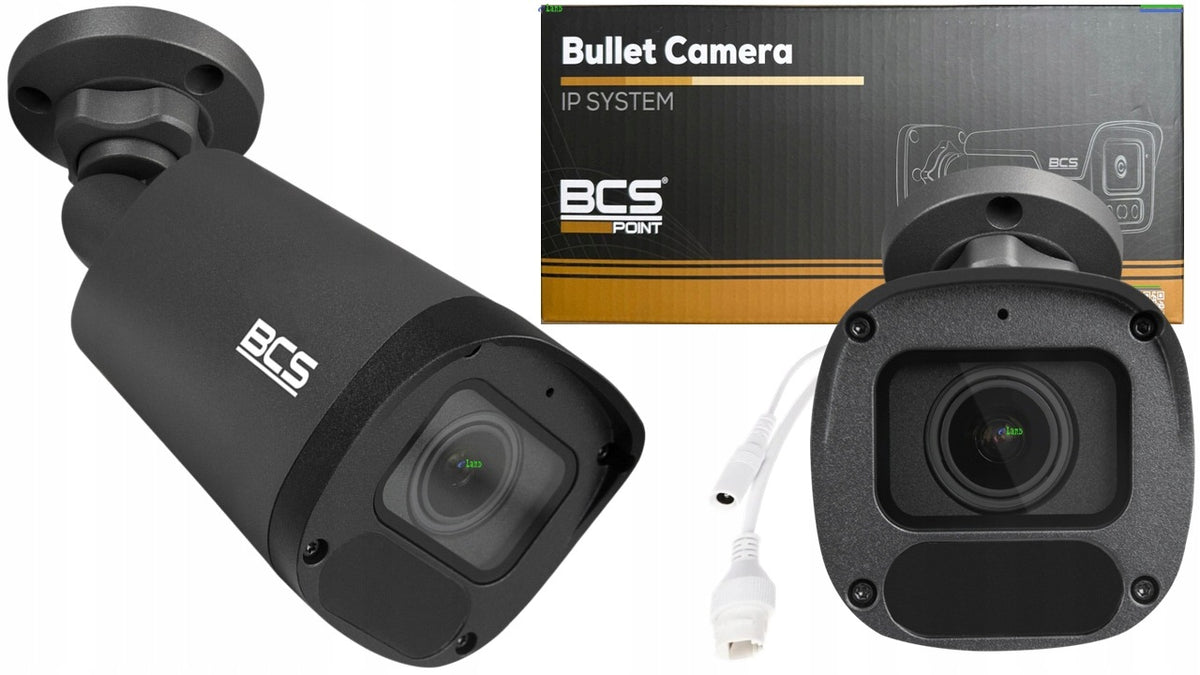

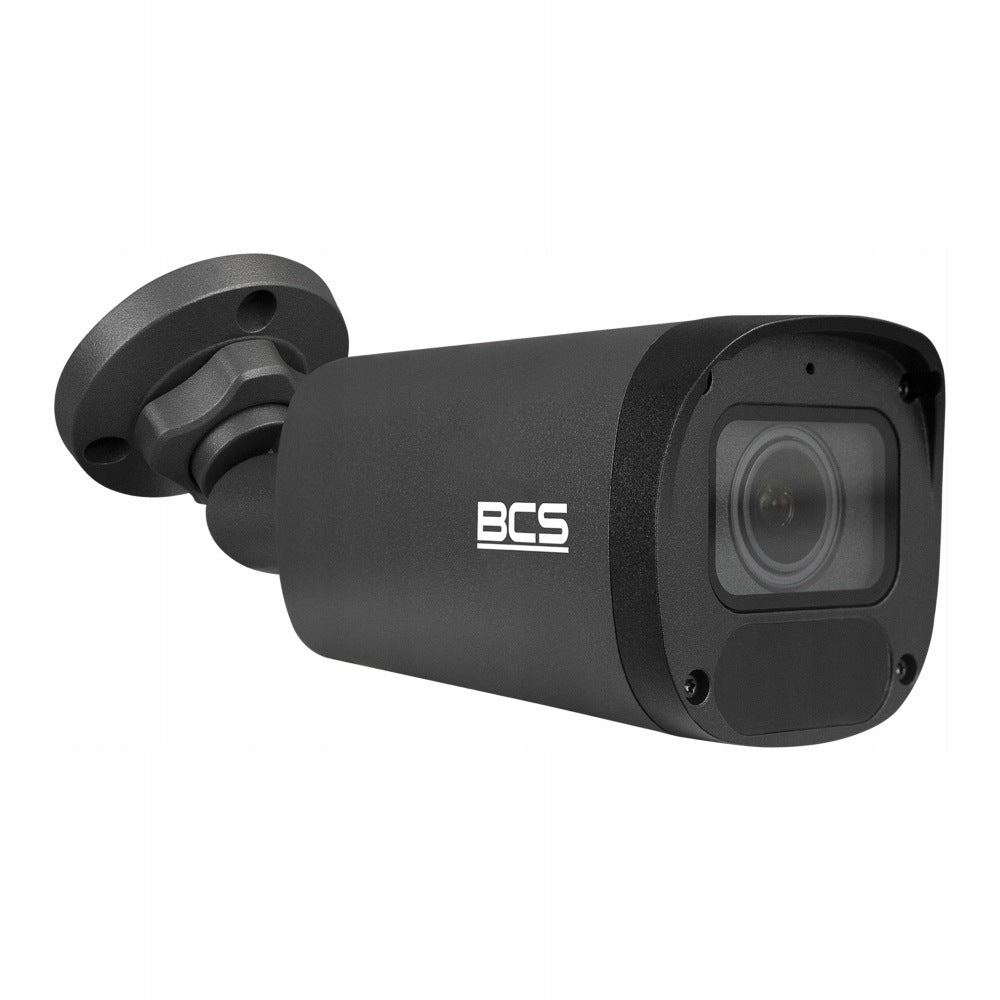

IP vaizdo kamera BCS P-TIP44VSR5-Ai-G, 4MP, motorizuota, IR 50 m, mikrofonas, SkyLight

Trumpai apie prekę

Prekė: IP vaizdo kamera BCS P-TIP44VSR5-Ai-G, 4MP, motorizuota, IR 50 m, mikrofonas, SkyLight. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-P-TIP44VSR5-G(2)

IP Camera, 4 MPx, motozoom 2.8-12mm, IR50m, Microphone, SkyLight, microSD Card Slot up to 256GB, H265+, BCS POINT

The camera is the successor to the previous model: BCS-P-TIP44VSR5-G(2).

4Mpx horn camera with 2.8-12mm lens. A mechanical infrared filter and a radiator with a range of up to 50m allow the camera to present a good quality image in complete darkness. The WDR(120dB) function improves camera dynamics and extracts more detail from the contrasting observation plan, while the 2D/3D DNR functions allow for static or dynamic noise reduction in the image and higher quality images in low light conditions. The whole was enclosed in a sealed IP67 housing, and is powered by 12V DC or PoE direct current.

The camera has the ability to stream images in real time using the RTMP protocol in popular streaming services.

• 1/3" 4Mpx PS CMOS sensor
• SkyLight technology
• Compliance with NDAA
• 2.8-12mm motozoom lens
• Infrared radiator with a range of up to 50m
• Built-in microphone
• H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Support 2 streams of coding
• ICR Mechanical Infrared Filter
• Functions AWB, AGC, BLC, HLC, Defog, WDR(120dB), 2D/3D DNR
• Motion detection, privacy masks
• Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• Perimeter protection: Intrusion into the area, crossing the line
• Object Recognition: Human recognition for intrusion into the area, line crossing reduces false alarm call
• IP67 Outdoor Enclosure
• Operating conditions -30°C ~ +60°C
• microSD memory card slot up to 256GB
• DC 12V/PoE(802.3af) power supply
• Adapters suitable for camera: BCS-P-A81-G, BCS-ADU100, BCS-ADU125

SkyLight technology is an advanced opto-electronic solution used in BCS cameras, designed to produce clear, detailed images even in very low light conditions, without the need for additional light sources.

• High sensitivity – the camera can capture images with minimal lighting – up to 0,0006 Lux (depending on the model)
• Preservation of natural colors – even in low light conditions, the technology allows you to maintain realistic color reproduction and reduces noise
• No need for illumination – SkyLight improves the efficiency of capturing images without additional radiators, which can reduce costs and facilitate installation

• NDAA: National Defense Authorization Act
• Camera type: Tube
• Resolution: 4 Mpx
• Sensor: 1/3'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2688(H)x1520(V)
• Lens: motorized zoom
• Focal length: 2.8~12 mm
• Aperture: F1.6
• Focus: Auto / manual
• Iris: Car
• Optical zoom: 4x
• Digital zoom: 16x
• Viewing angle: H: 86.3°~ 35.2° V: 47.1°~ 17° D: 91.9°~38.6°
• DORI: Detection 63~270m / Observation 25~108m / Recognition 13~54m / Identification 6~27m
• Camera sensitivity: 0.003Lux (F1.6, AGC) 0Lux (B/W, IR)
• S/N ratio: 52dB
• White balance: (AWB) Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB)
• Shutter: Auto / manual 1~1/100000s
• Gain Control: (AGC) Auto / Manual
• Noise reduction: 2D/3D DNR
• Defog: Digital
• Image Rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 2
• Resolutions: 4Mpx(2688x1520)(2560x1440) / 3Mpx(2304x1296) / 2Mpx(1920x1080) / 720P(1280x720) / D1(720x576) / (640x360) / 2CIF(704x288) / CIF(352x288)
• Main stream: 2688x1520 25fps 2560x1440 25fps 2304x1296 30fps 1920x1080 30fps
• Second stream: 1280x720 30fps 720x576 30fps 640x360 30fps
• Bitrate: 128kb/s~6144kb/s
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/Night: ICR
• Illuminator type: IR LED
• IR range: 50m
• Microphone: Yes
• Audio compression: G.711
• Memory card slot: microSD 256GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion detection: 4
• Privacy Masks: 4
• Ai - Built-in intelligence: Built-in intelligent image recognition and analysis algorithms
• Ai - Perimeter Protection: Intrusion into the area, crossing the line
• Ai - Object Recognition: Human recognition for intrusion, line crossing reduces false alarm triggers
• Network: RJ-45 10/100Mb/s
• Compatibility: ONVIF(S/G/T)
• Protocols: IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP, SSL/TLS
• Security: HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection
• Power supply type: 12V DC / PoE(802.3af)
• Power consumption: max 9.6W
• IP protection class: IP67
• Surge protection: 6kV
• Operating conditions: -30°C~+60°C max 95% RH
• Dimensions: 206x74x74mm

• original product of the brand BCS
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have any doubts, we will be happy to advise and help
