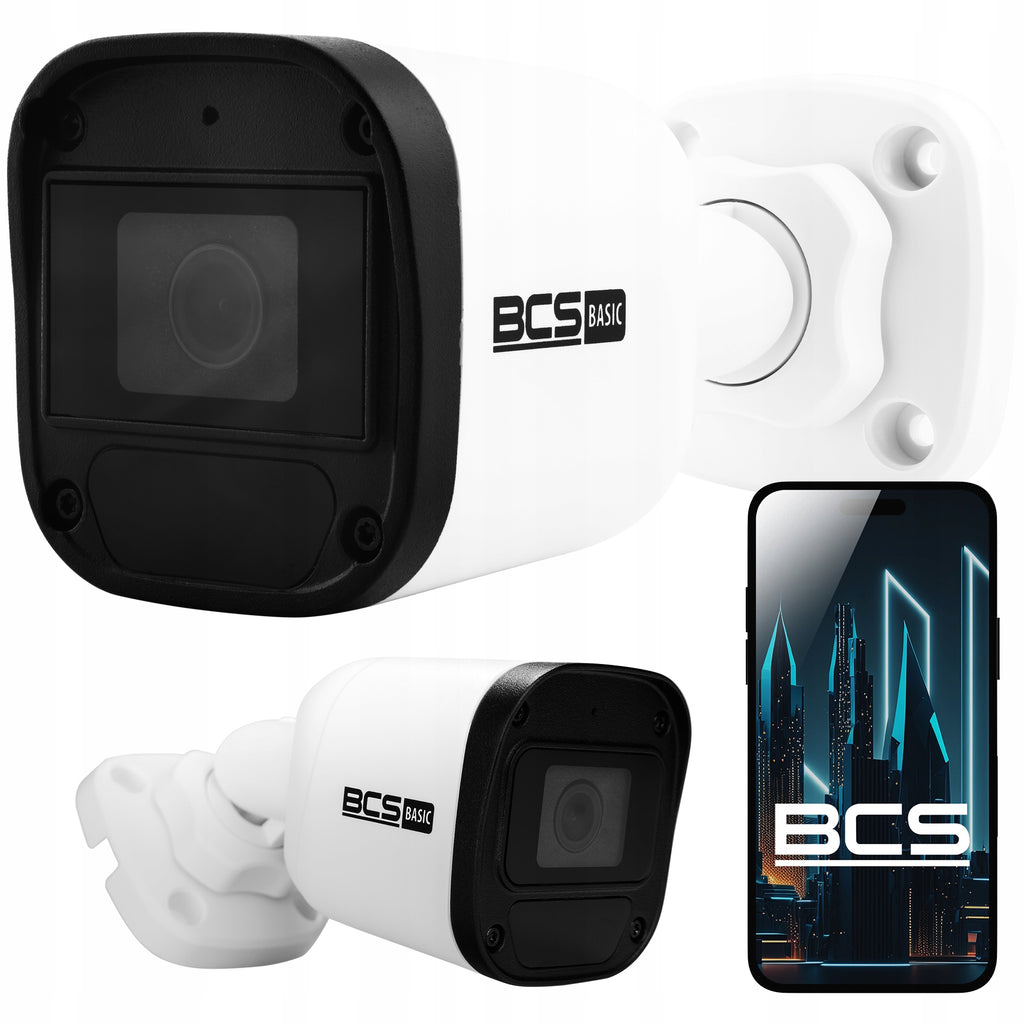

IP vaizdo kamera BCS-B-TIP15FR3(2.0), 5 Mpx, 4× priartinimas, IR iki 30 m, su mikrofonu

Trumpai apie prekę

Prekė: IP vaizdo kamera BCS-B-TIP15FR3(2.0), 5 Mpx, 4× priartinimas, IR iki 30 m, su mikrofonu. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-B-TIP15FR3(2.0)

✅ 5MPx | ✅ 94° | ✅ 2.8mm | ✅ IR30m | ✅ PoE | ✅ IP67 | ✅ Microphone | ✅ Mobile App

Features of the BCS-B-TIP15FR3(2.0):

✅ Clear and rich in detail image o 5MPx resolution (2592x1944) and 94° field of view (diagonal)

✅ Efficient infrared with a maximum range of 30 meters

✅ Built-in high-sensitivity microphone for increased awareness of the situation

✅ PoE power supply, which will minimize the time and costs required for installation

✅ Protection class IP67, which guarantees reliable operation of the camera even in the harshest weather conditions

✅ Easy remote operation in the BCS Basic 2.0 mobile app

Remote access from phone and desktop

BCS-B-TIP15FR3(2.0) enable configuration, control and preview using the BCS Basic 2 application, which will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

• Access video previews and play back saved footage
• Save fragments of the film to the memory of the smartphone
• Configure time frames for motion detection
• Receive notifications from motion detection or other events
• Share your devices on other smartphones with the mobile app, e.g. family members or employees

BCS Basic 2 - free application for Android and iOS

High quality image

The photosensitive sensor and high-quality transducer combined with advanced optics deliver high-quality images with excellent sharpness. BCS-B-TIP15FR3(2.0) records in 5Mpx resolution, thanks to which it has a significant advantage over typical FullHD models. It ensures that even the smallest detail is captured on the footage.

❌ A: 1280x720p (1MPx )

❌ B: 1920x1080p ( 2MPx )

❌ C: 2048x1536p ( 3MPx )

❌ D: 2560x1440p ( 4MPx )

✅ E: 2592x1944p ( 5MPx )

❌ F: 3840x2160p (8MPx)

Motion detection

BCS-B-TIP15FR3(2.0) has a built-in algorithm for detecting motion in the image. Additionally, allows you to send notifications to your phone or computer.

In addition, you can freely set the area you are interested in, so that, for example: receive notifications only about traffic from the entrance gate.

In addition to 24/7 recording, cameras can also record only fragments when motion is detected, which will translate into reduced hard drive consumption.

Video and audio recording

Thanks to the built-in microphone, the camera records footage with sound. This is especially helpful in determining the context of the situation.

Set Contents:

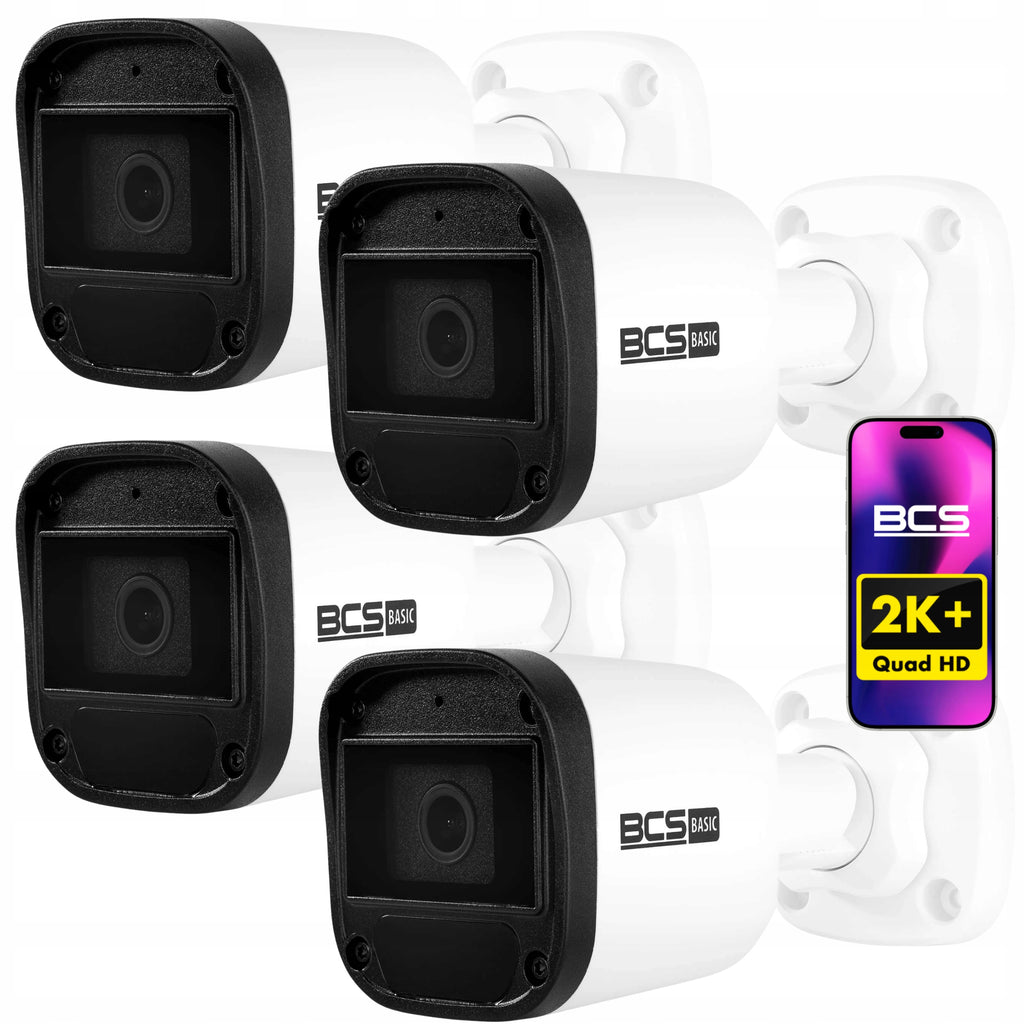

• 4x 2K horn camera - BCS-B-TIP15FR3(2.0)
• Documentation - User manual, warranty card, regulations
• Template - Small size template with camera mounting holes
• Screws and mounting pins - Everything you need to mount your camera
• Waterproof set - Set of accessories to protect camera connectors from moisture

Technical specification:

• Device Name: BCS-B-TIP15FR3(2.0)
• Product Line: BCS BASIC
• Camera Type: Bullet Camera
• Resolution: 5 MP
• Image Sensor: 1/2.8''
• Scanning System: Progressive Scan
• Pixels: 2592(H)×1944(V)
• Lens Type: Fixed
• Focal Length: 2.8 mm
• Aperture: F2.1
• Focus: Fixed
• Iris: Fixed
• Digital Zoom: 16×
• Angle of View: H: 89.1°, V: 47.3° D: 94.3°
• DORI (Detect, Observe, Recognize, Identify): Detect 63m / Observe 25m / Recognize 13m / Identify 6m
• Camera Sensitivity: 0.02Lux(F2.1,AGC) 0Lux(B/W,IR)
• Signal-to-Noise Ratio (S/N): 52dB
• White Balance: (AWB) Auto / Manual
• Wide Dynamic Range (WDR): DWDR
• Backlight Compensation: BLC / HLC / DWDR
• Shutter Speed: Auto / Manual 1~1/100000s
• Gain Control: (AGC) Auto / Manual
• Noise Reduction: 2D/3D DNR
• Image Rotation: Mirror, Flip 0°/90°/180°/270°
• Number of Streams: 2
• Resolutions: 5M(2592×1944) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
• Main Stream: 2592×1944/2560×1440/2304×1296/1920×1080/1280×720/720×576(30fps)
• Sub Stream: 720×576/640×360/704×288/352×288(30fps)
• Video Compression: H.265 / H.265+ / H.264 / H.264+
• Day/Night: ICR
• Illuminator Type: IR
• IR Range: 30m
• Microphone: Yes
• Audio Compression: G.711
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion Detection: Yes
• Privacy Masks: 4
• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF(S/T)
• Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
• Power Supply: 12VDC / PoE(802.3af)
• Power Consumption: max 4.5W
• Housing Color: White
• IP Rating: IP67
• Operating Conditions: -30°C~+60°C max 95% RH
• Dimensions: Ø118×97mm
• Weight: 0.27kg
