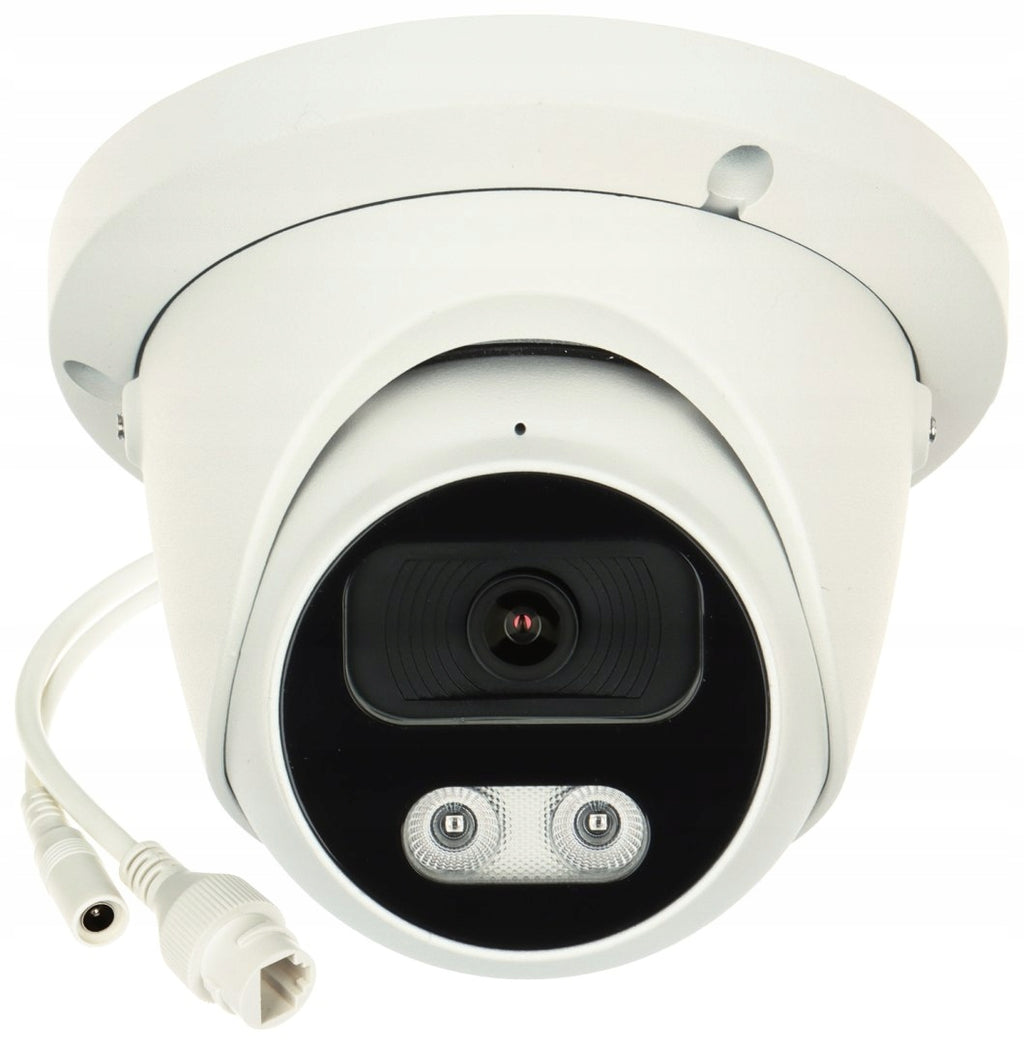

IP vaizdo kamera APTI-AI508VA21-28WP, 5 MP, 2.8 mm

Trumpai apie prekę

Prekė: IP vaizdo kamera APTI-AI508VA21-28WP, 5 MP, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: APTI
• Modelis: APTI-AI508VA21-28WP

215,42

APTI-AI508VA21-28WP

IP camera with powerful H.264/H.265 image compression algorithm for clearer and smoother image transfer at a maximum resolution of 5 MPx

Standard:

IP

Resolution:

2592 x 1944 - 5 Mpx ,

2560 x 1440 - 3.7 Mpx ,

1920 x 1080 - 1080p ,

1280 x 720 720p

Transducer:

1/2.8" SONY Starvis™ Back-illuminated CMOS

Lens:

2.8 mm

Viewing angle:

• 107° (manufacturer's data)
• 94° (our tests)

IR illuminator range:

30 m

Memory card slot:

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Emergency Inputs/Outputs:

Audio:

• Built-in microphone,
• Audio transmission over the network,
• Compliance with the AAC standard

Main stream transmission speed: max. 25 fps @ 5 Mpx Interface: 10/100 Base-T (RJ-45) WEB Server: Built-in Max. Number of users online: 10 ONVIF: 19.12 Intelligent image analysis:

• intrusion - classification of people and vehicles
• crossing the line - classification of people and vehicles
• detection of a gathering of people
• detection of wandering

Selected functions:

• WDR - Wide range of lighting dynamics
• 3D-DNR - Digital Noise Reduction in Images
• F-DNR (Defog) - Noise reduction associated with precipitation
• ROI - improving the quality of selected image fragments
• Flicker Control - Technology to eliminate eye-tiring flickering effect
• BLC - reverse light compensation (background)
• HLC - Strong light compensation (point)
• ICR - Mechanical Infrared Filter
• Intelligent motion detection (with distinction between people and vehicles)
• Privacy Zones - max. 3
• Image rotation and mirroring
• Day/night mode - customizable
• Sharpness - Sharpening the contours of the image

Access from mobile phone:

• Port: 80 or cloud access (P2P)
• Android: Free BitVision App
• iOS (iPhone): Free BitVision App

Default IP address: 192.168.1.168 Default administrator login / password: admin / 123456 (older versions of FW: admin) Access ports via www: 80 Access ports via PC application: 80 Access port via mobile application: 80 ONVIF port: 80 RTSP URL: rtsp://user:password@ip_address:80/0 -

• PoE (802.3af),
• 12 V DC / 700 mA

Power Consumption:

≤ 8.4 IN

Housing:

Dome, Metal

Color:

White

Leak-proof class:

IP67

Mechanical protection class:

Operating Temperature:

-20 °C ... 60 °C

Weight:

0.54 kg

Dimensions:

Ø 126 x 101 mm

Supported languages:

Polish, English, French, Russian, Spanish, Portuguese, Italian, Ukrainian, Hungarian

NDAA Certificate:

Manufacturer / Brand:

APTI

:

2

CE

APTI NDAA

Quick start instructions PL

Quick start instructions EN

Instruction EN

iVMS320

A program to search for and configure cameras on the network

Data act

Specifications
