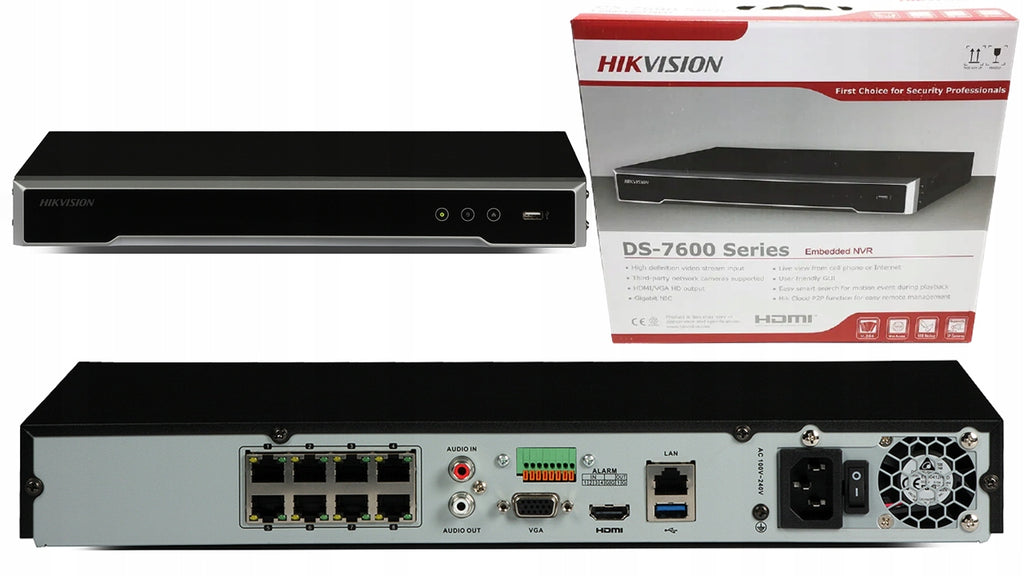

IP vaizdo įrašymo įrenginys HIKVISION DS-7608NXI-K2/8P, PoE

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys HIKVISION DS-7608NXI-K2/8P, PoE. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-7608NXI-K2/8P

NVR class IP recorder with built-in PoE switch.

The Hikvision DS-7608NXI-K2 recorder is an 8-channel video recorder operating in the IP standard. The DS-7608NXI-K2 uses AcuSense technology to filter false positives even more accurately. It has space for 2 hard drives with a maximum capacity of 10 TB each.

NVR class registrar with built-in PoE switch for 8 IP cameras.

Product Features

• Number of channels: 8
• Supported resolution: up to 12 Mpx
• Bitrate in/out: 80/160 Mpbs
• Video compression: H.265/H.265+/H.264+/H.264
• Video outputs: 1x HDMI, 4xVGA
• USB connectors: 2x USB 2.0
• Intelligent AcuSense features: Motion Detecion 2.0 technology, facial recognition (selected channels)
• Max. HDD quantity: 2
• Max. Disk capacity: 10TB
• Switch PoE: x8
• Remote support: iVMS-4200, Web browser, Hik-connect
• Ethernet Interface: 1 x RJ-45 10/100/1000 Mbps
• Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Power supply: 12VDC

AcuSense is primarily about detecting human and vehicle silhouettes, but also filtering alarms from sources other than people and vehicles. Additionally, AcuSense DVRs, using the latest deep learning technology, are able to extract people and vehicles from a large video dataset and save snapshots of objects for efficient search.

In addition to Hikvision IP cameras, the recorder is able to handle cameras from other manufacturers, including Zavio, Axis, Samsung and others, it is also possible to work with cameras operating in the ONVIF and RTSP standard.

The built-in PoE switch allows you to connect the cameras directly to the NVR and perform the entire installation using uniform UTP cabling, which is perfect especially for smaller facilities.

The HIkvision camera uses H.265+ compression to reduce network bandwidth occupancy and reduce disk occupancy in the recorder. Thanks to the use of intelligent analysis, predictive coding, background noise elimination and adaptive bandwidth control, gain over H.264+ compression. At the same time, in order to maintain compatibility with other systems, it is possible to use standard H.264 compression.

allows you to manage the camera without additional configuration on the router. With HIK-CONNECT, you have the ability to remotely control all camera functions at your fingertips.

HIK-CONNECT service is designed to work as well as with NVR and IPC cameras Hikvision. Thanks to the instant warning function, you can receive instant motion detection notifications so that we can take the necessary actions to ensure the safety of your property or loved ones.

Key Features:

1. Real-time live view.
2. Playback of recorded films.
3. Instant Alerts

• Resolution (max): 12 Mpx
• Number of IP cameras supported: 8
• Number of drives / TB capacity: x2 / 10TB
• Remote support: iVMS-4200, Browser WEB, Hik-connect
• Video compression: H.264, H.264+, H.265, H.265+
• Bitrate: 80/160Mbps
• Video output: HDMI (4K), HDMI (FullHD), VGA (1080p), BNC
• Recording resolution: 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• HDMI Output: 4K(3840×2160)/60Hz, 4K(3840×2160)/30Hz, 2K(2560×1440)/60Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280× 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA slave output
• Switch PoE: x8
• Network interface: 1x 10/100/1000Mbps
• Emergency Inputs/Outputs: 4/1
• Audio inputs/outputs: 1/1 bidirectional
• False alarm filtering: Available on 8-channels
• USB connectors: 2x USB2
• Audio connectors: 1 in / 1 out, RCA
• Audio compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
• Face extraction and analysis: Face comparison (4 channels), face capture (1 channel), face search after photo
• Face photo library: Up to 16 libraries, up to 20,000 facial images (photo size ≤ 4MB, total capacity ≤ 1GB)
• Comparing Face Photos: Comparing Face Photos on 4-Channels
• Face detection and analysis efficiency: Capture facial image on 1-channel
• Motion detection 2.0: Available on 8-channels - IMPORTANT: detection 2.0 does not work with active facial recognition
• Power Supply: 12V
• Weight: ≤ 1 kg
• Power consumption: 15W without HDD
• Working humidity: 10% to 90%
• Working temperature (°C): -10...+55°C
• Dimensions (H x width x D. ): 385 mm × 315 mm × 52 mm

• original product of the brand Hikvision
• Instantly deliver purchased device
• full support during selection and commissioning
• advice when selecting equipment
