IP vaizdo įrašymo įrenginys 8xPoE HiLook Hikvision NVR-8CH-5MP/8P iki 8Mpx

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys 8xPoE HiLook Hikvision NVR-8CH-5MP/8P iki 8Mpx. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-8CH-5MP/8P HiLook Series

8-channel / 8x PoE / up to 8Mpx / 1 HDD slot / Motion detection 2.0

Professional IP recorder with PoE switch

The NVR-8CH-5MP/8P network recorder is a 8-channel IP model from HiLook, designed to support IP CCTV systems, equipped with an integrated 8-port PoE switch. The device has the ability to record images from max. 8 high definition IP cameras - up to 4K @3840 × 2160p.

Most important features:

• Support up to 8 IP cameras
• Built-in PoE switch with a total power of 75W
• Support mobile application via P2P cloud
• High resolution recordings - up to 8Mpx
• Support motion detection
• Support for drives up to 8TB

Technical parameters:

• Model: NVR-8CH-5MP/8P
• Number of channels: 8 IP channels with PoE power supply
• Resolution supported: up to 8Mpx (4K 3840×2160)
• Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, human/vehicle traffic filtering (MD2.0)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 8TB
• Mobile application: Hik-Connect / HiLook App
• PoE power budget: < 75W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

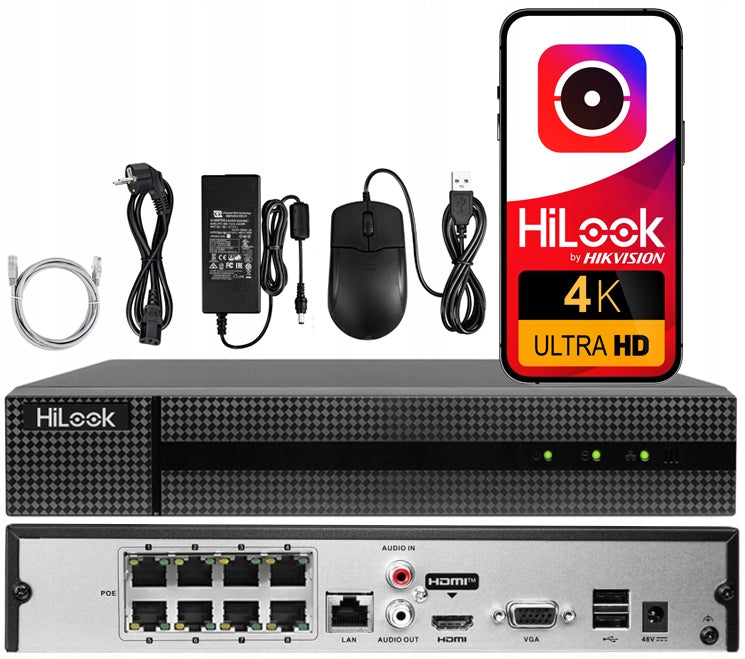

Includes power supply and mouse.

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.

The advantage of the recorder is the proprietary Hikvision Motion Detection 2.0 technology, allowing for filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Detection mode 2.0 is available 4 channels of the recorder.

The recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• IP video input: 8-channels
• Resolution: to 8MPx
• Bitrate in/out: 80 / 80 Mbps
• HDMI Output: 1ch, 4K (4096 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video compression: H.265/H.265+/H.264/H.264+/MPEG4
• Live view/playback resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Simultaneous playback: 8-channels
• Image decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Motion detection: supported
• Intelligent image analysis: filtering human/vehicle alarms on 4 channels
• SATA interface: 1
• Capacity: up to 8 TB
• Network interface: RJ-45 10/100Mbps Ethernet
• Number of PoE ports: 8
• Power budget: < 75W
• USB connectors: 2 × USB 2.0
• Power Supply: 48 VDC
• Working temperature: -10 ºC to +55 ºC
• Dimensions: 265 × 225 × 48 mm
• Weight: ~1 kg
