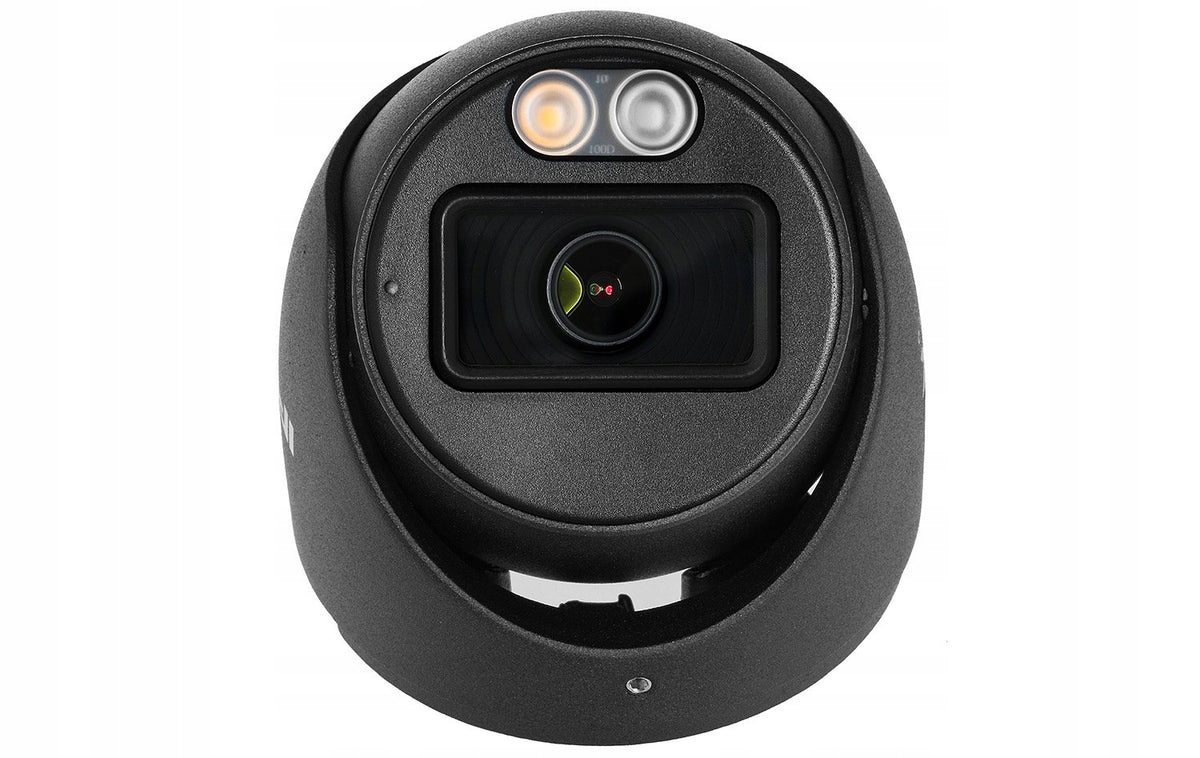

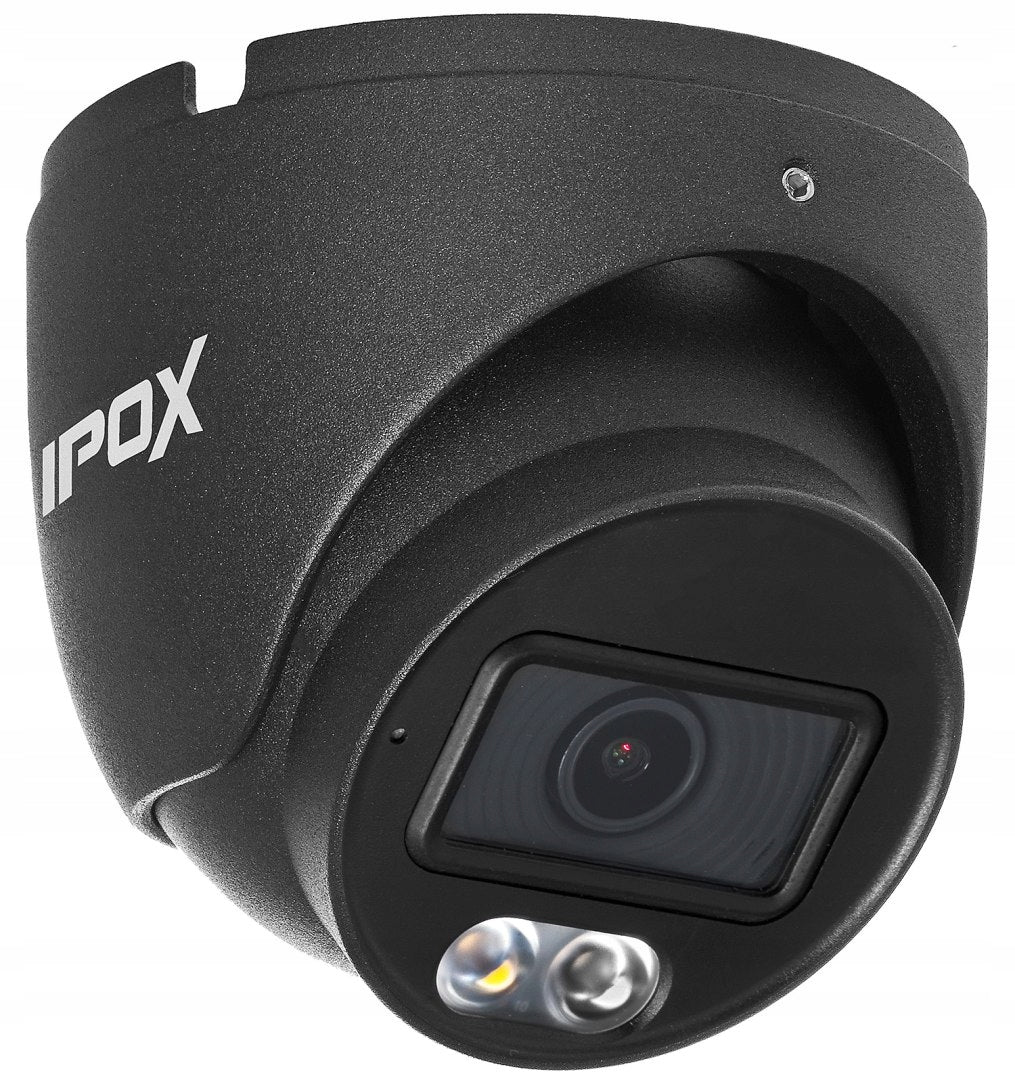

IP stebėjimo kamera Ipox PX-DI4036IR3DL/G, 4 Mpx

Trumpai apie prekę

Prekė: IP stebėjimo kamera Ipox PX-DI4036IR3DL/G, 4 Mpx. Kategorija: IP kameros.

• Gamintojas: IPOX
• Modelis: 6168G/3.6

✨PX-DI4036IR3DL is an IPOX turret camera working in the so-called double illuminator technology. Dual Light . In practice, the use of two types of diodes in the camera - IR with infrared light and LED with warm white light allows for obtaining a traditional black and white image or a color image at night. In the image capture process, the device uses a CMOS sensor , which allows capturing recordings at a resolution of 2560×1440 (4Mpx) . The fixed-focus lens used in the device allows for quick camera adaptation without the need for additional user intervention. The camera is equipped with basic AI functions that allow you to identify a person/vehicle after crossing a line or violating a zone.

✨Functional menu

Management, programming of settings and operation of the IPOX IP camera is carried out in a clear and transparent device management program, which is accessible via a web browser. Using the intuitive program menu, it is possible not only to test cameras and preview the recorded image live, but also to set advanced parameters and functions of the device.

✨Smart Dual Light - decide how to illuminate at night

The presented IPOX Light Explorer camera is equipped with Smart Dual Light technology, thanks to which it is possible to switch between different lighting modes in the camera. The use of a double IR + LED illuminator with SMART technology allows the white light to be turned on only when a person or vehicle is detected in a user-defined zone (up to 4 zones) . If a person leaves the monitored area, the white light LED illuminator is automatically switched to IR lighting after a time set by the user.

✨Colorful image 24/7

IPOX Light Explorer camera guarantees vivid color images 24/7 , even in very low light conditions. This feature has a positive impact on security and allows for accurate identification of people and property. The ability to capture detailed images in low light comes from the combination of a white light illuminator and a photosensitive sensor . Using these features allows more light to enter the camera, making it possible to capture images in a full range of colors with high brightness.

✨AI features in IPOX cameras

Unlike standard intelligent functions (VCA), AI solutions allow two or more functions to be combined to achieve better identification. The deep learning algorithm is mainly aimed at effective vehicle and human recognition . This ensures fewer false alarms, greater flexibility and has a positive impact on the accuracy of monitoring, which directly contributes to increasing the level of security in the monitored area.

✨Detection of left and missing objects

Left/taken object detection relies on real-time image analysis to detect objects that have been left or taken from a designated detection zone . Detection of abandoned objects is commonly used to analyze terrorist threats (left packages or luggage at railway stations, airports, etc.). ). Detection of stolen objects is ideal for theft prevention systems, e.g. monitoring of exhibitions and galleries (exhibits, works of art) or valuable pieces of equipment (museum halls, conference facilities, churches).

✨Notifications from alarm events

In addition, when connecting the camera with the IPOX recorder, it is possible, after an alarm from the event, to define the triggering of the alarm output, display a window with the appropriate text message, trigger a signal from the buzzer built into the recorder, or display a given camera on the entire screen of the monitor connected to the video output.

✨Camera with PoE technology

Power over Ethernet is a solution designed to carry out quick and uncomplicated installation of network devices and comfortable operation of equipment and easy modernization of installation. Thanks to the support of PoE in the 802.3af standard, it will be possible to connect an IP camera using the popular UTP twisted pair computer. Saving the total amount of wires necessary to start the device improves the monitoring system and allows the camera to be located away from traditional mains power sources.

✨NVMS

NVMS (Network Video Monitoring System) is a client program that enables seamless cooperation with IPOX devices and supports the management of products from other manufacturers via the ONVIF m.in protocol. Dahua and Hikvision. A clear user interface in Polish provides seamless control over dedicated devices and guarantees full comfort of using video security systems.

Specifications

Main

• Sensor: 1/3" 4MP Progressive Scan CMOS
• Resolution: 4Mpx, 2560 × 1440 pixels
• Sensitivity:
• 0.005 lux @ F1.6 (AGC ON)
• 0 lux @ IR LED ON
• Lens: 3.6 mm @ F1.6
• Field of View: Horizontal: 78°; Vertical: 40°; Diagonal: 97°
• Shutter Speed: 1 ~ 1/100,000 s (automatic / manual)
• Adjustment Range: Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotation: 0° ~ 360°

DORI

• Detection (25 px/m): 79 m
• Observation (63 px/m): 32 m
• Recognition (125 px/m): 16 m
• Identification (250 px/m): 8 m

Illuminator

• LED Type:
• IR (infrared)
• LED (white light)
• Number of LEDs:
• 1x IR LED
• 1x LED
• Range: 20 ~ 30 m
• Smart Illuminator: Yes, switches from IR to LED upon detection of a person / vehicle / two-wheeler (motorcycle / bicycle) in up to 4 defined zones
• White Light Hold Time: 10 ~ 300 s
• Smart IR: Yes
• Automatic Overexposure Control: Yes
• White Light Intensity Adjustment: 1 ~ 100

Illuminator Settings*

3 illuminator operating modes (IR only, LED only, Smart - IR + LED)

1. LED (visible, white light) - illuminator is off during the day; turns on automatically at dusk; provides color image at night.

2. IR (invisible, infrared light) - camera illuminates with infrared after dark; color image during the day, black-and-white at night.

3. Smart IR + LED (default) - combines both illuminator types; camera uses infrared at night and switches to white light and color mode only after detecting a person.

*To change the illuminator mode, go to Settings -> Stream -> Display -> Illumination Type in the settings menu.


• System: PAL (50 Hz) / NTSC (60 Hz)
• Video Compression:
• Main Stream: H.265+ / H.265 / H.264+ / H.264
• Sub Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Extra Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Processing Resolution: 2560×1440 (4Mpx) / 2304×1296 (3Mpx) / 1920×1080 (2Mpx) / 1280×720 (1Mpx) / 704×576 (D1) / 640×480 (VGA) / 480×240 / 352×288 (CIF)
• Frame Rate and Resolution:
• (Main Stream)
• 50 Hz: 1 ~ 25 fps @ 4Mpx / 3Mpx / 1080p / 720p
• 60 Hz: 1 ~ 30 fps @ 4Mpx / 3Mpx / 1080p / 720p
• Frame Rate and Resolution:
• (Sub Stream)
• 50 Hz: 1 ~ 25 fps @ 720p / D1 / VGA / CIF
• 60 Hz: 1 ~ 30 fps @ 720p / D1 / VGA / CIF
• Frame Rate and Resolution:
• (Extra Stream)
• 50 Hz: 1 ~ 25 fps @ D1 / 480×240 / CIF
• 60 Hz: 1 ~ 30 fps @ D1 / 480×240 / CIF
• Bitrate: 64 Kbps ~ 6 Mbps
• Snapshot to FTP Server: Cyclic snapshots (every 1 ~ 86,400 s = 1440 min = 24 h)
• Video Recording to Memory Card*: Record video and audio from selected stream based on: schedule (24/7), alarm events (motion detection), intelligent analysis
• Snapshot Recording to Memory Card*:
• Save snapshots from selected stream based on: schedule (24/7), alarm events (motion detection), intelligent analysis, cyclic snapshots (every 1 ~ 3600 s)
• *Note: The camera does not have a built-in battery. For correct SD card recording functionality, the camera requires internet access / NTP server or connection to an NVR for time synchronization.
• Snapshot Download: From any stream
• Settings: AWB (manual 0 ~ 100), AGC (manual 0 ~ 100), BLC, HLC, MIR, FLIP, 2D/3D DNR, WDR 120 dB, ROI, Corridor Mode (90° / 180° / 270°)
• Adjustment: Saturation, brightness, contrast, color, sharpness, noise reduction
• Flicker Filter: 60 Hz / 50 Hz
• Day/Night Mode: 3 profiles (auto, manual, schedule), 3 sensitivity levels, transition delay 2 ~ 120 s
• Video Settings Configuration: 3 profiles (day, night, universal) with scheduling options

Audio (Off by default)

• Compression: G.711A, G.711U
• Built-in Microphone: Yes
• Microphone Volume Level: 0 ~ 100
• Audio Input Volume Level: 0 ~ 100
• RTMP:
• Sampling Frequency: 8000 Hz
• Sampling: 16 bits
• Audio: Mono

Connectors

• Ethernet: 1x RJ-45 10Base-T/100Base-TX
• Audio: 1x Input (3.5mm jack)
• Memory Slot: 1x microSD/microSDHC/microSDXC slot up to 256 GB
• Power: 1x 5.5/2.1 barrel connector
• Reset Button: 1x

Functions

• Protocol support: Onvif Profile G, M, S, T (24.06)
• Integration:API, HTTP POST (e.g. Satel Integra: ETHM-1 Plus -1 entry)
• Menu languages:English, Chinese, Simplified Chinese, Czech, French, Hebrew, Spanish, Spanish (Latin America), Japanese, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Turkish, Hungarian, Italian
• OSD: Date, camera name, watermark, ability to set your own text (1 line, 15 characters)
• Online users:Max. 6 connections
• Login lock: Yes, after 6 failed attempts
• Password security: 3 difficulty levels and the ability to set the time after which you need to change the password to a new one (from 30 days to never)
• Ability to disconnect the connection: Yes, from the administrator
• Address filtering: IP
• Notifications: IP address change, incorrect login, motion detection, sabotage, object protection, line crossing, intrusion detection (zone violations)
• Video event alarm sustain time:1 s / 3 s / 5 s / 10 s / 20 s / 30 s / 60 s / 2 min
• System alerts:Filled microSD card, microSD card error
• Motion detection: Any number of zones, adjustable sensitivity 1~8, action schedule
• Motion detection fields: 396 (22×18)
• Privacy zones: 4 zones
• ROI:3 areas (level 1~10)
• Prevention:Automatic / manual restart
• Spare system image:Yes

Management

• Browsers (Windows/macOS/Linux): Edge, Safari, Opera, Chrome, Firefox, etc. - plug-free interface, Internet Explorer - requires installation of plug-in
• CMS (Windows/macOS):NVMS 2.0
• Mobile devices (Android / iOS):IPOX PRO

Smart functions (traditional algorithm)

• Basic: Object protection (detection of left/taken objects; 1 area), motion detection, exception (network disconnection, IP address conflict, illegal login, full microSD card, microSD card error), sabotage (detection of change: scene, color, blur)

Deep Learning*

• Motion detection: Motion detection based on object recognition (human/vehicle)
• Perimeter protection (perimeter): Line crossing detection (4 lines), intrusion detection (4 zones) - all based on object recognition (human/vehicle)

Filtering false alarms:

• Filtering selected smart analytics alarms based on object recognition (human/vehicle)
• Target size filter for perimeter protection set separately for people and vehicles (min. width / height 1%; max. width / height 90%). Filter values are set the same for all active zones/lines

*Attention! The filter function is available separately for motion detection and only for one perimeter protection analysis function (enabling one will disable the other)

Other

• Compliant with NDAA:Yes
• Protection class:IP67
• Mechanical resistance: IK10
• Power supply: 12 V DC or PoE 802.3af
• Power consumption: < 6 W with illuminator on< /li>
• Moisture: < 95% (non-condensing)< /li>
• Working temperature: -30°C ~ +60°C
• Weight: approx. 450 g
• Dimensions (dia. /H ): ø94,6×82,8 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5907021140485
Parametry	Manufacturer code	6168G/3.6
Parametry	Brand	IPOX
Parametry	Model	6168G/3.6
Parametry	Packaging status	original
Parametry	Batteries included	no
