IP POE vaizdo stebėjimo rinkinys 8Mpx, 4 kameros, be disko, žmogaus aptikimas

Trumpai apie prekę

Prekė: IP POE vaizdo stebėjimo rinkinys 8Mpx, 4 kameros, be disko, žmogaus aptikimas. Kategorija: Rinkiniai.

• Gamintojas: Luxtorn
• Modelis: BVK8-30V1

______________________________

Set of 4 cameras Luxtorn 8MPx ideal for monitoring home, office, warehouse, store or parking lot. Thanks to the solid housing and resistance , the camera's weather conditions are perfect for both indoor and outdoor use. A simple vision system with excellent image quality will provide the ability to control the object and the area around it. And thanks to dedicated Polish-language V247 and BitVision applications - you can have a preview from your live cameras wherever you are!

✔ Simple and convenient installation: you will receive the purchased set already configured, cameras paired with the router and then added to the recorder, all ready for installation. There will also be instructions for connection in the box. And if you have additional questions with the kit, you get full support from our technical department. (Note: no disk included).

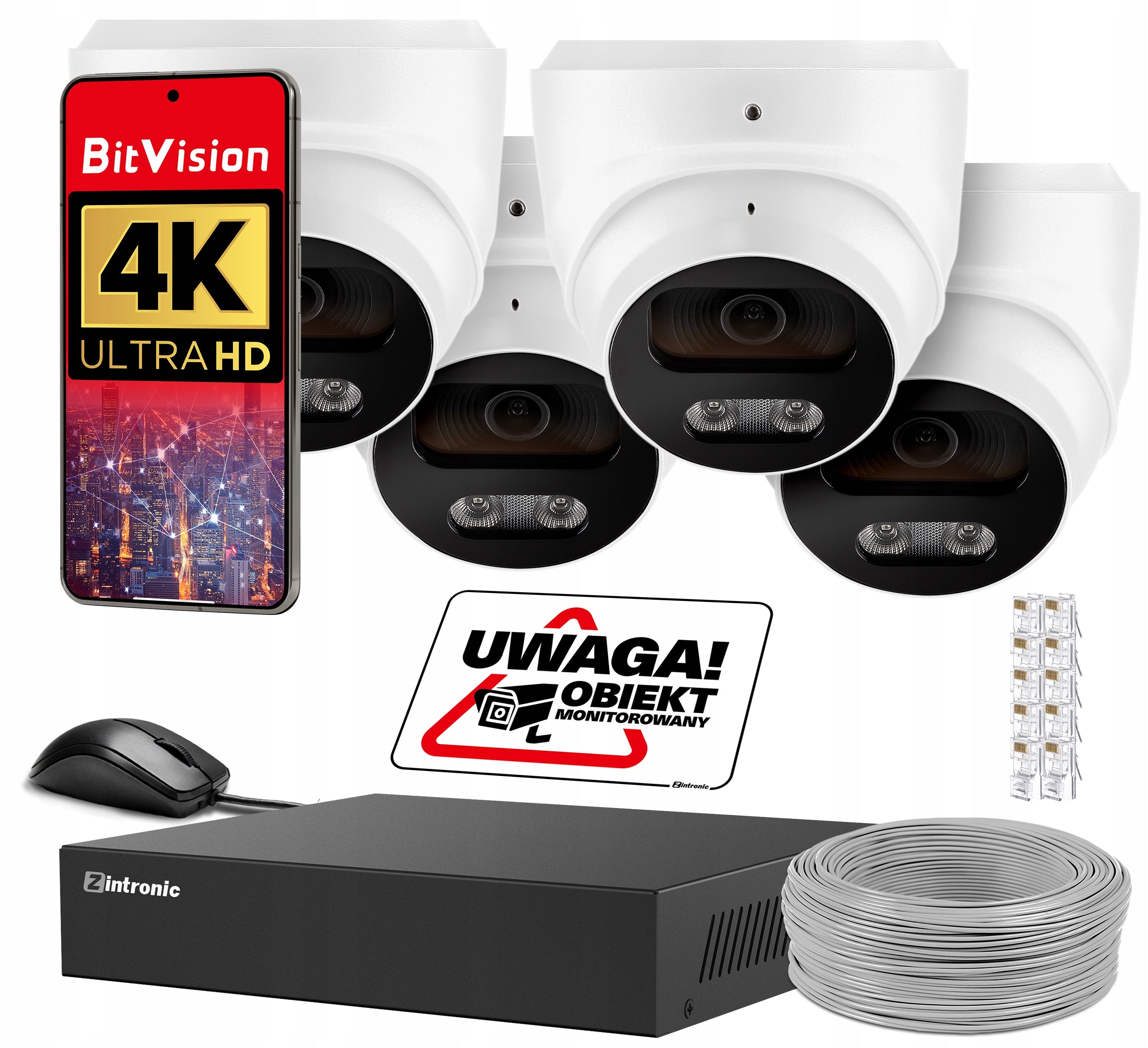

COMPOSITION OF THE SET:

✧ 4 dome cameras Luxtorn (8mpx)

✧ 1x 9kan 4PoE Recorder (8mpx)

✧ 1x Monitored object plate

✧ 40m twisted pair with tips

MONITORING - TELEPHONE - TV - PC

Have full control over your cameras wherever you are, using the V247 or Bitvision app! You can have live preview on multiple devices at the same time – log in to the camera from different devices and share the image with others in an easy way.

Our cameras cooperate with dedicated, free software in Polish, which provides convenient operation and management of devices:

• On a TV or monitor – via a recorder, for traditional control on a large screen.
• On your computer – through your browser on your local network, IVMS 320
• On your phone/tablet – using the V247 or Bitvision mobile application, which allows quick access to cameras from anywhere.

IMAGE QUALITY! - 8MPx

The camera offers exceptional image quality in 8MPx 4K resolution, which provides an extremely detailed and clear image. This allows you to easily see small details, such as faces, license plates, and small items, making monitoring more efficient.

The camera captures video with liquidity of 20 frames per second for clear and natural jam-free movement, ideal for dynamic scenes. This high image quality makes the camera an excellent choice for monitoring with a large range of detail.

AUDIO RECORDING

The built-in microphone allows you to record audio along with the image. Thanks to this function, you have the ability to record not only visual but also audible events, which increases the effectiveness of monitoring.

Sound recording allows you to better understand the context of the situation, which is especially useful when securing entrances to buildings, offices or other places with high traffic. This feature makes monitoring more comprehensive by providing additional information in real time.

NIGHT VISION - 30M

The camera is equipped with an advanced infrared system, allowing for effective monitoring even in complete darkness. With an infrared range of up to 30 meters, the camera records a clear image at night, ensuring 24/7 security.

DETECTION - NOTIFICATIONS

The camera is equipped with an advanced motion detection system that automatically detects any activity in the monitored area. When traffic is recorded, the system immediately sends a notification to your phone via the Bitvision app.

Modern and flexible operation! The device works with the latest V247 app, which ensures stable performance and live viewing. For even greater convenience, you can also add the product to the popular and well-regarded Bitvision app.

Available in Polish, this is an intuitive tool that allows for constant viewing of the monitored area and browsing recorded events on the disk. Using these apps, users can also easily take photos and record videos, which will be automatically saved to their smartphone with the app installed.

Additionally, both apps offer a digital zoom function for any area of the displayed image, allowing for a closer look at details with an eight-times magnification.

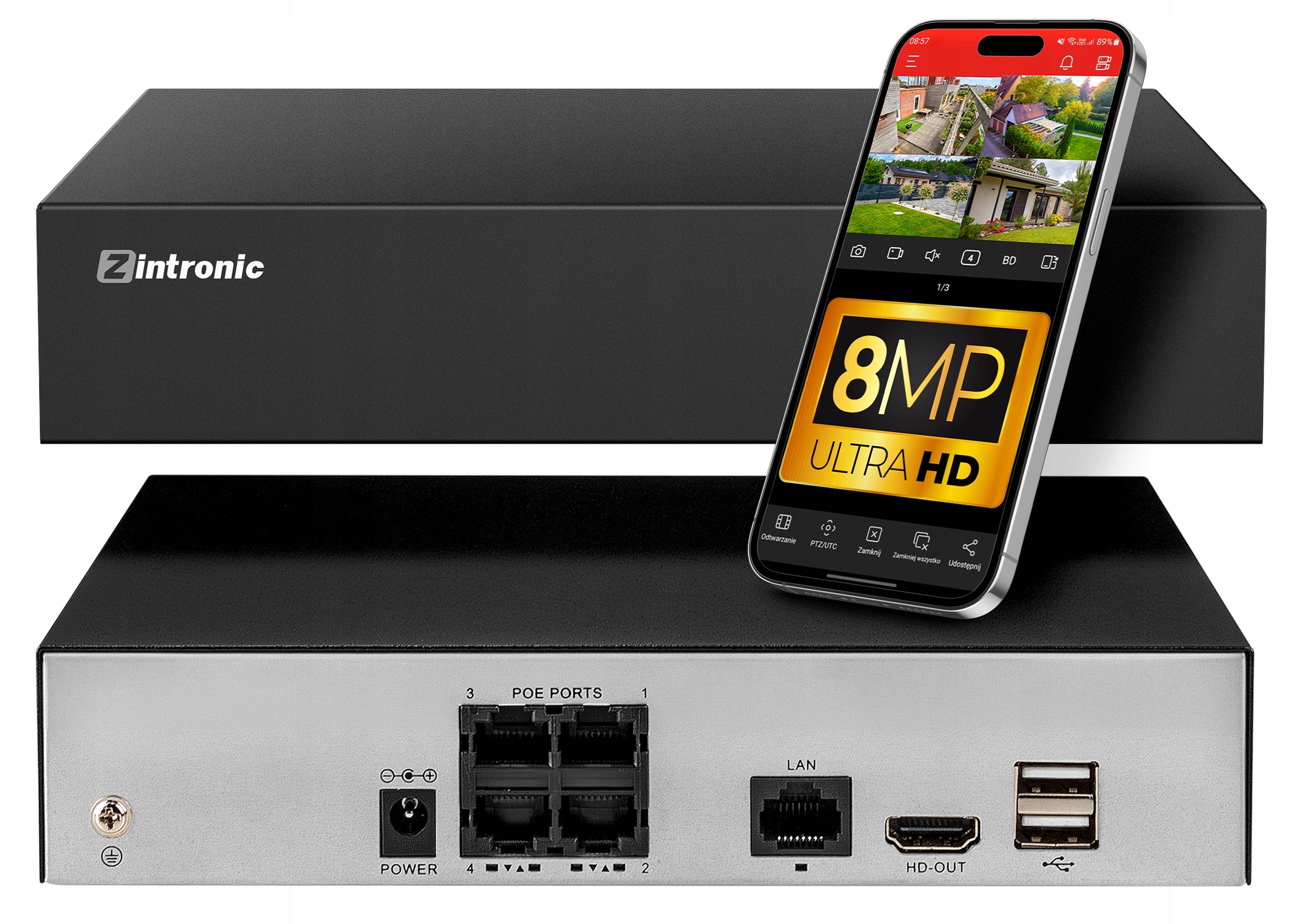

⭐ Multifunctional and reliable 9 channel +4POE IP RECORDER

This digital recorder supports up to 9 IP cameras with a maximum resolution of 4K/Ultra HD (8MPx). The device has 4 built-in PoE ports, allowing direct connection of four cameras. If the system is expanded, you can add up to 5 additional cameras over the network or using an additional PoE switch.

The recorder allows you to save to disk and centrally manage all your cameras, offering a wide range of features and easy operation from one place.

_______________________________________

WHAT IS INCLUDED IN THE SET:

⭐NVR IP 9 Channel 4PoE Network Recorder 8MPx 1 Sata x 1pcs

SKU: IR9P4S18MPL

• Number of cameras supported: 9
• Number of PoE ports: 4
• Bandwitch: 72MB
• Maximum supported resolution: 8MP/4K (3840×2160)
• Number of hard drive inputs: 1 x Sata, maximum disk capacity 8TB
• USB inputs: 2x USB 2.0
• Power supply: 12 V DC / 2 A
• Compression: H.265 / H.264
• Audio compression: G.711A
• Motion detection: ONVIF - Yes, RTSP - Ni
• Accessories: Mouse, Power Supply, Quick Guide
• Protocol: Onvif 2.4

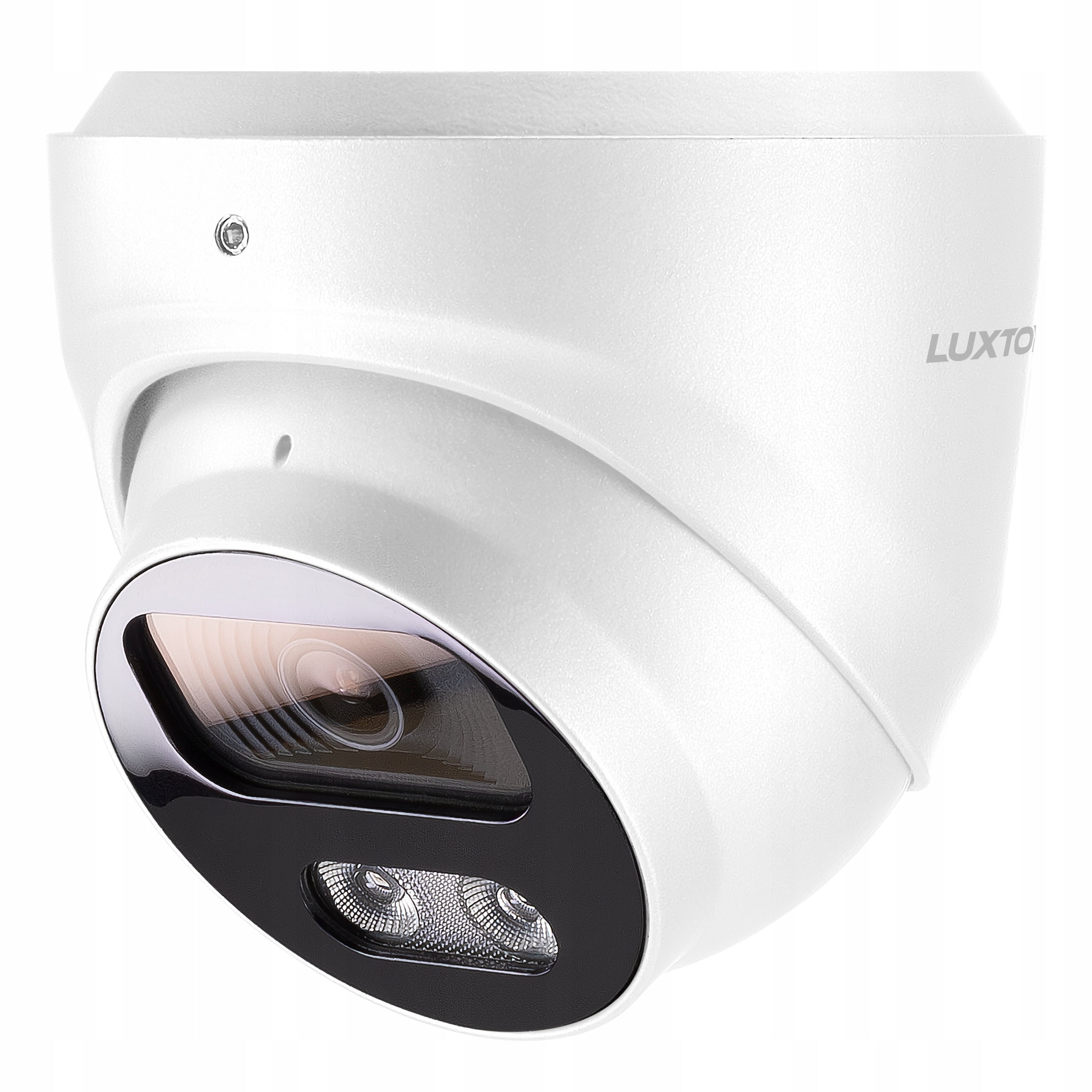

⭐8Mpx IP POE 4K Ultra HD 8MPx 3840x2160 Camera - 4pcs

• SKU: BVK8-30V1
• Type of camera - Network
• Supported resolutions: 3840x2160 @20kl/s
• Processor: FH8856
• Lens focal length: 2.8mm (109°)
• Infrared range: 30m
• Leak-proof class: IP67
• Power supply: DC12V/1A or POE

⭐Adhesive information board - 1 pcs.

• SKU: T-25X175Z

⭐Ethernet LAN Cable Network CAT5 40m BITNER 100% Copper

• SKU: BITK5UTPW

⭐Ends/plugs rj45x10pcs

• SKU: RJ45/C53

ATTENTION! A: It is possible to convert twisted pair to patch cords without additional surcharge.

⚠ Method of connecting the set – quick installation of the monitoring set:

1. Place the cameras in the planned mounting locations and connect the LAN cable to each of them.
2. Connect the other ends of the LAN cables from the cameras to the PoE ports of the recorder (order is arbitrary).
3. Connect the recorder to the router with a LAN cable – from the LAN port of the recorder to the LAN port of the router.
4. If you plan to have access to the DVR menu on your TV or monitor, connect it with an HDMI or VGA cable.
5. Connect the power supply from the box to the recorder and to the 230V network.
6. Install the V247 or Bitvision mobile application on your Android or iOS phone, create an account (preferably in the gmail.com domain) and add a recorder by scanning the QR code (visible on the sticker on the bottom of the recorder or on the box), entering the login: admin and password: 12345 and the CAPTCHA verification code (from the above-mentioned stickers).
7. The monitoring set is active.

Dedicated Handle - AKU1V1

It is possible to purchase dedicated mounting brackets at our other auction no. 9652428780

⭐WHY MONITORING IP?

IP monitoring is a modern solution that significantly improves image quality compared to traditional analog systems. Thanks to digital technology, IP cameras provide sharp, clear images and video smoothness, which is especially important in monitoring larger areas where details are crucial.

Another advantage is the cost savings of installation. Unlike analog systems, which require separate wires for power and image transmission, IP technologies use only one UTP (Ethernet) cable, which significantly reduces material costs and installation time. The whole process is simpler and more efficient – just connect the camera to the recorder, which will automatically detect and activate it.

IP monitoring also offers greater functionality and flexibility in system expansion. IP cameras can be connected over much longer distances – up to 90 meters, which gives you more freedom in planning and expanding your surveillance system. Additionally, IP systems offer ease of integration with other devices, allowing you to create more advanced security solutions such as remote access, real-time image analysis, and the ability to archive recordings in the cloud.

Thanks to all these advantages, IP monitoring becomes the most future-proof solution that not only provides high image quality, but also flexibility, ease of installation and expansion, making it an ideal choice for a variety of applications.

________________________________

Example view from cameras:

Specifications
