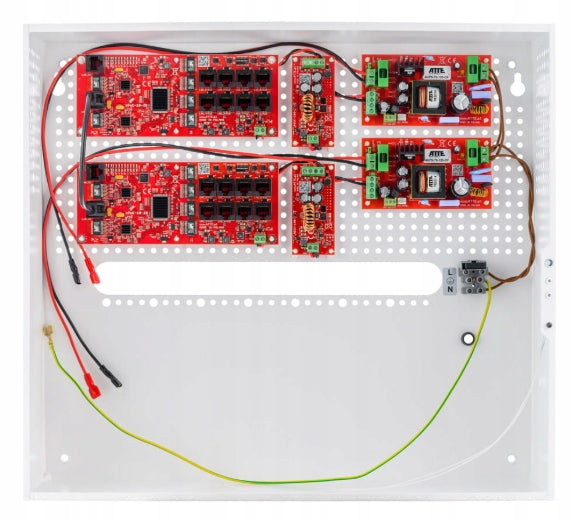

IP kamerų maitinimo komutatorius ATTE IPUPS-16-20-H, 16 PoE+2G portai

Trumpai apie prekę

Prekė: IP kamerų maitinimo komutatorius ATTE IPUPS-16-20-H, 16 PoE+2G portai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: IPUPS-16-20-H

TECHNICAL SPECIFICATION:

• Total number of ports: 16 PoE ports, 2 UpLink ports
• LAN ports 10/100Mbps: LAN 1 ... LAN 8
• LAN ports 1000Mbps: LAN G1, LAN G2
• LAN + PoE ports OUT 10/100Mbps: LAN 1 ... LAN 8 PoE Passive
• Input voltage: 190 ... 260 VAC, 50 Hz
• PoE output voltage: 48 VDC +/- 2%
• Maximum output power from port: PoE Passive LAN 1 ... LAN 8 - 40 W
• Power control at the output: PoE ON/OFF switch - positions 1...8 (LAN 1...LAN 8)
• Overvoltage protection: LAN 1 ... LAN 8
• Overload protection: LAN 1 ... LAN 8 Overload protection 0,9A
• Power Supply Type: Buffer SMPS
• Power supply - continuous: 2 x 72 W
• Efficiency: 90% @120 W
• Power supply input protection: Fuse fuse immediate 3,15 A
• Power supply output protection: Electronic overload protection at 9 A
• Power supply thermal protection: TSD 130°C - requires power supply restart
• Battery circuit protection: Battery disconnection for voltage below 10,8 V Fuse fuse 6,3 A
• Starting in the absence of AC power: START button
• Battery charging current: 1 A or 2 A
• Number of batteries: 2
• Battery: Gel or AGM 12V/18Ah
• Voltage signaling from the mains: LED_AC (yellow) - presence of mains voltage
• Output voltage signaling: LED 1 (green) - presence of output voltage
• Battery signal: LED 2 (red) - battery charging
• PoE signaling: LED LAN 1 ... LAN 8 (red) - presence of PoE power supply
• Transmission signal: LED LAN 1 ... LAN 8 (green) - link and data transmission
• Operating temperature range: -25°C ... +50°C
• Dimensions (S x W x G): 450 x 400 x 140 mm
• Degree of protection: IP20
• Housing: ABOX-H / steel sheet 0,8 mm / white / cable outlets
• Assembly: Wall mounting through 6 mm mounting holes
