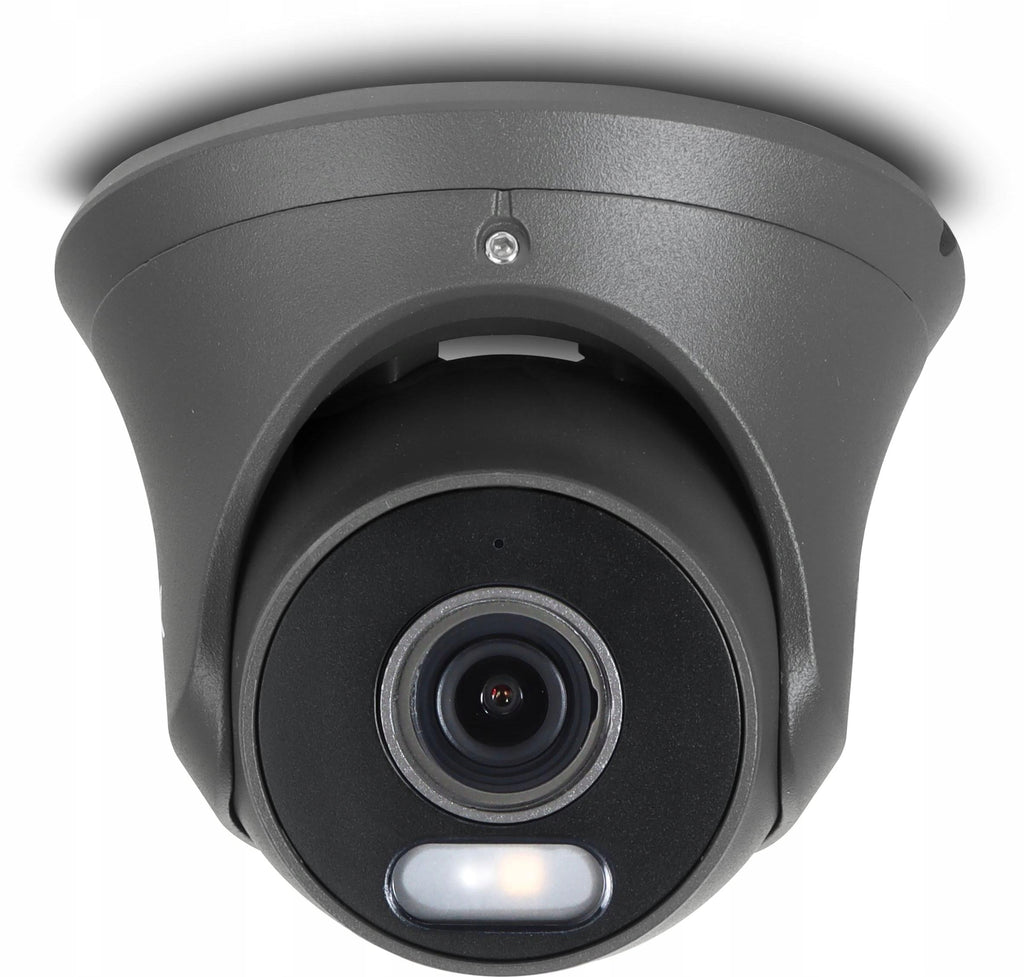

IP kamera KENIK KG-5430DAS-IL-G, 2.8 mm

Trumpai apie prekę

Prekė: IP kamera KENIK KG-5430DAS-IL-G, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: getfort
• Modelis: KG-5430DAS-IL-G

The most important features

• 5MPX resolution (2880x1620) at 25fps
• H.265+/H.264+ compression
• WDR (120dB), day/night (ICR), 3DNR, AWB, AGC, BLC
• 2,8mm Lens (F1.6)
• Built-in microphone
• Dual Light Headlamp (IR + Warm Light)
• MicroSD card reader up to 256GB
• Intelligent IVS image analysis (human/vehicle detection, line crossing, intruder detection, area entry, area exit, fast movement)
• Function Defog,ROI
• RTMP (Live Streaming)
• 3 streams
• Reset button
• Corridor mode
• Dual power supply 12V DC/PoE (802.3af)
• Enclosure with IP67 protection class
• Supports ONVIF 2.6 standard
• Mobile preview on smartphone (Android, iPhone)
• Free in Polish for registration on your computer

Purpose

The camera is designed for outdoor applications. The housing allows you to mount the camera both on the ceiling and on the wall. The camera will be used in monitoring: parking lot, playground, hall, square, state institutions, schools, etc.

Smart Illumination is a modern technology used in Kenik cameras, which after detecting movement on the image monitored by the camera begins to record in color. When the object leaves the area, the camera returns to recording mode in black and white.

Intelligent illuminator - modern IR+LED connection

The white light reflector and IR reflector are advanced elements of modern Smart Illumination technology used in Kenik cameras. When motion is detected, the white light reflector activates, allowing the camera to record full-color images, making it much easier to identify details. When the monitored area is abandoned by the object, the IR reflector takes over the lighting function, and the camera automatically goes into black and white mode, which allows you to save energy while maintaining high-quality recordings at night.

Description

The Kenik IP camera is ideal for surveillance systems that require the highest image quality. The 5MPX transducer and advanced H.265+ compression ensure that many details are recognized both day and night. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. DEFOG, ROI, hardware WDR ensures that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. In addition, the Kenik camera uses Power over Ethernet (POE) power so that we do not have to lay two wires, because we only need a twisted pair to connect the cameras with other devices in the network.

Intelligent Image Analysis (IVS)

A big advantage of the camera is the support for intelligent video analysis. Event detection was used in the case of: human/vehicle detection, line crossing, intruder detection, entry into the area, exit from the area, fast movement. This increases the effectiveness of the monitoring system and the safety of the controlled facility.

Kenik Mobile Preview

Thanks to the free Kenik Mobile application, we have the ability to remotely view the image from the camera on your mobile phone. Just download it from the app store. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.

VMS Pro software

VMS Pro is software that allows you to preview the image and manage the DVR on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

SD card reader

The camera allows you to record video on a memory card based on a set schedule or motion detection. The reader supports cards up to 256GB. This allows the camera to operate autonomously without the use of a recorder or create an emergency backup.

Motion detection

Motion detection is one of the functions of the camera, which is responsible for recording the image. Detection is carried out on the principle of capturing changes in the image, and the recording of the selected channel is enabled. This function has a number of additional possibilities, including defining the detection field, adjusting the appropriate sensitivity of changes that are responsible for recording.

TECHNICAL SPECIFICATIONS:

• Image Sensor: 1/2.7" Progressive Scan CMOS Sensor
• Sensitivity: 0.006 lux (color), 0 lux (IR on)
• Shutter Speed: Auto/Manual, 1/3~1/10000s
• Lens: 2.8 mm, F1.6 Horizontal field of view: 110°
• Lens Mount: M12
• Image Rotation: Yes
• WDR: Yes
• Noise Reduction: 2/3D DNR
• IR Range: 30M (IR) 30M (White Light)
• Smart IR: Yes
• Microphone: Yes
• Speaker: No
• MicroSD Card Slot: Yes, up to 256 GB
• NAS: NAS (NFS, SMB/CIFS)
• Compression:
• Video Compression: H.264/H.264+/H.265/H.265+
• H.264 Codec Profile: Baseline/Main/High Profile
• H.265 Codec Profile: Main Profile
• Audio Compression: G.711A/G.711U
• Video Bitrate: 11 Kbps~10Mbps
• Audio Bitrate: 64 Kbps
• Image:
• Max. Resolution: 5MP (2880 x 1620)
• Frame Rate: 50Hz: 25 fps 5MP (2880 x 1620), 25 fps 4MP (2560 x 1440), 25 fps 1080P (1920 x 1080), 60Hz: 30 fps 5MP (2880 x 1620), 30 fps 4MP (2560 x 1440), 30 fps 1080P (1920 x 1080),
• 50Hz: 25 fps 720P (1280 x 720) 25 fps D1 (704 × 576), 25fps CIF (352 x 288) 60Hz: 30 fps 720P (1280 x 720) 30 fps D1 (704 × 480), 30 fps CIF (352 x 240)
• Image Settings: Brightness/Contrast/Saturation/Hue/Sharpness
• BLC: On/Off, configurable zone
• HLC: Yes
• ROI: Yes
• Network:
• Events: Motion detection, video tampering, line crossing
• Smart Image Analysis: Human/Vehicle Detection SMD+P.P., Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection (alarm triggering), Scene Change Detection
• Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP, RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P
• Supported Standards: Onvif (Profile S, G, T), CGI
• Security: User authentication, IP address filtering, video masking
• Mobile Viewing: iPhone, iPad, Android
• Web: IE, Chrome, Firefox
• Interfaces:
• Communication Interface: 1x RJ45 10M/100M Ethernet Port
• General:
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing)
• Power Supply: DC12V ± 10%
• PoE Support: PoE (802.3af)
• Power Consumption: Max. 6W
• IP Rating: IP67
• Dimensions: Φ 103.5 × 82.4 mm
• Weight: 450g
