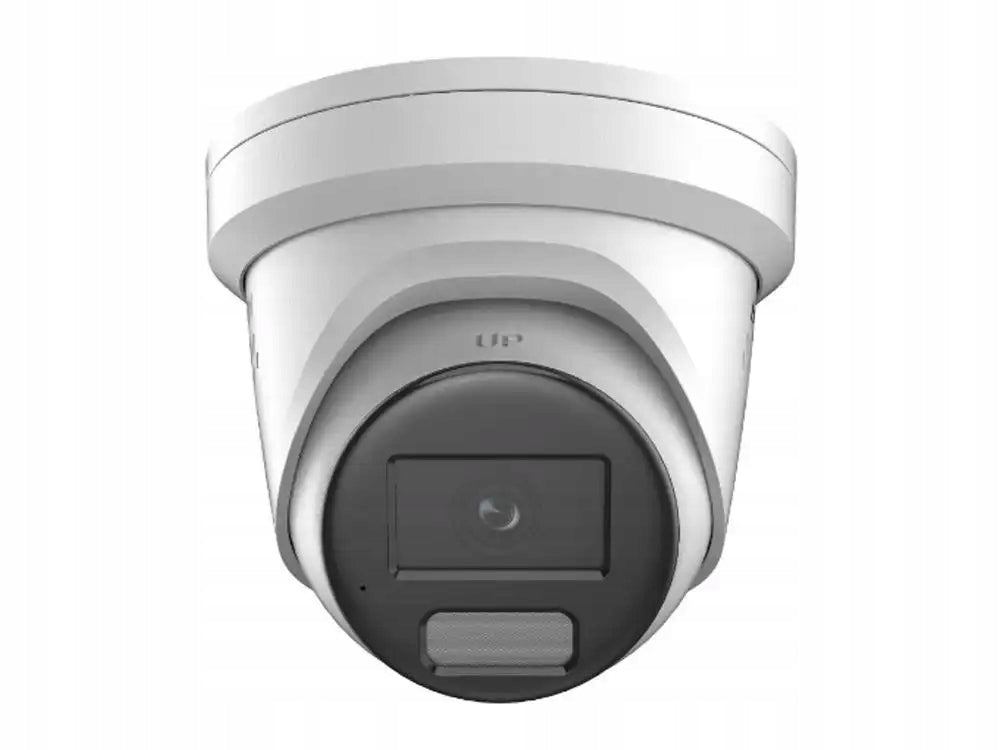

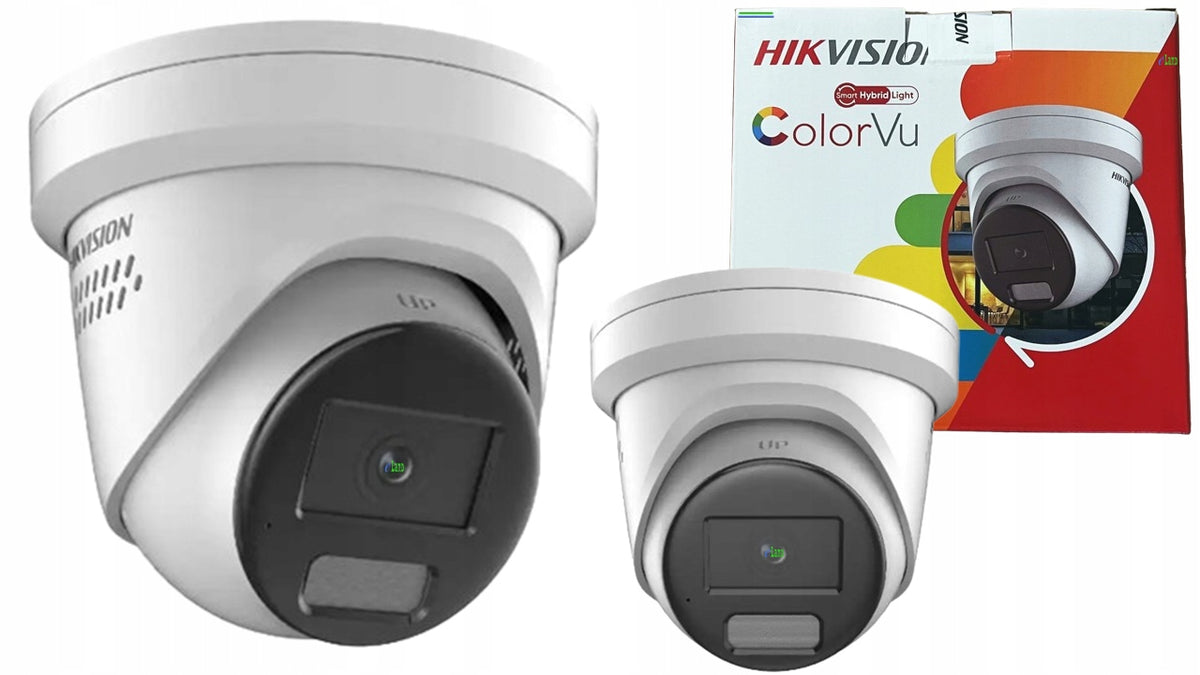

IP kamera Hikvision DS-2CD2347G2H-LISU/SL, 4MP, 2.8 mm, ColorVu

Trumpai apie prekę

Prekė: IP kamera Hikvision DS-2CD2347G2H-LISU/SL, 4MP, 2.8 mm, ColorVu. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2347G2H-LISU/SL

Camera , 4MPx, Hybrid Light, ColorVu , AcuSense, Live Guard

2,8mm lens, microphone and speaker

DS-2CD2347G2H-LISU/SL is a turret IP camera with a fixed lens and two illuminators working in white or infrared light technology. The device comes from the Hikvision Smart Hybrid Light series and is equipped with ColorVu, AcuSense and Live Guard technologies. The camera can work in three different night modes offering black and white image using IR diode, color when using visible light LED or SMART mode, which automatically changes IR mode to LED when human or vehicle is detected. AcuSense Live Guard technology, on the other hand, is characterized by the use of AI functions and combining them with active light and sound deterrence. Flashing light plays a warning role and increases the chance of recording the face of an intruder. On the other hand, sound messages play an informative and admonishing role.

• High image quality thanks to 4 MP resolution
• Smart Hybrid Light; advanced long-range technology
• Clear picture in strong rear lighting thanks to 130 dB WDR technology
• Efficient H.265 compression technology
• Focus on classifying people and vehicles based on deep learning
• Ensure real-time security with built-in two-way audio
• Active strobe light and audible alarm alert intruders
• Support built-in memory up to 512 GB (SD card slot)
• Audio and alarm interface available
• Water and dust resistant (IP67)

Hikvision ColorVu technology delivers vibrant colors 24/7. The super aperture of the F1.0 collects more light for brighter images. Advanced sensor technology can greatly improve the use of available light. In the scenery without light, built-in, warm additional lighting guarantees colorful images.

The smart hybrid illuminator is one of the illuminator modes used in the camera. It allows white light to be switched on only if it is detected in the detection zone of a human or vehicle. In the event that a person leaves the monitored area, the LED illuminator is switched to IR illumination after 1 minute. In addition to the mentioned mode, the user can also choose from LED mode (only white light, which allows color image at night); IR mode (infrared only) or complete switching off the illuminator.

AcuSense technology, based on deep learning algorithms, now allows you to classify objects in both external and internal devices. Thanks to precise recognition, the system can filter out up to 90% of events that trigger false alarms, which significantly increases the accuracy and effectiveness of alarming and contributes to reducing labor costs.

• Detection of intrusion
• Line Crossing Detection
• Detection of entry into the area
• Detection of exit from the area

even smaller bandwidth and more disk space

The HIkvision camera uses H.265+ compression to reduce network bandwidth occupancy and reduce disk occupancy in the recorder. Thanks to the use of intelligent analysis, predictive coding, background noise elimination and adaptive bandwidth control, gain over H.264 compression. At the same time, in order to maintain compatibility with other systems, it is possible to use standard H.264 compression.

allows you to manage the camera without additional configuration on the router. With HIK-CONNECT, you have the ability to remotely control all camera functions at your fingertips.

HIK-CONNECT service is designed to work as well as with NVR and IPC cameras Hikvision. Thanks to the instant warning function, you can receive instant motion detection notifications so that we can take the necessary actions to ensure the safety of your property or loved ones.

Key Features:

1. Real-time live view.
2. Playback of recorded films.
3. Instant Alerts

• Converter: 1/1.8″ Progressive Scan CMOS
• Sensitivity: Colour: 0.0005 Lux @ (F1.0, AGC ON) 0 Lux (LED ON)
• Snapshot: 1/3 s to 1/100 000 s
• Position adjustment: Panorama (pan): 0° ~ 360°, slope (tilt): 0° ~ 75°, rotation: 0° ~ 360°
• Focal length: 2.8 mm
• Angle of view: Horizontal: 111,1°, vertical: 57,6°, diagonal: 138,5°
• Aperture: F1.0
• Attachment: M16
• Depth of field: 2,5 m ~ ∞
• Illuminator type: IR or LED (white light)
• Number of LEDs: 2x IR LED 2x LED
• Range: 30 m
• Intelligent illuminator: Yes
• IR wavelength: 850 nm
• Working modes: IR only, LED only, Smart - IR + LED (classification of people and vehicles), illuminator always on / off, schedule
• Maximum resolution: 4.0 Mpx, 2688×1520 pixels
• Compression: Main stream: H.265+ / H.265 / H.264+ / H.264 Auxiliary stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264
• Bitrate: 32 Kbps ~ 8 Mbps
• Bitrate control: CBR / VBR
• SVC: Yes, for H.265 and H.264
• ROI: Single-Region support for main and secondary streams
• Built-in microphone: Yes
• Ambient noise filtering: Yes
• Sampling: 8 kHz / 16 kHz / 32 kHz / 44,1 kHz / 48 kHz
• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Bitrate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 ~ 192 Kbps (MP2L2) / 8 ~ 320 Kbps (MP3) / 16 ~ 64 Kbps (AAC-LC)
• Built-in speaker: Yes, power 1,2 W, volume 95 dB @ 10 cm
• SNR: ≥52 dB
• Day/night mode: Auto/schedule
• Image enhancement features: BLC, HLC, 3D DNR
• WDR: 130 dB
• Privacy masks: 4x
• Image parameter switch: Yes
• Image functions: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable using software or web browser)
• Live view: Up to 6 channels simultaneously
• Compliance with standard: ONVIF (S profile, G profile, T profile), ISAPI, SDK
• Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WeRPb,
• Users: Support up to 32 users / 3 levels of access: administrator, operator, user
• Security: Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF , RTP/RTSP over HTTPS, audit timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Archiving: MicroSD/SDHC/SDXC (512 GB), NAS (NFS, SMB/CIFS), ANR
• Remote operation: iVMS-4200, Hik-Connect
• Basic Intelligent Functions : Motion Detection, Video Tamper Alarm, Exception (Network Disconnection, IP Address Conflict, Illegal Login, Full microSD Card, microSD Card Error)
• Smart: Scene change detection
• Face Detection: Yes
• Motion detection: Yes (classification of people and vehicles)
• Perimeter protection: Line crossing detection, intrusion detection, region entry detection, region exit detection. All based on the classification of people and vehicles.
• Filtering false alarms: Filtering analysis alarms based on object recognition (human, vehicle)
• Warning light (deterrent): 1x white light with on/off capability and flicker frequency setting
• Audio warning (deterrence): Selection of one of the verbal commands available on the device (in English) or one audible alarm (e.g. Sirens) Possibility to upload your own audio wav file with a size less than 512 kB and a sampling frequency of 8 kHz.
• Two-way audio transmission: Yes, microphone + speaker (between control point and camera)
• Real-time notification: Push notifications on your smartphone
• Network: 1x RJ-45 10/100 Base-T/Base-TX
• Audio: 1x line input (terminal connector; 3,3 Vpp; 4,7 kΩ), 1x line output (terminal connector; 3,3 Vpp; 100 Ω)
• Alarm: 1x input, 1x output (max. 24 V DC / 24 V AC, 1 A)
• Memory: 1x microSD/ microSDHC/ microSDXC card slot up to 512 GB
• Power supply: 1x socket 5,5/2,1 on the cable
• Reset: 1x button
• Notification methods: Sending to NAS / memory card / FTP, notifying the monitoring center, triggering recording, trigger capture, strobe light, audible warning, send an email
• Protection class: IP67
• Power Supply: 12 V DC (±25%) PoE (802.3af, Class 3)
• Power consumption: DC: max. 9 W (0,75 A, 12 V DC) PoE: max. 10,5 W (802.3af @ 36V ~ 57V)
• Moisture: < 95% (non-condensing)
• Working temperature: -30°C ~ +60°C
• Material: Metal except finishing ring
• Weight: 760 g
• Dimensions (dia. /H ): Ø138,3×115,4 mm

• original product of the brand Hikvision
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have any doubts, we will be happy to advise and help

Specifications
