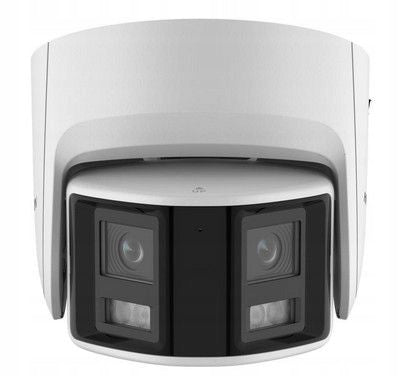

IP kamera Hikvision DS-2CD2346G2P-ISU/SL, 4 MP, 180° panorama

Trumpai apie prekę

Prekė: IP kamera Hikvision DS-2CD2346G2P-ISU/SL, 4 MP, 180° panorama. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2346G2P-ISU/SL(2.8MM)(C)/PL

DS-2CD2346G2P-ISU/SL

Camera, 4MPx, AcuSense, Live Guard, 180° panoramic lens, SD slot, built-in microphone and speaker

DS-2CD2346G2P-ISU/SL is a panoramic turret camera equipped with AcuSense and Live Guard technologies.

It is characterized by the use of AI functions and combining them with active light and sound deterrence. Flashing light plays a warning role and increases the chance of recording the face of the intruder, while sound messages play an informative and admonishing role.

The camera has been enriched with powered by DarkFighter technology and Wide Dynamic Range (WDR 120 dB), with which it captures bright and clear images even in low light conditions.

• 2x 1/2.5" Progressive Scan CMOS sensor
• resolution: 3040×1368 @ 25/24 fps
• interface: Ethernet 10Base-T/100Base-TX PoE 802.3af
• compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Number of pixels: 4Mpx
• Sensitivity: 0.003lux @ F1.6 (AGC ON), 0lux (IR LED ON)
• lens: 2x 2.8mm @ F1.6
• support for panoramic view (180°)
• illuminator: 2x smart IR LEDs (30m range)
• AWB, AGC, BLC, HLC, 3D DNR, WDR 120dB, ROI
• ICR mechanical infrared filter
• AI functions: perimeter protection, motion detection, object classification (human/vehicle)
• AcuSense - object classification with alarm filtering
• Live Guard - active deterrence with light (flashing, white) and sound signal (message or alarm)
• powered-by-DarkFighter - low light operation
• Audio Inputs/Outputs: 1/1
• Emergency Inputs/Outputs: 1/1
• built-in microphone and speaker

AcuSense technology, based on deep learning algorithms, now allows you to classify objects in both external and internal devices. Thanks to precise recognition, the system can filter out up to 90% of events that trigger false alarms, which significantly increases the accuracy and effectiveness of alarming and contributes to reducing labor costs.

• Detection of intrusion
• Detection of line crossing
• Detection of entry into the area
• Detection of exit from the area

even smaller bandwidth and more disk space

The HIkvision camera uses H.265+ compression to reduce network bandwidth occupancy and reduce disk occupancy in the recorder. Thanks to the use of intelligent analysis, predictive coding, background noise reduction and adaptive bandwidth control, gain over H.264 compression. At the same time, in order to maintain compatibility with other systems, it is possible to use standard H.264 compression.

allows you to manage the camera without additional configuration on the router. With HIK-CONNECT, you have the ability to remotely control all camera functions at your fingertips.

HIK-CONNECT service is designed to work as well as with NVR and IPC cameras Hikvision. Thanks to the instant warning function, you can receive instant motion detection notifications so that we can take the necessary actions to ensure the safety of your property or loved ones.

Key Features:

1. Real-time live view.
2. Playback of recorded films.
3. Instant Alerts

• Converter: 2x 1/2.5" Progressive Scan CMOS
• Sensitivity: Colour: 0.003 Lux @ (F1.6, AGC ON) 0 Lux (IR LED ON)
• Position adjustment: Panorama (pan): -30° ~ 30°, slope (tilt): -75° ~ 75°
• Focal length: 2x 2.8 mm
• Angle of view: Horizontal: 180°, vertical: 81°
• Aperture: F1.6
• Lighting range: 30 m
• Intelligent illuminator: Yes
• Illuminator type: IR
• Wavelength: 850 nm
• Number of diodes: 2x
• Maximum resolution: 3040×1368 pixels
• Compression: Main stream: H.265+ / H.265 / H.264+ / H.264
• Bitrate: 32 Kbps ~ 8 Mbps
• Built-in microphone: Yes
• Ambient noise filtering: Yes
• Built-in speaker: Yes, power 1,2 W, volume 95 dB @ 10 cm
• Day/night mode: Day/night/auto/schedule
• Image enhancement features: BLC, HLC, 3D DNR
• WDR: 120 dB
• Online users: Support up to 32 users / 3 levels of access: administrator, operator, user
• Live view: Max. for 6 users
• Basic: Motion detection, video tamper alarm, exception, alarm I/O
• Smart: Line crossing detection, intrusion detection, area entry detection, area exit detection
• Motion detection: Yes (classification of people and vehicles)
• Perimeter protection: Line crossing detection, intrusion detection, region entry detection, region exit detection (human and vehicle classification)
• Filtering false alarms: Filtering analysis alarms based on object recognition (human, vehicle)
• Warning light (deterrent): 2x LEDs with white light with the possibility of on/off, flicker frequency setting and light intensity for each diode separately
• Audio warning (deterrence): Selection of one of the verbal commands available on the device (in English) or one audible alarm (e.g. siren)
• Possibility to upload your own audio wav file with a size less than 512 kB and a sampling frequency of 8 kHz.
• Network: 1x RJ-45 10Base-T/100 Base-TX
• Audio: 1x line input (terminal connector; 3,3 Vpp; 4,7 kΩ)
• 1x line output (terminal connector; 3,3 Vpp; 100 Ω)
• Alarm: 1x input, 1x output (max. 24 V DC, 1 A)
• Memory: 1x microSD / microSDHC / microSDXC card slot up to 256 GB
• General features: Anti-flicker, heartbeat, password reset by email, password protection
• Protection class: IP67 (IEC 60529-2013)
• Power supply: 12 V DC (±25%)
• PoE (802.3af, Class 3)
• Power consumption: DC: max. 10,5 IN (0,88 A, 12 V DC)
• PoE: max. 12,5 W (0,35 A ~ 0,22 A, 802.3af @ 36 V ~ 57 V)
• Moisture: < 95% (non-condensing)
• Working temperature: -30°C ~ +60°C
• Material: Metal body
• Weight: 940

• original product of the brand Hikvision
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have doubts, we will be happy to advise and help

Specifications
