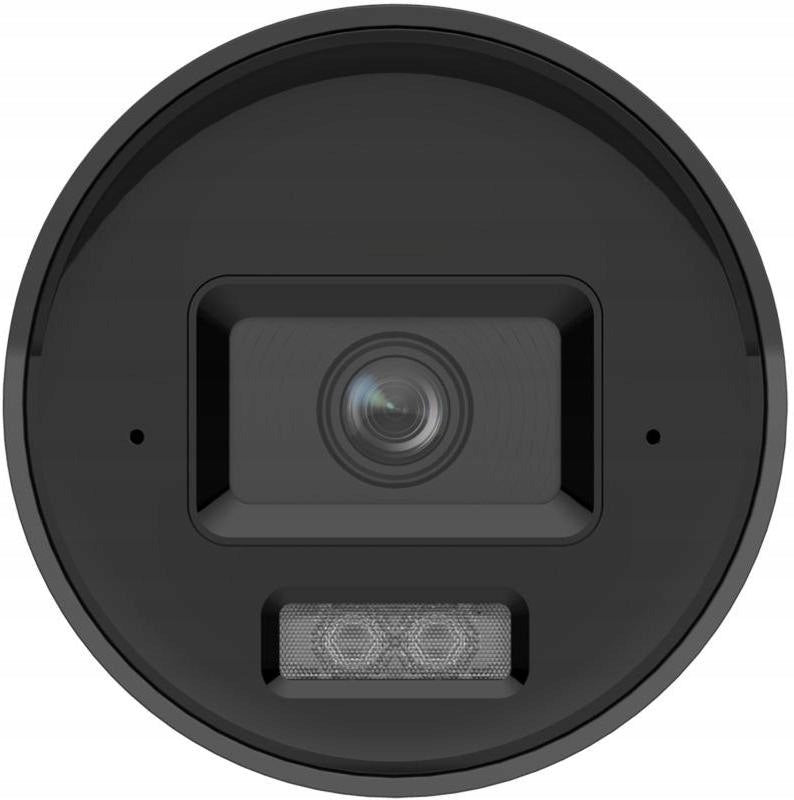

IP kamera Hikvision DS-2CD20123G2-LIUY/SL, 2.8 mm

Trumpai apie prekę

Prekė: IP kamera Hikvision DS-2CD20123G2-LIUY/SL, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD20123G2-LIUY/SL(2.8mm)

IP camera Hikvision DS-2CD20123G2-LIUY/SL(2.8mm)

Model: DS-2CD20123G2-LIUY/SL(2.8mm)

Purpose

• 12 MP horn network camera with AcuSense technology, strobe, sound warning and intelligent hybrid light
• UHD Ultra High Definition delivers a very high level of detail and realistic picture
• Active deterrence with strobe light and sound alarm in SL version white light
• Intelligent hybrid light combining infrared and white light with three lighting modes
• Classification of persons and vehicles based on deep learning algorithms
• Clear picture even with strong backlighting thanks to True WDR 120 dB technology
• High-performance H.265+ video compression
• Water and dust resistance according to IP67 class
• Anti-corrosion design for greater reliability and longer life compared to standard NEMA 4X enclosures

Technical specification Model DS-2CD20123G2-LIUY/SL (2.8mm) Image sensor 1/1.8" Progressive Scan CMOS Maximum resolution 4608 × 2592 Minimum illumination Color: 0.005 lx at (F1.6, AGC ON. ), 0 lx with lighting on Shutter speed from 1 s to 1/100 000 s Day/night mode IR cut-off filter Position adjustment Rotation:0°-360°, tilt: 0°-90°, rotation: 0°-360° Lens type Fixed focal length,2.8 mm Field of view - 2.8 mm Horizontal:94.2°, vertical: 51.1°, diagonal: 110.2° Lens mount M16 Aperture type Fixed Aperture F1.6 Depth of field -2.8 mm from 2.9 m to ∞ DORI - 2.8 mm Detection:117 m, observation: 46 m, reconnaissance: 23 m, identification: 11 m Type of IR illuminator,white light Illuminator range up to 40 m Smart Supplement Light Yes IR wavelength 850 nm Main flux - 50 Hz 20 fps /s (4608 × 2592); 25 kl. /s (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) Mainstream - 60 Hz 20 kl. /s (4608 × 2592); 30 kl. /s (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) Substream 25 kl. /s (50 Hz) or 30 fps. /s (60 Hz) at 1280 × 720, 640 × 480, 640 × 360 Third stream 10 fps. /s at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360 H.265 Video Compression,H.264, H.264+, H.265+ Bitrate video from 32 kbps to 20 Mb/s Type H.264 Basic profile,main profile, high profile Type H.265 Main profile Scalable video encoding (SVC) H.264 and H.265 encoding CBR bitrate control,VBR Region of Interest (ROI) 1 fixed region for main stream Trimming target Yes Audio Type Mono Audio Compression G.711,G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC Bitrate audio 64 kbps (G.711),16 kbps (G.722.1, G.726), 32-192 kbps (MP2L2), 8-320 kbps (MP3),16-64 kbps (AAC-LC) Audio sampling rate 8 kHz /16 kHz / 32 kHz / 48 kHz Environmental Noise Filtering Yes TCP/IP Network Protocols,ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6,UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets,SRTP, SFTP Simultaneous live view up to 6 channels ONVIF API (Profile S,G, T), ISAPI, SDK, ISUP Security Password Protection,complicated password, HTTPS encryption, 802.1X, watermark,IP address filter, basic and abbreviated authentication,TLS 1.1/1.2/1.3, audit log Number of users up to 32 User levels Administrator,operator, user Clients VMS-4200, Hik-Connect,Hik-Central NAS Network Memory (NFS, SMB/CIFS), Automatic Network Refill (ANR) WDR 120 dB SNR ≥ 52 dB BLC Image Improvement,HLC, 3D DNR, Distortion Correction, Mist Removal Privacy Masks 4 Programmable Polygonal Masks Ethernet Interface 1 × RJ45 10M/100M Slot microSD Memory Card /microSDHC / microSDXC up to 512 GB Built-in microphone Yes Built-in speaker Yes,2 W, 110 dB Events Motion detection (human/vehicle),image sabotage, exceptions Smart Events Detection of scene change FTP event associations,NAS, memory card, notifications, recording, dumps,e-mail Features AI Face Capture, Perimeter Protection Power Supply 12V DC ±25%, 1.3A, Max. 15.6 W PoE IEEE 802.3at, Class 4, max. 19 W Housing material Metal Dimensions Ø74.4 mm × 176.3 mm Weight approx. 515 g Operating conditions from -30 °C to 60 °C Protection rating IP67 Anti-corrosion protection NEMA 4X Protection IP67 Anti-corrosion protection NEMA 4X

• EAN: 6936422188306
• Symbol: 69568

Additional information on offers:

• In case of discrepancies of parameters visible in the "Parameters" section and the "Description" section, the information contained in our title and equipment description applies. Information from the Allegro Product Catalogue is automatically attached to offers based on EAN numbers ("Parameters" section).
• The photos visible in our offers come directly from the catalogs of manufacturers and distributors. We try to verify them on an ongoing basis with the facts, but we cannot guarantee that in any case they are 100% true. Manufacturers often modify the appearance of their products within different production series of the same model of equipment (in particular batteries and converters! ), without updating the data sheets. In the case of important elements visible in the photos of the offer - we will verify the facts before shipping the goods.
• The equipment we offer comes from the official polish distribution.

Specifications
