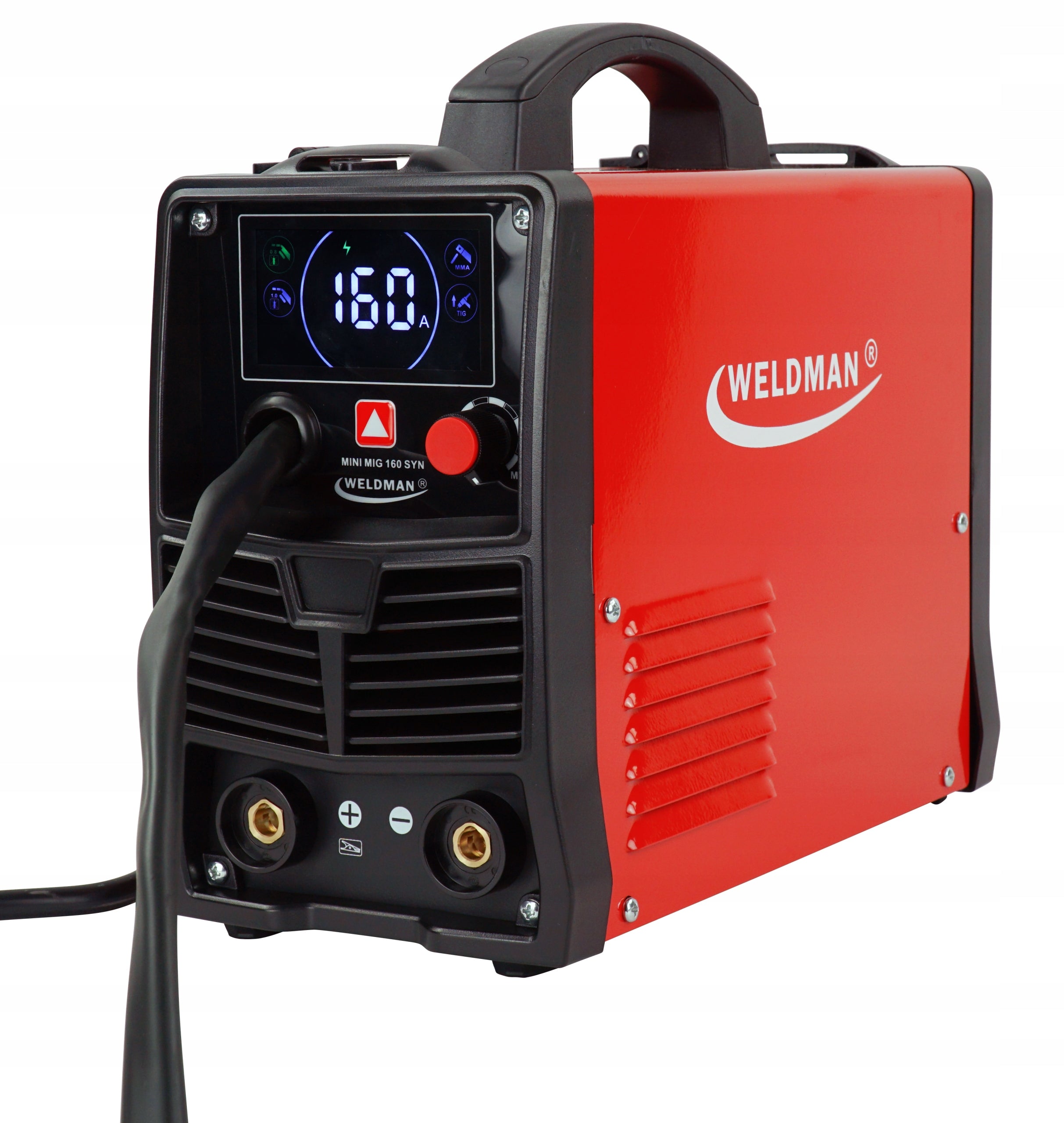

Inverterinis suvirinimo aparatas Weldman MIG MAG MMA TIG 230V

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas Weldman MIG MAG MMA TIG 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: MINI MIG 160 SYN
• Ilgis: 350 mm
• Plotis: 160 mm
• Aukštis: 280 mm

IN THIS OFFER YOU BUY A SET❗WELDER COMPLETE WITH WIRE UP TO 1 KILOGRAM OF FLUX WIRE FOR THE PRICE 🏻 🏭

✅WELDING METHODS: MIG NO GAS, MMA, TIG LIFT

✅Welding current: MIG: 35-160A, MMA: 20-160A, TIG LIFT 15-160A

✅good electronics inside and functionality

✅high 60% duty cycle for rated current,

✅made in IGBT inverter technology,

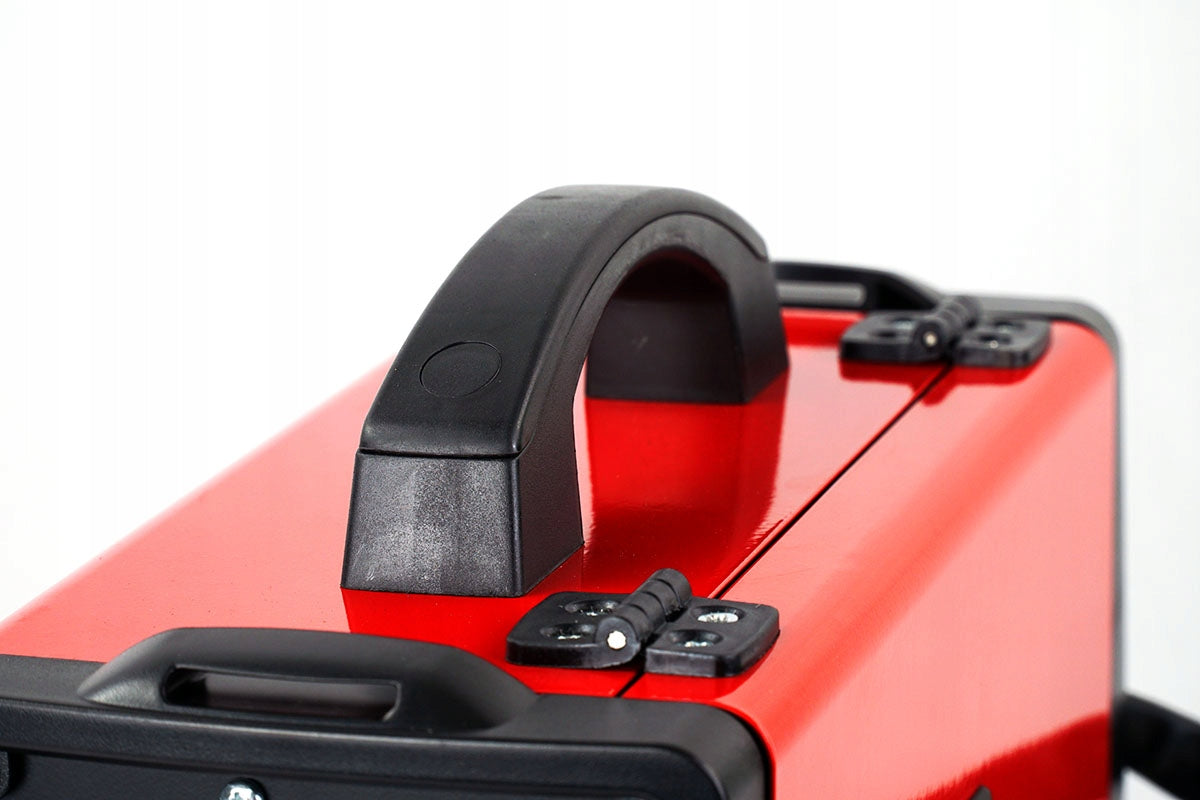

✅small size and handle for safe handling in the field,

✅Power supply voltage: single-phase 230V,

✅Manufacturer: Weldman.

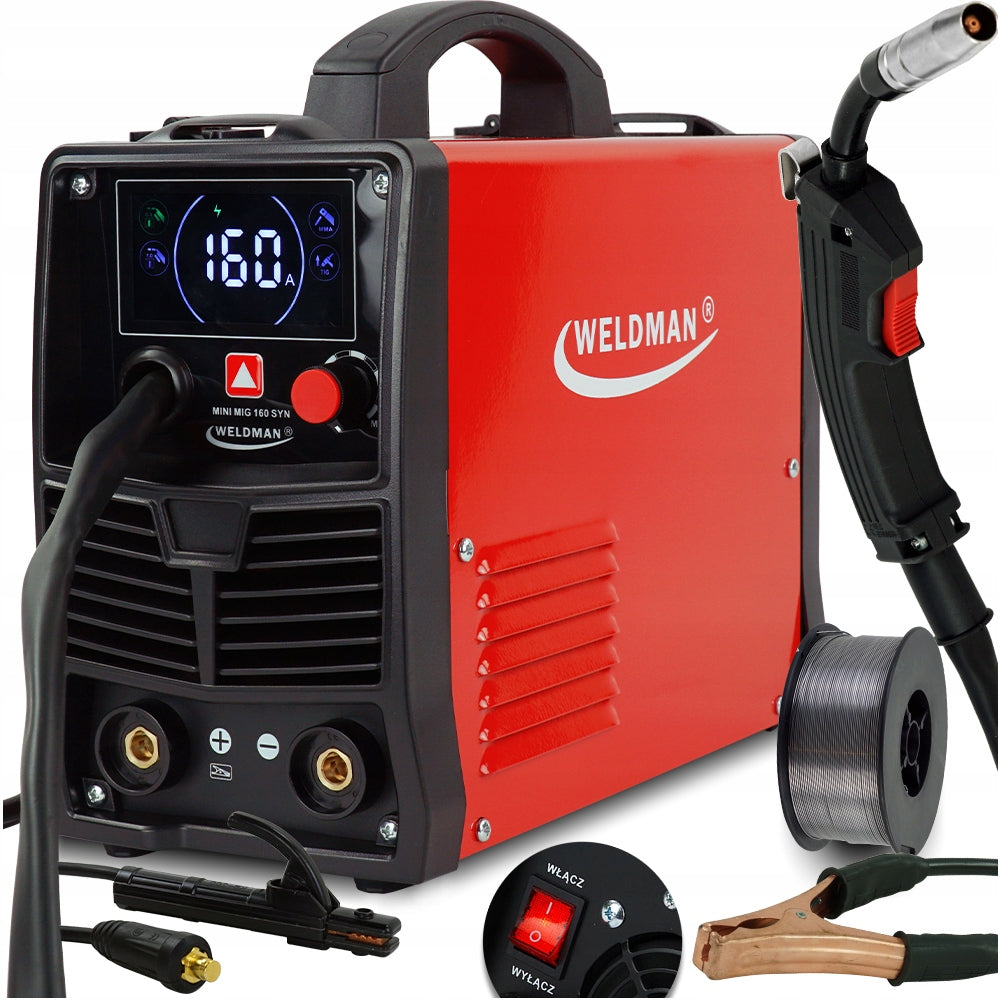

WHAT WILL YOU FIND IN THE PACKAGE?

✔ Migomat Weldman MINI MIG 160 Synergy

✔ MIG holder TW-14 2m

✔ Mass cable

✔ Electrode cable

✔ Operating instructions

⏭Welding mask

⏭Welding brush

⏭WELDING WIRE FLUX -1KG 0,8mm - 1pcs

⏩POWER SUPPLY PARAMETERS

• Power Supply: 230V
• Welding methods: self-shielding wire, mma
• Maximum welding current: 160A
• Working cycle: 60%
• Net weight: 5,6kg
• Degree of protection: IP21
• Idle current voltage 62 V

⏩Welding parameters

• Welding Current: 35 - 160A
• Welding Voltage: 15,5-22V
• MIG parameters adjustment: smooth
• Wire diameter: 0,8 /0,9/1,0 mm
• Wire spool weight: max. 1kg - D100

⏩ TIG LIFT welding parameters

• TIG LIFT 15A/10,4V-160A/16,4V
• Efficiency (at 40°C) 60%: 160 A
• Efficiency (at 40°C) 100%: 130 A
• Welding Current Voltage:16,4 V

⏩ MMA welding parameters

• Efficiency (at 40°C) 60% 160A
• Efficiency (at 40°C) 100% 130A
• Welding current 160 A
• Welding Current Voltage 26,4 V

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

Choose a brand whose history dates back to the beginning of the twenty-first century. Weldman is a leading brand of welding equipment in Poland.

A wide range of Weldman devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Weldman brand most often due to its high quality, affordable price and reliability.
