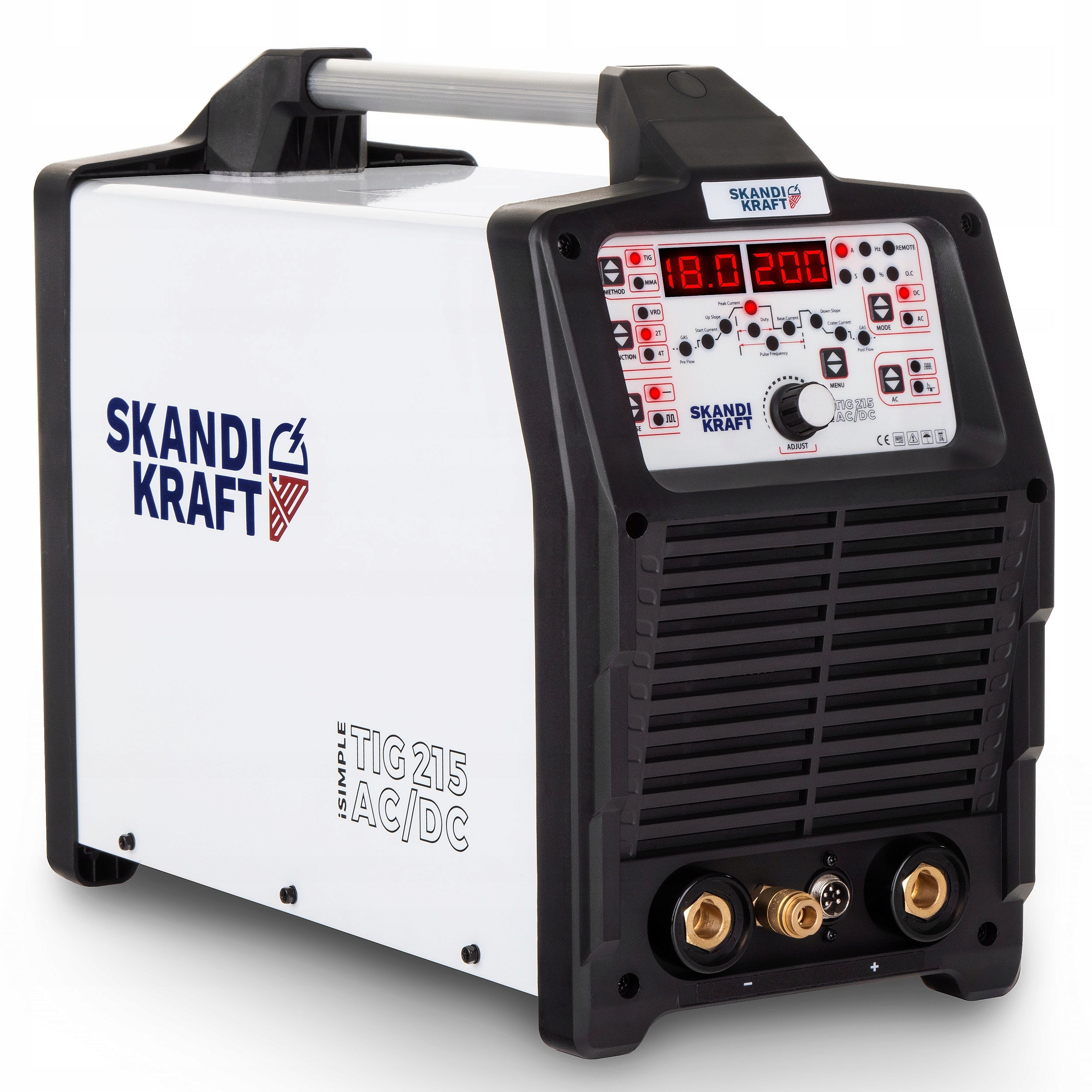

Inverterinis suvirinimo aparatas SKANDI KRAFT TIG 215 AC/DC MMA 230V 200A Pulse

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas SKANDI KRAFT TIG 215 AC/DC MMA 230V 200A Pulse. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iSIMPLE TIG 215 ACDC
• Ilgis: 480 mm
• Plotis: 210 mm
• Aukštis: 380 mm

The SKANDI KRAFT TIG 215 welding machine is a portable inverter welding machine designed for welding using the following methods:

➡ TIG AC/DC

⚡ TIG PULS AC/DC - pulsed welding

Welding with a non-melting electrode in an inert gas shield with the possibility of advanced DC (DC) and alternating current (AC) welding.

⚡ TIG HF - method of non-contact high frequency arc ignition using an ionizer. The glow occurs by approaching the electrode to the welded material and pressing the button on the handle.

➡ MMA

Welding with a direct current electrode (DC).

☀ TIG 215 AC/DC is ideal for welding materials with thickness from 0,1mm to 6,0mm ☀

The SKANDI KRAFT iSIMPLE TIG 215 AC/DC welding machine provides excellent welding performance:

✔ aluminium and its alloys,

✔ non-alloy steel,

✔ low alloy steel,

✔ high-alloy steel,

✔ titanium,

✔ other weldable metals and alloys.

✅CHARACTERISTICS

Advanced iSIMPLE TIG 215 AC/DC with convenient digital panel and professional functionality. It enables welding using HF-TIG and MMA methods. The small size, weight of 14.8 [kg] and transport handle make it mobile and convenient to use. It offers comfort, silent operating mode (FAN STOP) with limited power consumption.

iSIMPLE TIG 215 AC/DC is equipped with an innovative air flow system through the NorthernWind cooling chamber (NW), which significantly increases the service life, durability and cycle of components.

The functional MODE button offers a choice of the DC method (black steel, SS stainless steel, titanium) or AC (aluminium and its alloys). Possibility of welding with PULSE with full regulation of frequency, cycle, current in DC and additionally balance and frequency in AC. It has options to work in 2T and 4T and VRD for (MMA). The device has a 3-meter fully copper 3x2.5 [mm2] power cable, a 3-meter fully copper 25 [mm2] mass holder and a 3-meter electrode holder. iSIMPLE TIG 215 AC/DC is equipped with a TIG SR26 handle with a length of 4 meters, which allows you to control the welding machine from the handle. The burner has a flexible body (Flex) terminated with a laminar lens

➡ TIG DC and TIG DC PULS

It is used for welding stainless steel, carbon and low alloy steels, copper and titanium.

➡ TIG AC and TIG AC PULS

enables welding of aluminum and its alloys and brass.

Thanks to the regulation of TIG PULS pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable for very thin welding and aluminium.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⭐ INVERTER TECHNOLOGY IGBT-ang. Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

⭐ EASY TO USE - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

⭐ FAN COOLING SYSTEM, which definitely increases its efficiency.

⭐ STRONG METAL HOUSING - reduces the risk of damage to the welding machine.

⭐ MOBILITY OF THE DEVICE - thanks to the light weight of the device and the attached transport handle allows welding in hard-to-reach places.

⭐ FAN STOP - so that the welding machine with power on and full functionality does not emit noise, reduces power consumption and does not draw dust. The fan automatically turns on when we start welding.

⭐2T/4T - modes of source operation control. In two bars, pressing the TIG handle button starts welding, releasing the button ends welding. In four bars, pressing and releasing the button causes welding to start, to finish it you need to press and release the button again. Four bars are mainly used when making long welds, because it does not require holding the button on the handle all the time during operation.

⭐POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. Lack of additional gas shield may result in oxidation of the weld

⭐PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Adjustment expressed in seconds

⭐VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

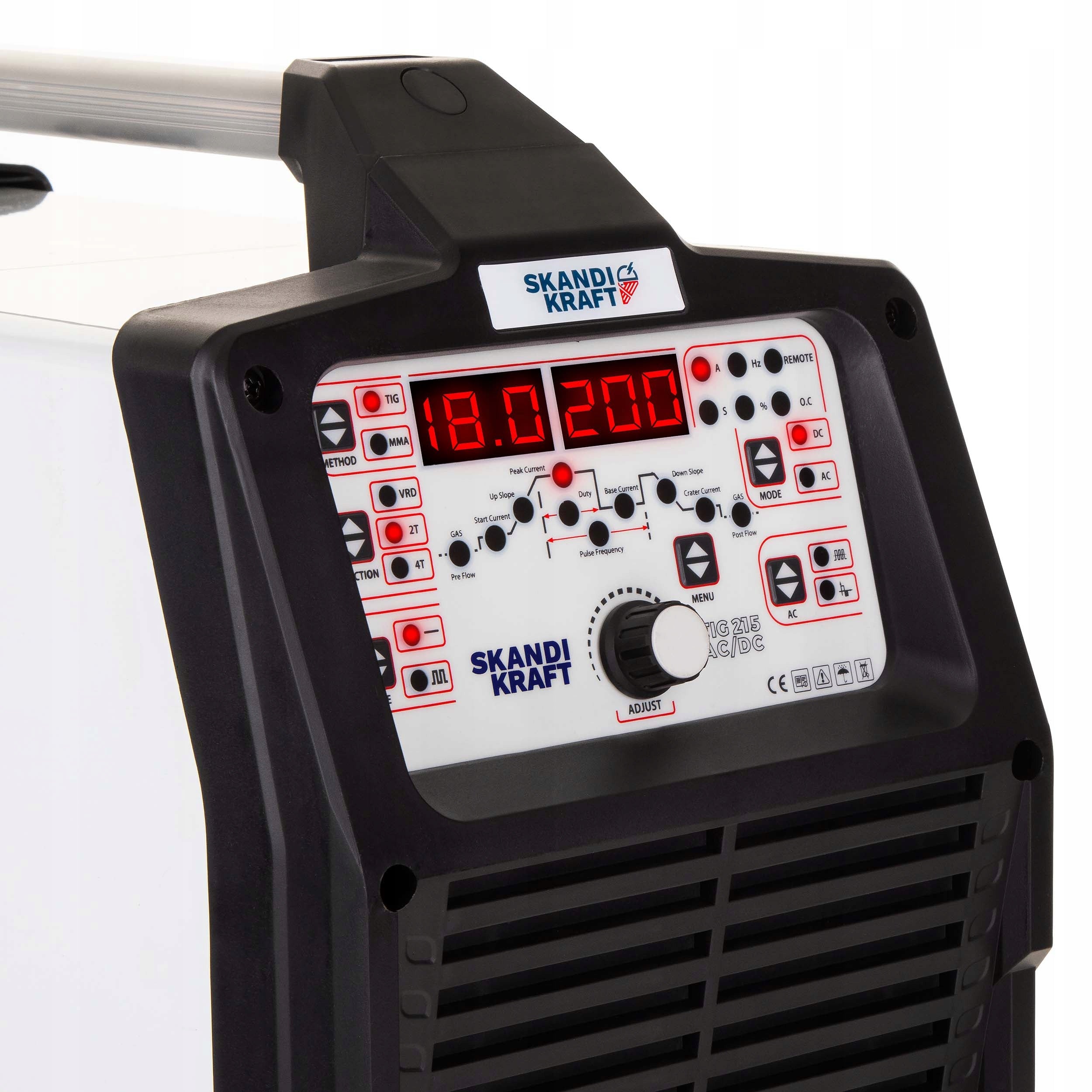

Convenient knob and clear panel for easy quick setting of the welding machine, even in welding gloves. Selection of 1 of 3 welding methods: TIG DC, TIG AC, MMA. Welding by methods: HF-TIG (AC/DC) with contactless arc ignition, MMA using a non-melting electrode.

Welding PULSE, thanks to this function, the welding machine has the ability to fully adjust the parameters, it is possible to change the focus of the arc and the shape of the weld.

Selection of welding mode AC and DC:

• AC - AC welding mode, for welding aluminum alloys.
• DC - DC welding mode, for welding black steel, stainless steel (chromo-nickel) or titanium.

Welding MMA:

• Possibility of regulating welding current [A].
• VRD – allows you to detach the arc when the electrode is detached from the material and ensure work safety during welding.

✴ The welder has a 3-meter mass holder with a fully copper conductor, better conductive current with a cross-section of 25 [mm2] without interference.

✴ 3-meter electrode holder, perfectly conductive current, made of copper and aluminum (copper). It will keep the electrode in perfect position throughout the welding process. Cable cross-section 25 [mm2].

iSIMPLE TIG 215 AC/DC is equipped with an innovative air flow system through the NorthernWind (NW) cooling chamber, which significantly increases the service life, durability and cycle of components. In addition, it has a FAN STOP system that turns off the fan at idle – so that the welding machine with power on and full functionality does not emit noise, reduces power consumption and does not draw dust. The fan automatically turns on when we start welding.

✴ In summary, the SKANDI KRAFT iSIMPLE TIG 215 AC/DC welding machine is a professional welding device that combines advanced technology, reliability and convenience of use.

✴ Ideal for professionals looking for reliable and efficient equipment for all kinds of welding work.

✴ In addition to advanced features, the device also features a robust and durable design. The durable plastic housing protects the internal components from damage, and the ergonomic handles make it easy to transport the machine.

⭐ WELDING HANDLE TIG 26 SR with a length of 4 meters o thickness 25 [mm2].

⭐TIG grip with potentiometer allowing for precise adjustment of parameters from the handle level. 10 degrees of adjustment and each of them corresponding to the value of welding current. (FLEX) burner body for convenience in every plane by adjusting the bend of the burner pipe.

When using an ordinary gas nozzle, the shielding gas is first reflected from the inner walls of the ceramic nozzle and then is unevenly distributed to the working area. Using the gas lens , the gas through a special mesh is distributed evenly along the tungsten electrode straight to the working area providing a much better shield of the weld.

☀ VERSATILITY OF THE DEVICE ☀

TIG 215 AC DC by SKANDI KRAFT is a device with a wide range of applications, designed as an inverter power source enabling welding using the following methods:

✔ MMA

The MMA method uses a coated electrode consisting of a metal core covered with a coating. An electric arc is produced between the tip of the electrode and the material being welded. The arc is struck by touching the tip of the electrode to the material being welded.

✔ TIG

In the TIG (Tungsten Inert Gas) method, an electric arc is struck in an inert gas (argon) shield between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives.

The TIG welding arc is ignited:

• non-contact method ( TIG HF ) using an ionizer by bringing the electrode closer to the material being welded.
• touch method (TIG LIFT) - the arc is initiated by rubbing the electrode against the welded material

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

TECHNICAL DATA:

POWER SUPPLY PARAMETERS:

• Power supply: 230 V
• Frequency: 50/60 Hz
• Idle Voltage: 65 V
• Network security: 20 A

TECHNICAL PARAMETERS

TIG efficiency (for temp. 40°C):

• 40%/200 A/18 V
• 60%/163 A/16.5 V
• 100%/126 A/15 V
• TIG welding current: 10*-200 A
• TIG welding voltage: 10.4-18 V

• PRE GAS: 0-1 [s]
• welding start current START AMP: 10-200 [A]
• current build-up time UP SLOPE: 0-15 [s]
• peak current PEAK AMP: 10-200 [A]
• pulse cycle: 5-95 [%]
• Pulse frequency: 0.1-200 [Hz]
• Pulse balance: 5-95 [%]
• base current: 15-95 [A]
• DOWN SLOPE: 0-25 [s]
• final current: 10-200 [A]
• gas outflow after POST GAS process: 0.1-10 [s]
• AC current frequency: 40-200 [Hz]
• AC current balance: 10-90 [%]

*average parameter min. current 19 [A]

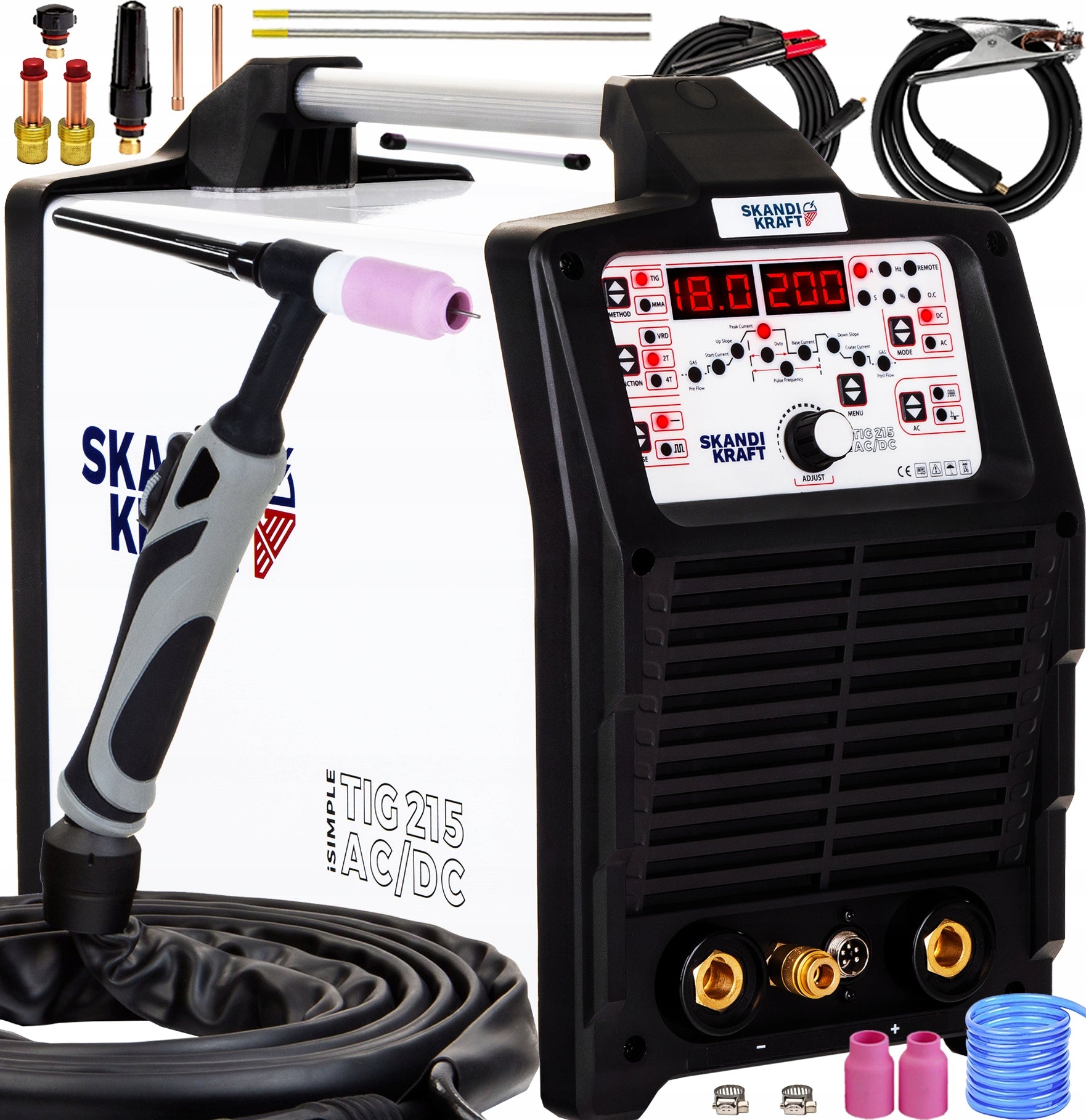

• Welding machine SKANDI KRAFT iSIMPLE TIG 215 AC/DC with integrated power cable with a length of 3 meters and cross-section 3x2,5 [mm2]
• TIG welding torch SR26 Flex 4 meter with the possibility of controlling from the handle
• Bulk holder 3 meter, cross section 25 [mm2]
• Electrode holder 3 meter, cross section 25 [mm2]
• 3 laminar gas lenses (1.6; 2.0; 2.4 [mm])
• 3 tungsten electrodes with a diameter of (1.6; 2.0; 2.4 [mm])
• 3 stoppers for handle (long, medium, short)
• 3 x terminal bushing (1.6;2.0;2.4 [mm])
• 1 x lens insulator
• 3 x ceramic nozzle "8"
• Gas cylinder mounting elements: 2 x gas reducer mounting band, gas hose 2. meters, key, allen
• Instruction

SET OF 15
