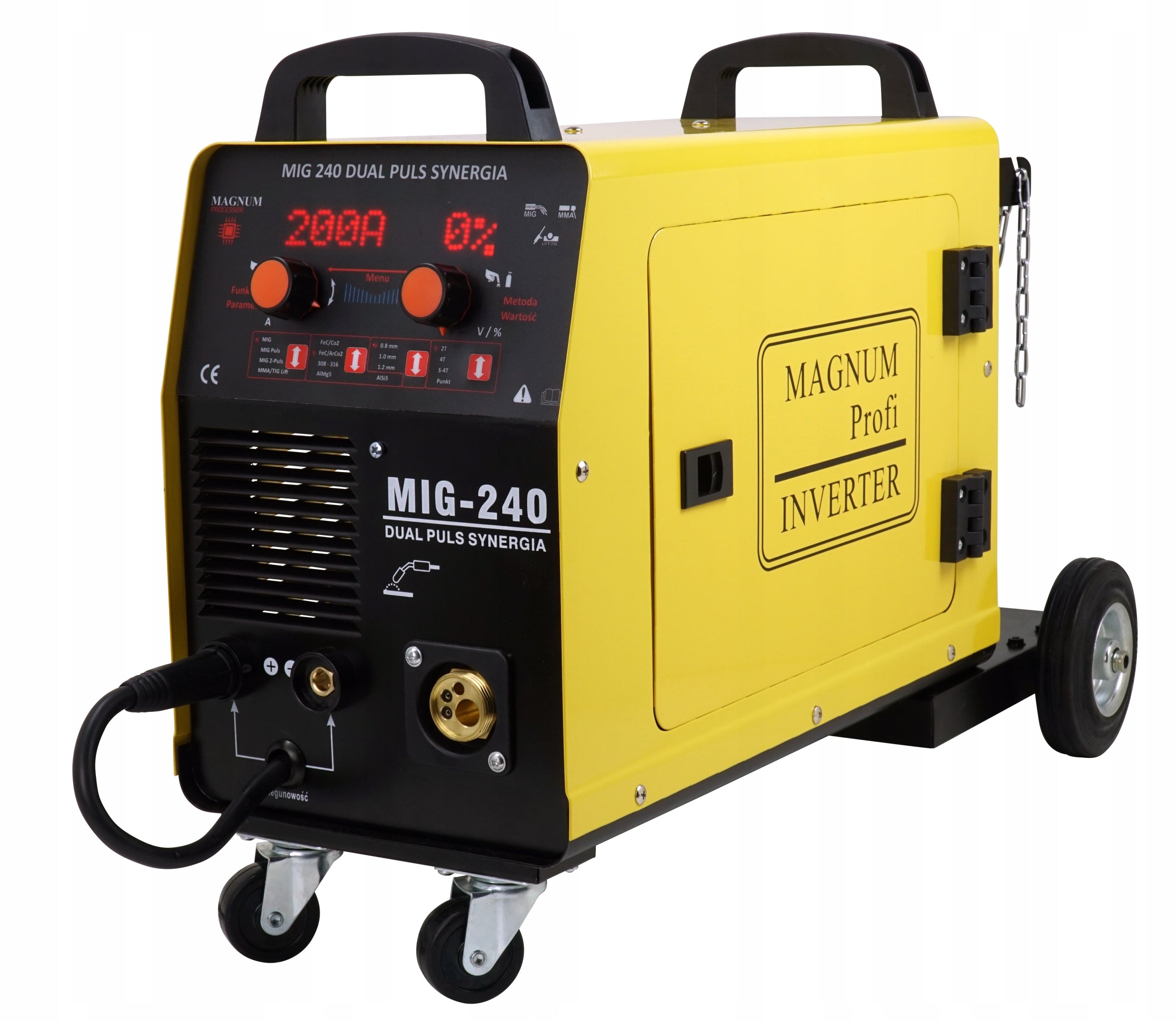

Inverterinis suvirinimo aparatas MIGOMAT Synergia Aluminum

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas MIGOMAT Synergia Aluminum. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIGOMAT Magnum MIG 240 Puls Synergia rs4

MIG, MAG, FLUX, TIG DC, MMA | Power Supply: 230V | Synergy, Pulse, Dual Pulse | Ideal for Aluminum Welding | Manufacturer: Magnum

Magnum MIG 240 Dual Pulse Synergy is the latest, improved version of MIG for welding black steel and other demanding alloys such as aluminum and stainless steel.

The device is made in modern inverter technology and allows welding using the following methods: MIG/MAG, MMA, TIG DC Lift and self-shielding wire without gas.

Due to the huge number of advanced functions available, this device will be ideal for welding materials such as:

• MAG welding of carbon steels in CO2 and Ar/CO2 shields,
• MIG welding of aluminium alloys with silicon and aluminium alloys with magnesium in Argon sheath,
• MIG welding of stainless and acid-resistant steels in Argon sheath or Ar + 2%CO2 mixture.

Learn about the advantages of the MIG 240 DP device later in the description and see why it may be a good choice for you.

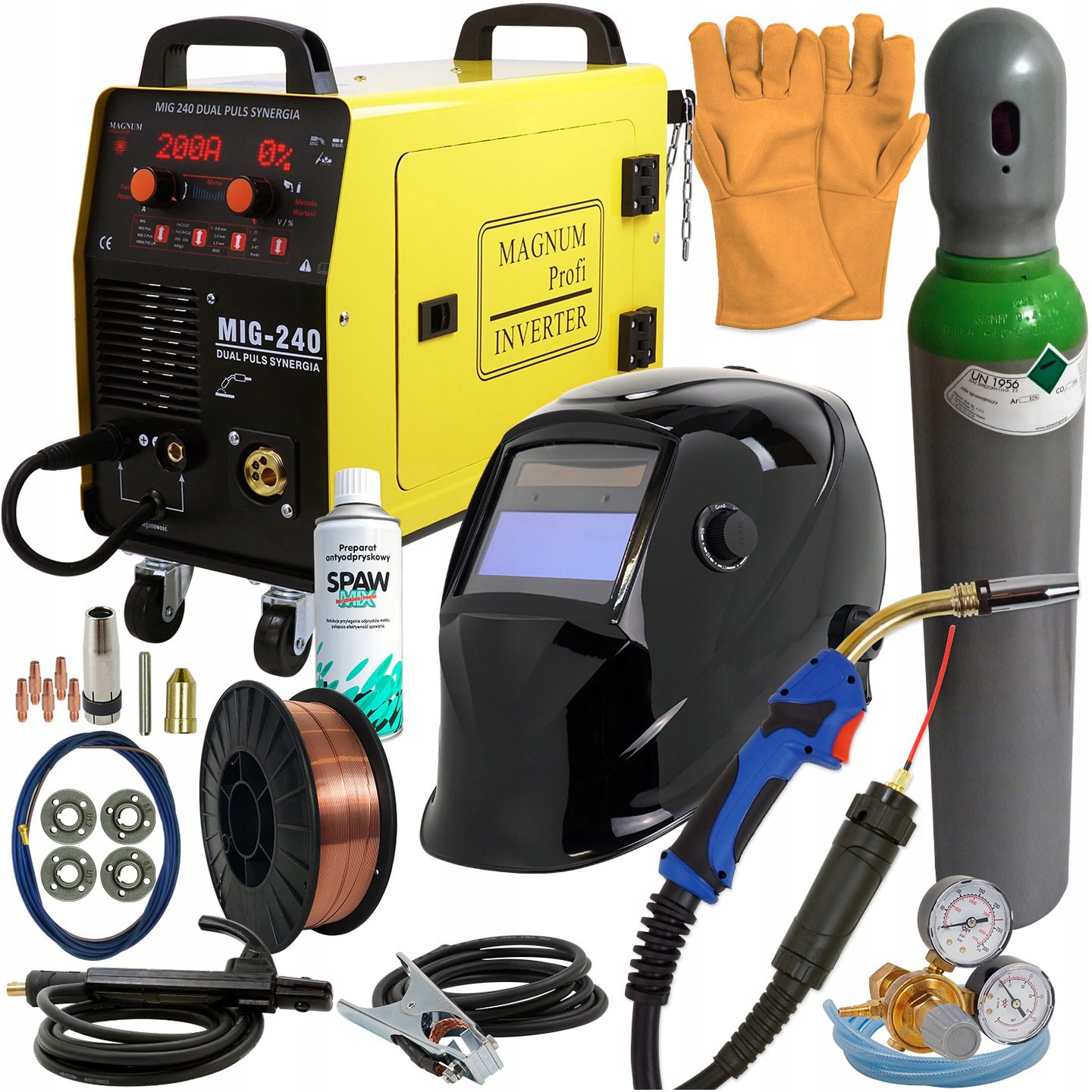

PROMOTIONAL SET FOR WELDING MAGE WITH CYLINDER 8L + SELF-TINTING VISOR:

• contains Ar/CO2 cylinder + gas reducer + gas line,
• included proven welding wire SG2 5kg,
• additional accessories always at a better price,
• professional self-tinting visor DIN 9-13.

Magnum MIG 240 Dual Pulse Synergy is packed with advanced features that enable high-quality welding not only of black steel, but also of aluminum and stainless steel. The most important of them, we will discuss later in the description.

FLASH WELDING WITH PULSE

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. when welding stainless and acid-resistant steels.

DOUBLE PULSE MIG WELDING - A SENSATIONAL PROGRAM FOR WELDING ALUMINUM

Dual pulsation MIG welding is particularly useful when welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

Magnum MIG 240 DUAL PULSE SYNERGY - HAS ADVANCED DOUBLE PULSE PARAMETER ADJUSTMENT

DURABLE COMPACT CONSTRUCTION WITH GAS CYLINDER CHASSIS

The MIG 240 Dual Pulse is a compact design with solid wheels and a front swivel axle. The gas cylinder chassis allows you to compose a mobile welding kit. But this is not the only pleasant surprise and asset - the rest later in the description.

Professional feeder 4R - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

The special wire feeder 4R is suitable for both precise and efficient welding of aluminium as well as black, acid-resistant and stainless steel.

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• MIG/MAG synergy function: YES
• Maximum welding current: 200A
• Working cycle: 60% 200A
• Protection Required: 25A
• Housing protection class: IP21S

Basic MIG/MAG welding parameters

• Welding Current: 30 - 200A
• Welding Voltage: Smooth Adjustment
• Wire diameter: 0,8 / 1,0 /1,2mm - depending on the type of wire.
• Wire spool weight: max. 5kg (D100/D200)
• Regulation of MIG/MAG welding inductance
• Welding polarity change: YES

Advanced MIG/MAG welding functions

• MIG welding with pulse: YES
• Adjustable MIG pulse parameters: YES
• Dual Pulse MIG Welding: YES
• MIG DUAL PULS parameter adjustment: YES
• Operating modes: 2T/4T/S4T/Point - adjustment of parameters suitable for a given operating mode.
• Synergistic MIG/MAG programs: YES - suitable for specific material groups
• Gas before, gas after: YES
• Wire Burning Time Adjustment (Burn Back): YES
• Choice of thickness of welded material: YES

TIG welding parameters

• Output Current: DC - Constant
• Welding Current Adjustment: Smooth
• Arch Initiation: TIG Lift (Contact)
• TIG welding with pulse: YES

MMA welding parameters

• Welding Current: Smooth Adjustment
• Additional MMA Features: YES

• Device Magnum MIG 240 Dual Pulse Synergy
• MIG EURO MB welding torch 24 3m*
• MMA Electrode Holder
• Bulk cable
• User manual PL

+ ADDITIONAL ACCESSORIES FOR FREE:

• spiral insert for steel wire (blue hrs),
• Teflon guide cartridge (red hrs),
• set of feeder rollers for welding steel and aluminum,
• set of accessories for wire feeder.

+ MAG WELDING KIT WITH CYLINDER Ar/CO2

• Ar/CO2 8l cylinder- has the approvals and approvals required by the filling points of the cylinder - it can be filled repeatedly with Ar/CO2 mixture,
• steel welding wire SG2 - 0,8mm x 5kg,
• reducer Ar/CO2 with two clocks,
• gas line.

+ WELDING ACCESSORIES

• welding gloves,
• starter set of burner parts,
• SPAWMIX anti-chipping spray 400ml.

+ PROFESSIONAL, SAFE SELF-TINTING VISOR WITH 510G FILTER

• Filter Type: Automatic (Self-Darkening)
• Filter model: 510G
• Field of view: 96x39 mm
• Number of sensors: 2
• Darkening: DIN 9-13
• Response time: 1/30 000s
• Optical class: 1/1/1/2
• Brightening time adjustment: 0,1 - 1,0 [s] smooth
• UV/IR protection: up to DIN 16
• Darkening in bright condition: DIN 4
• MIG/MAG/MMA welding: YES
• TIG welding: Yes, above 10A
• Photovoltaic cell + battery 1xCR2032
• Weight: 475g
