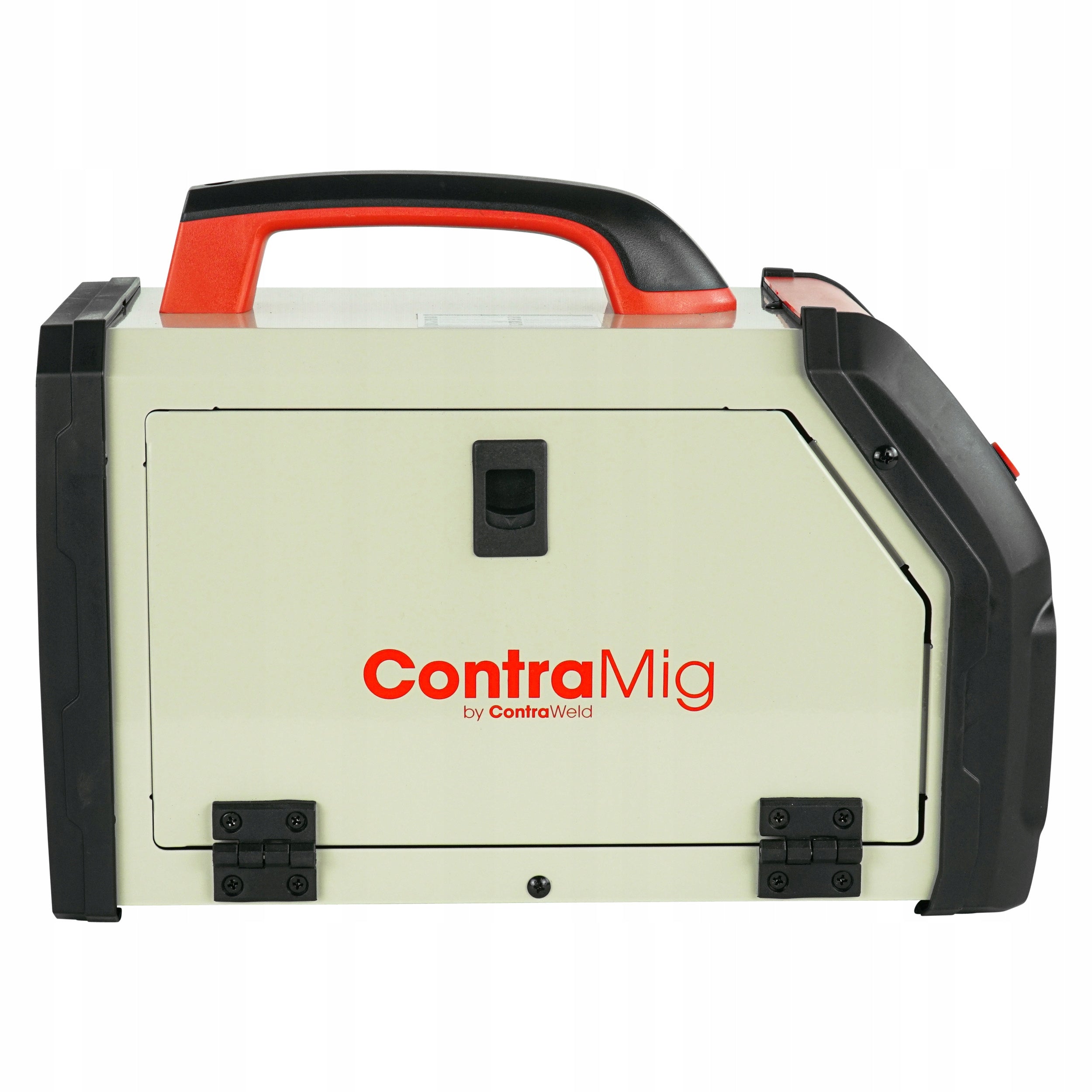

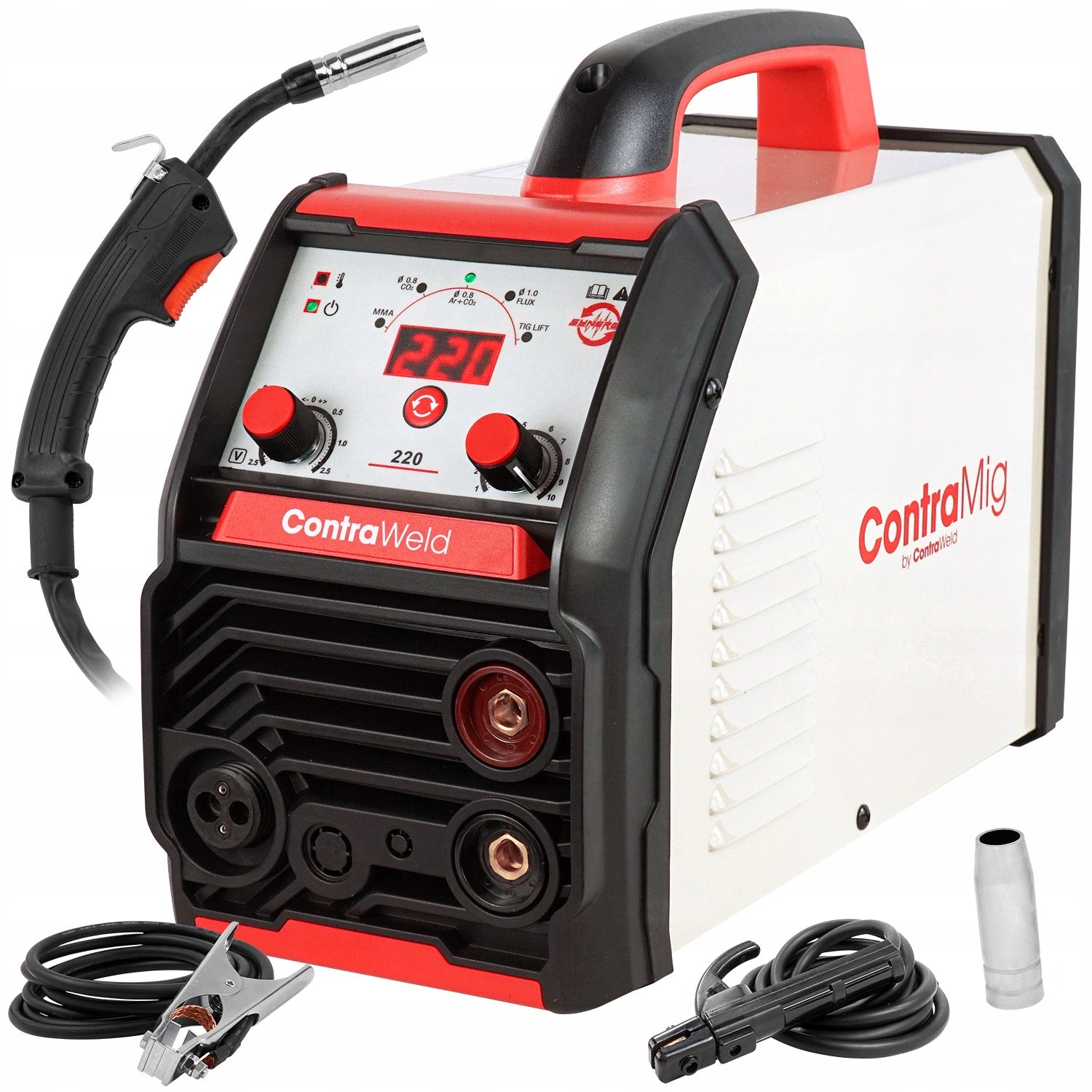

Inverterinis suvirinimo aparatas MIGOMAT FLUX FCAW 220A MIG MAG MMA TIG IGBT Synergy

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas MIGOMAT FLUX FCAW 220A MIG MAG MMA TIG IGBT Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: Spawarka Contraweld Contramig 220 XRS

+ ONLY WITH US ADDITIONALLY - GAS NOZZLE FOR THE BURNER -

Welding methods: MIG/MAG, FLUX, MMA, TIG DC Lift | Important functions: Synergy | Welding current: to 220A

Efficient wire feeder welding machine for small spools

CONTRAMIG 220 was built on the basis of inverter technology. This solution provides small dimensions, lower energy consumption, trouble-free operation and good arc characteristics. Stable output parameters guarantee good weld quality in all available methods.

The welding machine enables welding using the following methods: MIG/MAG - semi-automatic welding in gas shielding, FLUX - semi-automatic welding with self-shielding wire without gas, MMA - welding with wrapped electrode. It is powered from a single-phase 230V network and works with D100 wire spools (up to 1kg).

DISCOVER THE ADVANTAGES OF CONTRAMIG 220 WELDING MACHINE

• modern electronics inside - excellent welding parameters,
• power supply from single-phase network 230V,
• friendly user interface,
• 4in1 device - MIG/MAG welding, FLUX, MMA, TIG DC Lift
• handle for transporting the device,
• synergy mode,
• small weight and size
• device manufactured by a recognized manufacturer in the industry,
• works with standardized spools of D100 wire weighing up to 1kg.

Easy-to-use panel and color display

The user-friendly interface is a huge advantage of this model. Thanks to this, advanced welding parameters are much simpler and more convenient. ContraMig 220 is easy to use and already in the first contact with the function panel, the user can easily adjust the parameters.

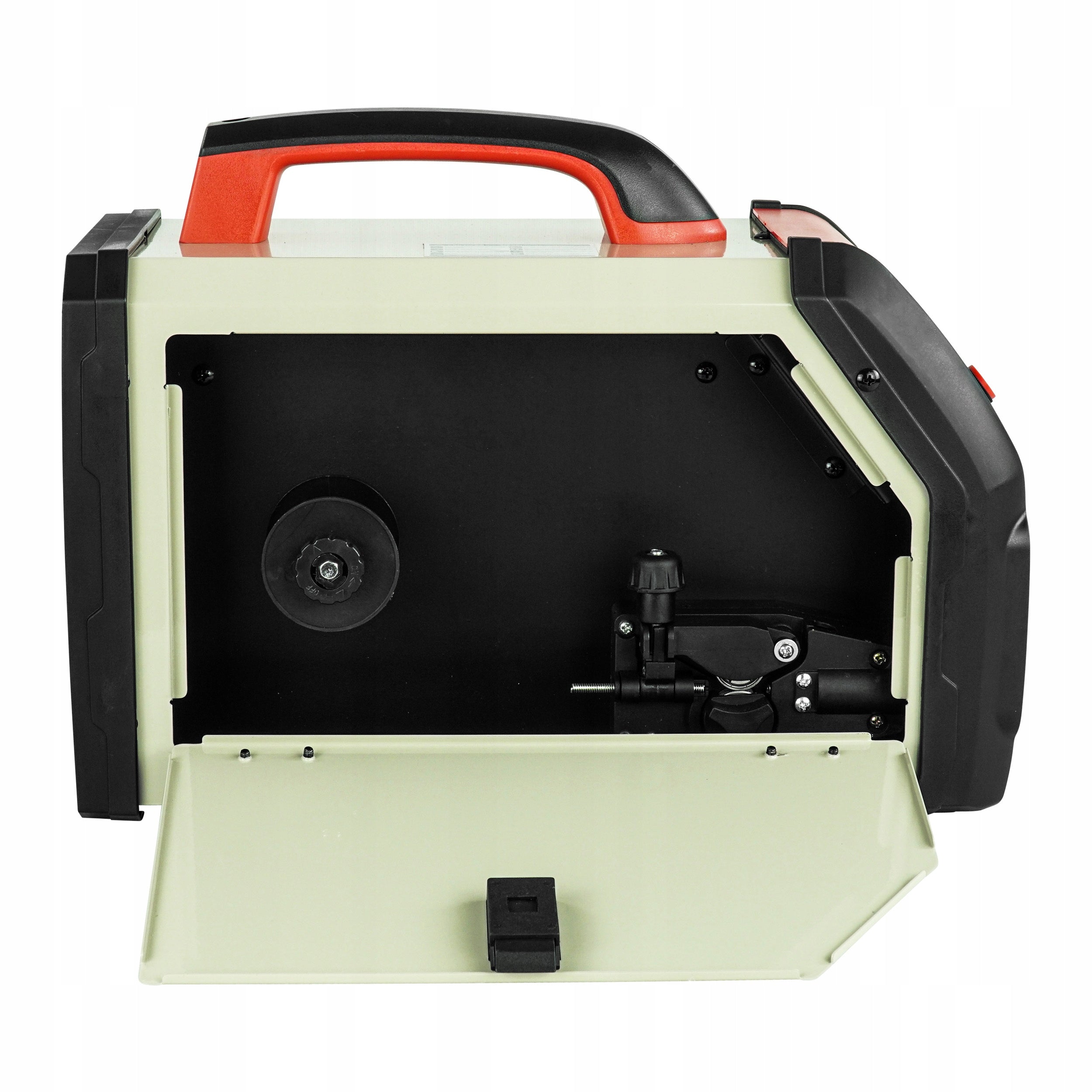

Professional 2R Wire Feeder

Uneven wire feeding threatens worse weld quality and more welding chipping. The welder is equipped with a professional wire feeder with a two-roll mechanism that ensures its smooth and reliable feeding to the welding torch.

BADEK - high quality and attention to functionality

Badek is a Polish manufacturer that specializes in creating high-quality products in its industry. Badek has gained recognition thanks to its diligence in the selection of materials and innovative approach to design. It is distinguished not only by its solidity of workmanship, but also by its attention to functionality and aesthetics. The team of experts is constantly working on improving the offer to meet the expectations of customers who value durability and comfort of use. The result is a new brand - Contraweld.

Physical parameters:

• Power Supply: 230V
• Welding methods: MIG/MAG, MMA, TIG LIFT, FLUX
• Maximum welding current MAX: 220A
• Working cycle: 60%
• Welding current at 60% (MIG/TIG): 150A
• Welding current at 60% (MMA): 130A
• Degree of protection: IP21S
• Network Security: C20A

Welding parameters:

• Welding Current: 40 - 220A
• MIG parameters adjustment: smooth
• Wire Diameter: 0,8 /1,0mm
• Wire spool weight: max. 1kg - D100

Welding parameters TIG Lift:

• Welding Current: 15 - 220A

MMA welding parameters:

• Welding Current: 20 - 220A
• MMA Parameter Adjustment: Smooth

• ContraWeld ContraMig 220
• Welding torch MIG TW 14
• MMA Electrode Holder
• Bulk cable
• User manual PL

+ ADDITIONAL ACCESSORIES

• welding disc,
• brush-hammer.

+ GAS NOZZLE FOR THE BURNER
