Interneto signalo stiprintuvas GSM 3G 4G LTE su 2 antenomis

Trumpai apie prekę

Prekė: Interneto signalo stiprintuvas GSM 3G 4G LTE su 2 antenomis. Kategorija: Antenos stiprintuvai.

• Gamintojas: Renew Force
• Modelis: GSM 4G LTE ANTENA ZEWNĘTRZNA LPDA WEWNĘTRZNA BAT

The professional GSM/3G/4G LTE signal amplifier is an effective solution for places where the standard cellular signal is unstable or too weak. The set improves the quality of telephone calls and increases the efficiency of mobile Internet even on an area of up to 5000 m². Thanks to the powerful LPDA 20 dBi antenna and a high signal gain amplifier, you can enjoy high-speed internet and stable conversations even in difficult locations.

✔ Support 2G/3G/4G LTE network

✔ Signal coverage up to 5000 m²

✔ 20 dBi LPDA antenna for increased reception efficiency

• Working band: Uplink 890-915 MHz, 1710-1785 MHz, 1920-1990 MHz, 2500-2570 MHz, Downlink 935-960 MHz, 1805-1880 MHz, 2110-2180 MHz, 2620-2690 MHz
• Profit: Uplink ≥ 70 dBi, Downlink ≥ 75 dBi
• Impedance input. /output: 50 Ω per connector
• Output power: 70 ~ -40dBm / FA (1,23 MHz)
• Cover: 5000 m²
• Reliability: standard GB6993-86
• Electromagnetic compatibility: standard ETS300 694-4
• Signal LEDs: power on (red), signal transmission (green)
• Antenna connectors: Ant. external - socket "N+connector", Ant. internal - socket "N+connector"
• Power supply: AC 110~230V 45~55Hz
• Power supply: DC 12 V (power supply included)
• Dimensions: 20x15x2.2 cm
• Color: black

• Working band: 698-960 MHz, 1710-2700 MHz
• Front/rear ratio: 20 dB
• Cable: 10m low loss cable terminated with N m plugs
• Impedance: 50 Ω per connector
• Maximum power: 100 W
• Profit: 20 dBi
• Angle of view: horizontally up to 55°, vertically up to 45°
• Antenna connector: FME female (cable coming out of antenna)
• VSWR: ≤ 2.0
• Polarization: vertical or horizontal
• Size: 290 x 210 x 50 mm
• Material: ABS
• Wind resistance: 210 km/h
• Color: white

• Working band: 824-960 MHz, 1710-1990 MHz
• Energy Gain: 5 dBi
• Height: 20cm
• Impedance: 50 Ω per connector
• Maximum power: 50 W
• Bandwidth: 360˚ horizontally
• VSWR: < 1.5
• Color: black
• Polarization: horizontal, omnidirectional

⭐ Clear conversations and stable internet even in difficult conditions ⭐

The device supports several key GSM, UMTS and LTE bands simultaneously, thanks to which it improves the quality of calls and data transmission in places with weak signal. The high gain level of ≥ 75 dBi allows you to effectively eliminate problems with disappearing Internet, intermittent conversations and slow data transfer. It is an ideal solution for homes in the mountains, warehouses, offices or holiday homes.

⭐ Effective signal reception even from a long distance ⭐

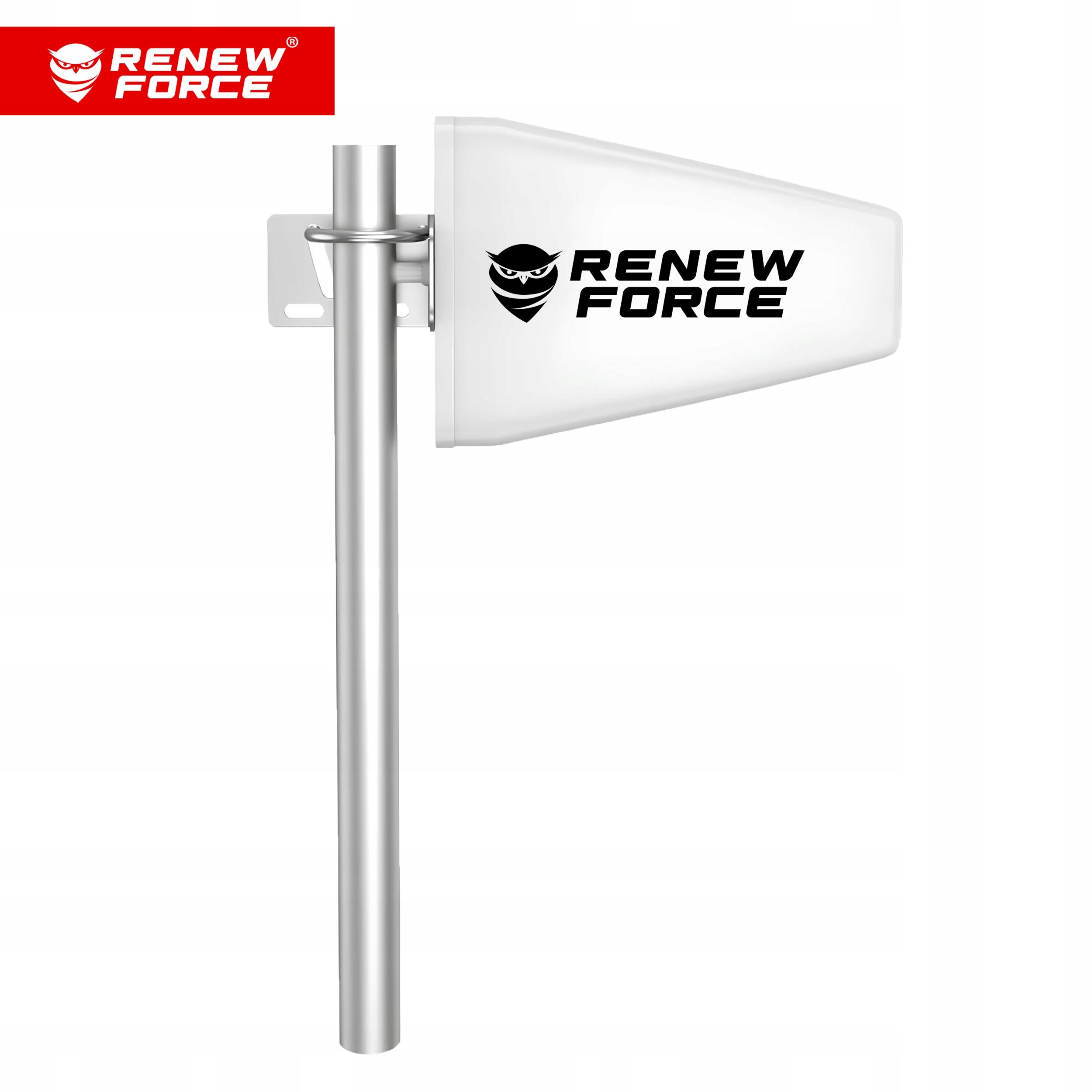

The directional LPDA antenna with a gain of 20 dBi is designed to operate in a wide frequency range from 698 MHz to 2700 MHz. Thanks to this, it effectively captures the operator’s signal even in locations away from transmitters. The wind-resistant design up to 210 km/h guarantees reliable operation all year round, regardless of weather conditions.

⭐ Even signal distribution in the room ⭐

An internal “bat” antenna with a gain of 5 dBi ensures stable signal distribution inside the building. The omnidirectional operating characteristics of 360° allow the rooms to be evenly covered with a signal without the need for additional configuration. It is a practical solution for apartments, offices and multi-level buildings.

⭐ Constant control of the device ⭐

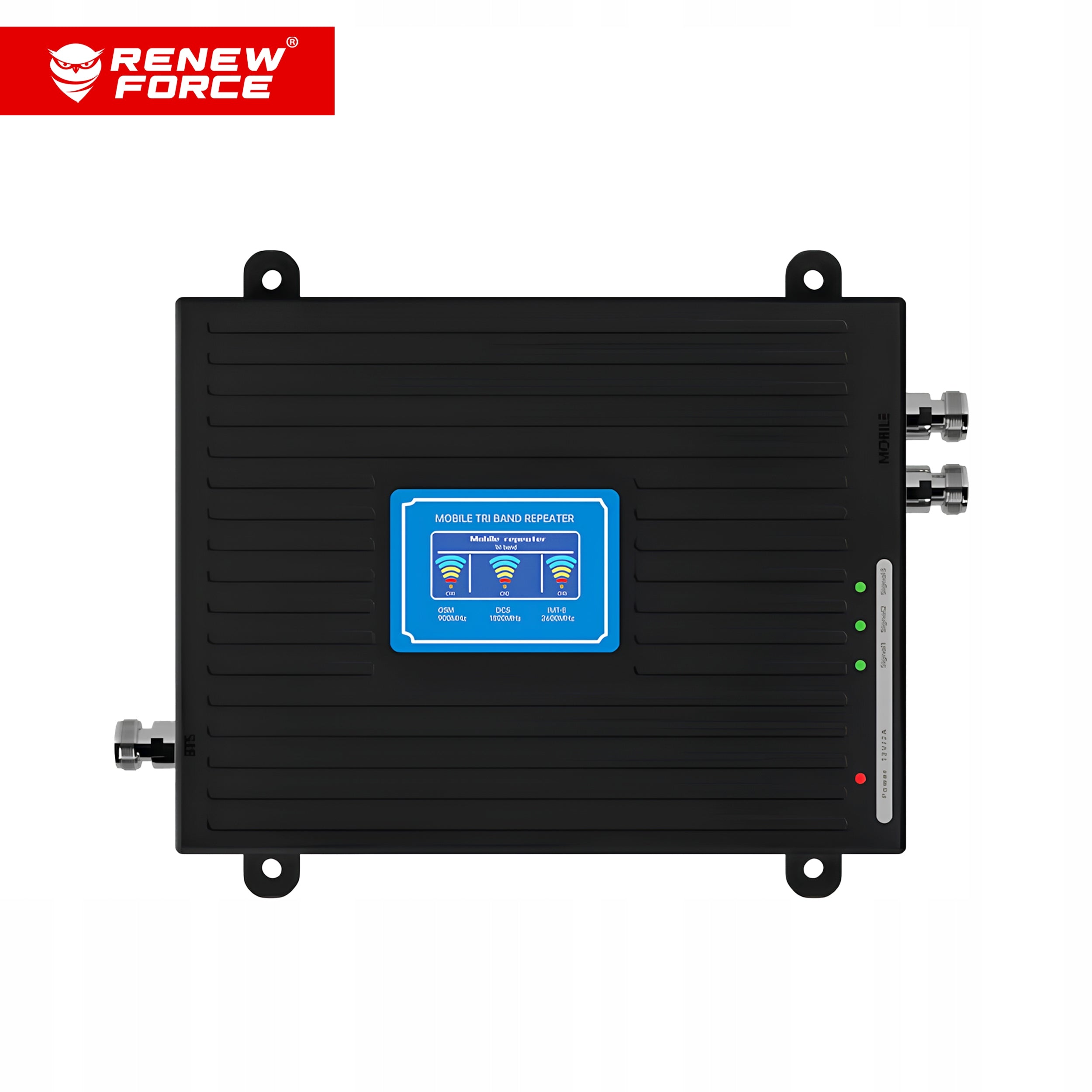

Built-in LCD display and signal diodes allow you to quickly monitor the operation of the device. The red LED informs about the power supply, while the green one confirms the correct signal transmission. This allows the user to easily control the condition of the device and the quality of the system.

⭐ Complete coverage improvement system ⭐

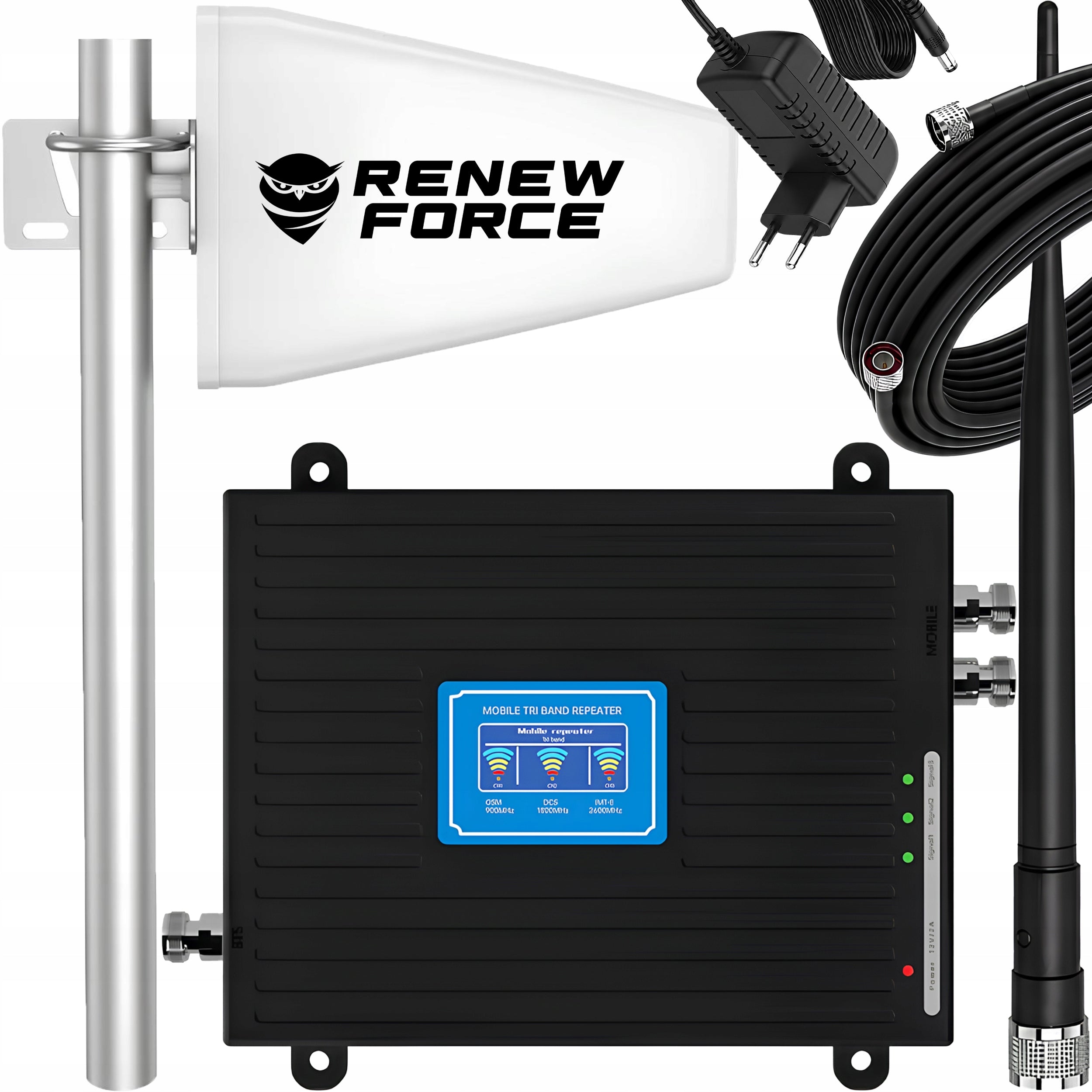

• ✅ GSM/3G/4G LTE Signal Amplifier
• ✅ External antenna LPDA 20 dBi
• ✅ 5 dBi Bat Internal Antenna
• ✅ 10 m cable terminated with N plugs
• ✅ DC 12V AC Adapter
• ✅ Mounting hardware
• ✅ User manual in Polish
• ✅ Protective packaging

Self-assembly and use of GSM/UMTS/LTE amplifiers, also known as repeaters by unauthorized persons, is prohibited by law. Only mobile network operators have the right to install such devices. Failure to comply with the above may be considered as an act subject to a fine, and in the case of persistent action, a penalty of restriction or imprisonment up to 2 years.
